Colder Products

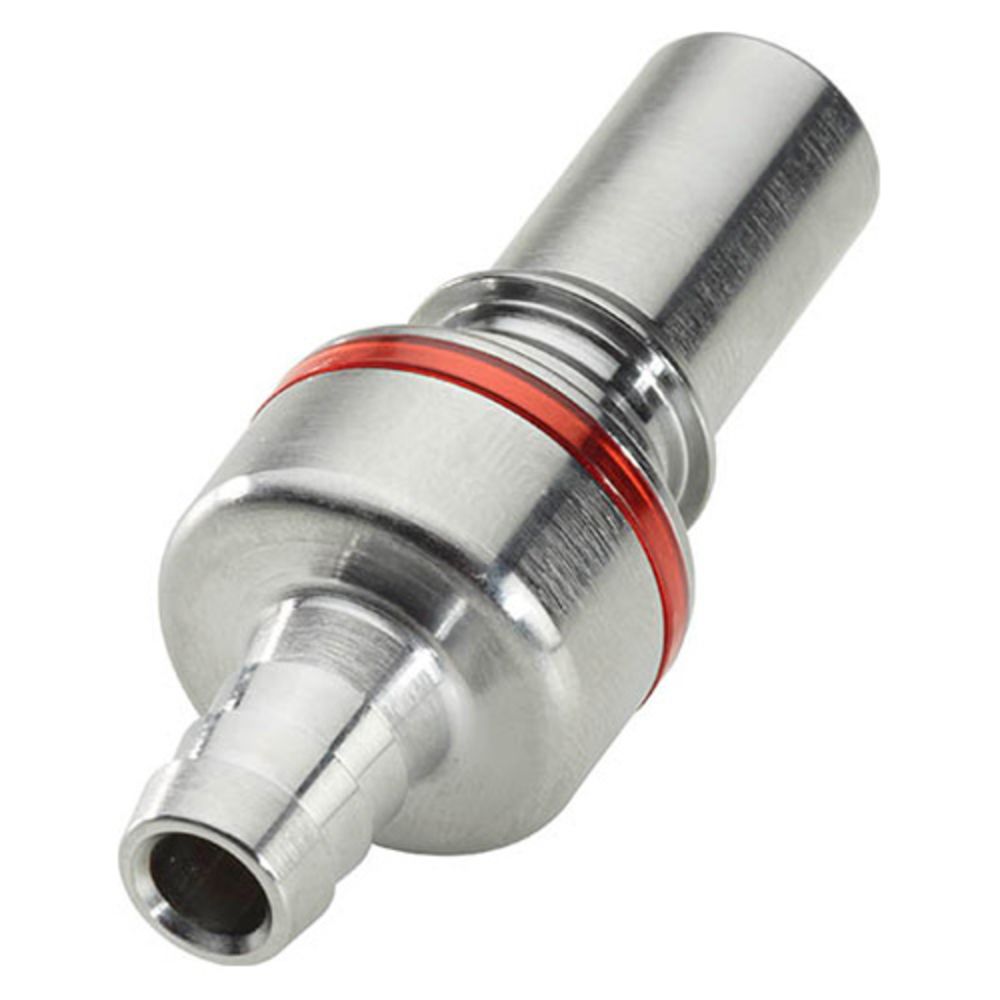

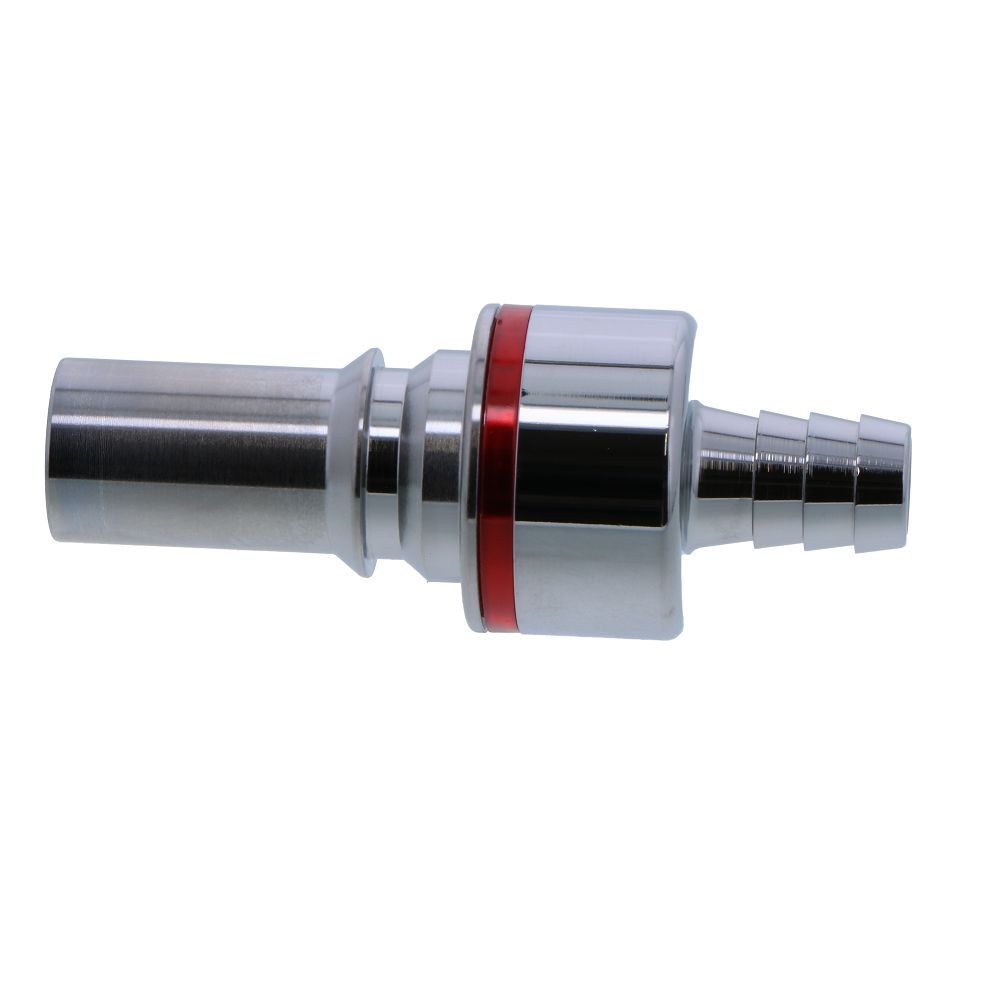

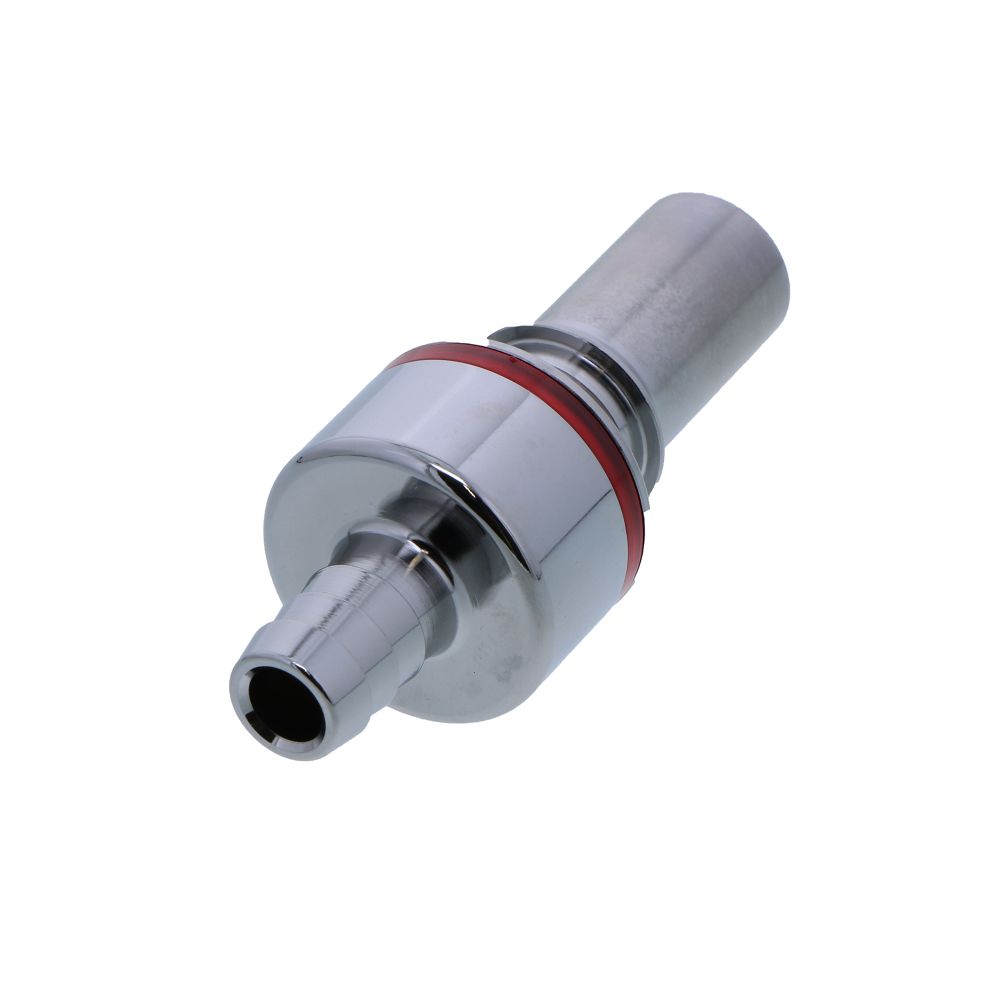

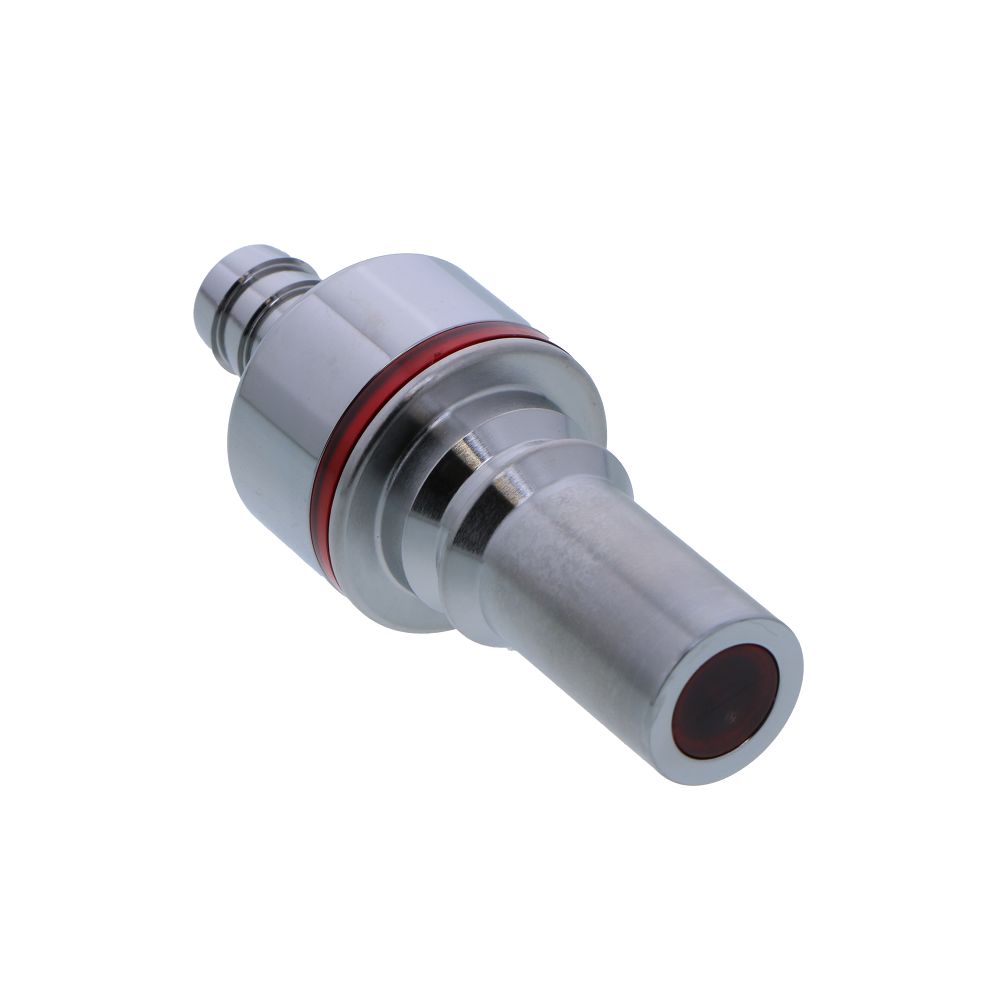

LQ6D22006RED Valved In-Line Liquid Cooling Coupling Insert 3/8 ID Barb Warm Red

Part Number: LQ6D22006RED

In Stock

out of stock

In Stock

$38.82

Colder’s LQ6 Series couplings are designed specifically for liquid cooling applications and utilize a new patent-pending liquid cooling valve technology. The LQ6's closed-system design and automatic non-spill shutoff valves provide dripless connections and disconnections, even after long-term and repeated use. Also available in blue.

 Specifications;
  • Material: Brass
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Finish: Chrome
  • Color Coding: Cool Blue or Warm Red
  • Temperature Range: -0ºF to 240ºF
  • Max Flow at Disconnect: 4.0 gpm
  • Valve Spring: 302 Stainless Steel
  • Valve: Polysulfone
  • Lubricants: Krytox® PFPE
  • Seal Options: EPDM
  • Spillage:
  • <0.05 cc per disconnect (at 0 psi)
  • <0.125 cc per disconnect (at 120 psi)
  • Inclusion: <0.42 cc per connect
  • Tubing Size: 3/8" ID




Weight & Dimensions

Weight (lbs)

0.05

Details

Series

LQ6

Max Temp (°F)

240

Max Pressure (Psi)

120

Min Temp (°F)

0

Min Pressure (Psi)

Vacuum

Barb Size

3/8" ID

Application

Water, Cooling Systems

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Red

Mounting Options

Free Floating

Origin

USA

Seal Material

EPDM

Spring

302 Stainless Steel

Valve Type

Valved


LQ6D22006RED




Colder’s LQ6 Series couplings are designed specifically for liquid cooling applications and utilize a new patent-pending liquid cooling valve technology. The LQ6's closed-system design and automatic non-spill shutoff valves provide dripless connections and disconnections, even after long-term and repeated use. Also available in blue.

 Specifications;
  • Material: Brass
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Finish: Chrome
  • Color Coding: Cool Blue or Warm Red
  • Temperature Range: -0ºF to 240ºF
  • Max Flow at Disconnect: 4.0 gpm
  • Valve Spring: 302 Stainless Steel
  • Valve: Polysulfone
  • Lubricants: Krytox® PFPE
  • Seal Options: EPDM
  • Spillage:
  • <0.05 cc per disconnect (at 0 psi)
  • <0.125 cc per disconnect (at 120 psi)
  • Inclusion: <0.42 cc per connect
  • Tubing Size: 3/8" ID



Weight & Dimensions

Weight (lbs)

0.05

Details

Series

LQ6

Max Temp (°F)

240

Max Pressure (Psi)

120

Min Temp (°F)

0

Min Pressure (Psi)

Vacuum

Barb Size

3/8" ID

Application

Water, Cooling Systems

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Red

Mounting Options

Free Floating

Origin

USA

Seal Material

EPDM

Spring

302 Stainless Steel

Valve Type

Valved
