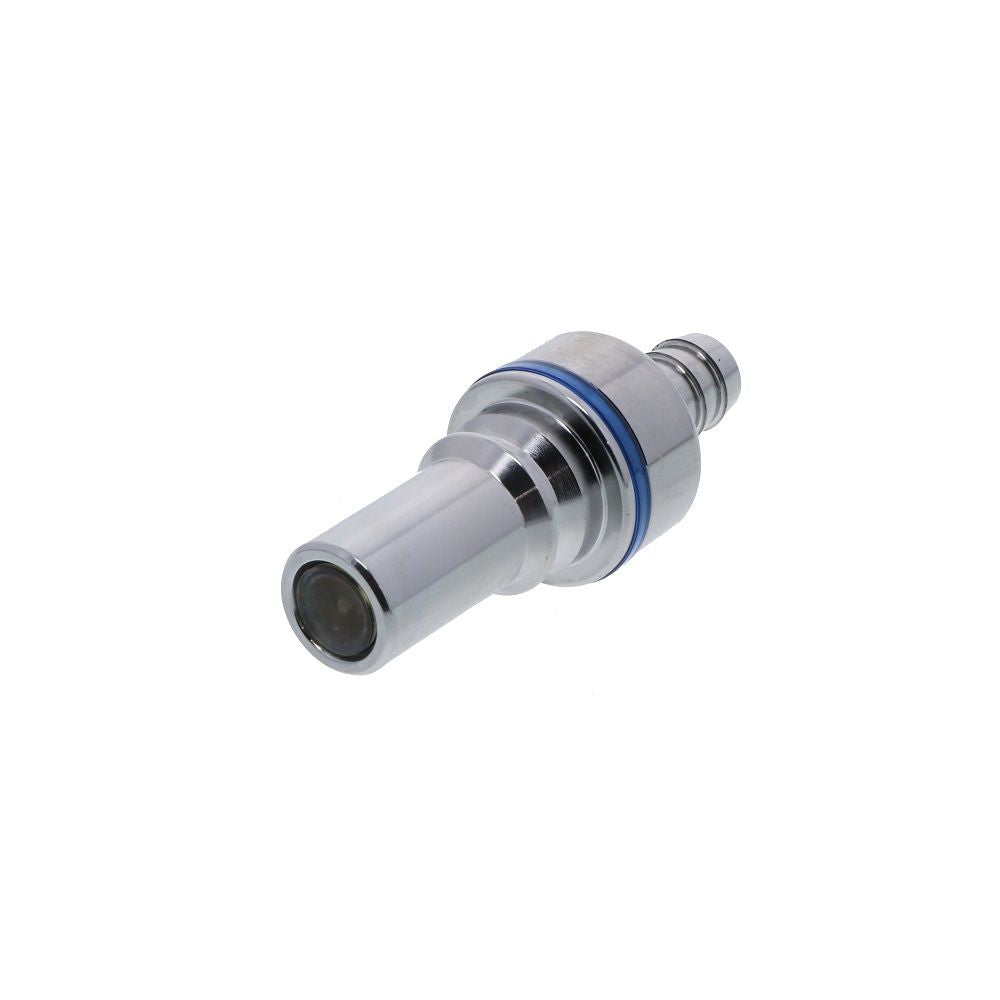

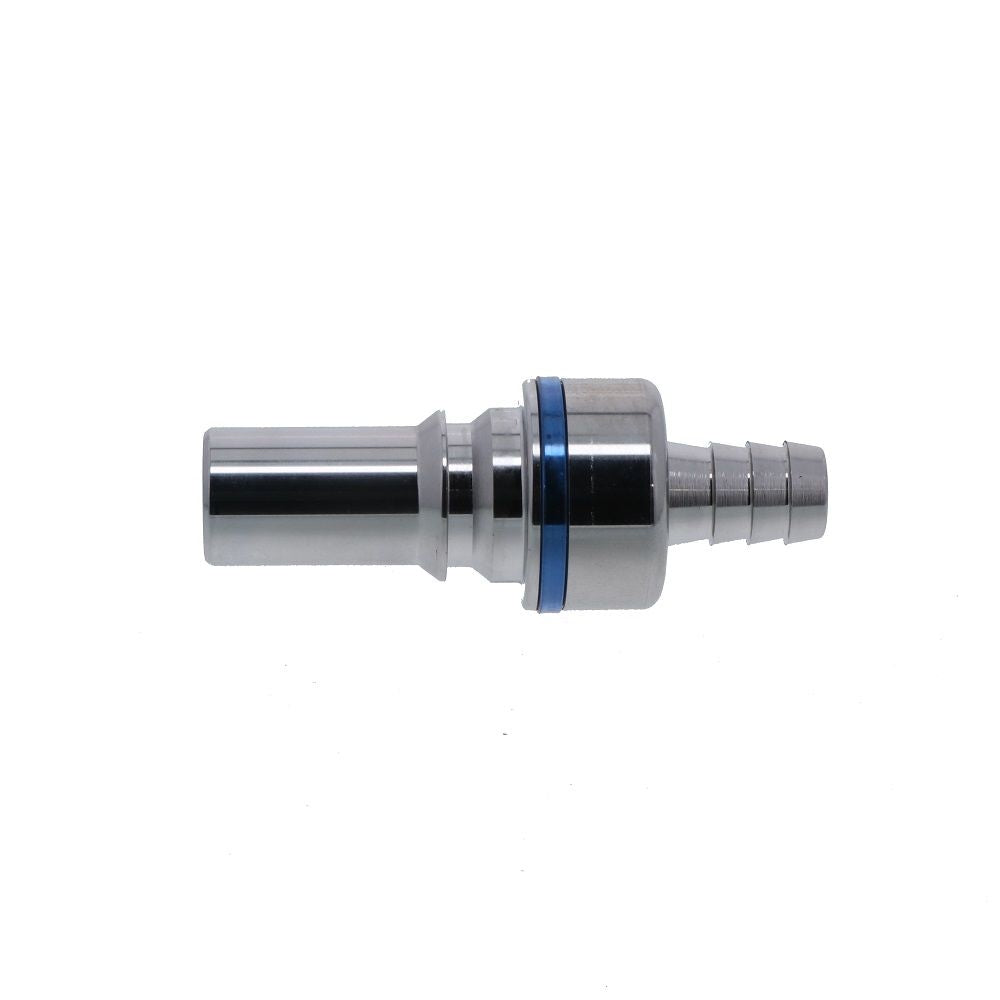

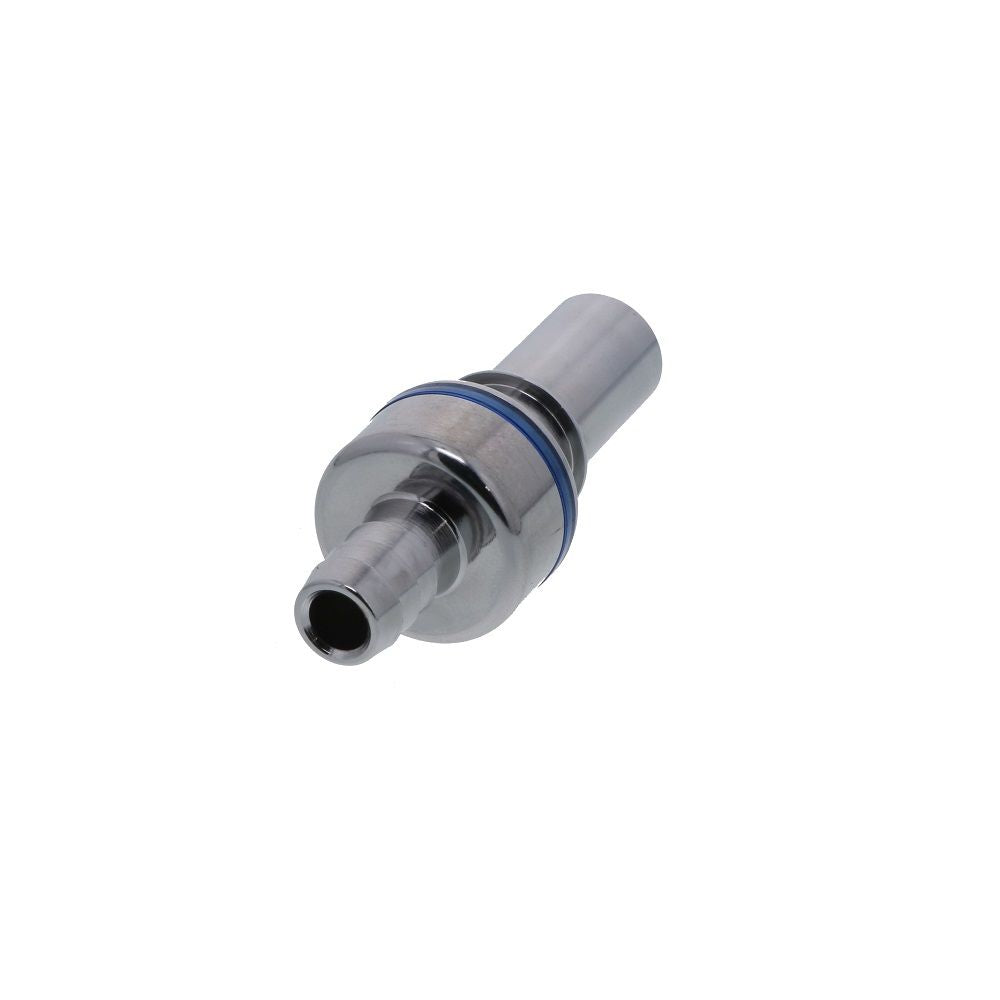

Colder’s LQ6 Series couplings are designed specifically for liquid cooling applications and utilize a new patent-pending liquid cooling valve technology. The LQ6's closed-system design and automatic non-spill shutoff valves provide dripless connections and disconnections, even after long-term and repeated use. Also available in red.
Specifications:
Specifications:
- Material: Brass
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Finish: Chrome
- Color Coding: Cool Blue or Warm Red
- Temperature Range: -0ºF to 240ºF
- Max Flow at Disconnect: 4.0 gpm
- Valve Spring: 302 Stainless Steel
- Valve: Polysulfone
- Lubricants: Krytox® PFPE
- Seal Options: EPDM
- Spillage:
- <0.05 cc per disconnect (at 0 psi)
- <0.125 cc per disconnect (at 120 psi)
- Inclusion: <0.42 cc per connect
- Tubing Size: 3/8" ID
Weight & Dimensions
Height (inches) | 0.88 |
Length (inches) | 2.63 |
Weight (lbs) | 0.015625 |
Width (inches) | 0.88 |
Details
Application | Water, Cooling Systems |
Barb Size | 3/8" ID |
Body Material | Chrome-Plated Brass |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 240 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 0 |
Mounting Options | Free Floating |
Seal Material | EPDM |
Series | LQ6 |
Spring | 302 Stainless Steel |
Valve Type | Valved |
Color / Finish | Blue |
Type | Coupling Insert |
