Colder Products

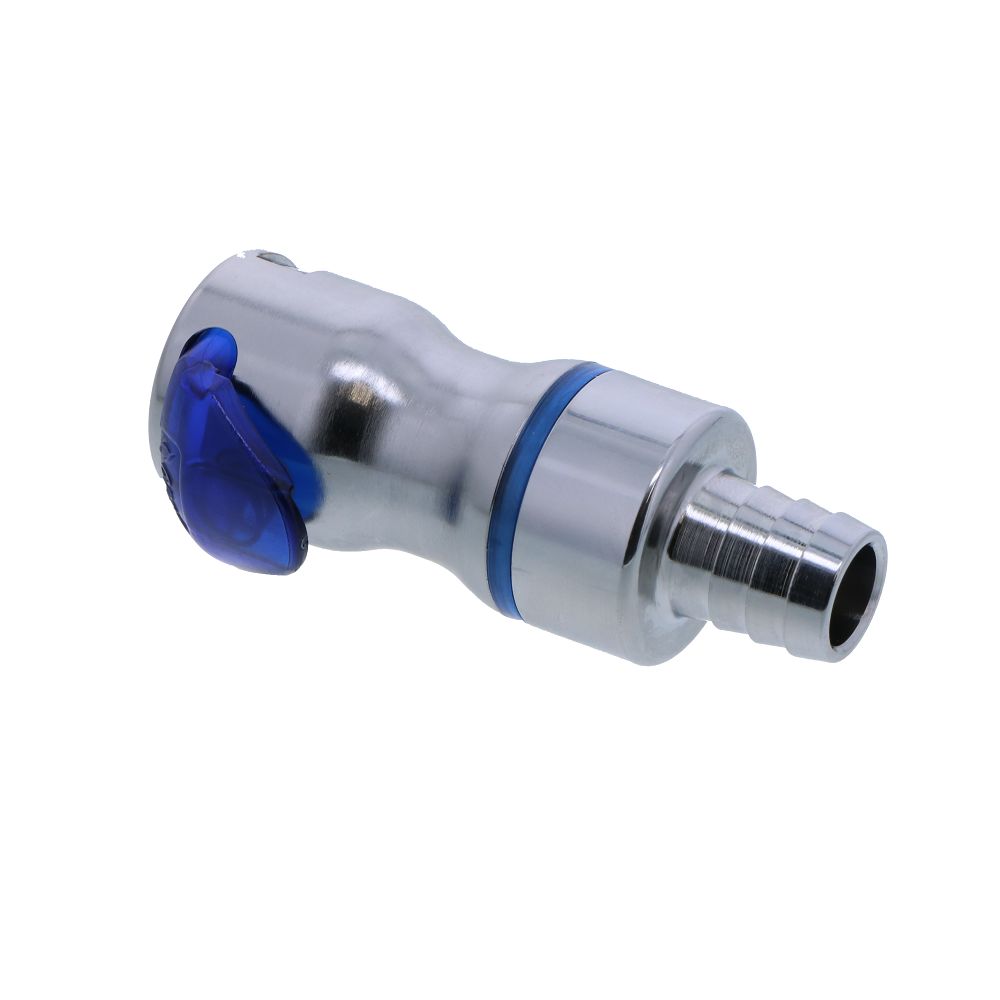

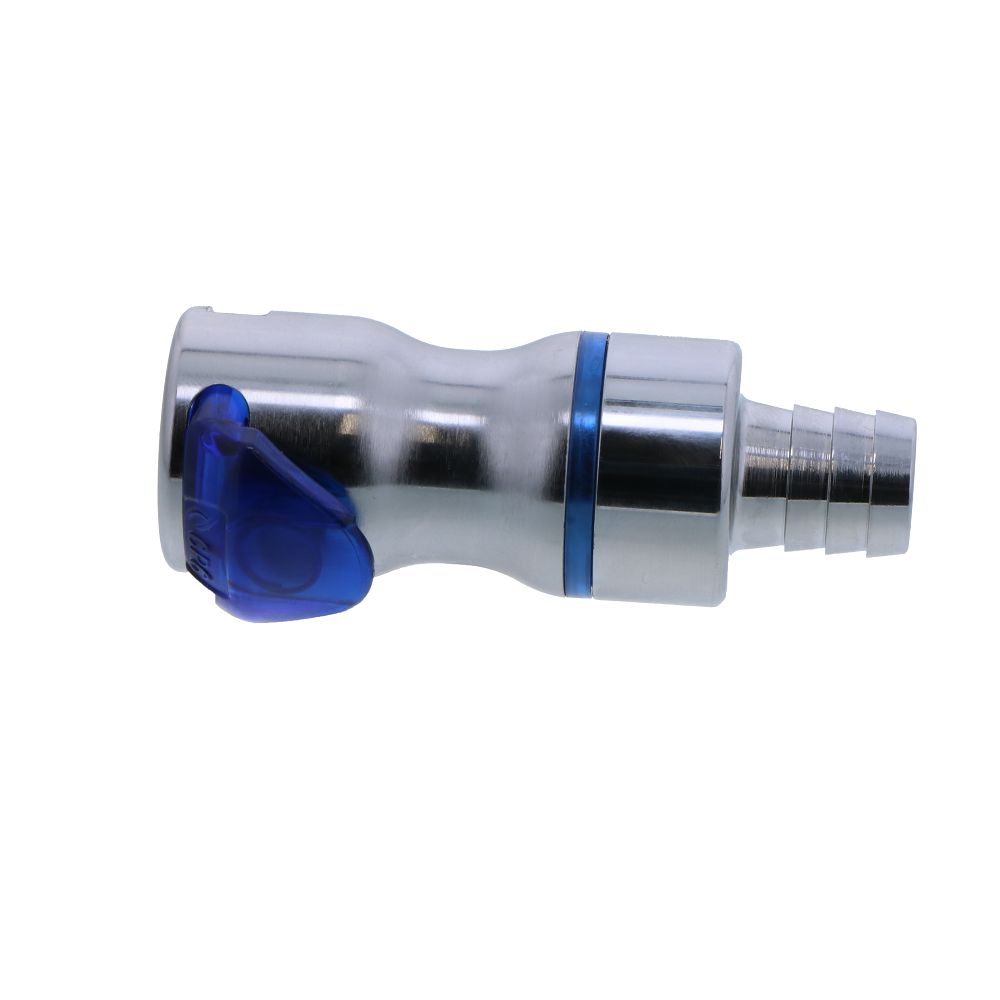

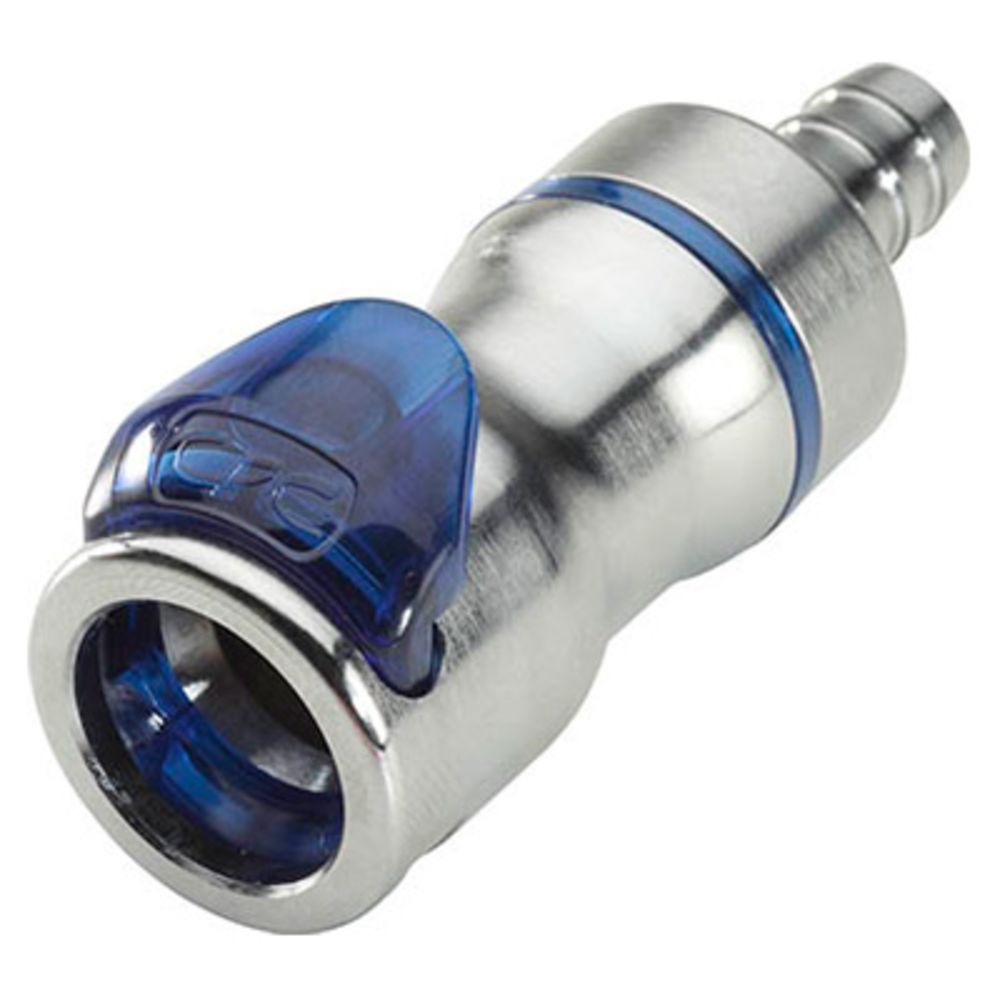

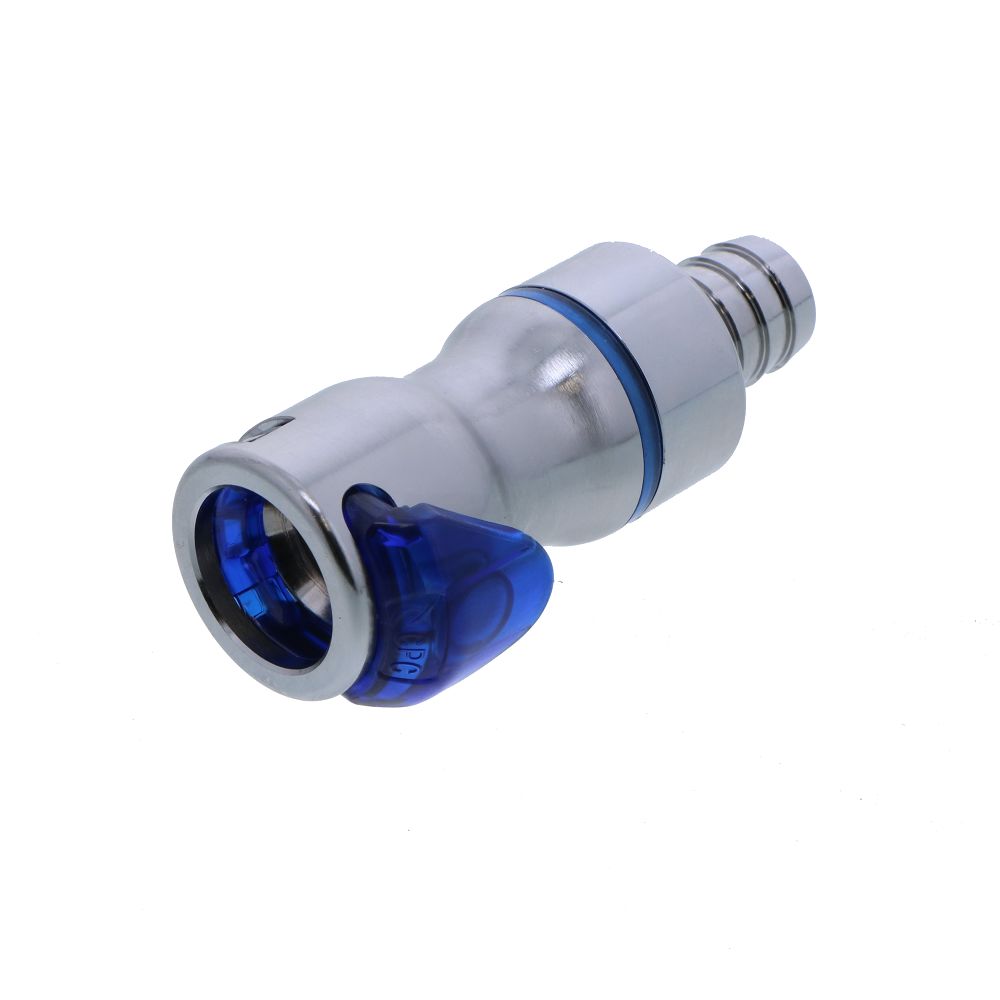

LQ6D17008BLU Valved In-Line Liquid Cooling Coupling Body 1/2 ID Barb Cool Blue

Part Number: LQ6D17008BLU

In Stock

out of stock

In Stock

$54.18

Colder’s LQ6 Series couplings are designed specifically for liquid cooling applications and utilize a new patent-pending liquid cooling valve technology. The LQ6's closed-system design and automatic non-spill shutoff valves provide dripless connections and disconnections, even after long-term and repeated use. Also available in red.

Specifications
  • Material: Brass
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Finish: Chrome
  • Color Coding: Cool Blue or Warm Red
  • Temperature Range: -0ºF to 240ºF
  • Max Flow at Disconnect: 4.0 gpm
  • Valve Spring: 302 Stainless Steel
  • Valves and Thumb Latch: Polysulfone
  • Lubricants: Krytox® PFPE
  • Seal Options: EPDM
  • Spillage:
  • <0.05 cc per disconnect (at 0 psi)
  • <0.125 cc per disconnect (at 120 psi)
  • Inclusion: <0.42 cc per connect
  • Tubing Size: 1/2" ID




Weight & Dimensions

Height (inches)

1.25

Length (inches)

3

Weight (lbs)

0.258

Width (inches)

1.75

Details

Application

Water, Cooling Systems

Barb Size

1/2" ID

Body Material

Chrome-Plated Brass

Max Pressure (Psi)

120

Max Temp (°F)

240

Min Pressure (Psi)

Vacuum

Min Temp (°F)

0

Mounting Options

Free Floating

Seal Material

EPDM

Series

LQ6

Spring

302 Stainless Steel

Thumb Latch

Polysulfone

Valve Type

Valved

Color / Finish

Blue

Type

Coupling Body


LQ6D17008BLU
