Home / Fittings / Quick-Disconnect Fittings / LQ4D46004RED Valved Straight Thread Liquid Cooling Coupling Insert 1/4 SAE-04 Warm Red
Colder Products

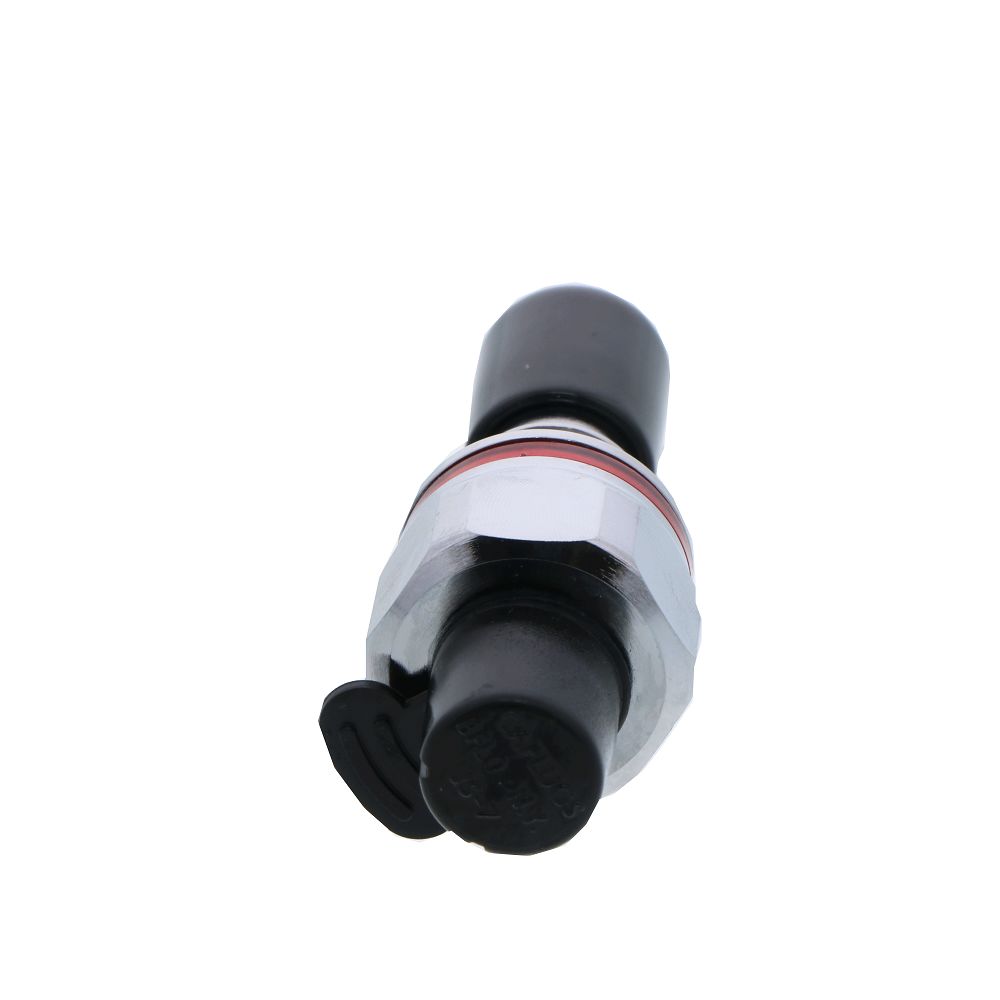

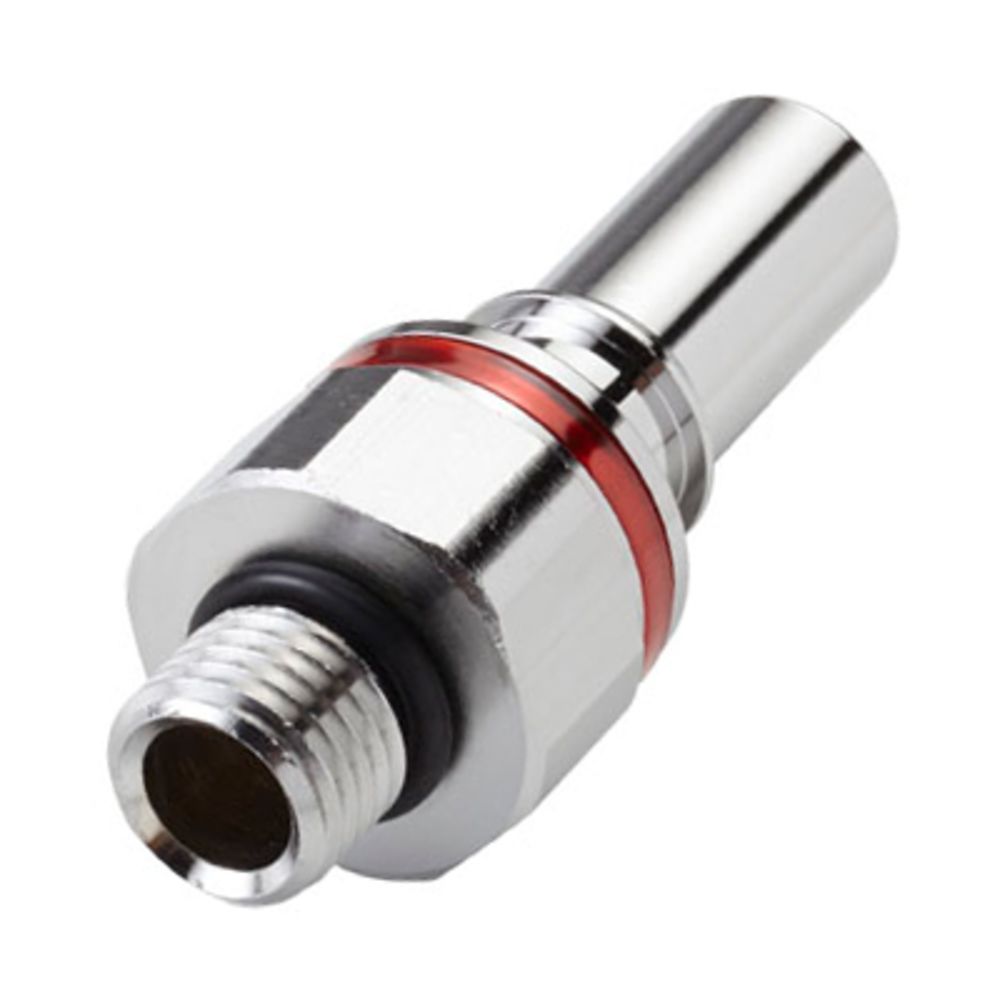

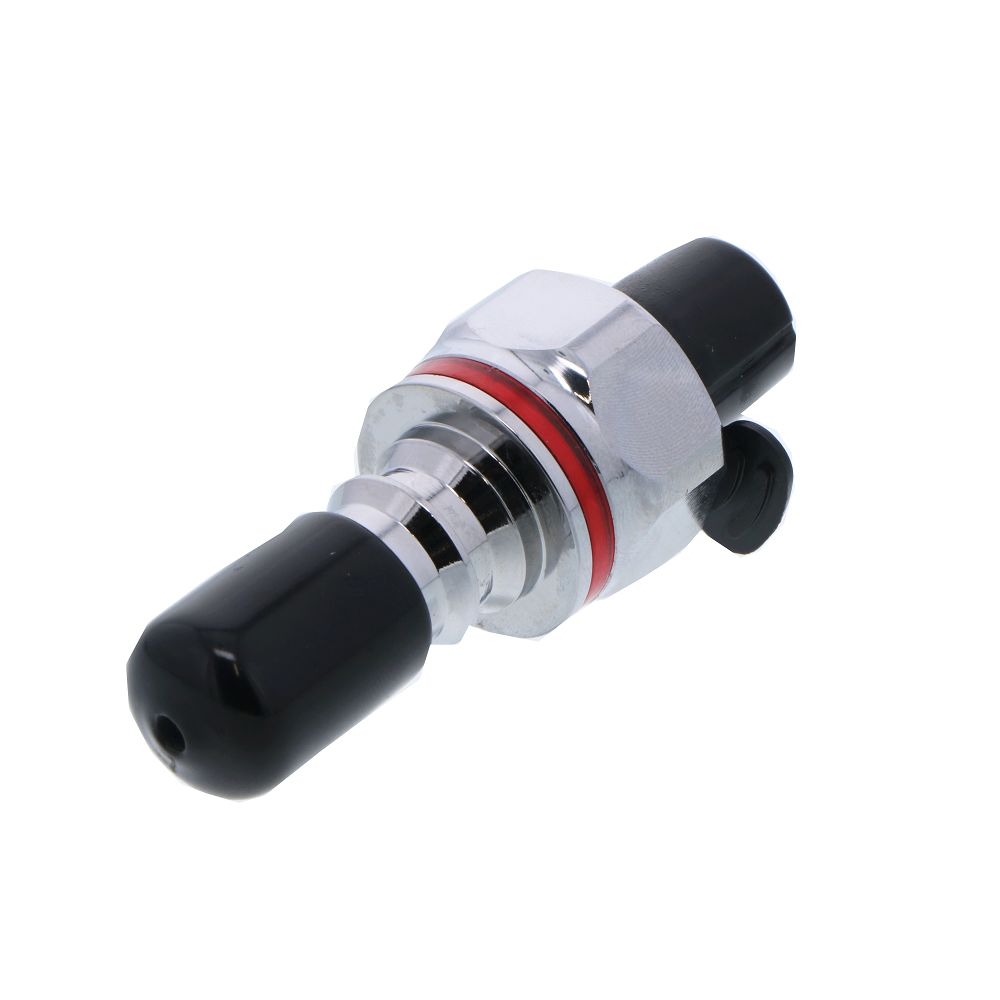

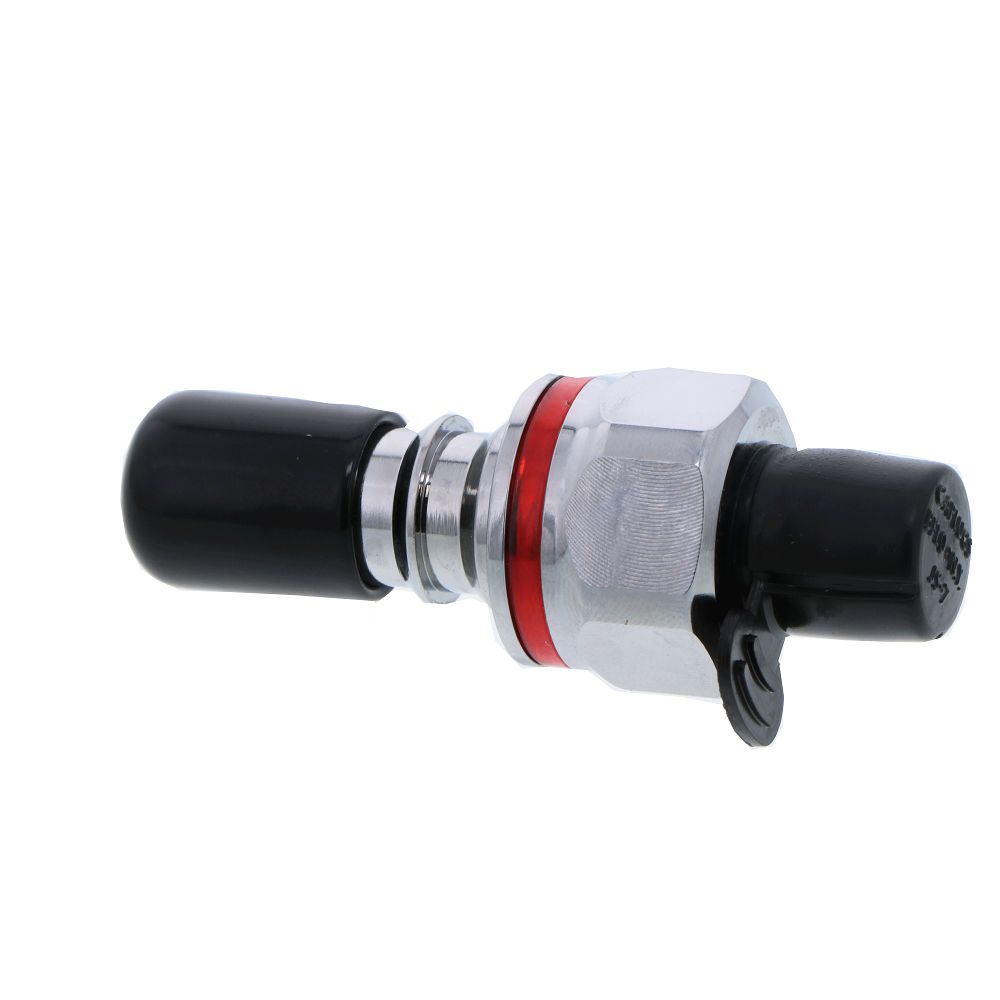

LQ4D46004RED Valved Straight Thread Liquid Cooling Coupling Insert 1/4 SAE-04 Warm Red

Part Number: LQ4D46004RED
Your price:
Colder’s LQ4 Series couplings are designed specifically for liquid cooling applications and utilize a new patent-pending liquid cooling valve technology. The LQ4's closed-system design and automatic non-spill shutoff valves provide dripless connections and disconnections to protect valuable electronics, even after long-term and repeated use. Also available in blue.

Specifications
  • Material: Brass
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: 1/4" SAE-04 Thread
  • Valve Option: Valved
  • Finish: Chrome
  • Color Coding: Cool Blue or Warm Red
  • Temperature Range: -0ºF to 240ºF
  • Max Flow at Disconnect: 3.0 gpm
  • Valve Spring: Stainless Steel
  • Valves and Thumb Latch: Polysulfone
  • Lubricants: Krytox® PFPE
  • Seal Options: EPDM
  • Spillage:
  • <0.025 cc per disconnect (at 0 psi)
  • <0.055 cc per disconnect (at 120 psi)
  • Inclusion: <0.055 cc per connect
