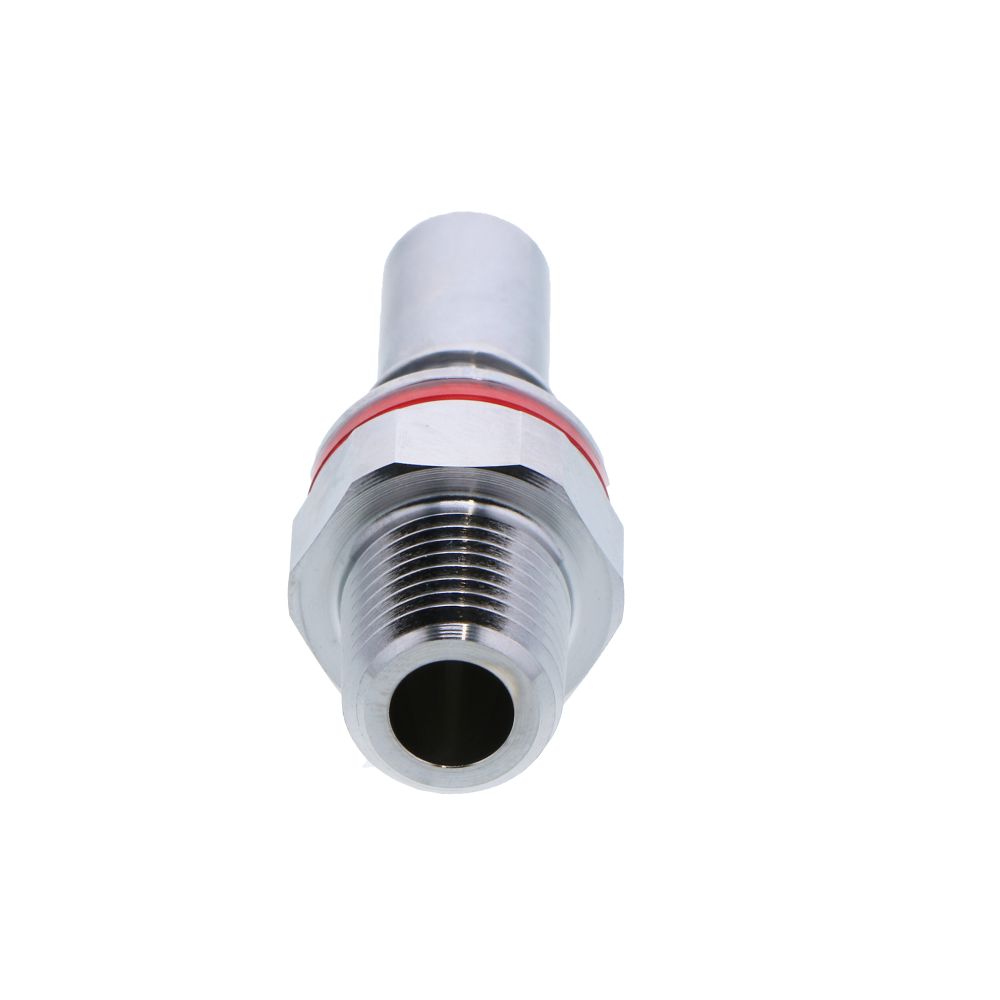

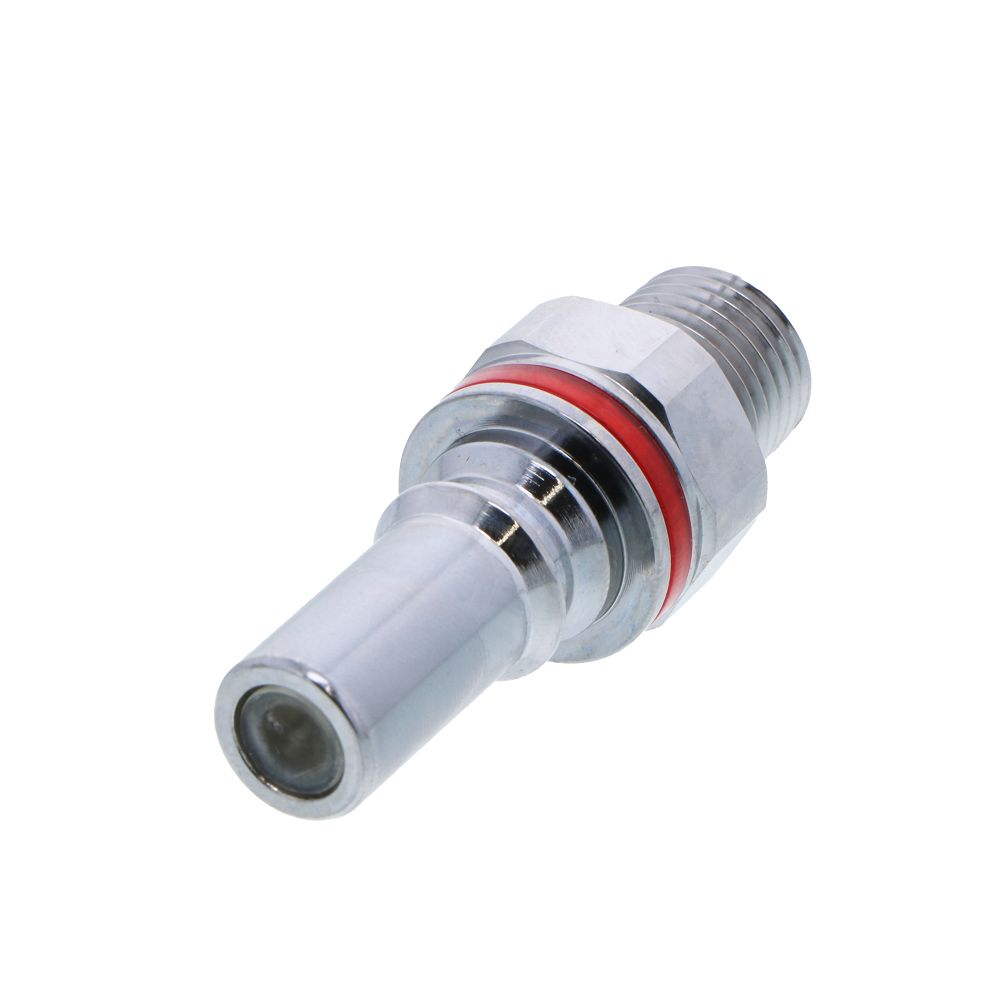

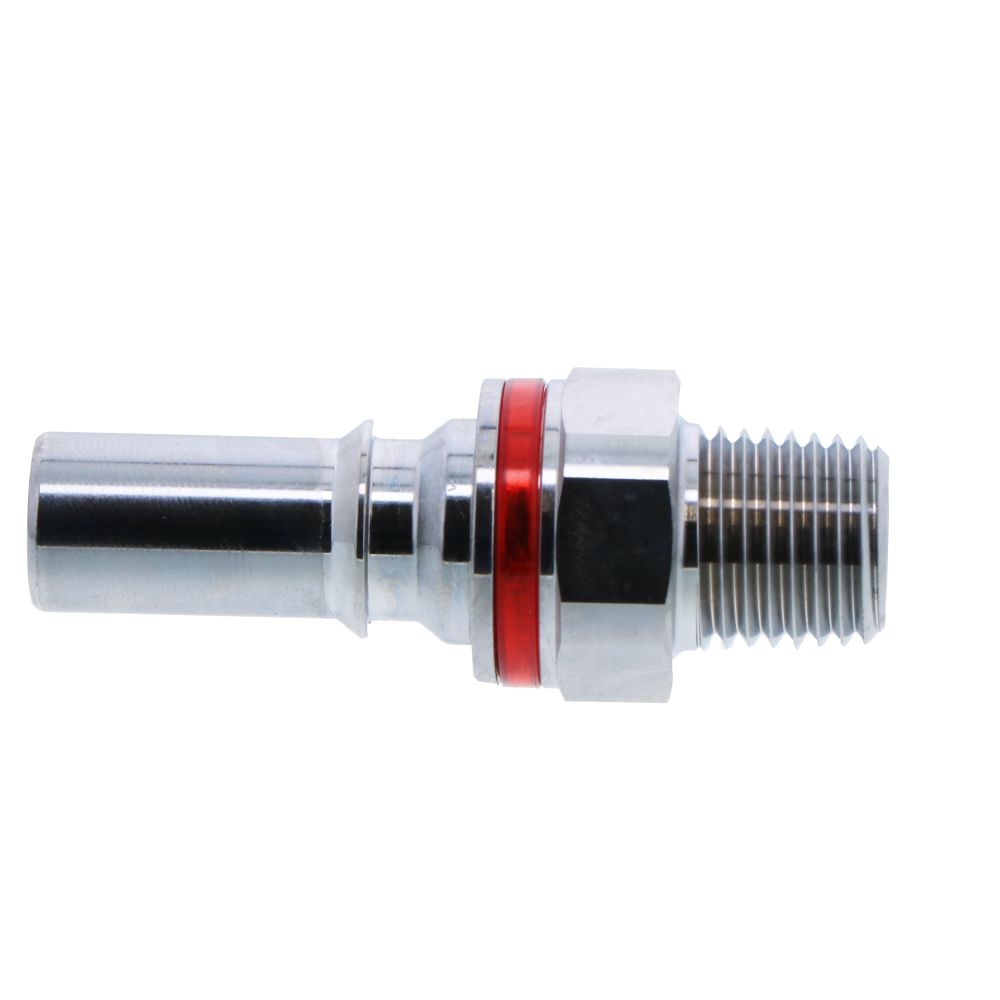

LQ4D24004RED Valved Pipe Thread Liquid Cooling Coupling Insert 1/4 NPT Warm Red
Part Number: LQ4D24004RED
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications
- Material: Brass
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: 1/4" NPT Thread
- Valve Option: Valved
- Finish: Chrome
- Color Coding: Cool Blue or Warm Red
- Temperature Range: -0ºF to 240ºF
- Max Flow at Disconnect: 3.0 gpm
- Valve Spring: Stainless Steel
- Valves and Thumb Latch: Polysulfone
- Lubricants: Krytox® PFPE
- Seal Options: EPDM
- Spillage:
- <0.025 cc per disconnect (at 0 psi)
- <0.055 cc per disconnect (at 120 psi)
- Inclusion: <0.055 cc per connect
Product Details | |
---|---|
Application | Water Cooling Systems |
Body Material | Chrome-Plated Brass |
Inlet Connection | 1/4" MPT |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 240 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 0 |
Mounting Options | Thread |
Nsf Version | No |
Outlet Connection | 1/4" MPT |
Seal Material | EPDM |
Series | LQ4 |
Shape | Straight |
Size | 1/4" |
Spring | Stainless Steel |
Thumb Latch | Polysulfone |
Valve Type | Valved |
Color / Finish | Red |
Connection Type | Male (MPT) |
Origin | USA |
Type | Coupling Insert |
Product Details | |
---|---|
Application | Water Cooling Systems |
Body Material | Chrome-Plated Brass |
Inlet Connection | 1/4" MPT |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 240 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 0 |
Mounting Options | Thread |
Nsf Version | No |
Outlet Connection | 1/4" MPT |
Seal Material | EPDM |
Series | LQ4 |
Shape | Straight |
Size | 1/4" |
Spring | Stainless Steel |
Thumb Latch | Polysulfone |
Valve Type | Valved |
Color / Finish | Red |
Connection Type | Male (MPT) |
Origin | USA |
Type | Coupling Insert |
Product Details | |
---|---|
Application | Water Cooling Systems |
Body Material | Chrome-Plated Brass |
Inlet Connection | 1/4" MPT |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 240 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 0 |
Mounting Options | Thread |
Nsf Version | No |
Outlet Connection | 1/4" MPT |
Seal Material | EPDM |
Series | LQ4 |
Shape | Straight |
Size | 1/4" |
Spring | Stainless Steel |
Thumb Latch | Polysulfone |
Valve Type | Valved |
Color / Finish | Red |
Connection Type | Male (MPT) |
Origin | USA |
Type | Coupling Insert |
Specifications
- Material: Brass
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: 1/4" NPT Thread
- Valve Option: Valved
- Finish: Chrome
- Color Coding: Cool Blue or Warm Red
- Temperature Range: -0ºF to 240ºF
- Max Flow at Disconnect: 3.0 gpm
- Valve Spring: Stainless Steel
- Valves and Thumb Latch: Polysulfone
- Lubricants: Krytox® PFPE
- Seal Options: EPDM
- Spillage:
- <0.025 cc per disconnect (at 0 psi)
- <0.055 cc per disconnect (at 120 psi)
- Inclusion: <0.055 cc per connect
