Colder Products

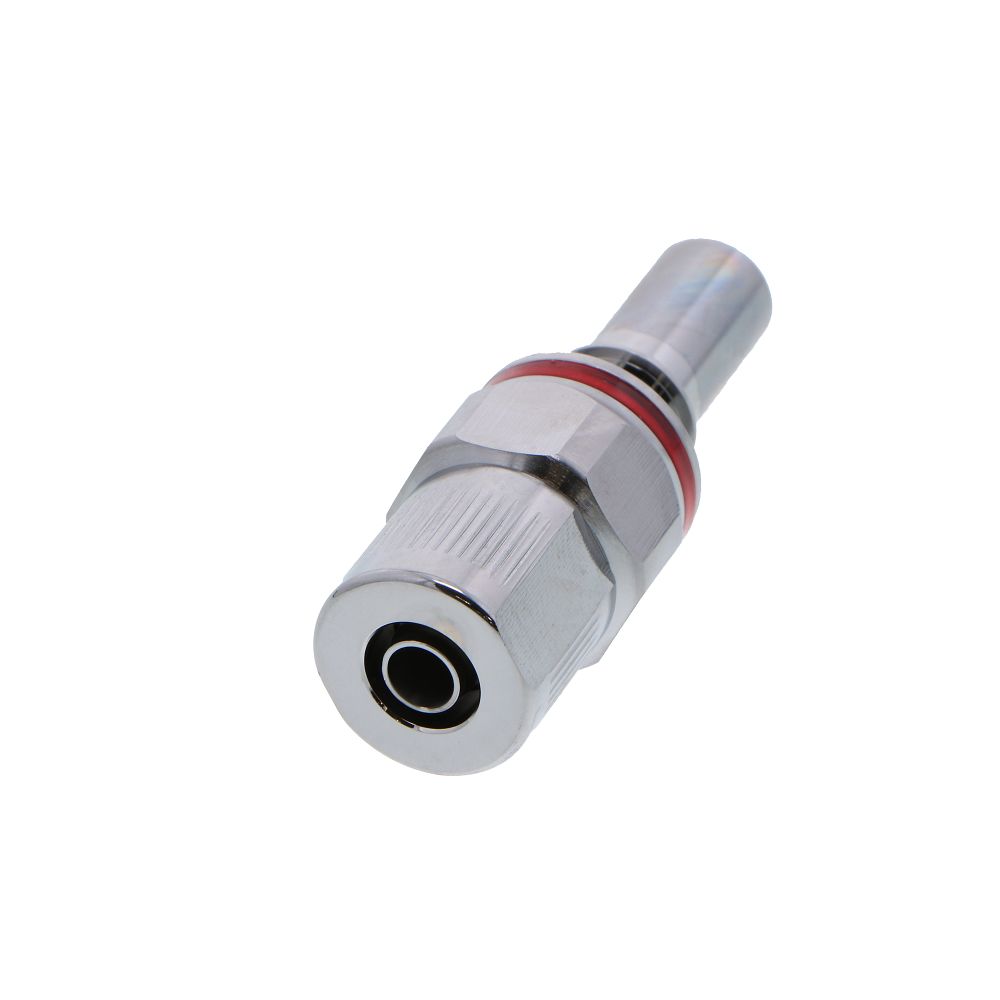

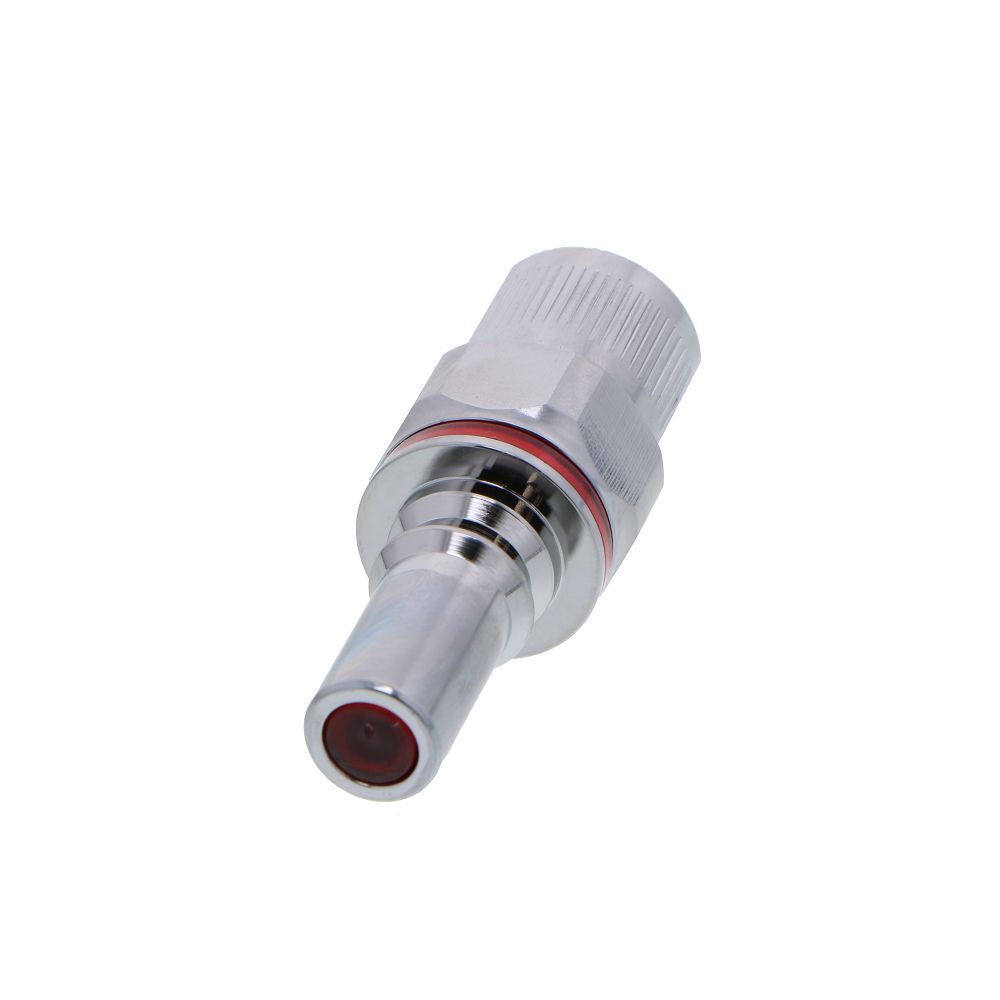

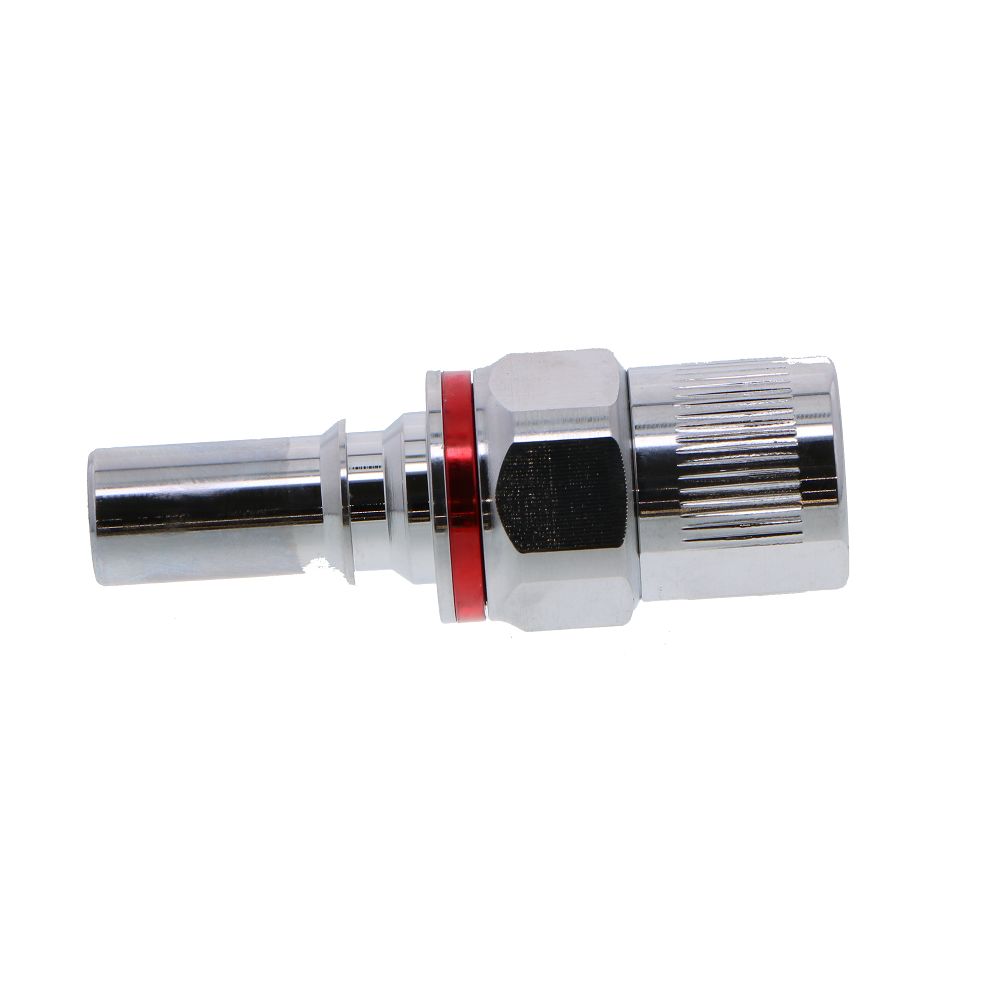

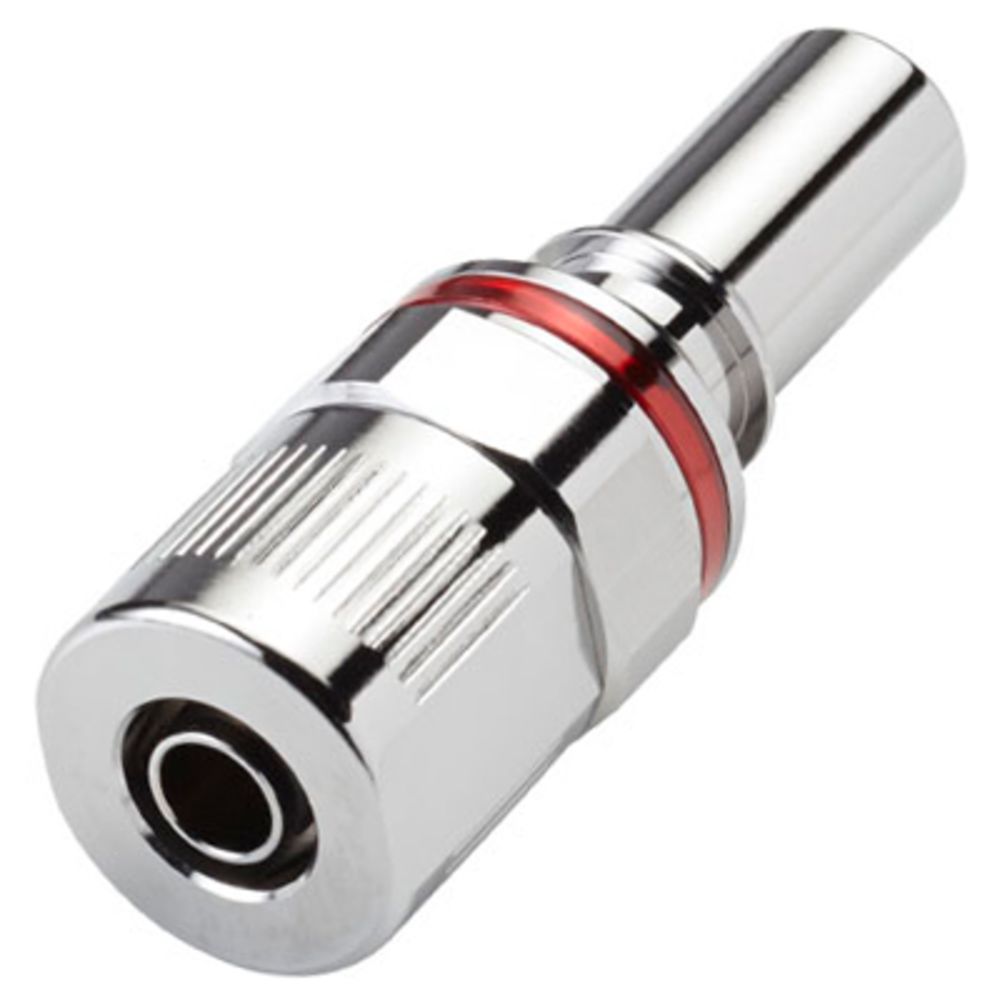

LQ4D20006RED Valved In-Line 3/8" PTF Liquid Cooling Coupling Insert Warm Red

Part Number: LQ4D20006RED

In Stock

out of stock

In Stock

$44.17

Colder’s LQ4 Series couplings are designed specifically for liquid cooling applications and utilize a new patent-pending liquid cooling valve technology. The LQ4's closed-system design and automatic non-spill shutoff valves provide dripless connections and disconnections to protect valuable electronics, even after long-term and repeated use. Also available in blue.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Finish: Chrome
  • Color Coding: Cool Blue or Warm Red
  • Temperature Range: -0ºF to 240ºF
  • Max Flow at Disconnect: 3.0 gpm
  • Valve Spring: Stainless Steel
  • Valves and Thumb Latch: Polysulfone
  • Lubricants: Krytox® PFPE
  • Seal Options: EPDM
  • Spillage:
    • <0.025 cc per disconnect (at 0 psi)
    • <0.055 cc per disconnect (at 120 psi)
  • Inclusion: <0.055 cc per connect
  • Tubing Size: 1/4" ID, 3/8" OD




Details

Application

Water, Cooling Systems

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Inlet/Outlet Connection

3/8" PTF

Max Operating Pressure

120

Max Operating Temperature

240

Mounting Options

Free Floating

Origin

USA

Push In Size

3/8" OD

Seal Material

EPDM

Series

LQ4

Size

3/8"

Spring

Stainless Steel

Thumb Latch

Polysulfone

Valve Type

Valved


LQ4D20006RED




Colder’s LQ4 Series couplings are designed specifically for liquid cooling applications and utilize a new patent-pending liquid cooling valve technology. The LQ4's closed-system design and automatic non-spill shutoff valves provide dripless connections and disconnections to protect valuable electronics, even after long-term and repeated use. Also available in blue.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Finish: Chrome
  • Color Coding: Cool Blue or Warm Red
  • Temperature Range: -0ºF to 240ºF
  • Max Flow at Disconnect: 3.0 gpm
  • Valve Spring: Stainless Steel
  • Valves and Thumb Latch: Polysulfone
  • Lubricants: Krytox® PFPE
  • Seal Options: EPDM
  • Spillage:
    • <0.025 cc per disconnect (at 0 psi)
    • <0.055 cc per disconnect (at 120 psi)
  • Inclusion: <0.055 cc per connect
  • Tubing Size: 1/4" ID, 3/8" OD



Details

Application

Water, Cooling Systems

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Inlet/Outlet Connection

3/8" PTF

Max Operating Pressure

120

Max Operating Temperature

240

Mounting Options

Free Floating

Origin

USA

Push In Size

3/8" OD

Seal Material

EPDM

Series

LQ4

Size

3/8"

Spring

Stainless Steel

Thumb Latch

Polysulfone

Valve Type

Valved

Documentation
