Home / Fittings / Quick-Disconnect Fittings / Coupling Insert / LQ2D4604BLU Valved Liquid Cooling Coupling Insert 1/4 SAE
Colder Products

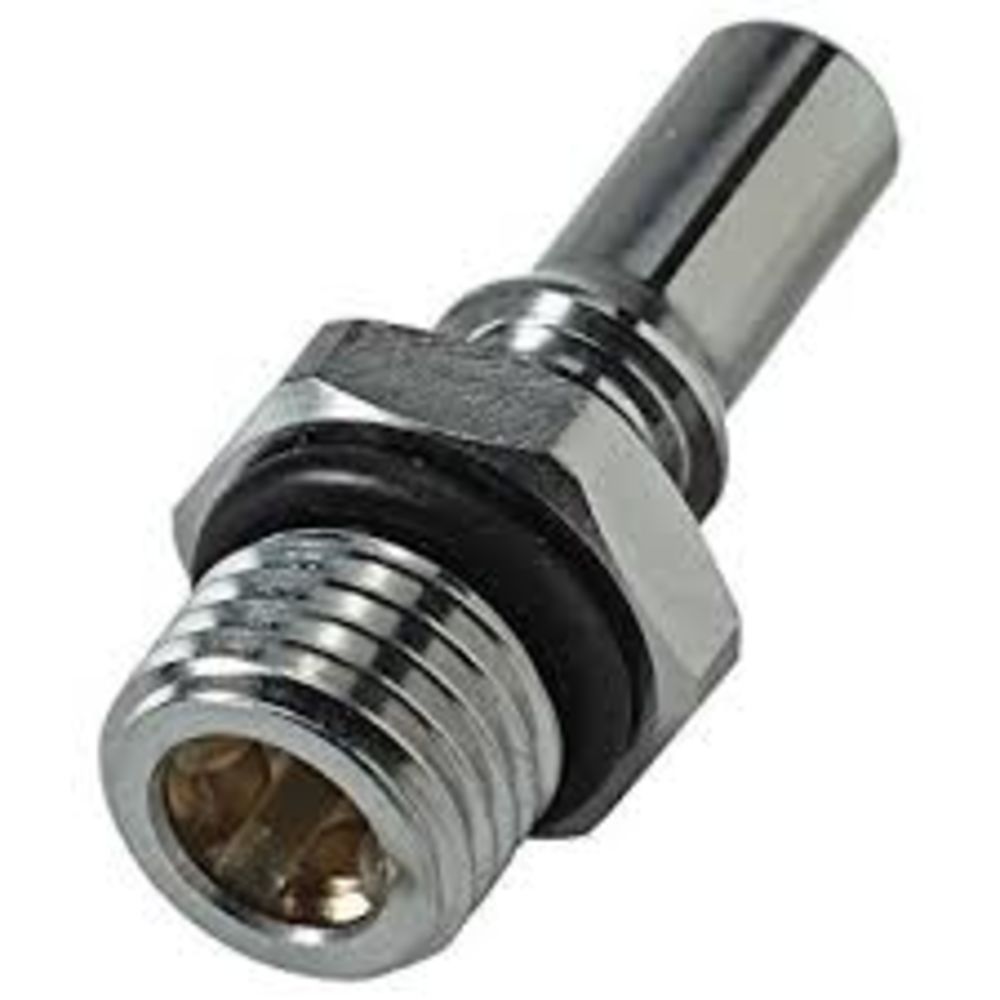

LQ2D4604BLU Valved Liquid Cooling Coupling Insert 1/4 SAE

Part Number: LQ2D4604BLU
Main Product Image
Due to supply chain issues at the start , If the non-NSF version is not in stock, an identical Colder part with NSF testing (Auto-upgrade) will be sent to fulfill the order instead of the original part.
LQ2 Series provides ultra-reliable, drip-less connections and disconnections that protect valuable electronics. Designed specifically for liquid cooling applications, the LQ2 offers a high-flow capacity to optimize liquid cooling system performance. LQ2 uses CPC developed valve technology that eliminates drips and is able to withstand long-term use.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome with cool blue
  • Mounting Option: Thread
  • Pressure Range: Vacuum to 200 psi, 13.8 bar
  • Temperature Range: 0°C to 240°F
  • Seal Options: EPDM
  • Valve Spring: Stainless Steel
  • Valve Option: Valved
  • Spilling: <0.015 cc per disconnect at 0 psi; <0.063 cc per disconnect at 200 psi
