Colder Products

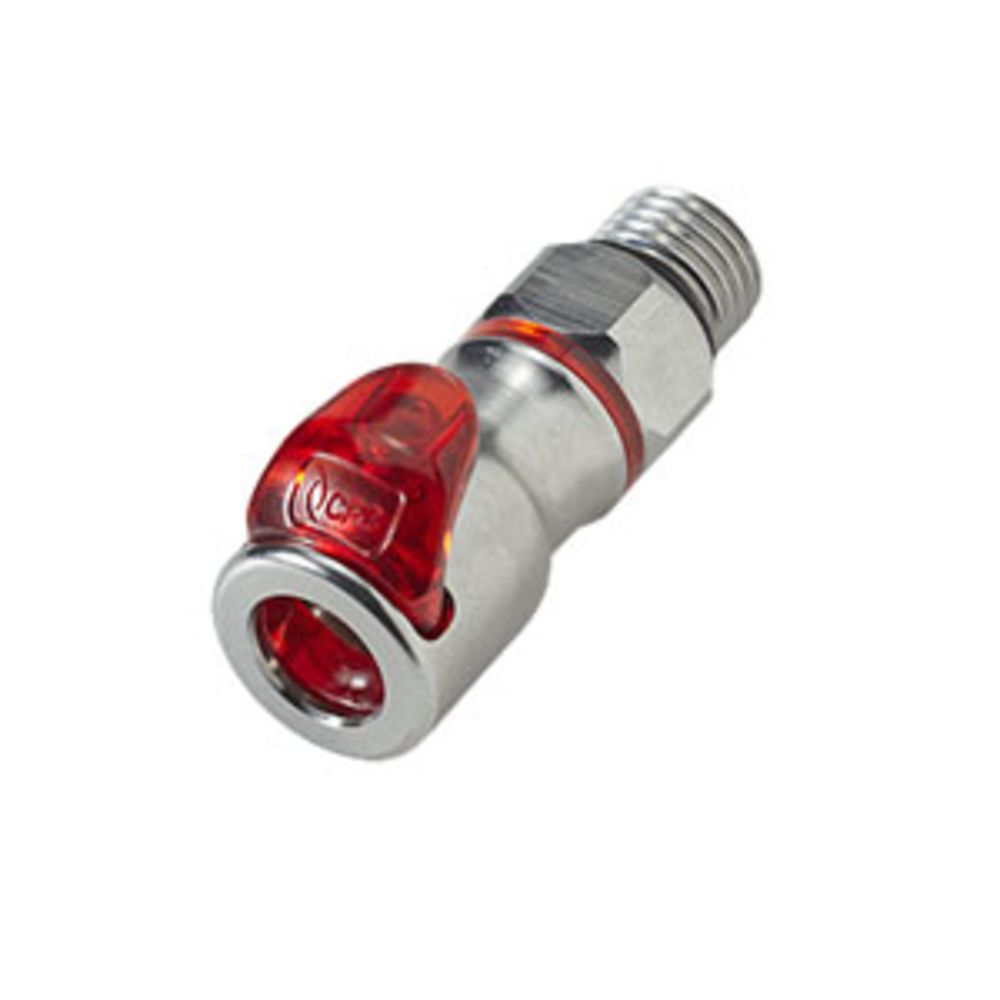

LQ2D3004RED Valved In-Line Liquid Cooling Coupling Body 1/4 SAE

Part Number: LQ2D3004RED

In Stock

out of stock

In Stock

$37.44

LQ2 Series provides ultra-reliable, dripless connections and disconnections that protect valuable electronics. Designed specifically for liquid cooling applications, the LQ2 offers a high-flow capacity to optimize liquid cooling system performance. LQ2 uses CPC developed valve technology that eliminates drips and is able to withstand long-term use.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome with warm red
  • Mounting Option: Thread
  • Pressure Range: Vacuum to 200 psi, 13.8 bar
  • Temperature Range: 0°C to 240°F
  • Seal Options: EPDM
  • Valve Spring: Stainless Steel
  • Valve Option: Valved
  • Spilling: <0.015 cc per disconnect at 0 psi; <0.063 cc per disconnect at 200 psi


Details

Application

Water, Cooling Systems

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome/Red

Inlet/Outlet Connection

1/4" SAE

Max Operating Pressure

200

Max Operating Temperature

240

Mounting Options

Thread

Seal Material

EPDM

Series

LQ2

Size

1/4"

Spring

Stainless Steel

Valve Type

Valved


LQ2D3004RED




LQ2 Series provides ultra-reliable, dripless connections and disconnections that protect valuable electronics. Designed specifically for liquid cooling applications, the LQ2 offers a high-flow capacity to optimize liquid cooling system performance. LQ2 uses CPC developed valve technology that eliminates drips and is able to withstand long-term use.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome with warm red
  • Mounting Option: Thread
  • Pressure Range: Vacuum to 200 psi, 13.8 bar
  • Temperature Range: 0°C to 240°F
  • Seal Options: EPDM
  • Valve Spring: Stainless Steel
  • Valve Option: Valved
  • Spilling: <0.015 cc per disconnect at 0 psi; <0.063 cc per disconnect at 200 psi

Details

Application

Water, Cooling Systems

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome/Red

Inlet/Outlet Connection

1/4" SAE

Max Operating Pressure

200

Max Operating Temperature

240

Mounting Options

Thread

Seal Material

EPDM

Series

LQ2

Size

1/4"

Spring

Stainless Steel

Valve Type

Valved

Documentation
LQ2D3004RED
