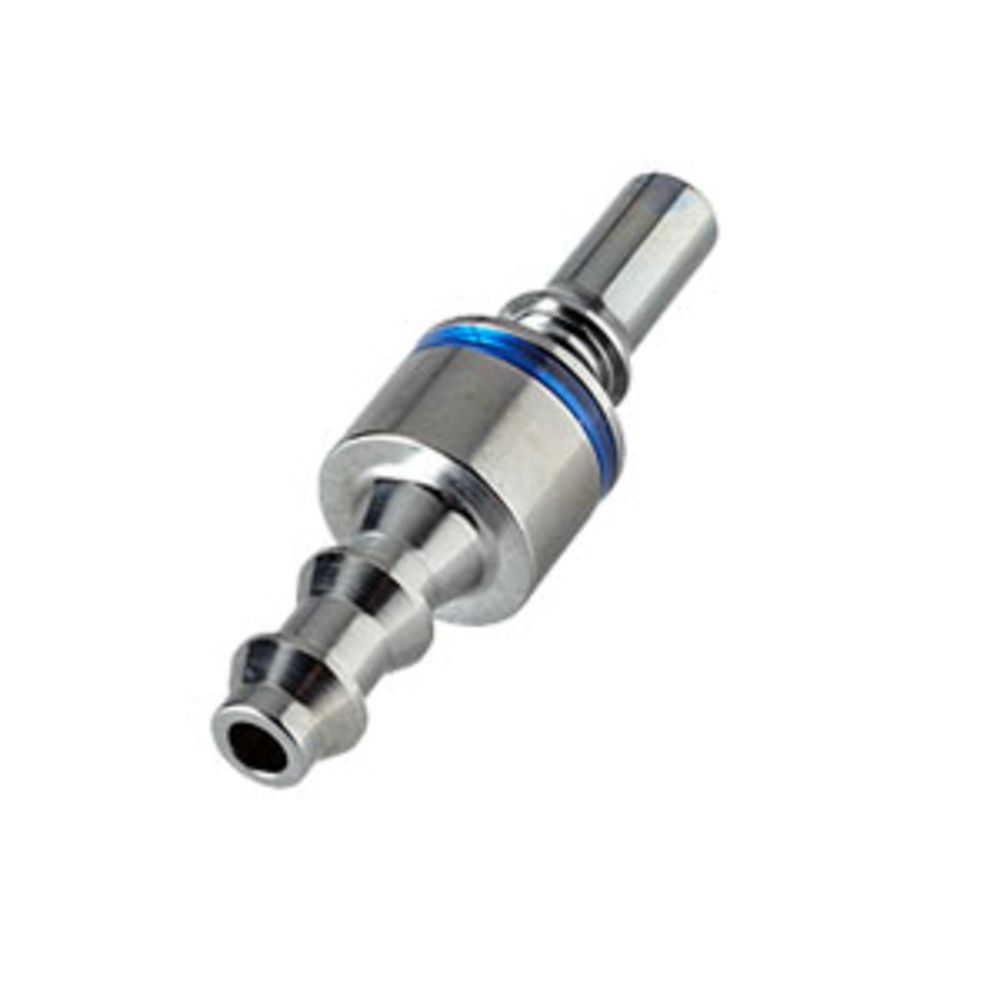

LQ2 Series provides ultra-reliable, dripless connections and disconnections that protect valuable electronics. Designed specifically for liquid cooling applications, the LQ2 offers a high-flow capacity to optimize liquid cooling system performance. LQ2 uses CPC developed valve technology that eliminates drips and is able to withstand long-term use.
Specifications:
Specifications:
- Material: Brass
- Material Finish: Chrome
- Color: Chrome with cool blue
- Mounting Option: Free Floating
- Pressure Range: Vacuum to 200 psi, 13.8 bar
- Temperature Range: 0°C to 240°F
- Seal Options: EPDM
- Valve Spring: Stainless Steel
- Valve Option: Valved
- Spilling: <0.015 cc per disconnect at 0 psi; <0.063 cc per disconnect at 200 psi
Details
Application | Water, Cooling Systems |
Barb Size | 1/4" ID |
Body Material | Chrome-Plated Brass |
Max Pressure (Psi) | 200 |
Max Temp (°F) | 240 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 0 |
Mounting Options | Free Floating |
Seal Material | EPDM |
Series | LQ2 |
Spring | Stainless Steel |
Valve Type | Valved |
Color / Finish | Blue |
Type | Coupling Insert |
LQ2 Series provides ultra-reliable, dripless connections and disconnections that protect valuable electronics. Designed specifically for liquid cooling applications, the LQ2 offers a high-flow capacity to optimize liquid cooling system performance. LQ2 uses CPC developed valve technology that eliminates drips and is able to withstand long-term use.
Specifications:
- Material: Brass
- Material Finish: Chrome
- Color: Chrome with cool blue
- Mounting Option: Free Floating
- Pressure Range: Vacuum to 200 psi, 13.8 bar
- Temperature Range: 0°C to 240°F
- Seal Options: EPDM
- Valve Spring: Stainless Steel
- Valve Option: Valved
- Spilling: <0.015 cc per disconnect at 0 psi; <0.063 cc per disconnect at 200 psi
Details
Application | Water, Cooling Systems |
Barb Size | 1/4" ID |
Body Material | Chrome-Plated Brass |
Max Pressure (Psi) | 200 |
Max Temp (°F) | 240 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 0 |
Mounting Options | Free Floating |
Seal Material | EPDM |
Series | LQ2 |
Spring | Stainless Steel |
Valve Type | Valved |
Color / Finish | Blue |
Type | Coupling Insert |
