Liquatec

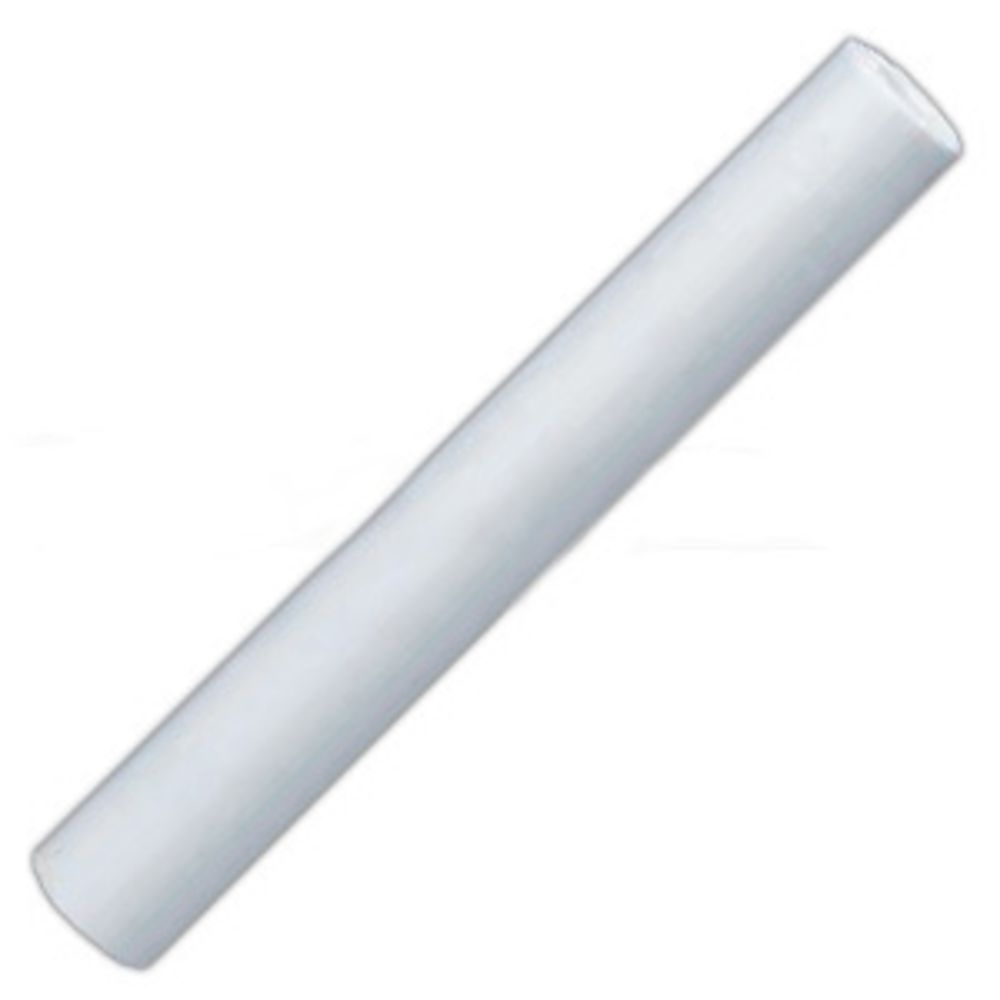

Liquatec 20" Sediment Depth Filter - 1 Mic

Part Number: SDF-25-2001

In Stock

out of stock

In Stock

This item is discontinued. We recommend the Neo-Pure MB-25200-01 20" Polypropylene Sediment Depth Filter 1 mic as a substitute.

Features:
  • Low Density at the surface, with progressively higher density towards the center
  • Manufactured from 100% pure polypropylene fibers
  • Graded Density for higher dirt holding capacity
  • Coreless Design is an economical solution to pre-filtration for many applications
  • Fits in most water filter housings that use 20" x 2.5" filters




Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Case Quantity

20

Weight (lbs)

1

Details

Filter Application

Sediment/Dirt/Rust

Initial Pressure Drop

0.6 PSI Differential

Max Temp (°F)

145

Micron Rating (Nominal)

1 µm

Min Temp (°F)

40

Outer Diameter

2-1/2"

Cartridge Style

Drop-in

Change Frequency

As Needed

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE)

Flow Rate

5 GPM

Media Type

Polypropylene

Micron Rating

1

Product Length

20"

Test - Micron Rating - Number

1

Warranty & Certifications

Certifications

NSF/ANSI 42



Features:
  • Low Density at the surface, with progressively higher density towards the center
  • Manufactured from 100% pure polypropylene fibers
  • Graded Density for higher dirt holding capacity
  • Coreless Design is an economical solution to pre-filtration for many applications
  • Fits in most water filter housings that use 20" x 2.5" filters



NOTE: This item is discontinued. We recommend the Neo-Pure MB-25200-01 20" Polypropylene Sediment Depth Filter 1 mic as a substitute.

Weight & Dimensions

Approx Length (Inches)

20" (50.8 cm)

Case Quantity

20

Weight (lbs)

1

Details

Filter Application

Sediment/Dirt/Rust

Initial Pressure Drop

0.6 PSI Differential

Max Temp (°F)

145

Micron Rating (Nominal)

1 µm

Min Temp (°F)

40

Outer Diameter

2-1/2"

Cartridge Style

Drop-in

Change Frequency

As Needed

Diameter

2-1/2"

End Cap Type

Double Open Ended (DOE)

Flow Rate

5 GPM

Media Type

Polypropylene

Micron Rating

1

Product Length

20"

Test - Micron Rating - Number

1

Warranty & Certifications

Certifications

NSF/ANSI 42
