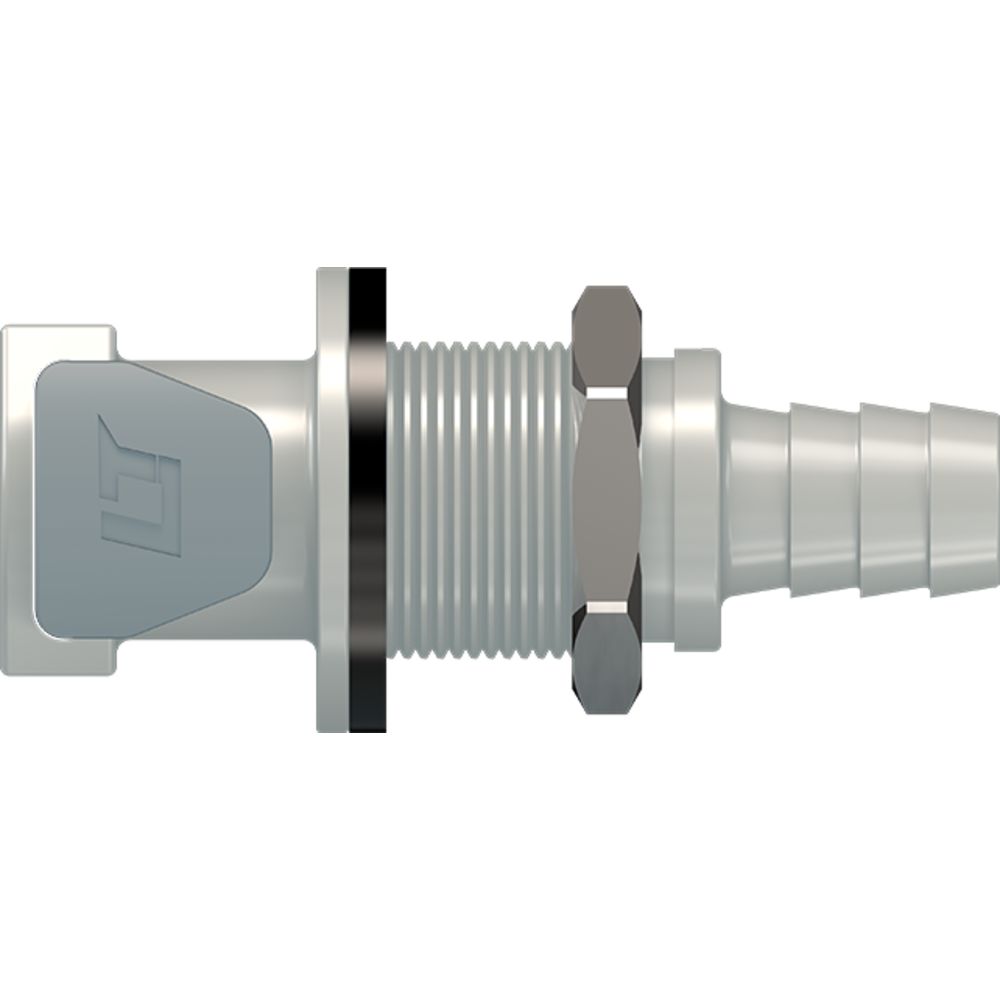

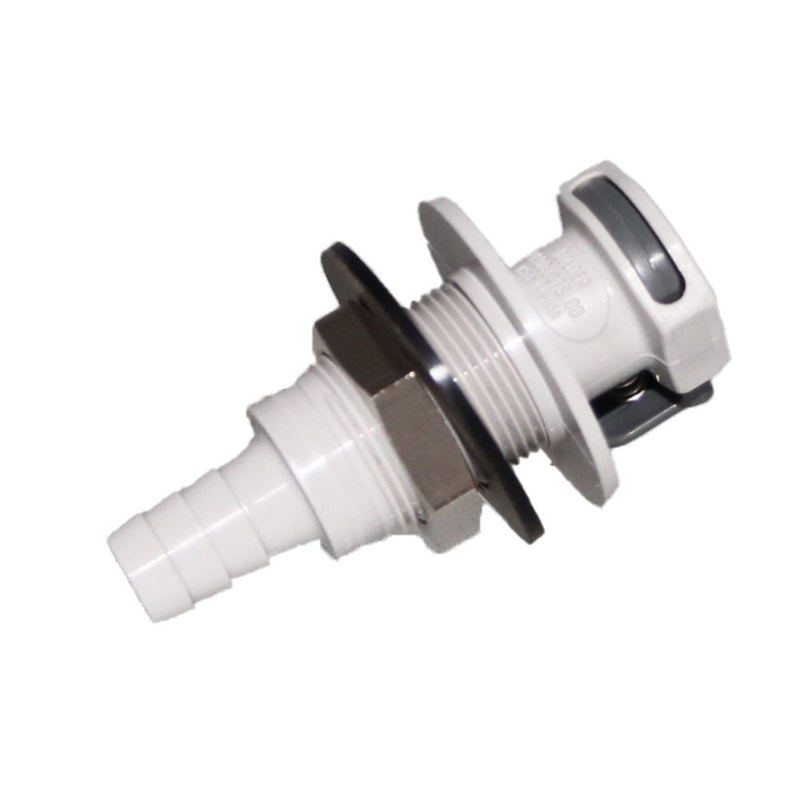

LinkTech 50PP Series Panel MT Socket Valved, 3/8 HB, With Hastelloy Spring

The LinkTech 50PP quick connect couplings are produced from medical grade, gamma sterilizable polypropylene. The 50PPV-SE3-06H fitting contains a Hastelloy Spring which is generally used for more chemical type applications. The 50PP Series couplings interconnect with all other 50AC, 50BAC, and 50GP Series couplings as well as other similar industry thumb-latch type coupling

Features and Benefits:

• Offer greater chemical resistance
• Audible click when coupled
• Includes Hastelloy Spring

Performance Ratings:

• Operating Pressure: Vacuum to 100psi
• Temperature: 32°F to 160°F; (0°C to 71°C)
• Flow Capacity: 1/4” (3.2 mm)
• Sterilization: Gamma; 50kGy irradiation max

Materials:

• Bodies and Terminations: Medical Grade Polypropylene
• Internal Valves: Medical Grade Polypropylene
• Internal Valve Spring: 316 Hastelloy Spring
• Latch Spring: Stainless Steel
• O-rings: Peroxide-cured EPDM
• Thumb-latch: Medical Grade Polypropylene
