Zurn Industries

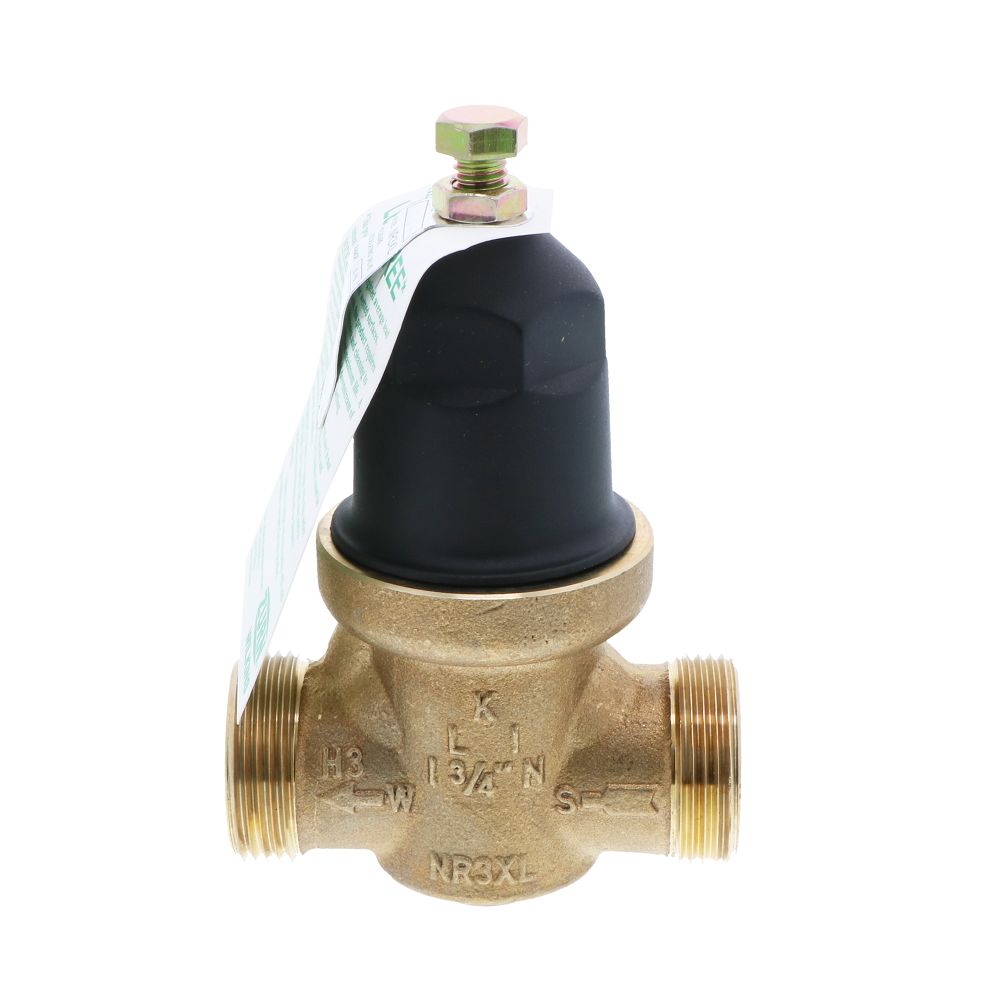

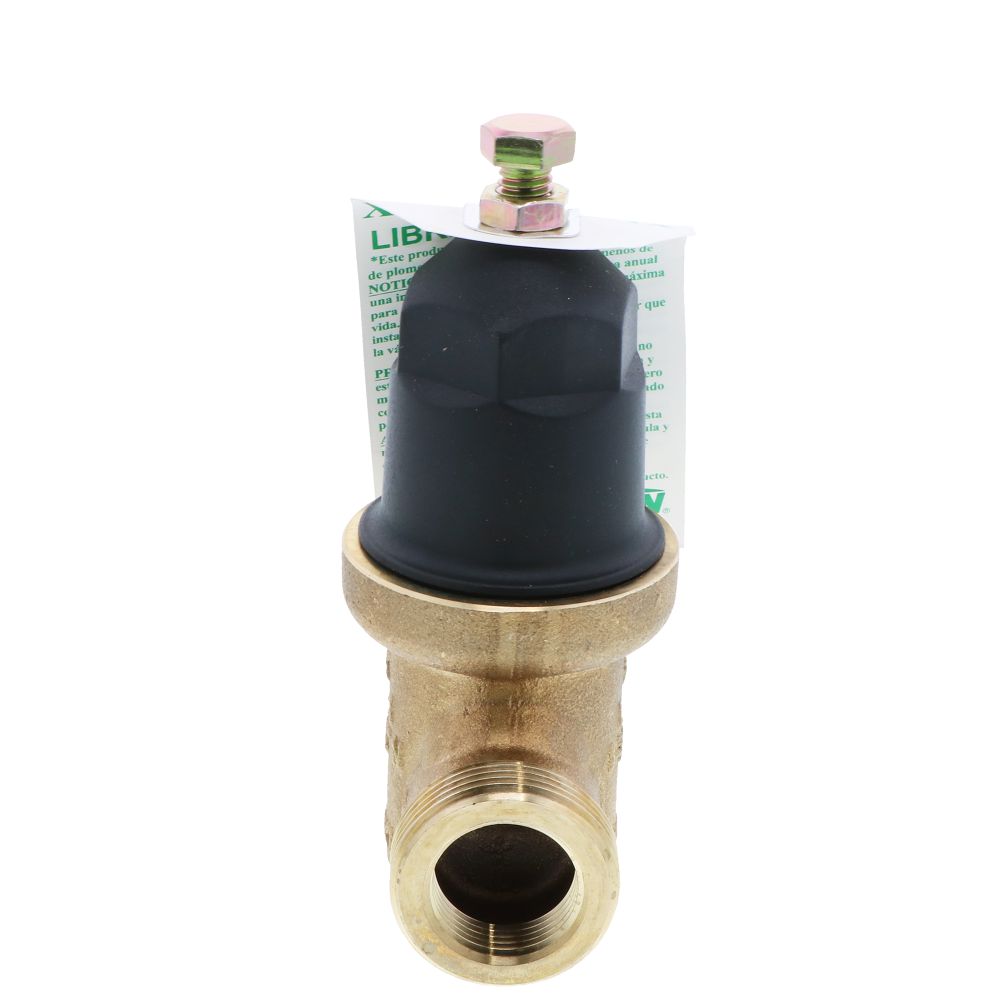

LFX65B Lead-Free Pressure Regulator 3/4" FPT

Part Number: PRV-34-LFX65B

Alt. Part Number: 0009945, NR3XL, PRV-34-N55BUM1

In Stock

out of stock

In Stock

This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

The Zurn LFX65B Lead Free Pressure Regulator is designed to reduce the incoming water pressure to protect plumbing system components and to reduce water consumption. The Zurn LFX65B has a 100% balanced valve which is unique to Watts and provides reliable flow performance.

Features:
  • Commercial & Residential Applications
  • Reduces incoming water pressure for protection of plumbing system components and to reduce water consumption
  • Integral stainless steel strainer
  • Thermoplastic seat
  • Lead Free Brass body construction
  • Serviceable in line
  • Bypass feature controls thermal expansion pressure
  • Sealed spring cage on all models for accessible outdoor or pit installations
  • Does NOT include a port for a pressure gauge
Specifications:
  • Size: 3/4"
  • FPT Connection
  • Max Working Pressure: 400 PSI
  • Adjustable Range: 15 To 75 PSI
  • Pressure Setting: 50 PSI
  • Max Temp: 140°F
  • Height: 5-7/16", Width: 3-3/4"
  • Standards: ASSE 1003, IAPMO, NSF 61-G
Note: If you are replacing an N55B or LFN55B series regulator, please verify the dimensions of the regulator as as installing an LFX65B may require modifications to your existing plumbing.


Compatible with:
Hydro-Logic Purification Systems139564

Weight & Dimensions

Approx Height (Inches)

5-7/16"

Weight (lbs)

2.45

Details

Body Material

Cast copper silicon alloy

Max Inlet Pressure

400 psi (28 Bar)

Max Temp (°F)

180

Min Temp (°F)

33

Outlet Pressure

20-80 PSI

Warranty & Certifications

Certifications

ASSE 1003, IAPMO, NSF 61-G


LFX65B

LFX65B




The Zurn LFX65B Lead Free Pressure Regulator is designed to reduce the incoming water pressure to protect plumbing system components and to reduce water consumption. The Zurn LFX65B has a 100% balanced valve which is unique to Watts and provides reliable flow performance.

Features:
  • Commercial & Residential Applications
  • Reduces incoming water pressure for protection of plumbing system components and to reduce water consumption
  • Integral stainless steel strainer
  • Thermoplastic seat
  • Lead Free Brass body construction
  • Serviceable in line
  • Bypass feature controls thermal expansion pressure
  • Sealed spring cage on all models for accessible outdoor or pit installations
  • Does NOT include a port for a pressure gauge
Specifications:
  • Size: 3/4"
  • FPT Connection
  • Max Working Pressure: 400 PSI
  • Adjustable Range: 15 To 75 PSI
  • Pressure Setting: 50 PSI
  • Max Temp: 140°F
  • Height: 5-7/16", Width: 3-3/4"
  • Standards: ASSE 1003, IAPMO, NSF 61-G
Note: If you are replacing an N55B or LFN55B series regulator, please verify the dimensions of the regulator as as installing an LFX65B may require modifications to your existing plumbing.


Compatible with:
Hydro-Logic Purification Systems139564

NOTE: This item is discontinued. Please contact our team of Water Specialists for assistance finding an alternative.

Weight & Dimensions

Approx Height (Inches)

5-7/16"

Weight (lbs)

2.45

Details

Body Material

Cast copper silicon alloy

Max Inlet Pressure

400 psi (28 Bar)

Max Temp (°F)

180

Min Temp (°F)

33

Outlet Pressure

20-80 PSI

Warranty & Certifications

Certifications

ASSE 1003, IAPMO, NSF 61-G

Documentation
LFX65B
LFX65B
