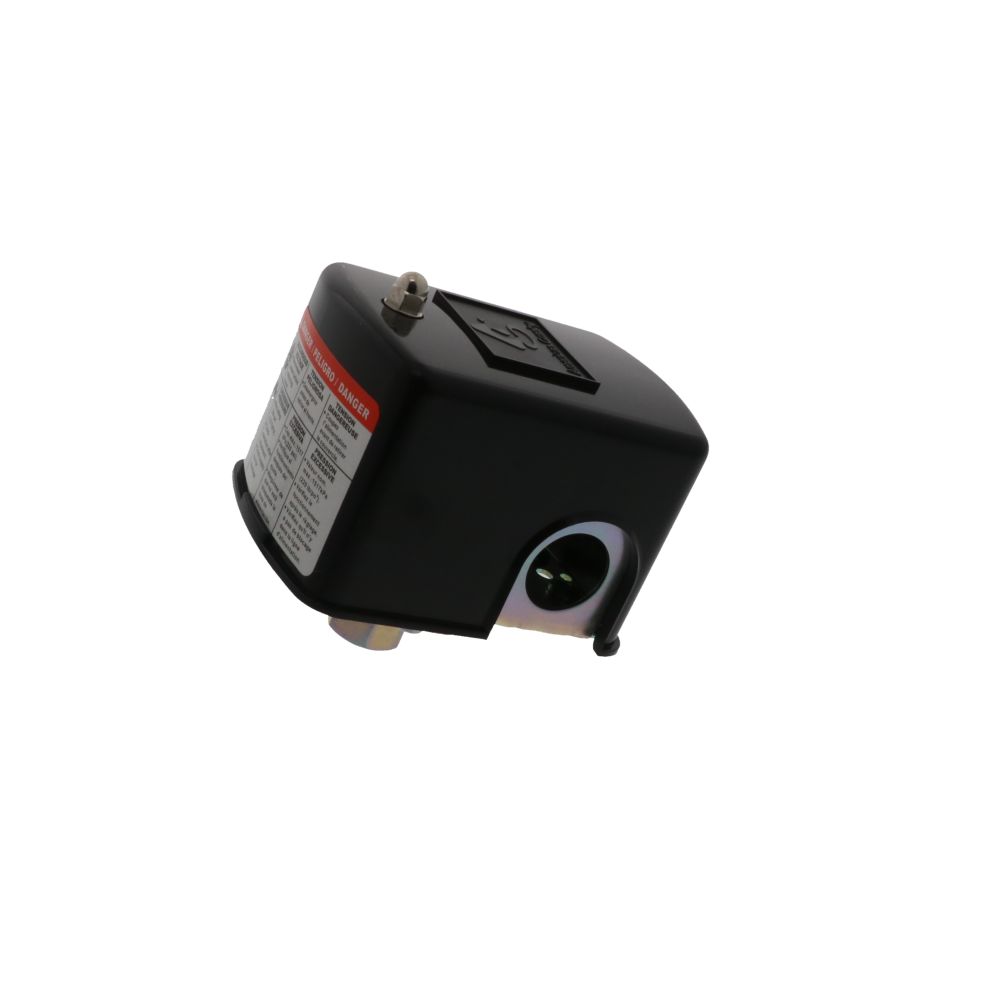

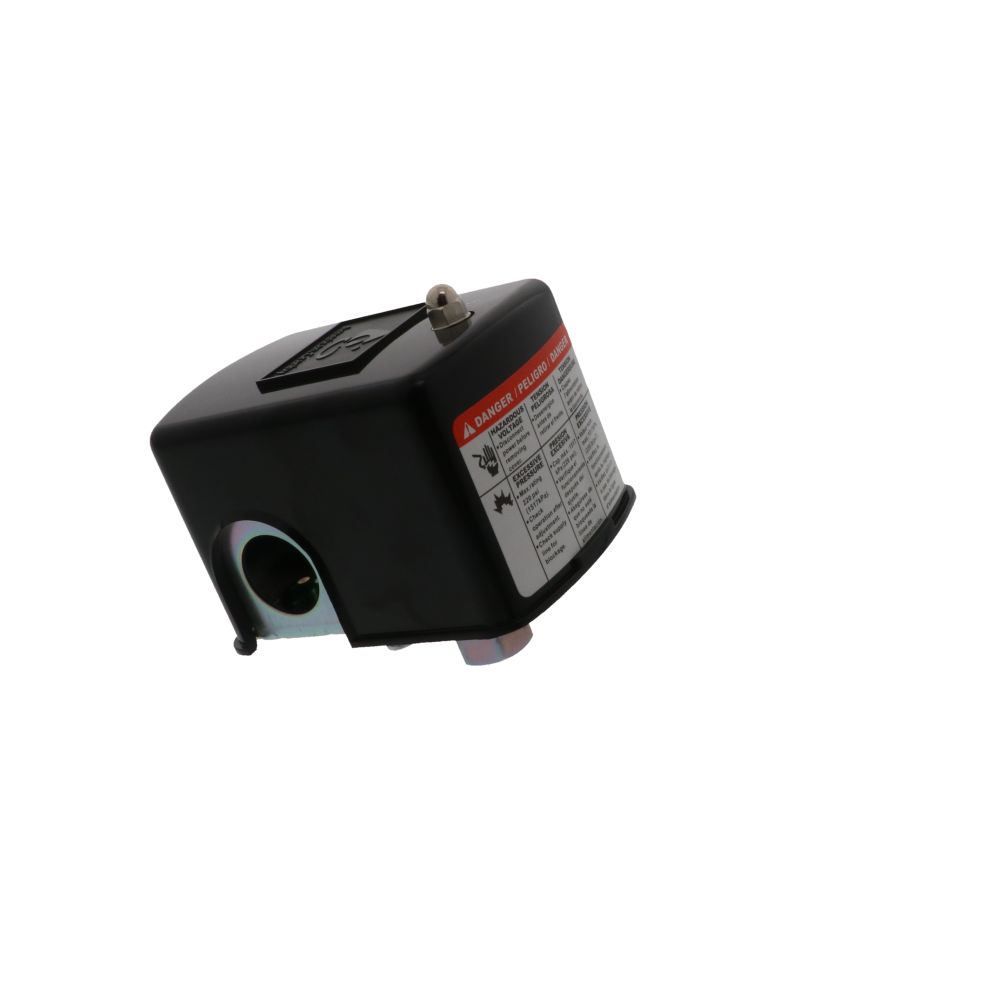

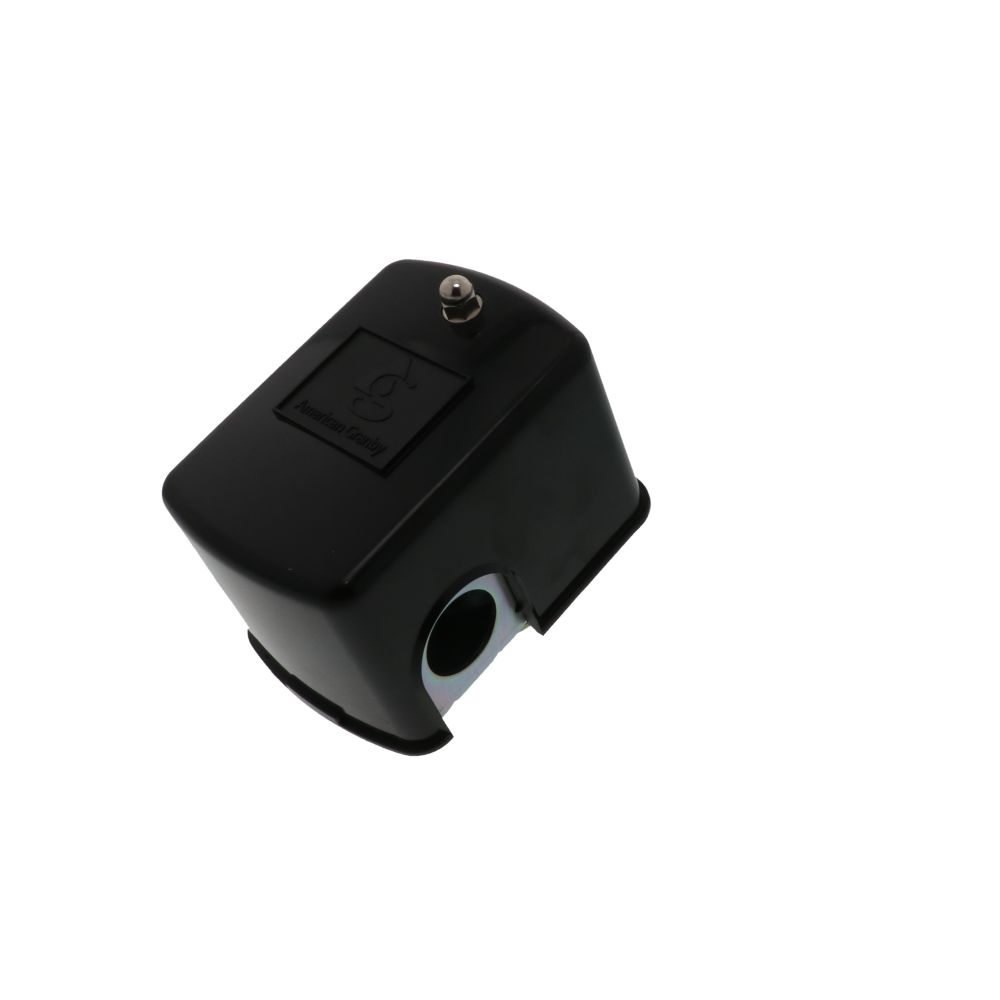

These lead free well tank pressure switches are designed to control electrically driven water pumps. They are easy to install and are suitable for all types of pumps: jet pumps, submersible pumps and reciprocating pumps, etc.
Specifications:
- Factory Set Cut-In Pressure: 40 psi
- Factory Set Cut-Out Pressure: 60 psi
- Pressure Connection: 1/4" FNPT
- Actuator Type: Diaphragm
- Diaphragm: Nitrile (Buna N)
- UL Listed and CSA Certified
- Lead Free
Weight & Dimensions
Approx Weight | 1.13 Lbs |
Details
Enclosure Type | General Purpose (Indoor) |
Connections | 1/4" FPT |
Origin | China |
Rating | NEMA 1 |
Pressure Setting | 40/60 psi |
Warranty & Certifications
Certifications | UL Listed; CSA Certified; AB1953 Compliant |
These lead free well tank pressure switches are designed to control electrically driven water pumps. They are easy to install and are suitable for all types of pumps: jet pumps, submersible pumps and reciprocating pumps, etc.
Specifications:
- Factory Set Cut-In Pressure: 40 psi
- Factory Set Cut-Out Pressure: 60 psi
- Pressure Connection: 1/4" FNPT
- Actuator Type: Diaphragm
- Diaphragm: Nitrile (Buna N)
- UL Listed and CSA Certified
- Lead Free
Weight & Dimensions
Approx Weight | 1.13 Lbs |
Details
Enclosure Type | General Purpose (Indoor) |
Connections | 1/4" FPT |
Origin | China |
Rating | NEMA 1 |
Pressure Setting | 40/60 psi |
Warranty & Certifications
Certifications | UL Listed; CSA Certified; AB1953 Compliant |
