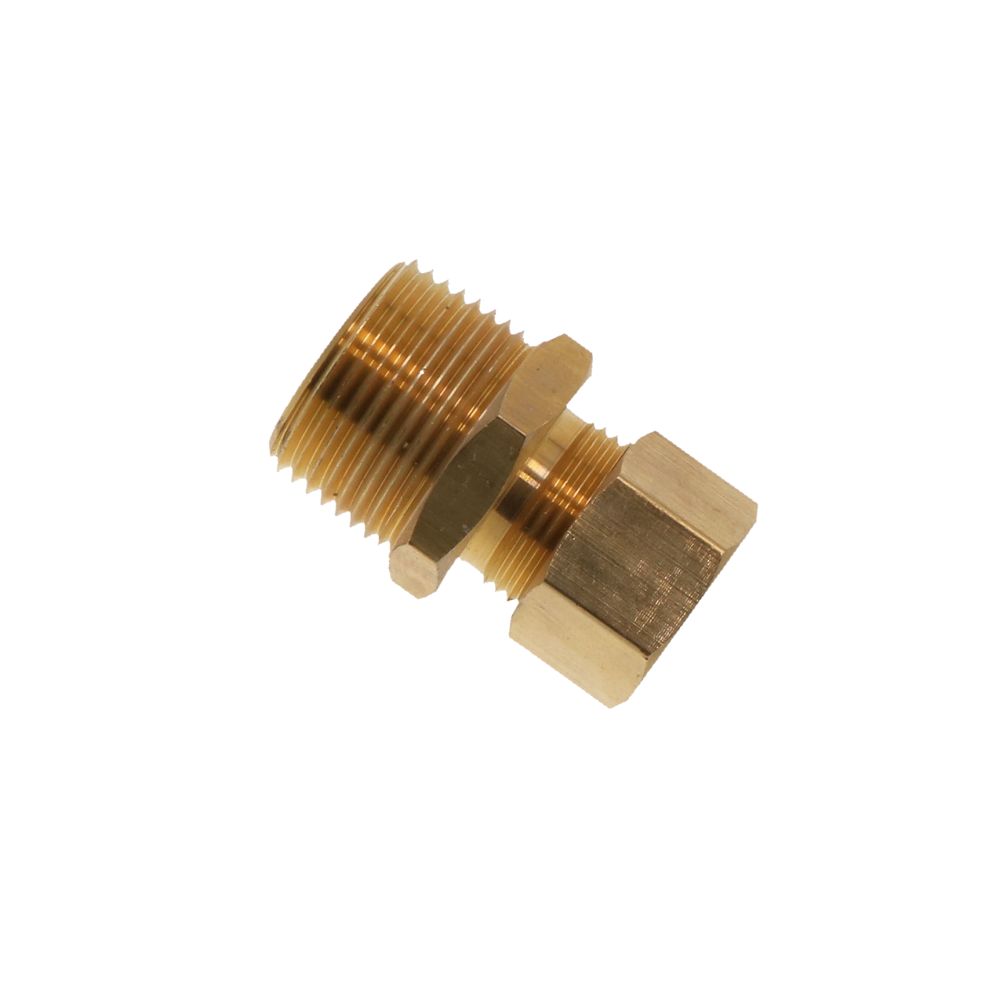

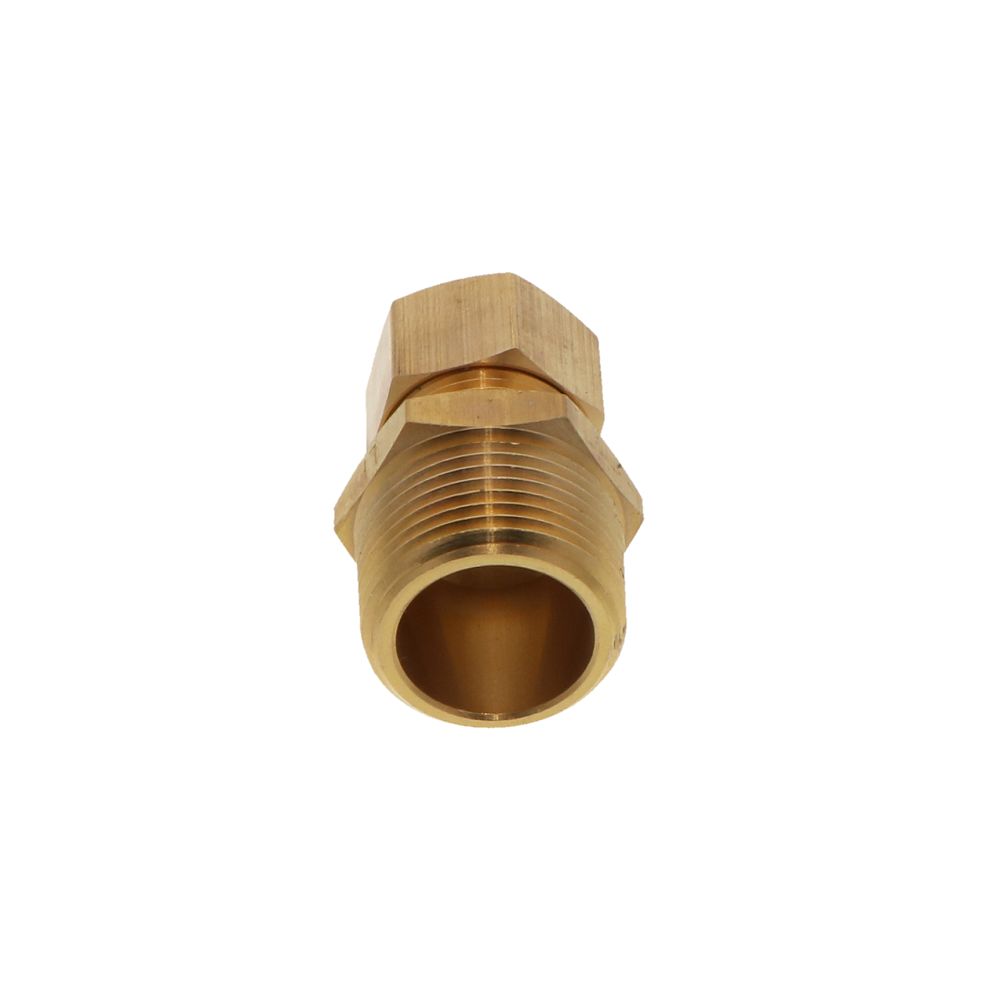

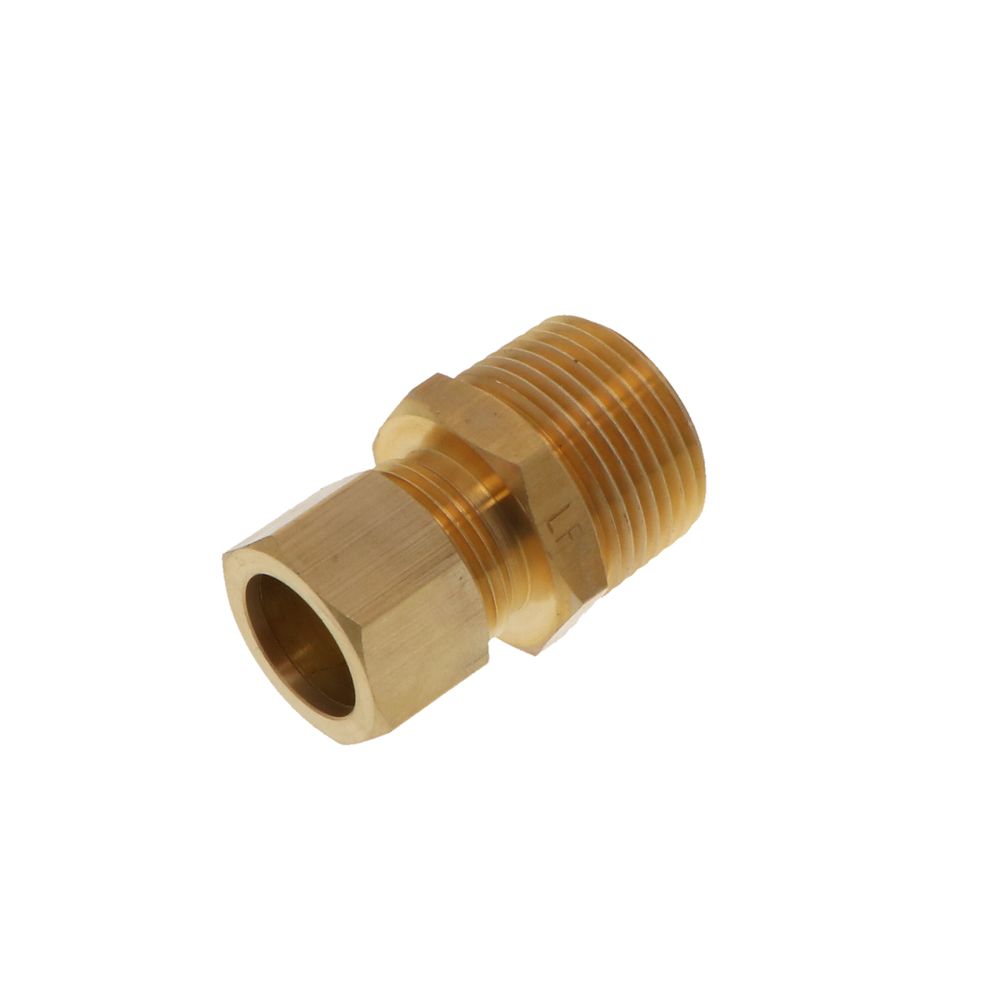

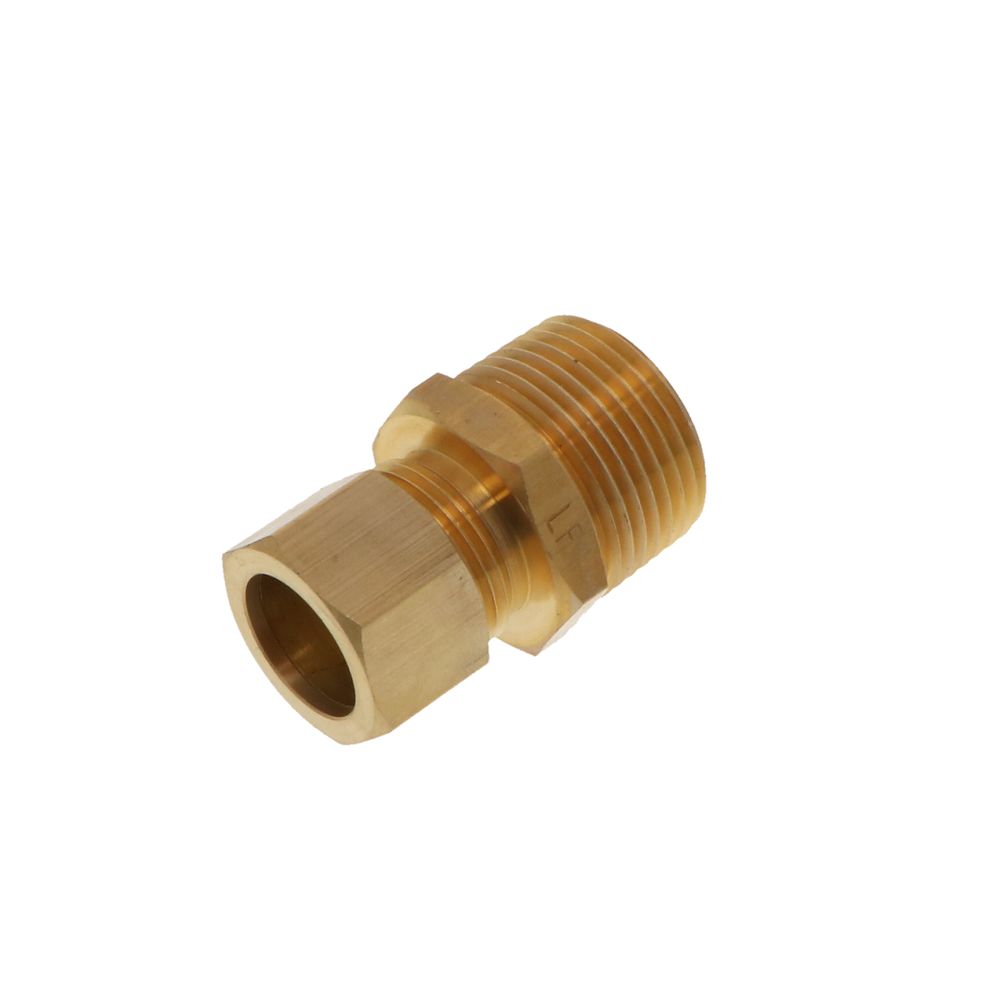

Lead-Free Brass Male Connector 5/8 Compression x 3/4 MPT

Part Number: BCMC-5834

In Stock

out of stock

In Stock

$4.09


The Lead-Free BCMC-5834 brass male connector is 5/8 compression by 3/4 MPT. It is manufactured to work with medium pressure tubing connection. This connector is not recommended for use with steel tubing, it should be used with copper, brass, and aluminum.

Features:
  • 5/8 compression x 3/4 MPT thread
  • Material: brass
Assembly Instructions:
  1. Slide nut, then sleeve into tubing. The thread end of the nut must face out.
  2. Insert the tube into the fittings. Be sure the tube is bottomed on the fitting shoulder.
  3. Assemble nut to body, and tighten.
Compression Thread Male Pipe Thread
1/8 1/8
3/16 1/4
3/16 1/8
1/4 1/2
1/4 1/4
1/4 1/8
1/4 3/8
5/16 1/4
3/8 1/2
3/8 1/4
3/8 1/8
3/8 3/8
3/8 3/4
7/16 1/4
7/16 3/8
1/2 1/2
1/2 1/4
1/2 3/8
5/8 1/2
5/8 3/4
5/8 3/8
7/8 1/2
7/8 3/4


Details

Body Material

Brass

Size

5/8", 3/4"

Inlet/Outlet Connection

5/8" | Compression, 3/4" | MPT




The Lead-Free BCMC-5834 brass male connector is 5/8 compression by 3/4 MPT. It is manufactured to work with medium pressure tubing connection. This connector is not recommended for use with steel tubing, it should be used with copper, brass, and aluminum.

Features:
  • 5/8 compression x 3/4 MPT thread
  • Material: brass
Assembly Instructions:
  1. Slide nut, then sleeve into tubing. The thread end of the nut must face out.
  2. Insert the tube into the fittings. Be sure the tube is bottomed on the fitting shoulder.
  3. Assemble nut to body, and tighten.
Compression Thread Male Pipe Thread
1/8 1/8
3/16 1/4
3/16 1/8
1/4 1/2
1/4 1/4
1/4 1/8
1/4 3/8
5/16 1/4
3/8 1/2
3/8 1/4
3/8 1/8
3/8 3/8
3/8 3/4
7/16 1/4
7/16 3/8
1/2 1/2
1/2 1/4
1/2 3/8
5/8 1/2
5/8 3/4
5/8 3/8
7/8 1/2
7/8 3/4

Details

Body Material

Brass

Size

5/8", 3/4"

Inlet/Outlet Connection

5/8" | Compression, 3/4" | MPT
