Colder Products

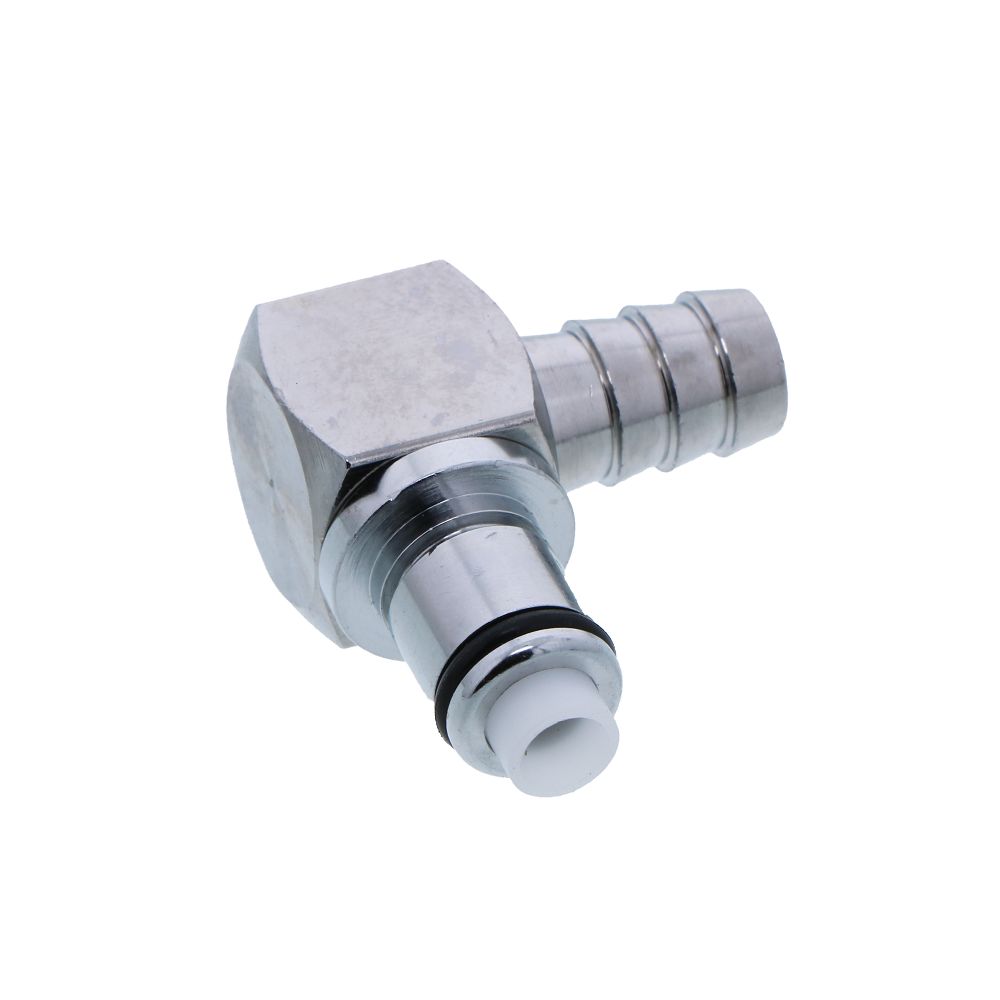

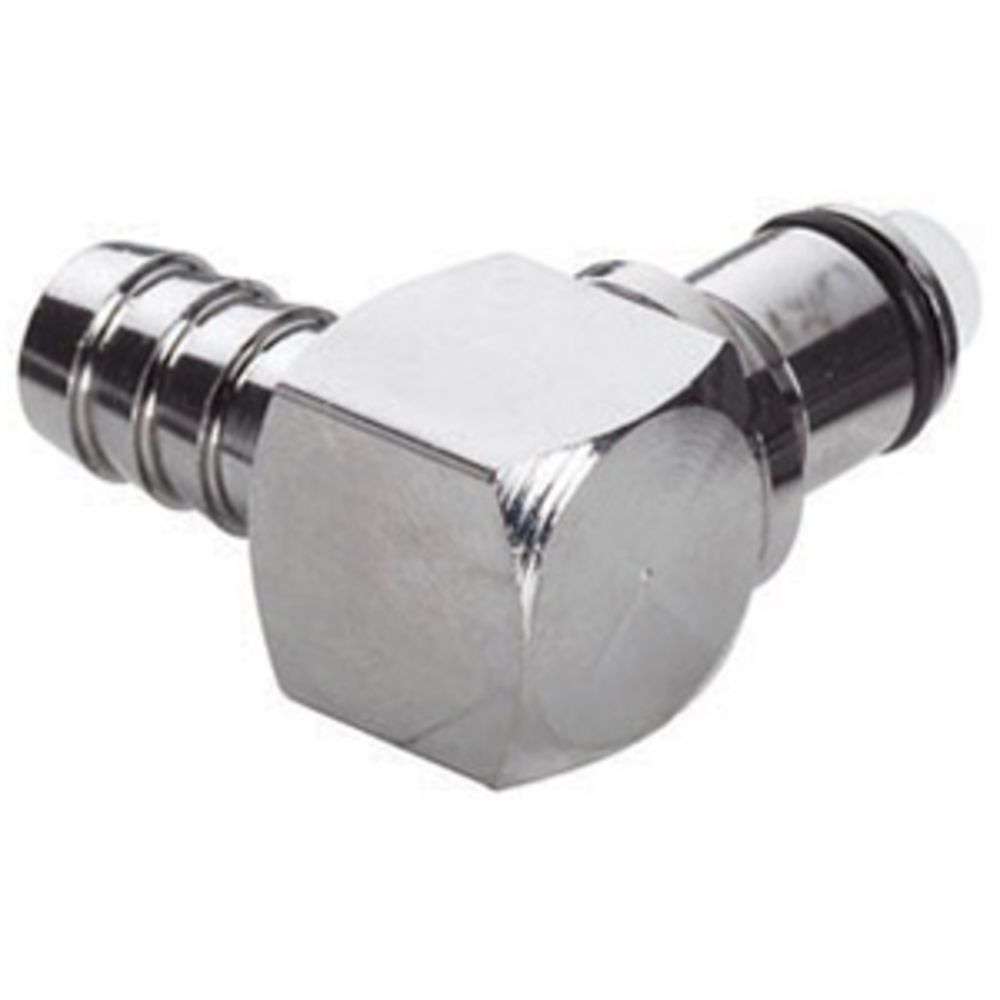

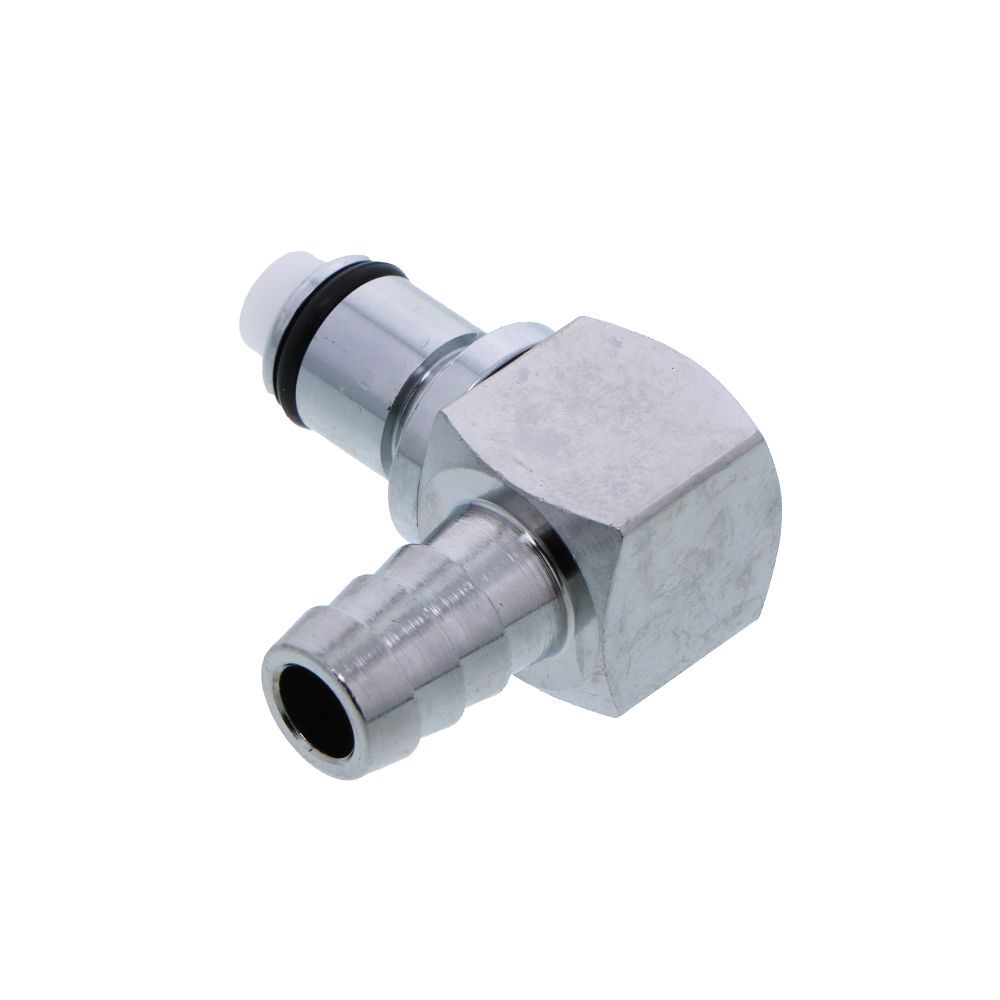

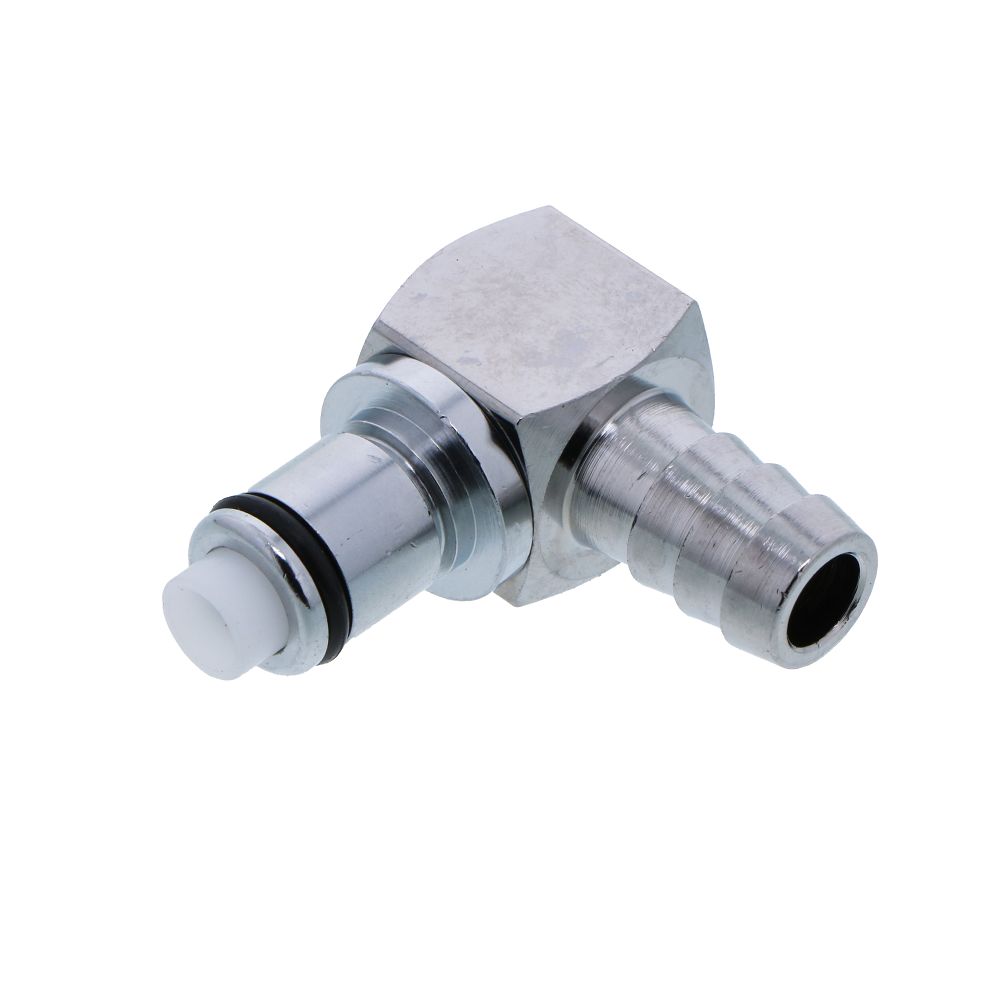

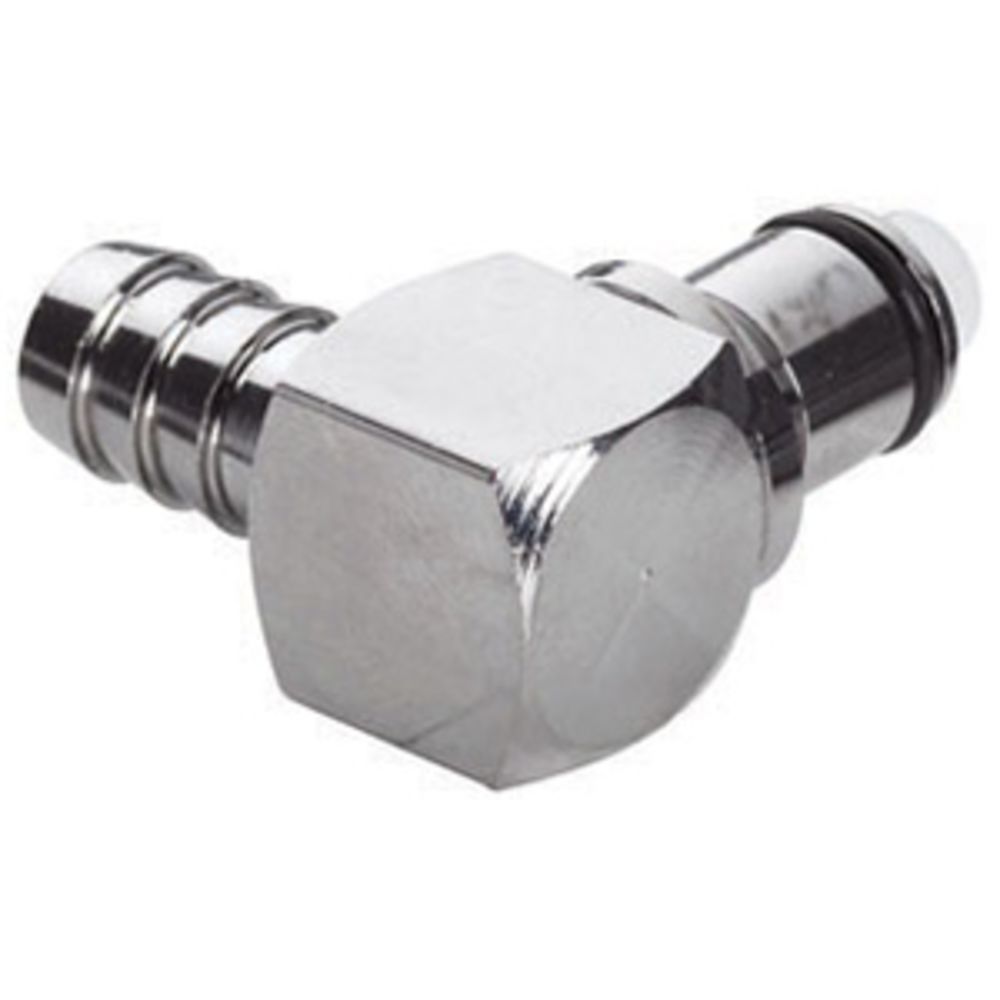

LCD23006 Valved Elbow Hose Barb Coupling Insert 3/8 ID Barb

Part Number: LCD23006

In Stock

out of stock

In Stock

$14.84

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • NSF Listed Version (part # 71300) Available Upon Request




Weight & Dimensions

Height (inches)

1.13

Length (inches)

1.38

Weight (lbs)

0.00625

Width (inches)

0.5

Details

Application

Water

Barb Size

3/8" ID

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

Buna-N

Series

LC

Spring

316 stainless steel

Thumb Latch

Stainless steel

Valve Type

Valved

Color / Finish

Chrome

Origin

USA

Type

Coupling Insert


LCD23006
