Colder Products

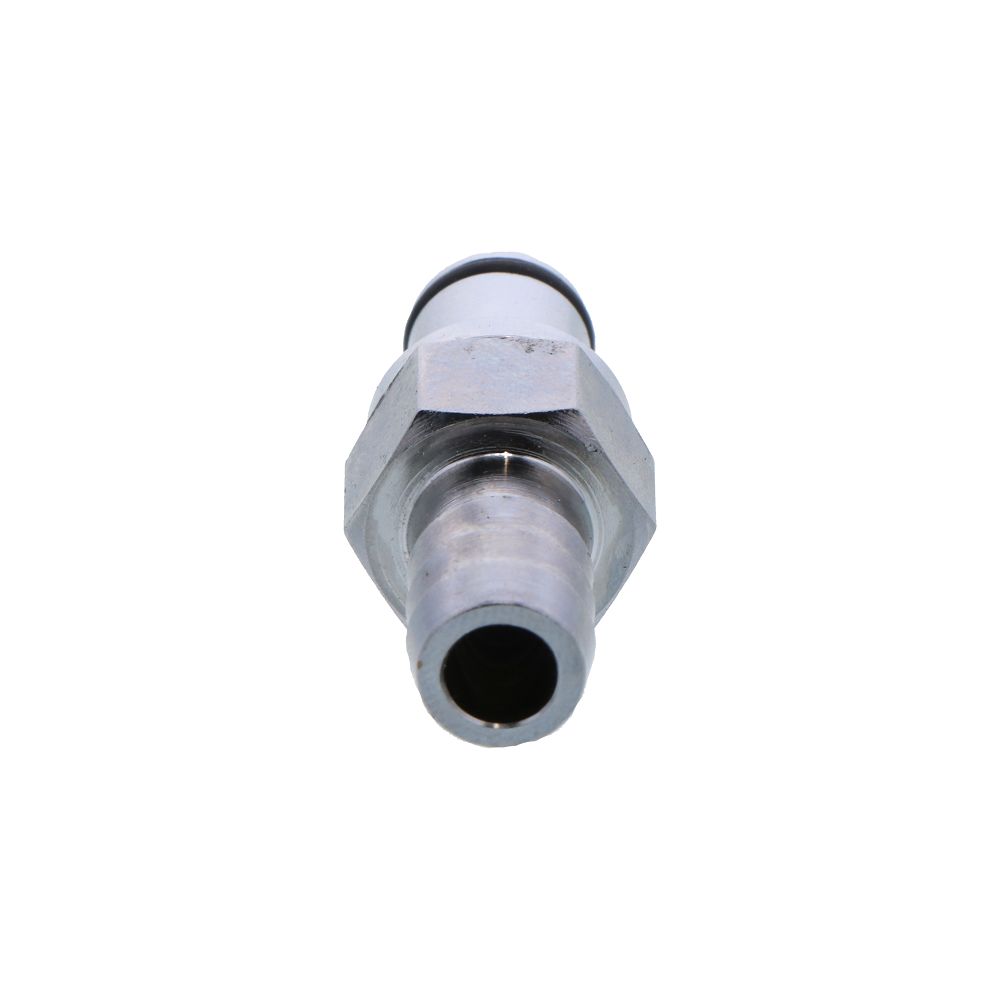

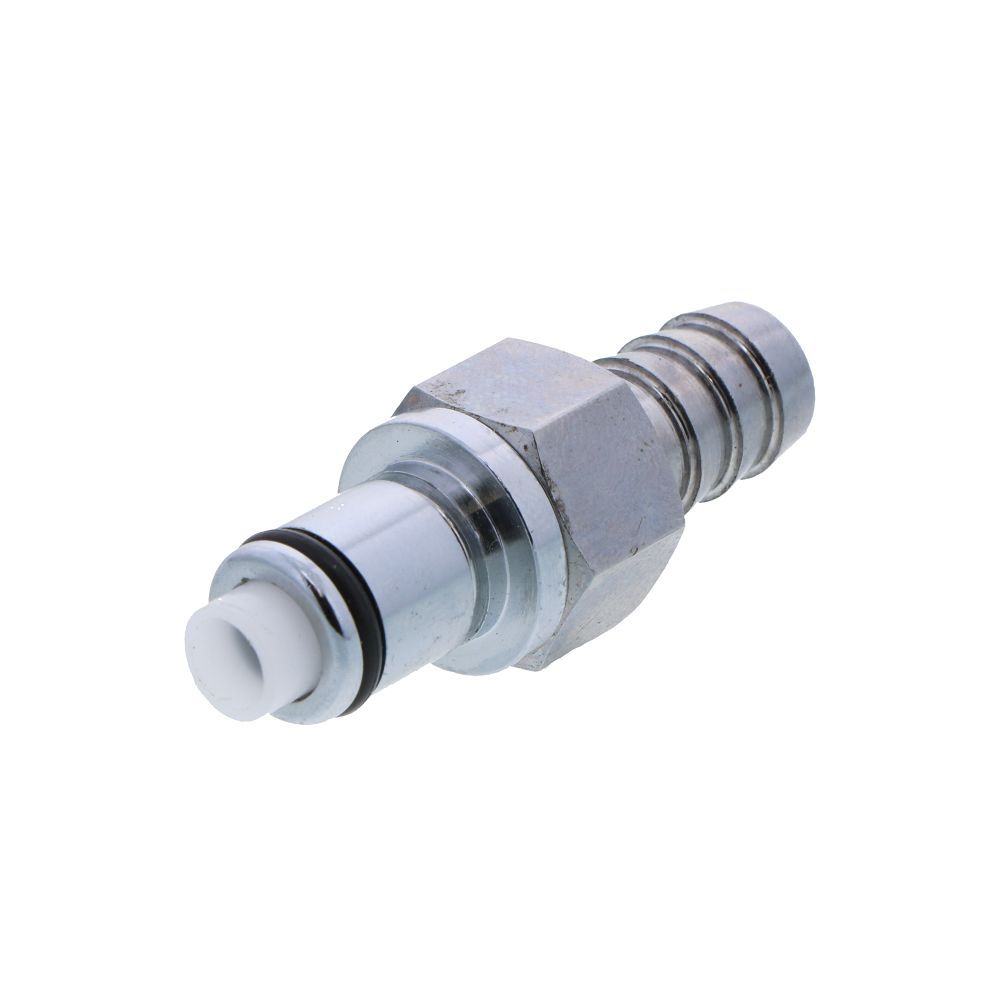

LCD22006V Valved In-Line Hose Barb Coupling Insert 3/8 ID Barb FKM (Viton) O-rings

Part Number: LCD22006V

Alt. Part Number: LCD22006FV

In Stock

out of stock

In Stock

$13.98

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

 Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: FKM (Viton)




Weight & Dimensions

Length (inches)

1.75

Height (inches)

0.5

Width (inches)

0.5

Weight (lbs)

0.003125

Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

3/8" ID

Application

Water

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Free Floating

Origin

USA

Seal Material

FKM (Viton)

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel


LCD22006V




Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

 Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: FKM (Viton)



Weight & Dimensions

Length (inches)

1.75

Height (inches)

0.5

Width (inches)

0.5

Weight (lbs)

0.003125

Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

3/8" ID

Application

Water

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Free Floating

Origin

USA

Seal Material

FKM (Viton)

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel
