Colder Products

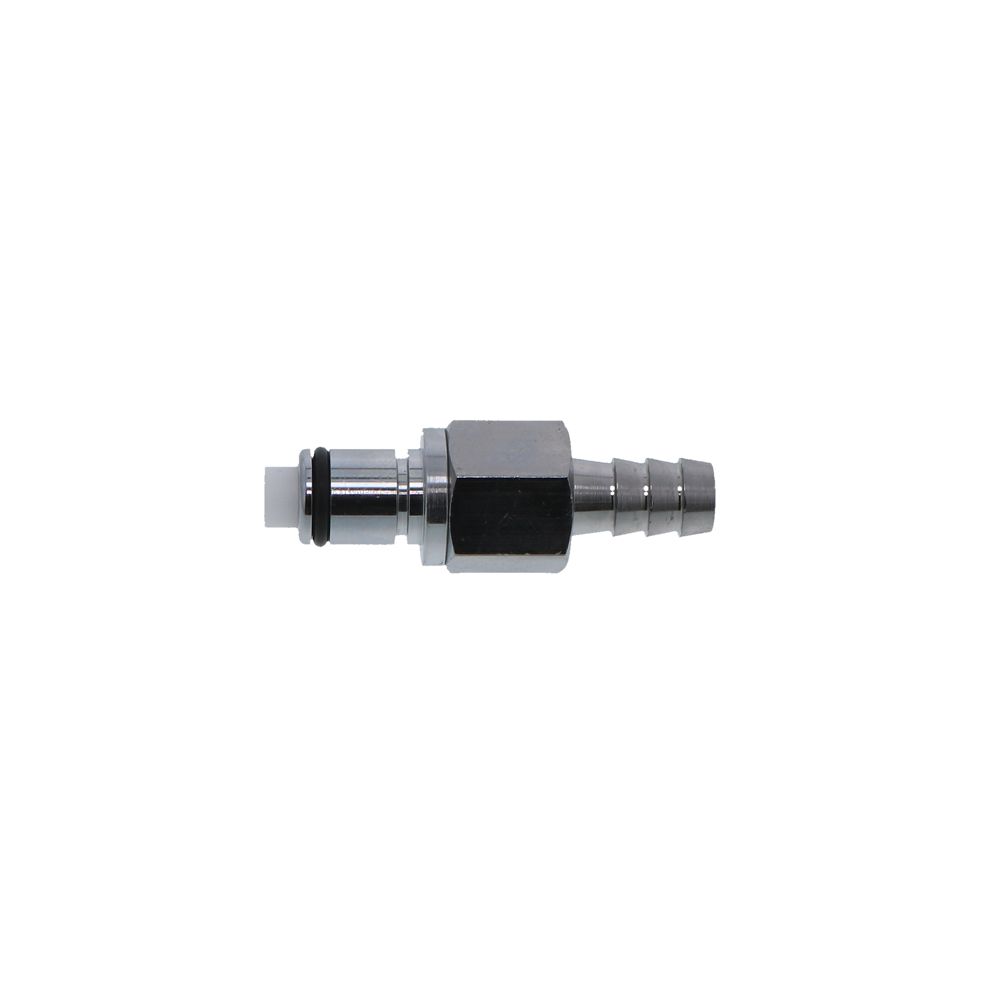

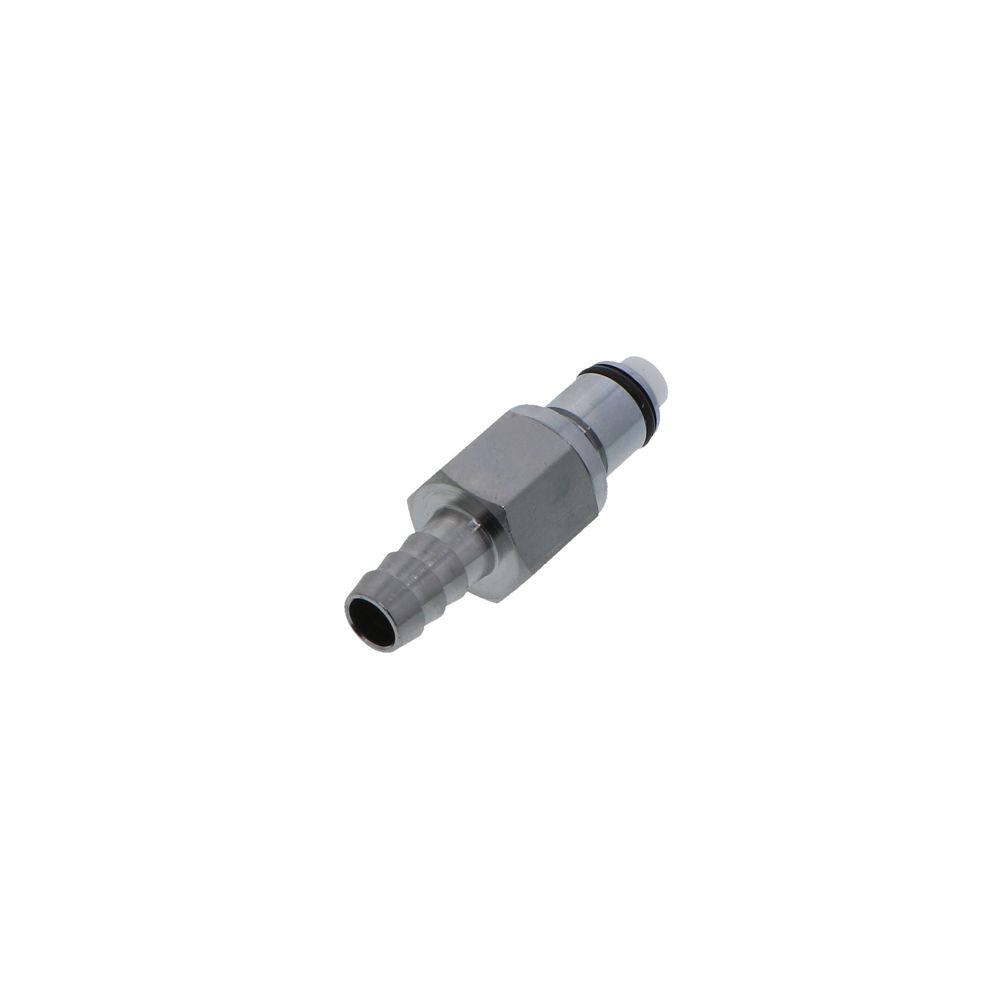

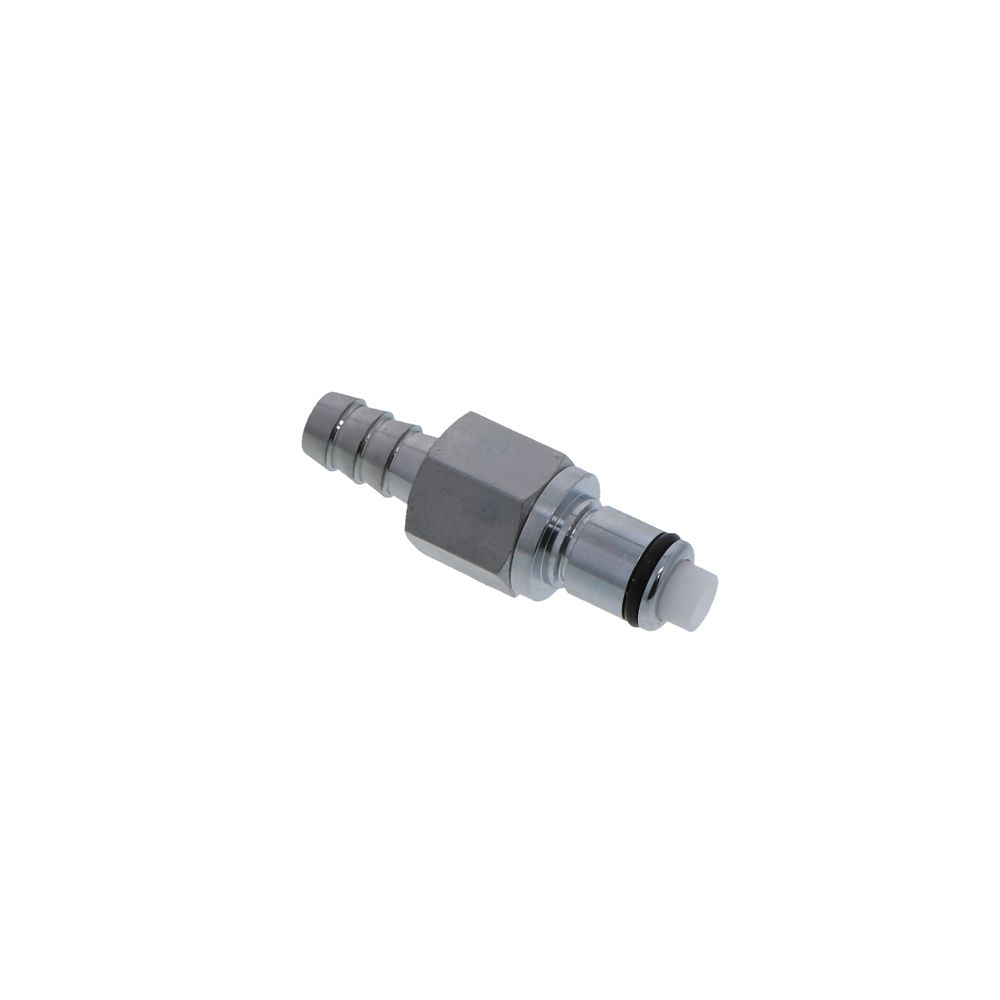

LCD22005 Valved In-Line Hose Barb Coupling Insert 5/16 ID Barb

Part Number: LCD22005

In Stock

out of stock

In Stock

$13.99

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Seal Options: BUNA-N
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved




Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

5/16" ID

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Free Floating

Seal Material

Buna-N

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel


LCD22005




Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Seal Options: BUNA-N
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved



Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

5/16" ID

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Free Floating

Seal Material

Buna-N

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel

Documentation
LCD22005
