Colder Products

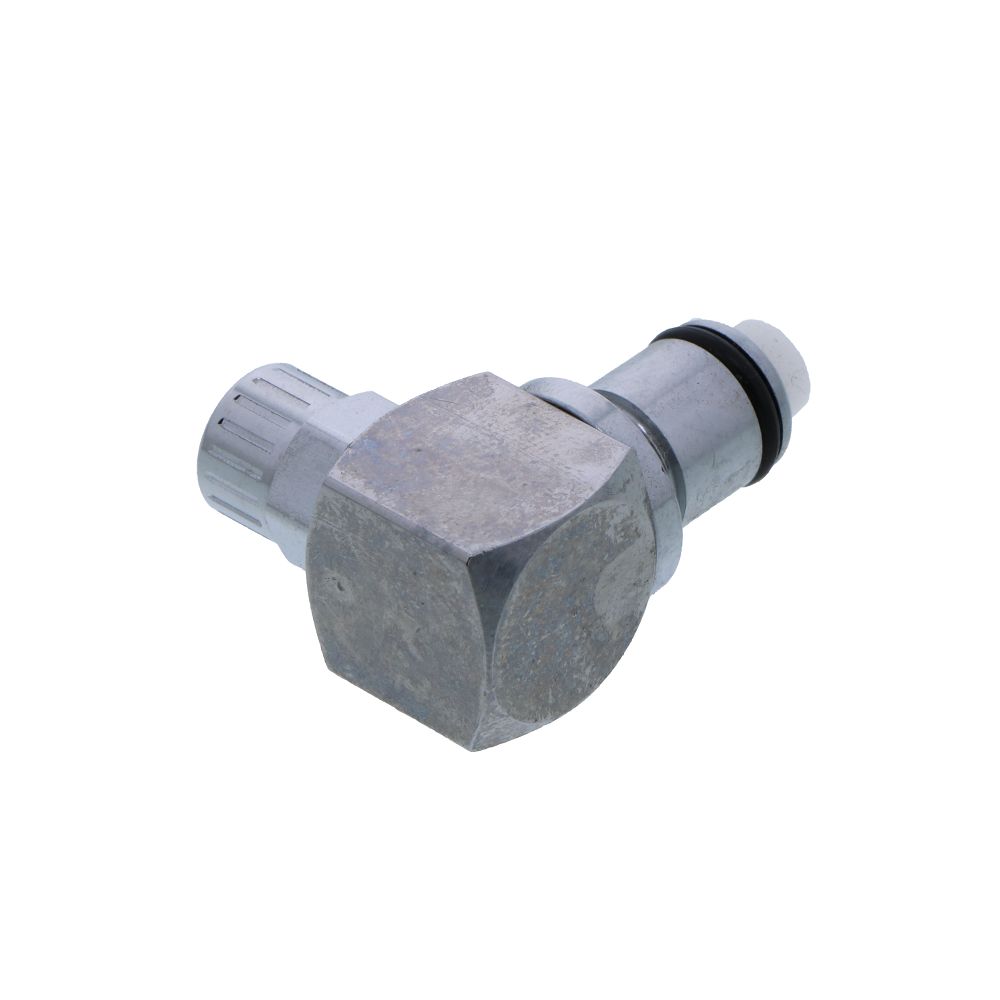

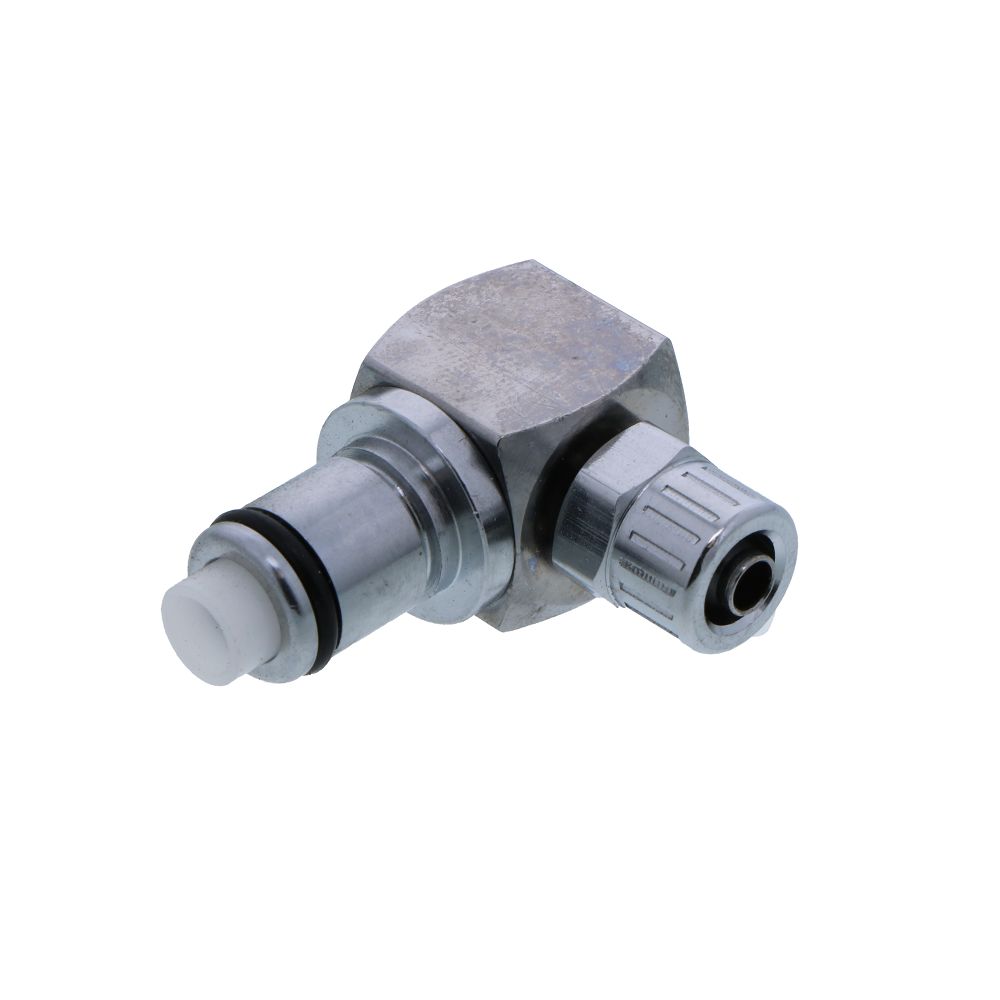

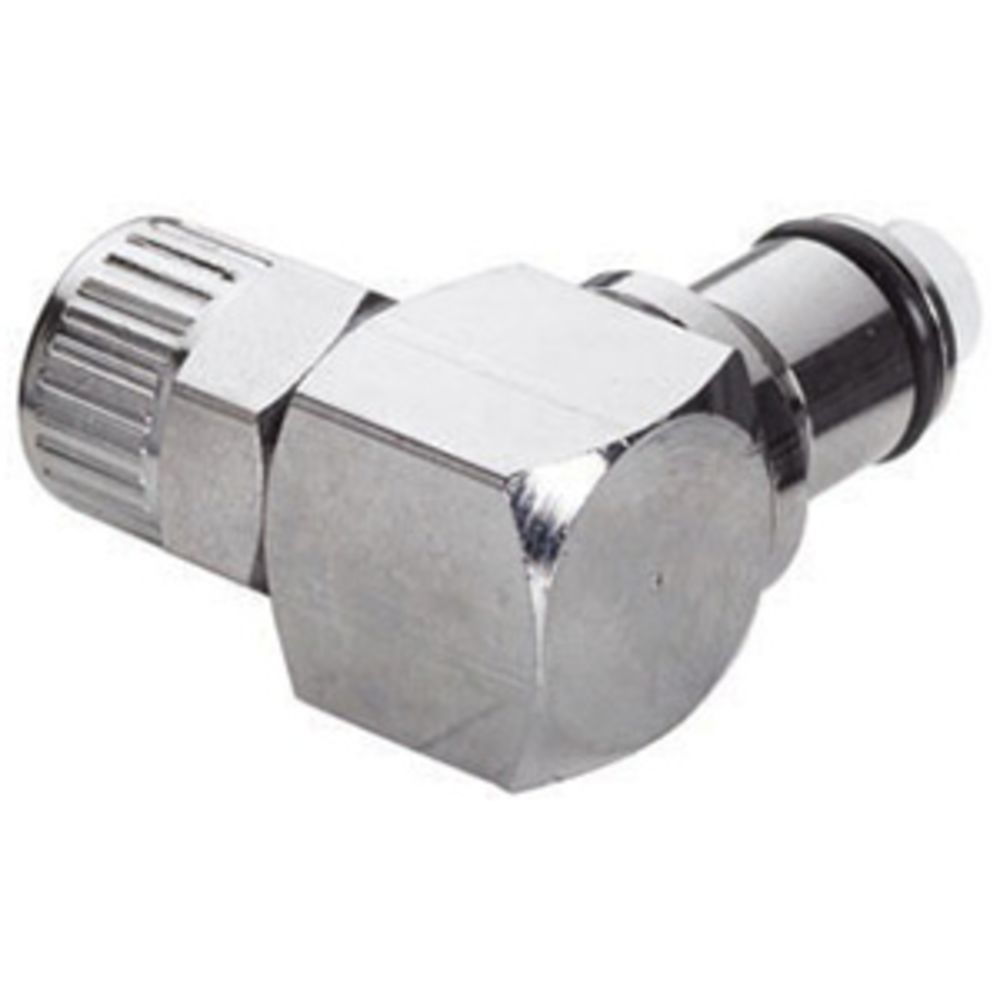

LCD21006 Valved Elbow PTF Coupling Insert 3/8 PTF

Part Number: LCD21006

In Stock

out of stock

In Stock

$17.17

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Free Floating
  • Tubing Size: .25" ID, 3/8" OD
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N




Weight & Dimensions

Length (inches)

1.5

Height (inches)

1.25

Width (inches)

0.5

Weight (lbs)

0.4375

Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Push-In Size

3/8" OD

Application

Water

Bag Quantity

10

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Free Floating

Origin

USA

Seal Material

Buna-N

Size

3/8"

Spring

316 stainless steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel

Inlet/Outlet Connection

3/8" FPT


LCD21006
