Colder Products

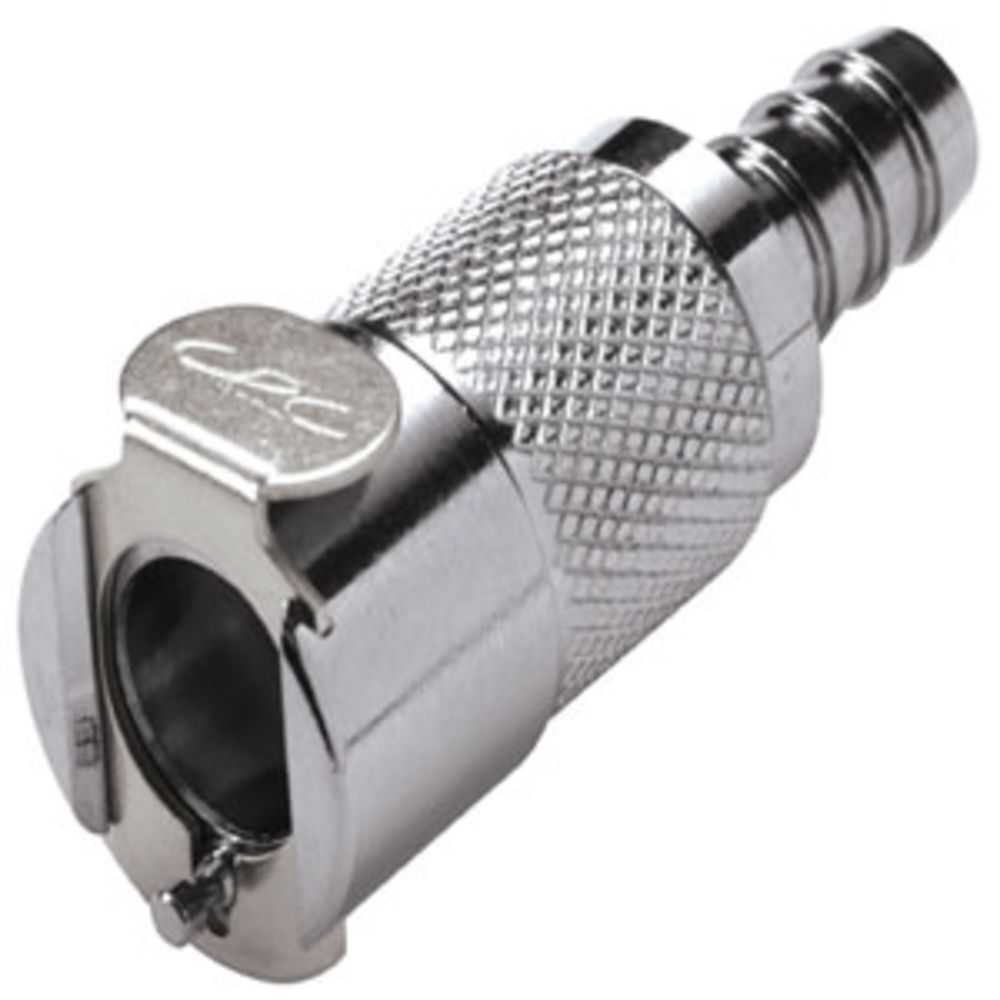

LCD17005 Valved In-Line Hose Barb Coupling Body 5/16 ID Barb

Part Number: LCD17005

In Stock

out of stock

In Stock

$24.53

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Seal Options: BUNA-N
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved




Weight & Dimensions

Weight (lbs)

0.5

Details

Application

Water

Barb Size

5/16" ID

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Schedule

80

Seal Material

Buna-N

Series

LC

Spring

316 Stainless Steel

Thumb Latch

Stainless Steel

Valve Type

Valved

Color / Finish

Chrome

Type

Coupling Body


LCD17005




Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Material Finish: Chrome
  • Color: Chrome
  • Mounting Option: Free Floating
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Seal Options: BUNA-N
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved



Weight & Dimensions

Weight (lbs)

0.5

Details

Application

Water

Barb Size

5/16" ID

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Schedule

80

Seal Material

Buna-N

Series

LC

Spring

316 Stainless Steel

Thumb Latch

Stainless Steel

Valve Type

Valved

Color / Finish

Chrome

Type

Coupling Body

Documentation
LCD17005
