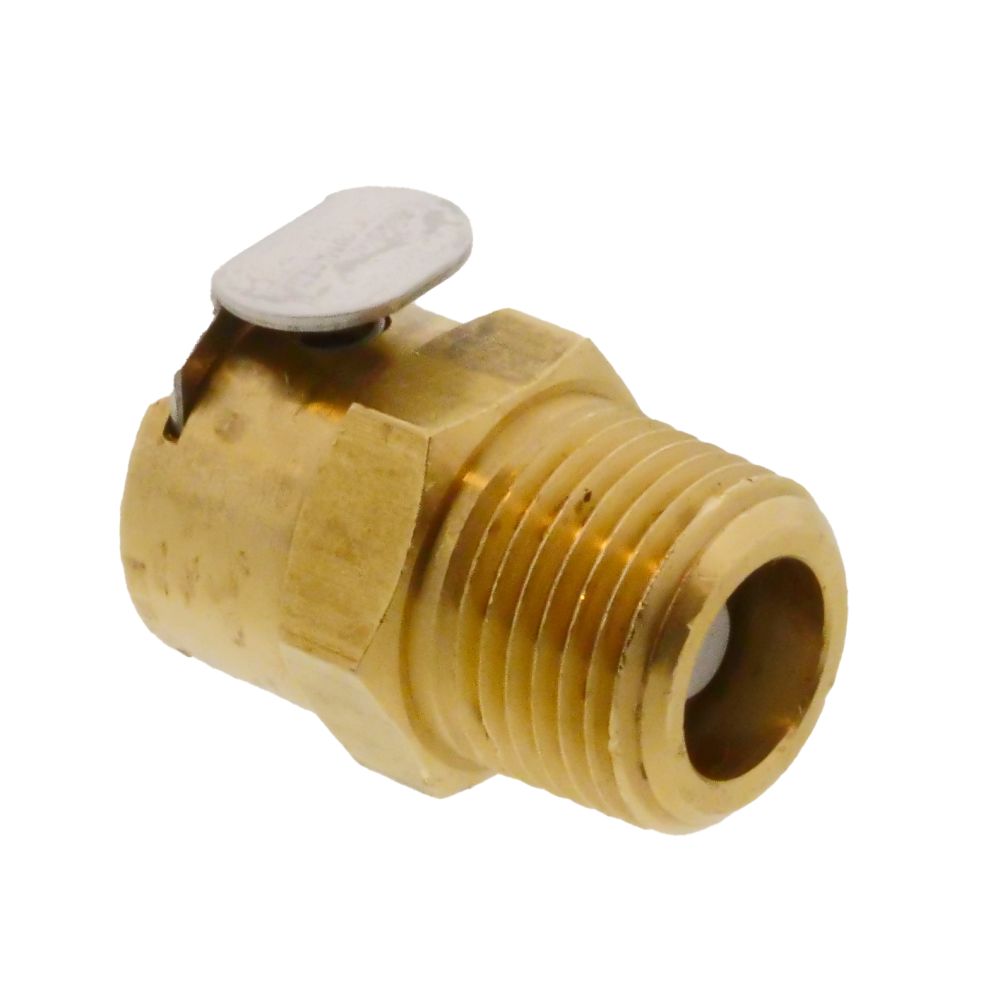

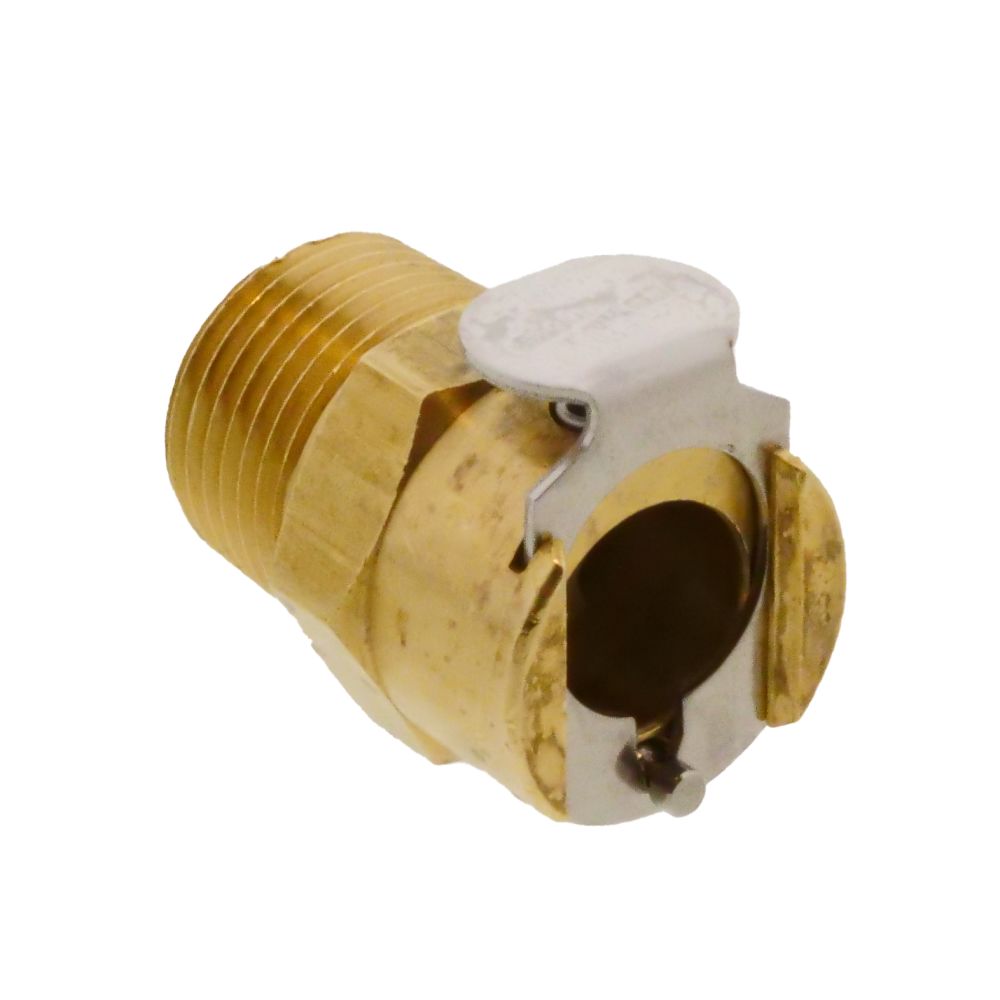

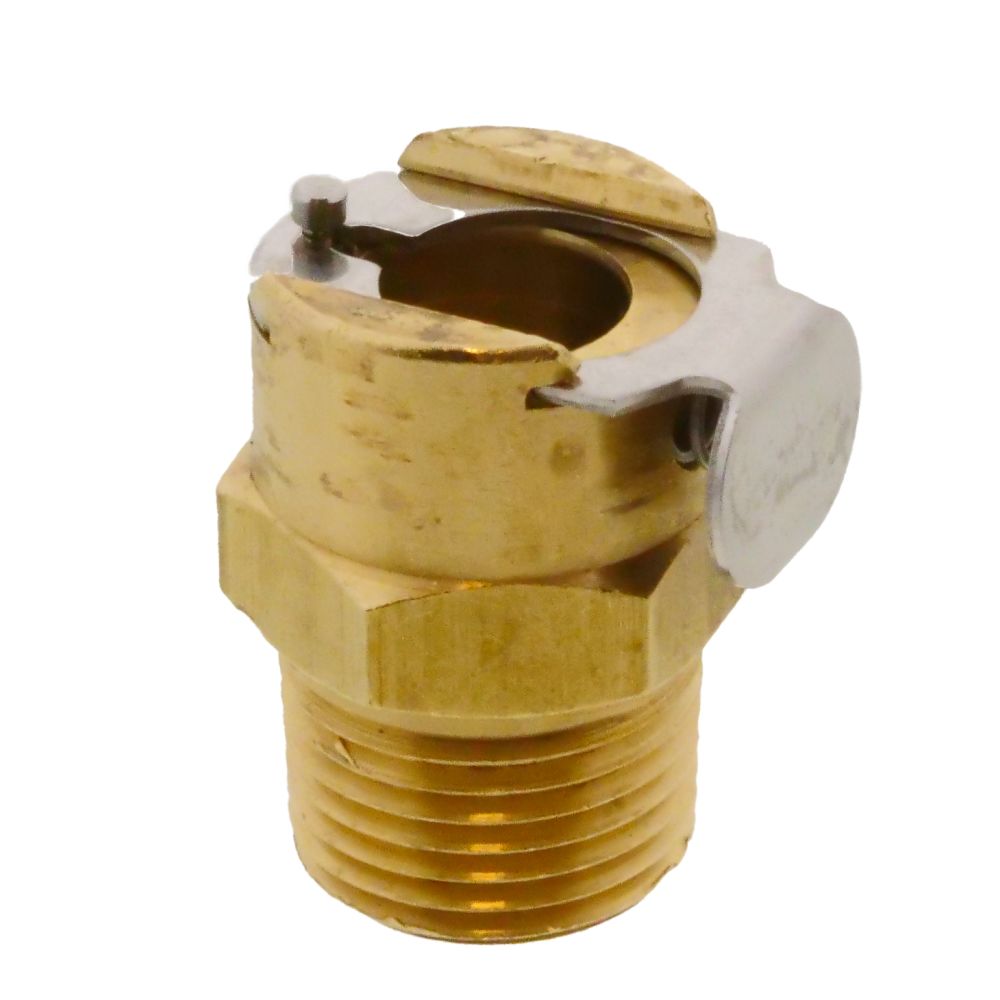

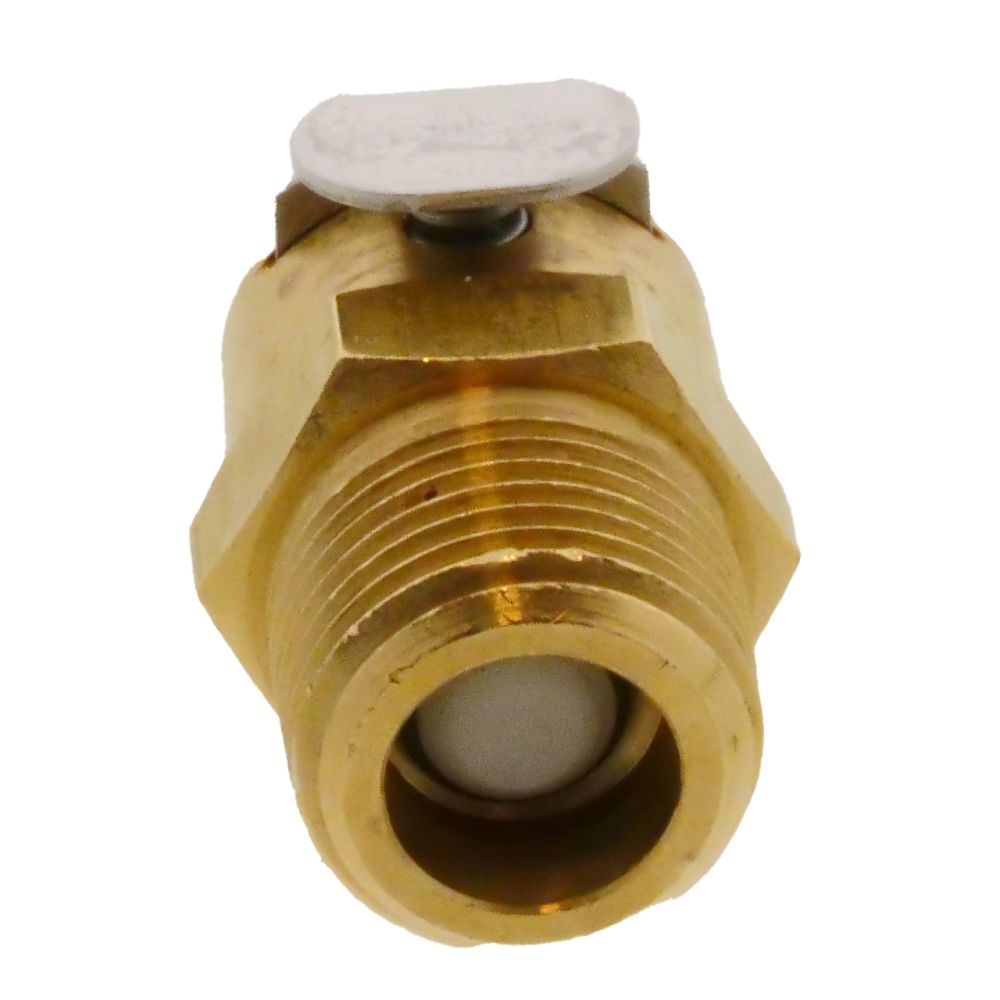

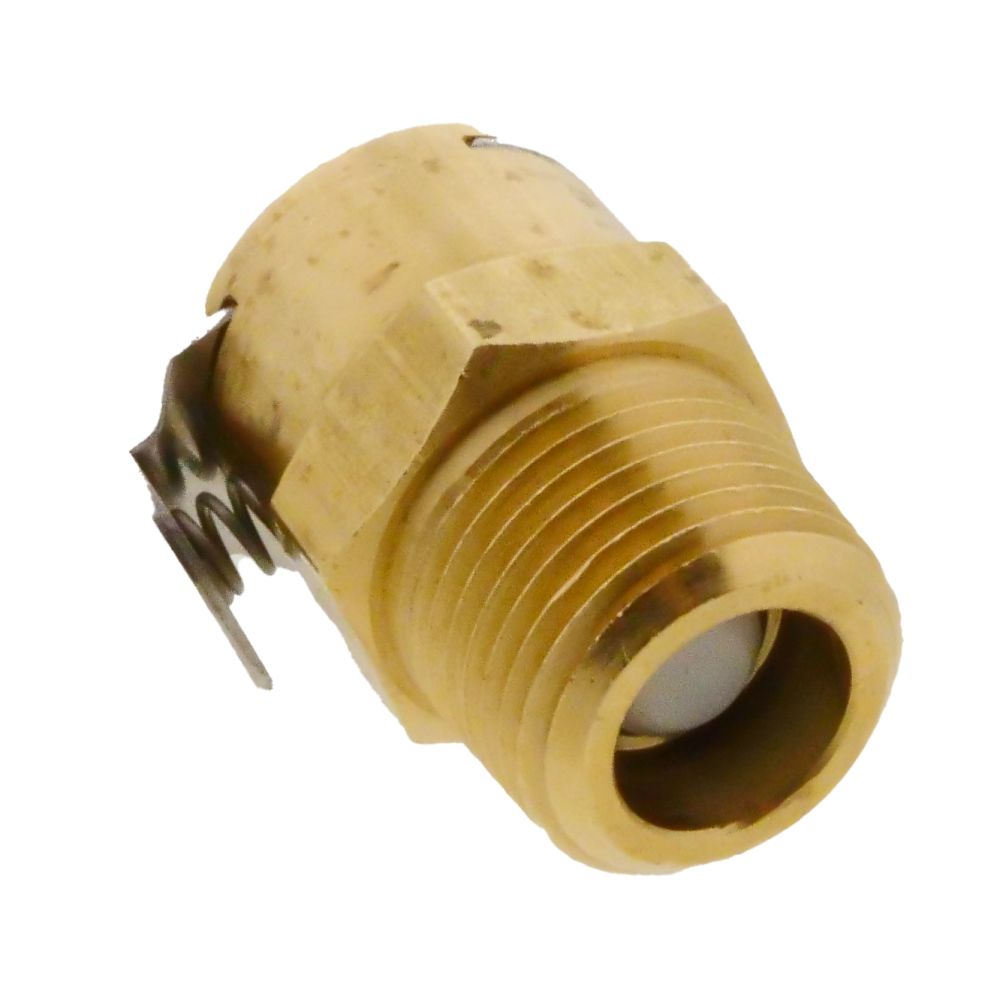

LCD10006VBR Valved Male Thread Coupling Body 3/8 NPT

Part Number: LCD10006VBR

Your price:

Choose

Single

Bag of 10

Pack of 100

Quantity

Colder’s LC brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:

Material: Brass
Pressure Range: Vacuum to 250 psi, 17.3 bar
Mounting Option: 3/8" NPT Thread
Valve Option: Valved
Temperature Range: -40ºF to 180 ºF
Seal Options: FKM
NSF Listed Version (part # 75000) Available Upon Request

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Brass
External Springs And Pin	Stainless Steel
Inlet Connection	3/8" MPT
Max Pressure (Psi)	250
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/8" MPT
Seal Material	FKM
Series	LC
Shape	Straight
Size	3/8"
Spring	316 Stainless Steel
Thumb Latch	Stainless steel
Valve Type	Valved
Color / Finish	Chrome
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	1.125 in.
Shipping Width	0.875 in.
Shipping Height	0.75 in.
Product Weight & Dimensions
Product Height	0.75 in.
Product Length	1.125 in.
Product Width	0.875 in.
Product Weight (lbs)	0.086
