Colder Products

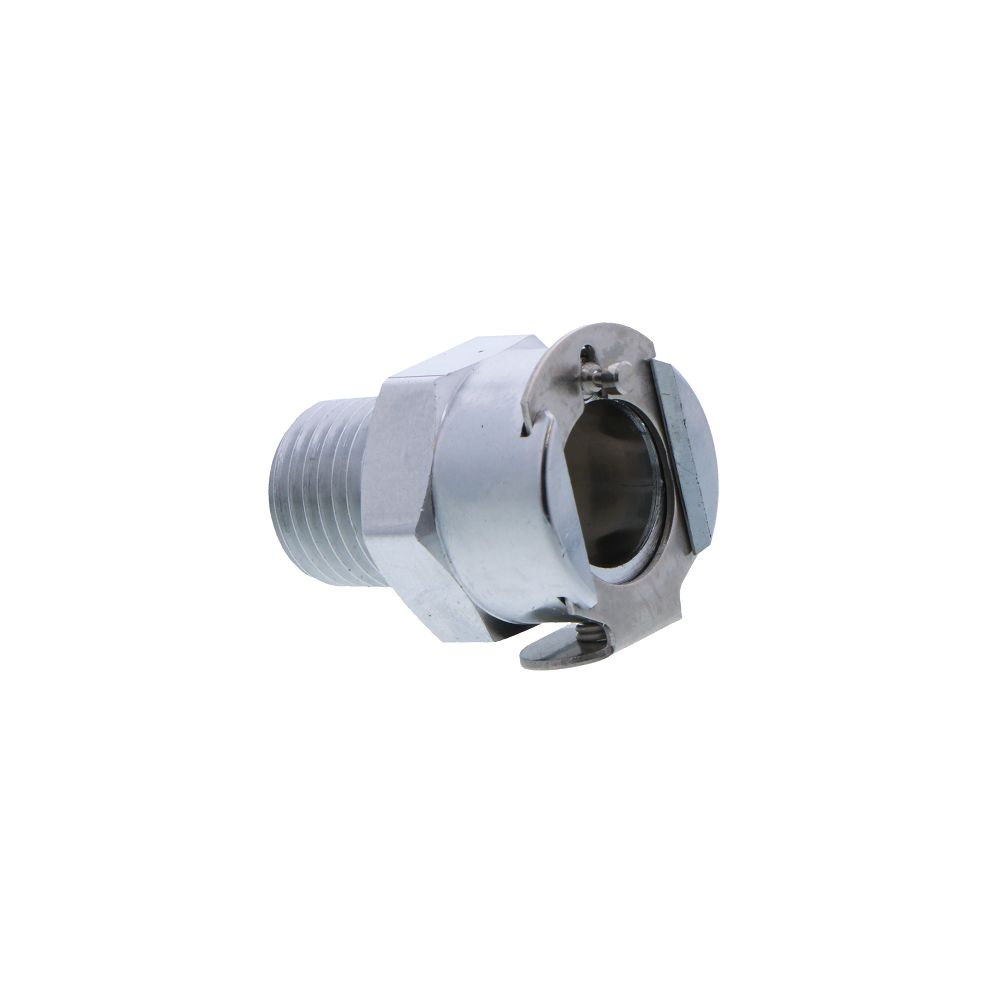

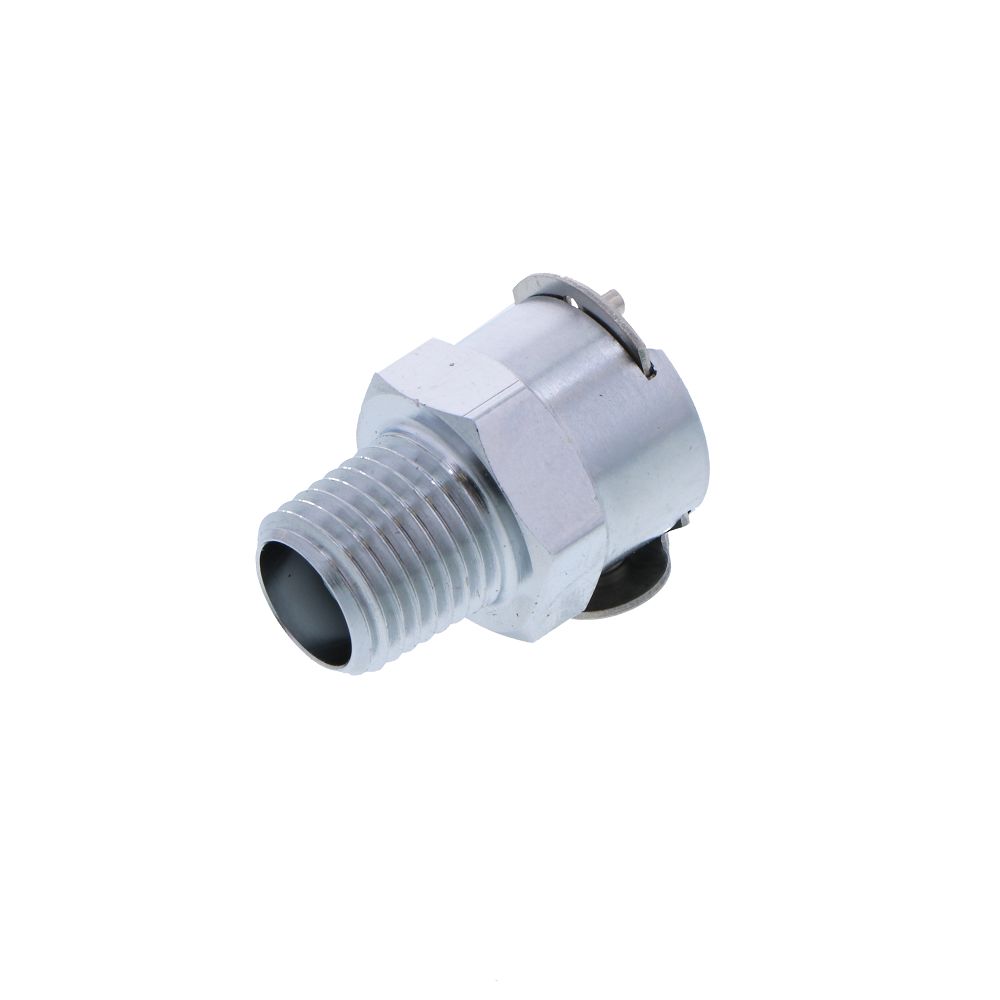

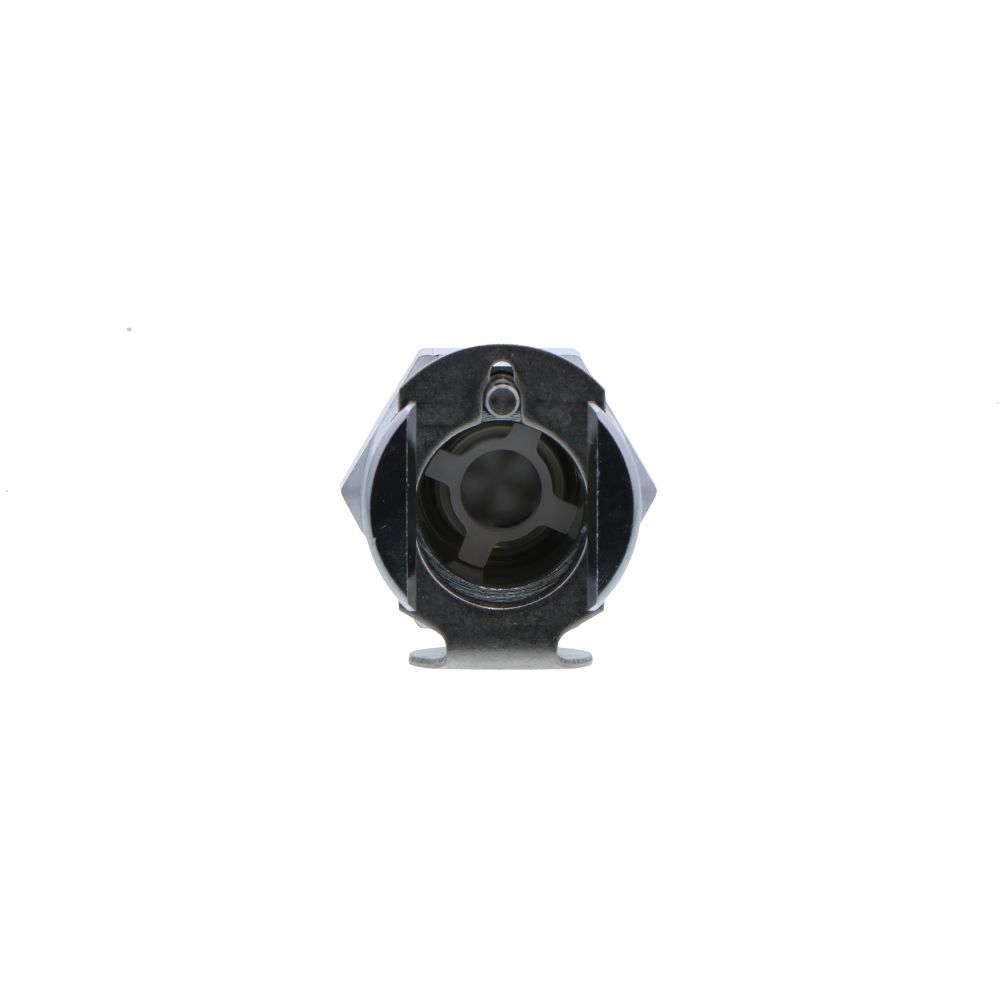

LCD10004V Valved Male Thread Coupling Body 1/4 NPT FKM (Viton) O-ring

Part Number: LCD10004V

Alt. Part Number: LCD10004FV

In Stock

out of stock

In Stock

$14.20

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: 1/4" NPT Thread
  • Valve Option: Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: FKM (Viton)




Weight & Dimensions

Length (inches)

1.5

Height (inches)

1

Width (inches)

1

Weight (lbs)

0.0625

Details

Series

LC

Max Temp (°F)

180

Max Pressure (Psi)

250

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Body Material

Chrome-Plated Brass

Color / Finish

Chrome

Mounting Options

Thread

Origin

USA

Seal Material

FKM (Viton)

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless steel

Inlet/Outlet Connection

1/4" MPT


LCD10004V
