Colder Products

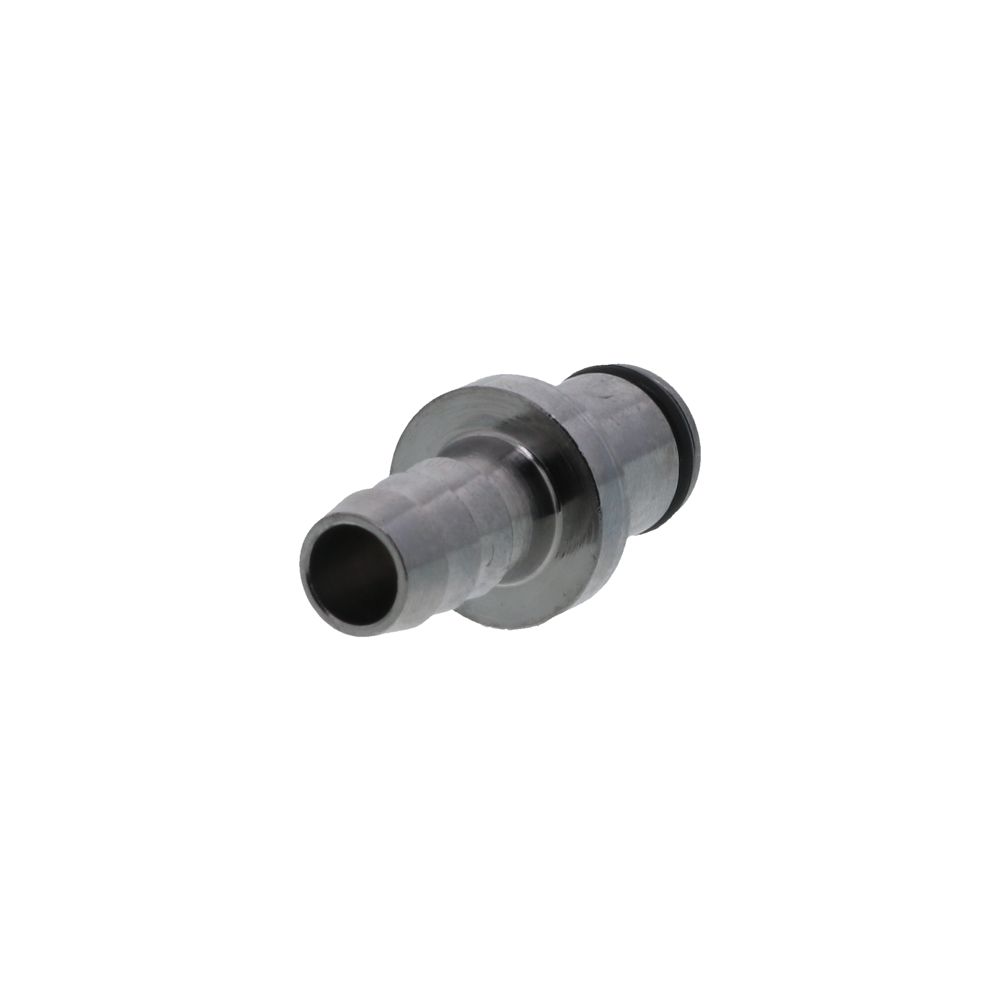

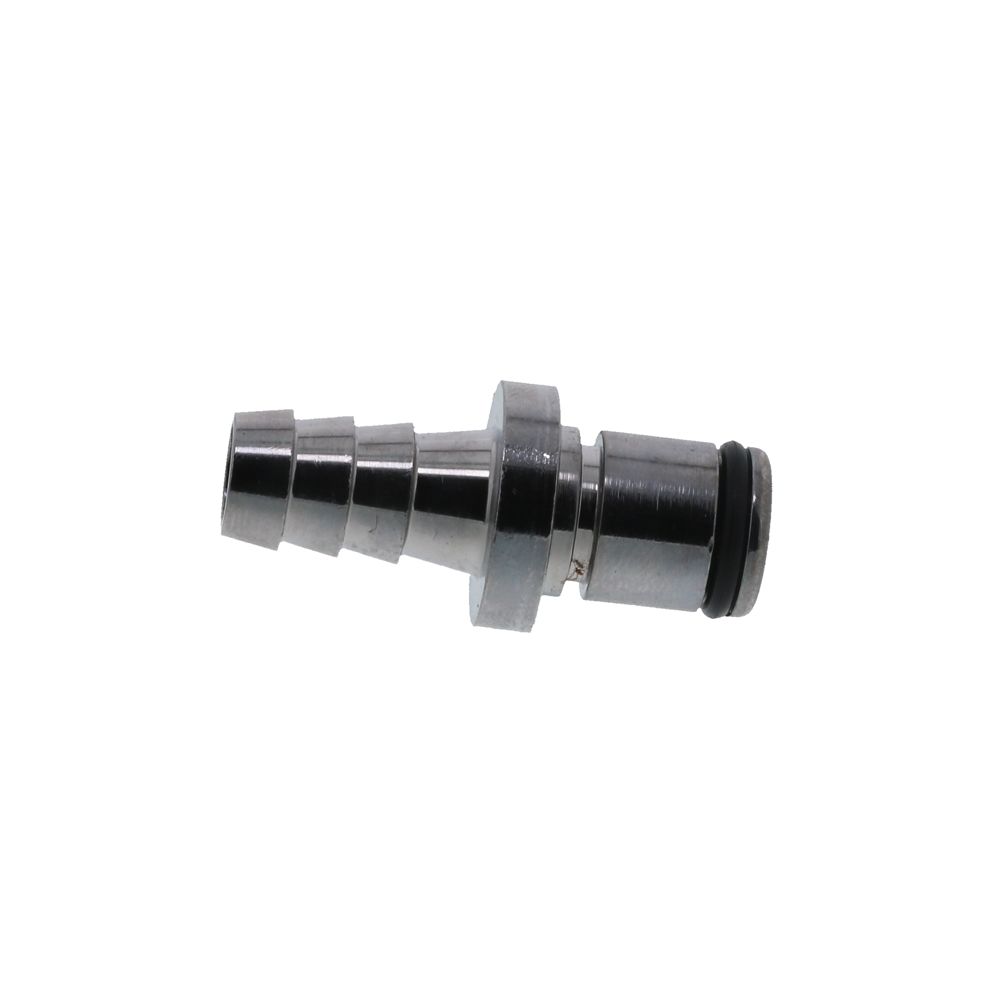

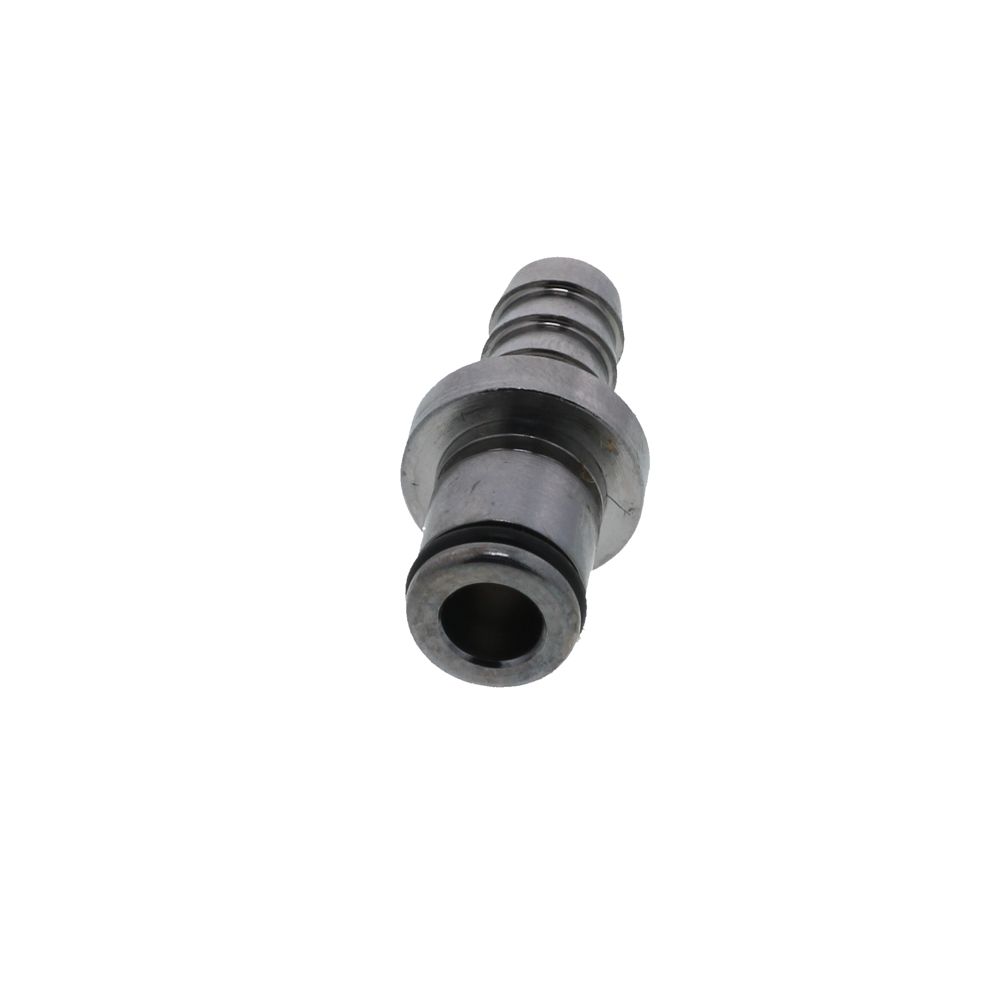

LC22005 In-Line Hose Barb Coupling Insert 5/16 ID Barb

Part Number: LC22005

In Stock

out of stock

In Stock

$6.50

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mzounting Option: Free Floating
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 Units




Weight & Dimensions

Height (inches)

0.5

Length (inches)

1.38

Weight (lbs)

0.003125

Width (inches)

0.5

Details

Application

Water

Barb Size

5/16" ID

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

Buna-N

Series

LC

Spring

316 stainless stee

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Color / Finish

Chrome

Origin

USA

Type

Coupling Insert


LC22005




Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mzounting Option: Free Floating
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 Units



Weight & Dimensions

Height (inches)

0.5

Length (inches)

1.38

Weight (lbs)

0.003125

Width (inches)

0.5

Details

Application

Water

Barb Size

5/16" ID

Body Material

Chrome-Plated Brass

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

250

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

Buna-N

Series

LC

Spring

316 stainless stee

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Color / Finish

Chrome

Origin

USA

Type

Coupling Insert
