Home / Fittings / Quick-Disconnect Fittings / Coupling Body / LC16004 Panel Mount Hose Barb Coupling Body 1/4 ID Barb
Colder Products

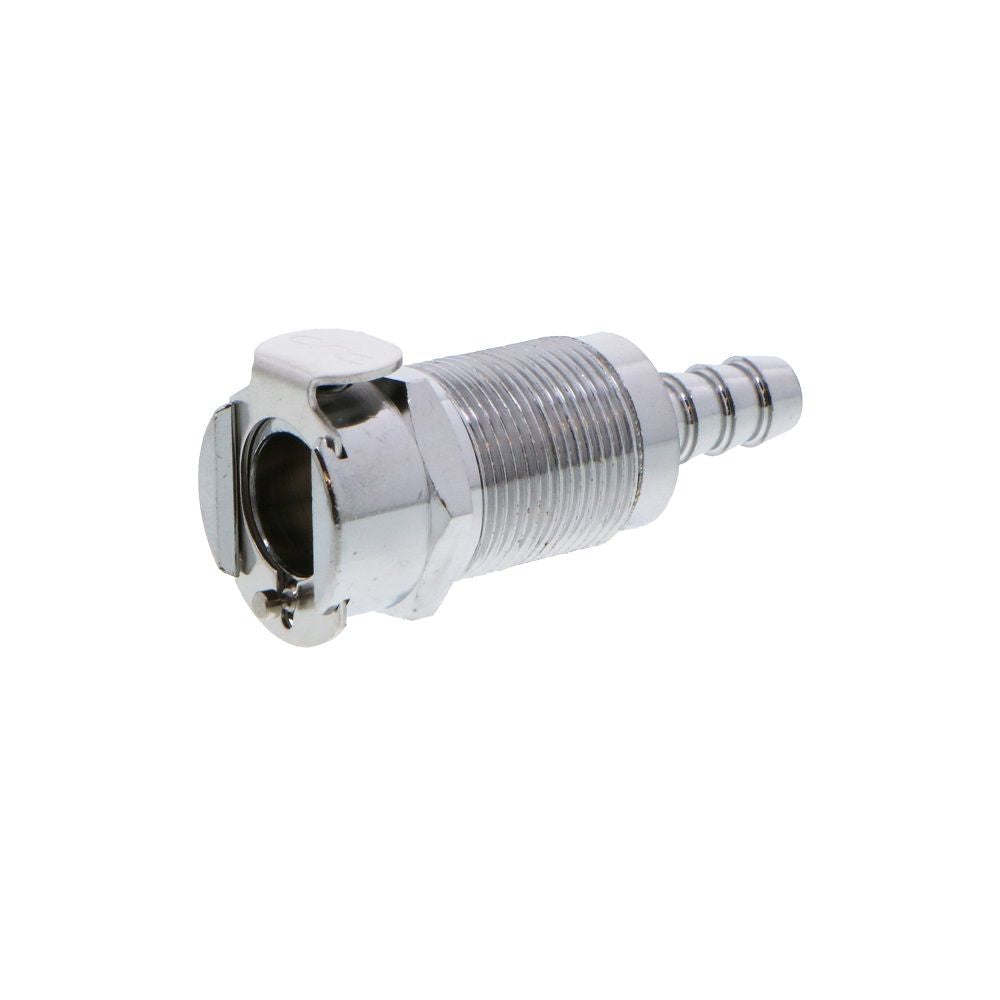

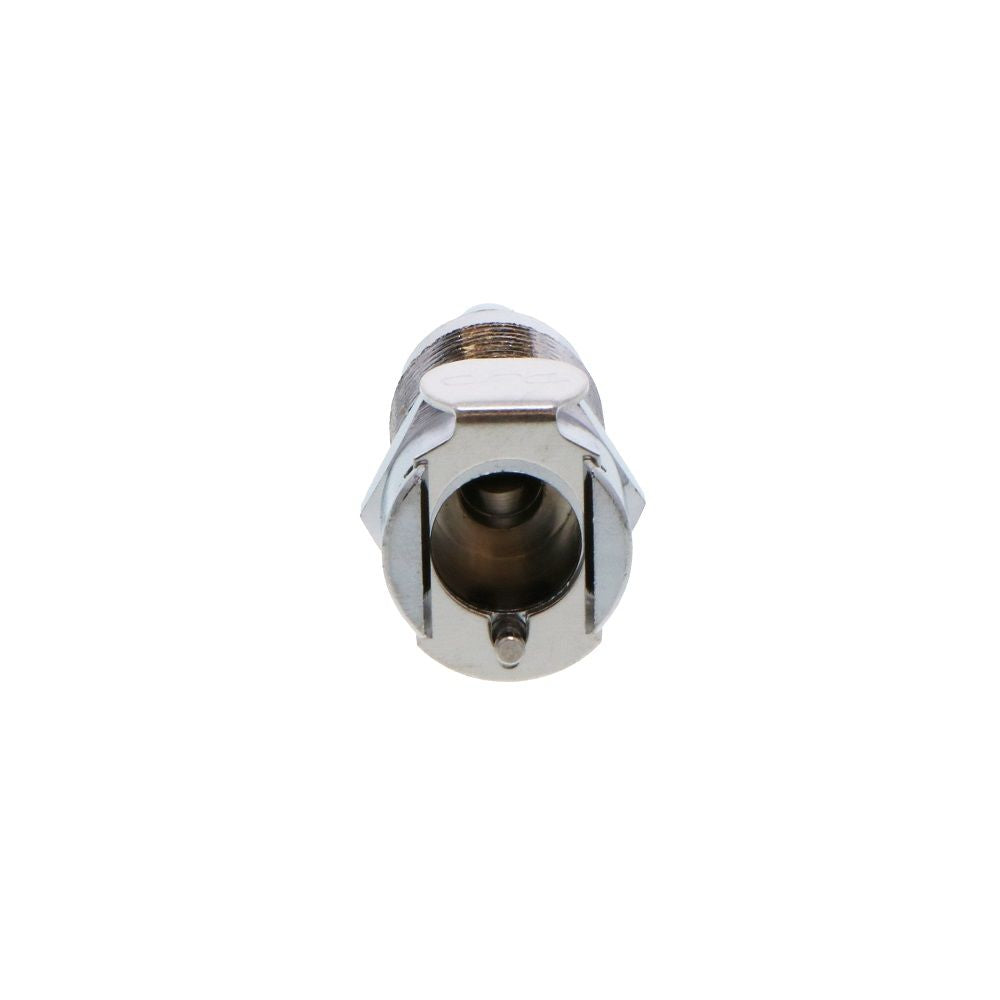

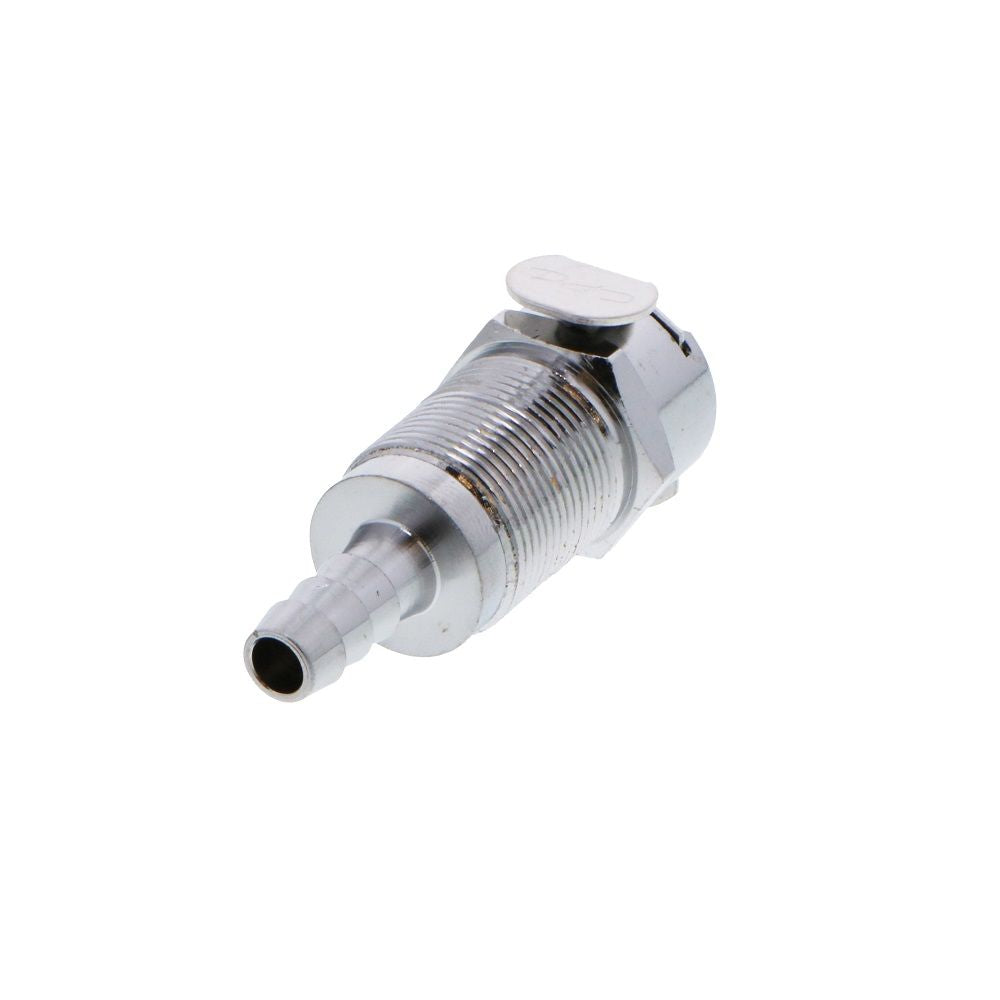

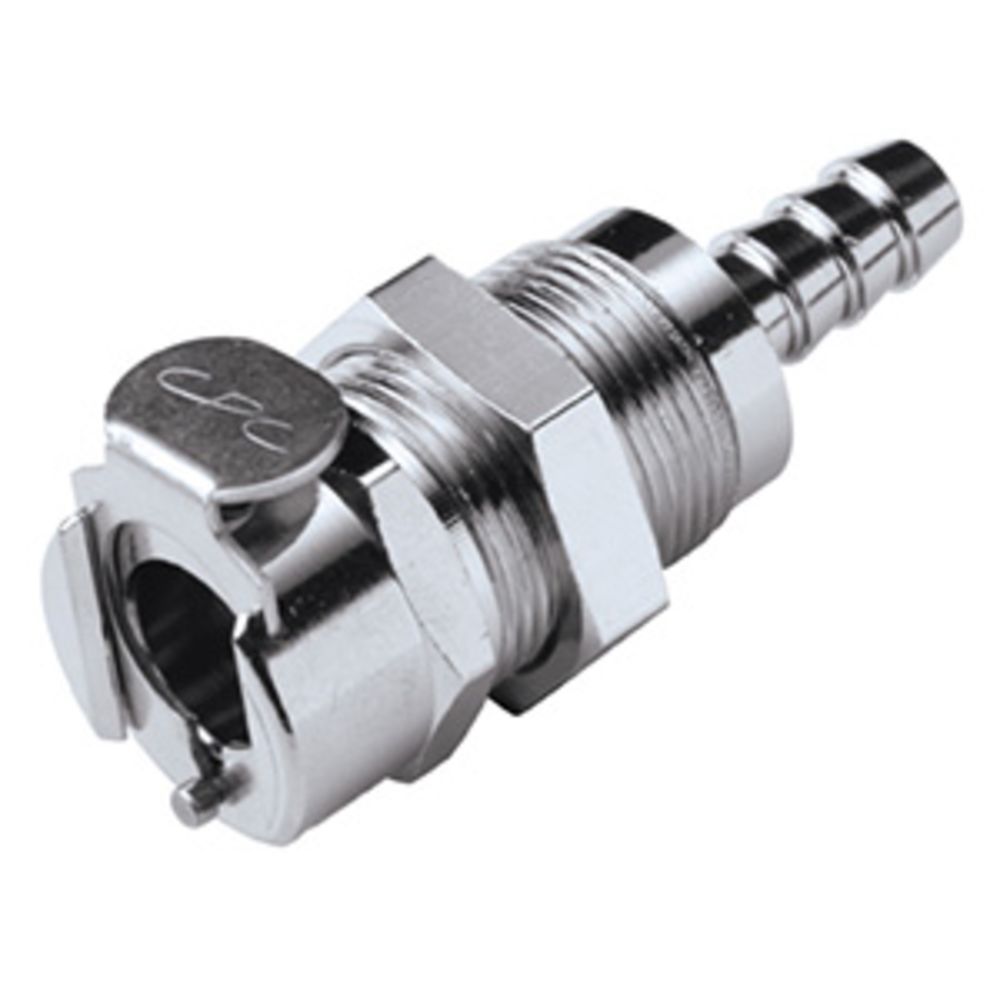

LC16004 Panel Mount Hose Barb Coupling Body 1/4 ID Barb

Part Number: LC16004
Main Product Image
Due to supply chain issues at the start , If the non-NSF version is not in stock, an identical Colder part with NSF testing (Auto-upgrade) will be sent to fulfill the order instead of the original part.
Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:
  • Material: Brass
  • Pressure Range: Vacuum to 250 psi, 17.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Non-Valved
  • Finish: Chrome
  • Temperature Range:-40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 10 Units
