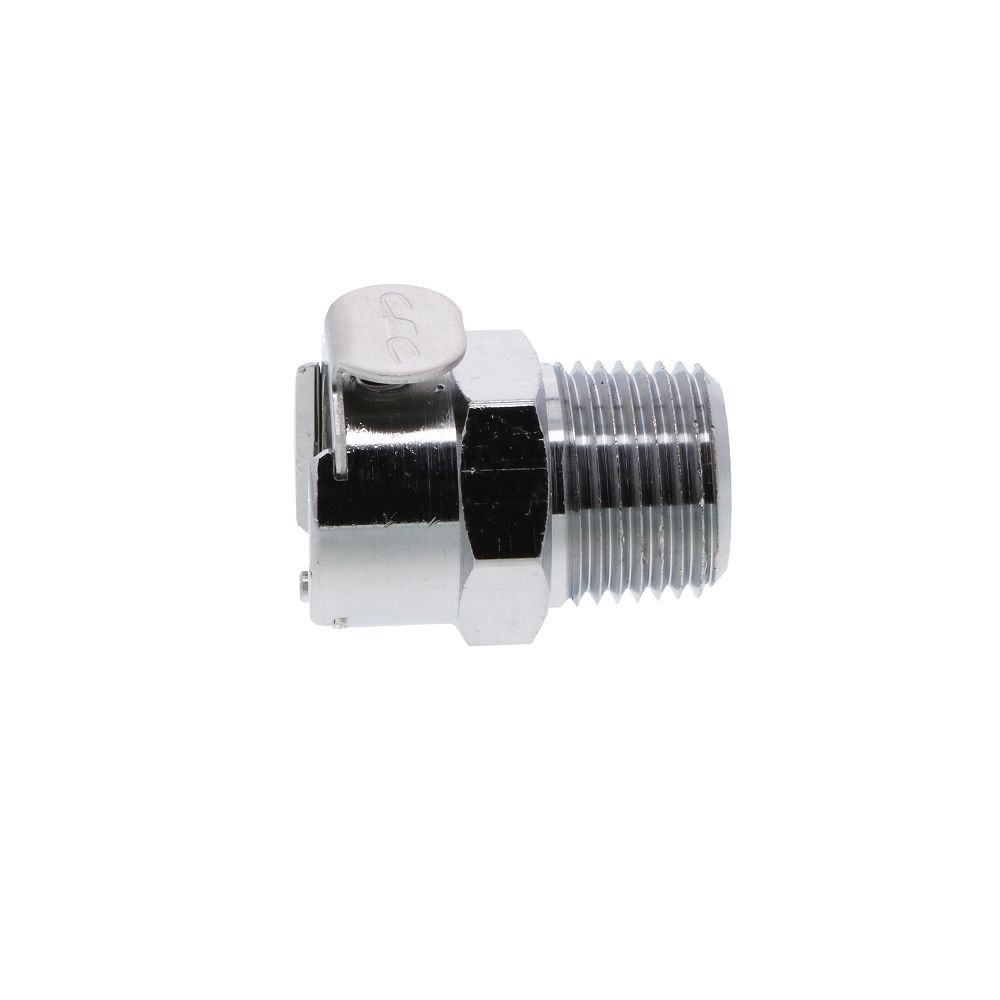

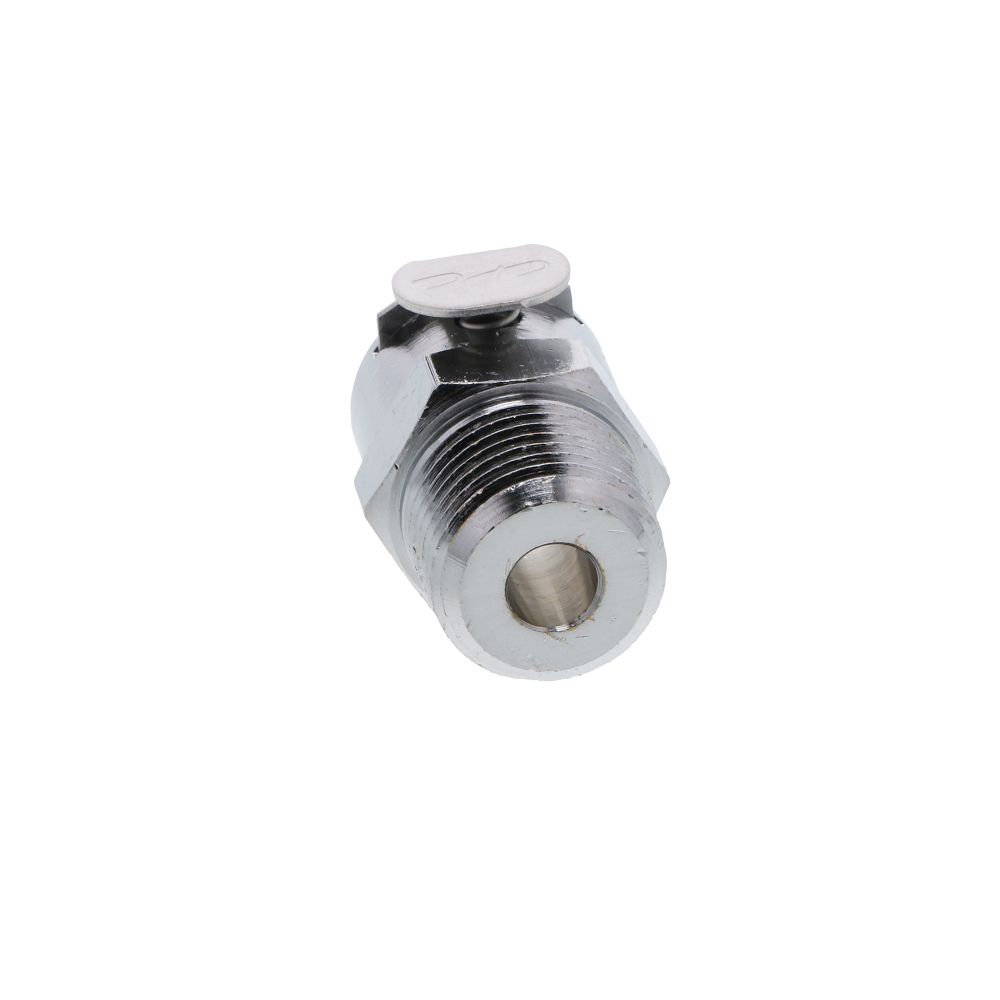

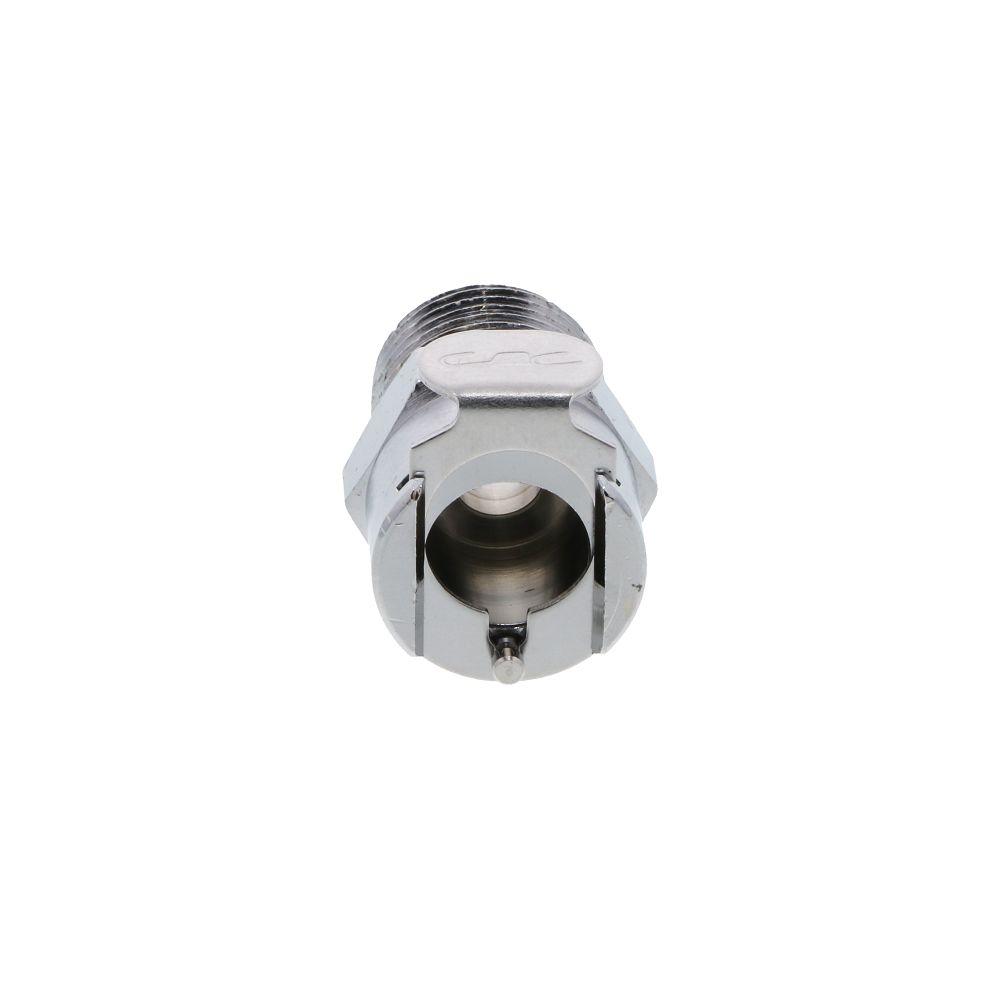

LC10006 Male Thread Coupling Body 3/8 NPT

Colder’s LC Series chrome-plated brass couplings are built tough and made to last in the most demanding applications. Ideal for use with higher temperature or pressure, the LC Series features a one-hand operation for swift and easy connects and disconnects.

Specifications:

Material: Brass
Pressure Range: Vacuum to 250 psi, 17.3 bar
Mounting Option: 3/8" NPT Thread
Valve Option: Non-Valved
Finish: Chrome
Temperature Range: -40ºF to 180ºF
Seal Options: Buna-N
Available in Bags of 10 Units

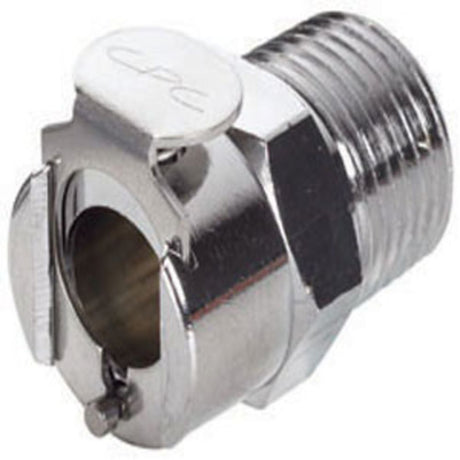

NSF Listed Version (part # 74900) Available Upon Request

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Chrome-Plated Brass
Inlet Connection	3/8" MPT
Max Pressure (Psi)	250
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/8" MPT
Series	LC
Shape	Straight
Size	3/8"
Spring	316 stainless steel
Valve Type	Non-Valved
Color / Finish	Chrome
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling Body

Product Details
Application	Water
Body Material	Chrome-Plated Brass
Inlet Connection	3/8" MPT
Max Pressure (Psi)	250
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Thread
Nsf Version	No
Outlet Connection	3/8" MPT
Series	LC
Shape	Straight
Size	3/8"
Spring	316 stainless steel
Valve Type	Non-Valved
Color / Finish	Chrome
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling Body

LC10006 Male Thread Coupling Body 3/8 NPT Manual
