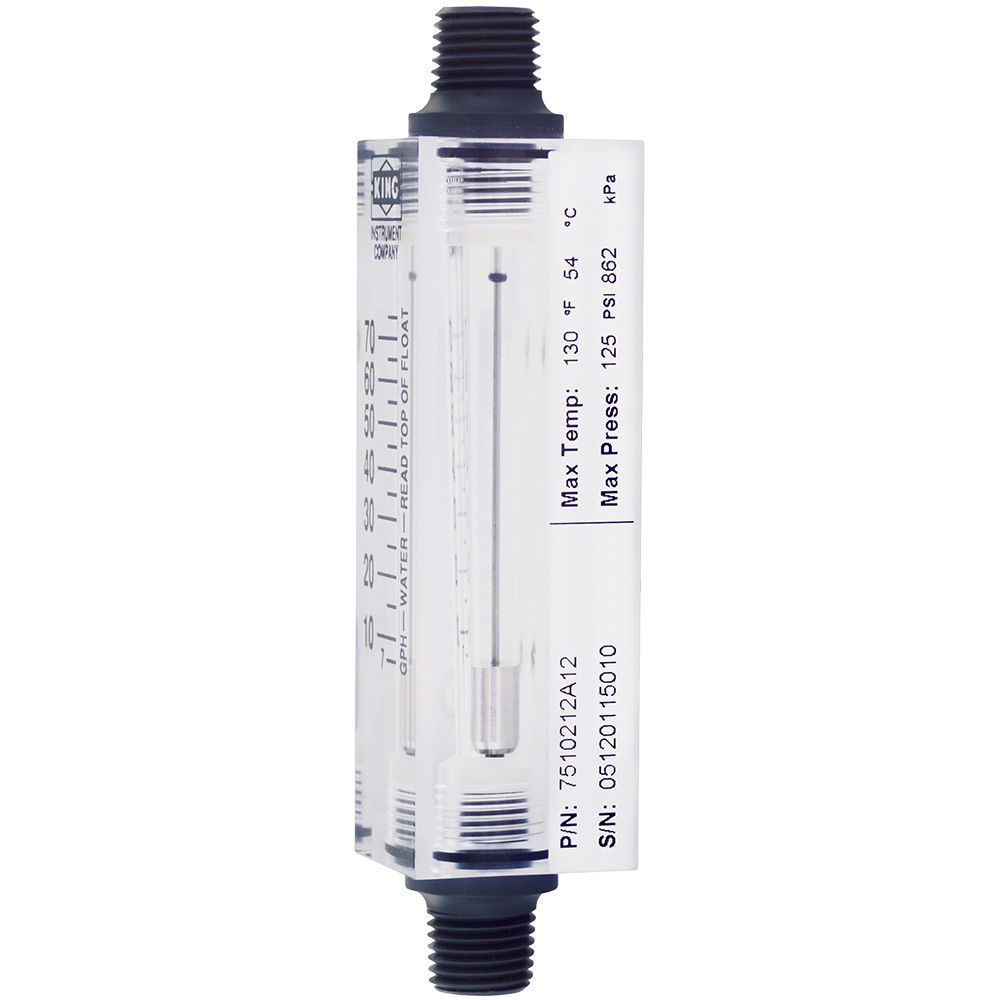

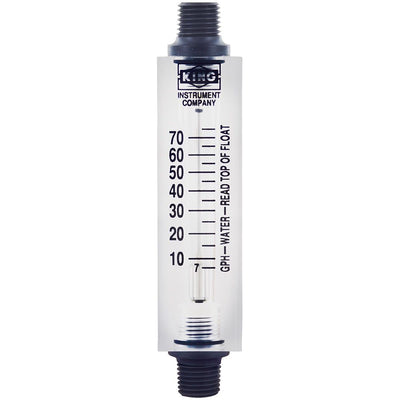

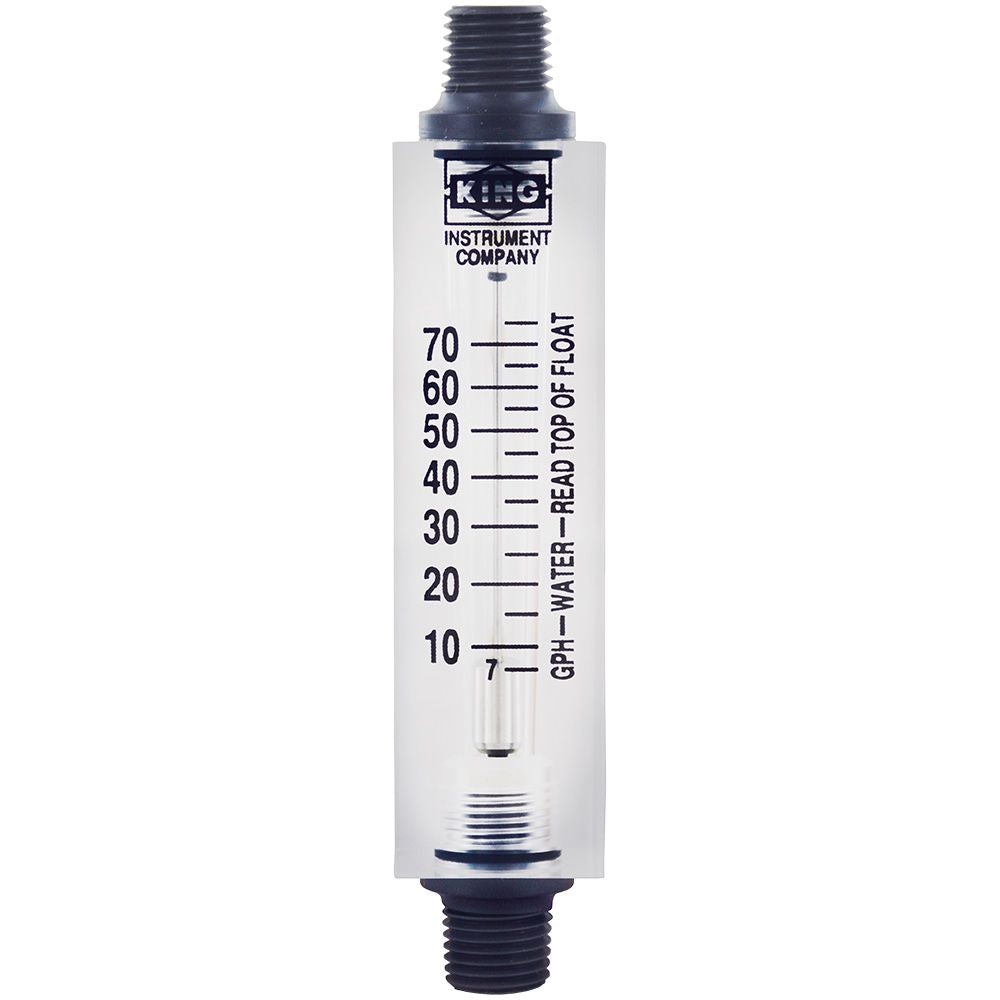

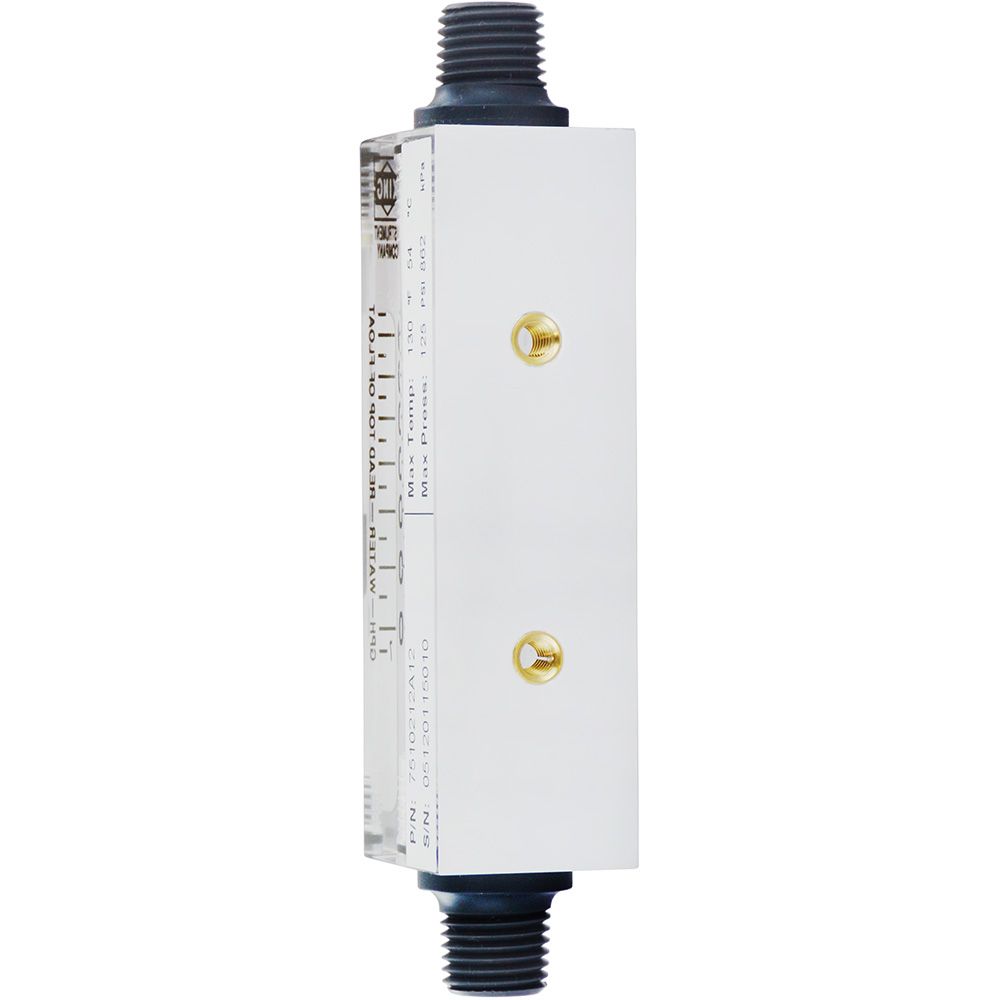

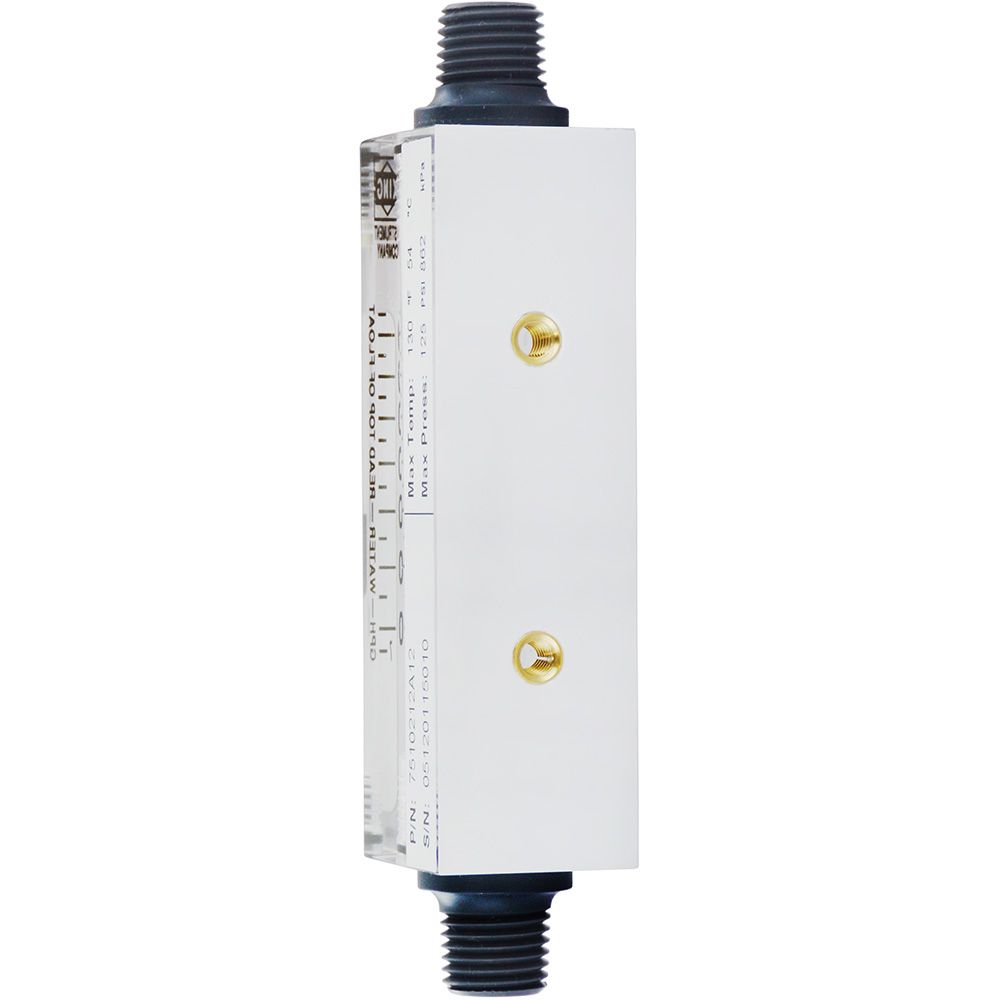

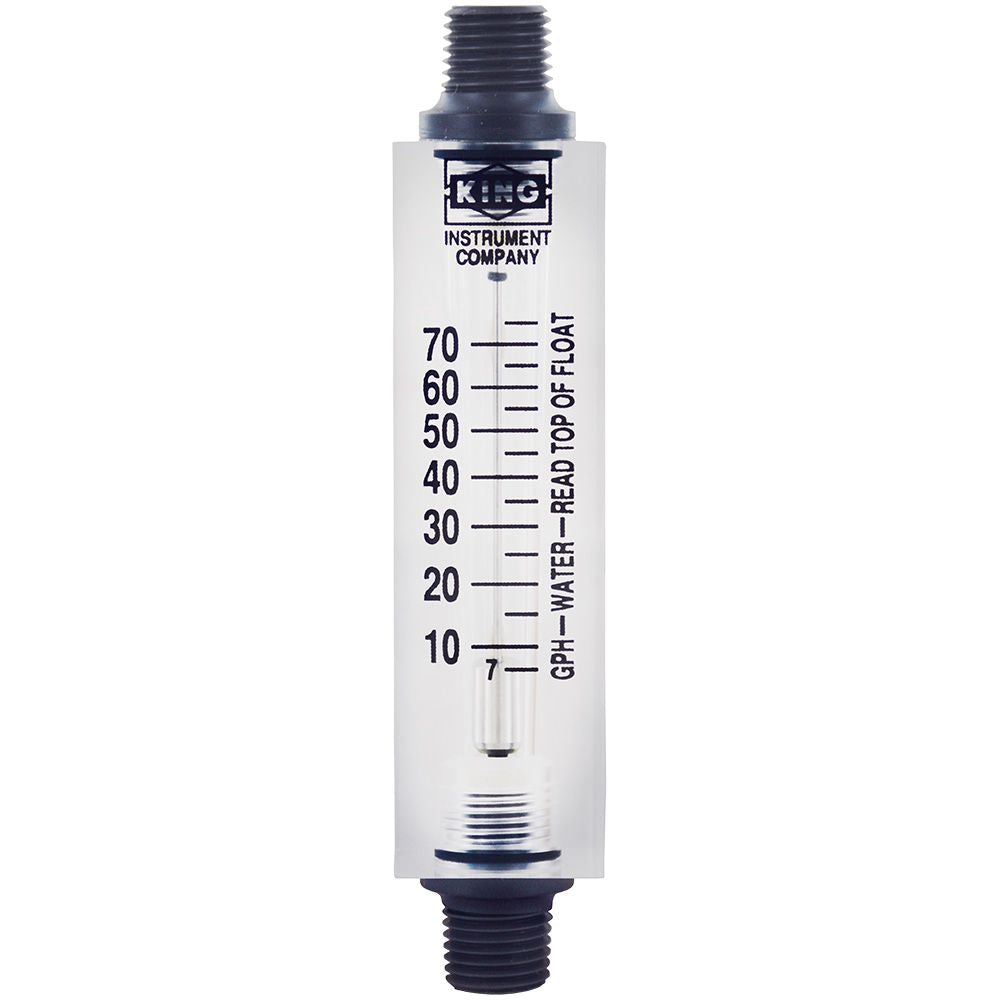

King 7510212A12 Acrylic Tube Flowmeter 75 GPH

Part Number: 7510212A12

Alt. Part Number: 7510-2-1-2A-12

In Stock

out of stock

In Stock

$54.99


The King 7510 Series Acrylic Tube Flowmeter features a float and tapered tube design, which provides it with longer and more linear scales, better pointer stability, and 40% more accuracy than competing rotometers, all at a competitive price. These flowmeters are precision-machined from durable cast acrylic stock, and internal components and fittings are made with 316L stainless steel. Connections are in-line for easy installation.


Specifications:
  • Metering Tube: Machined cast acrylic
  • Internal Components Material: 316L SS
  • Fitting Material: PVC
  • O-Ring Material: EPR
  • Water Flow Capacity: 75 GPH

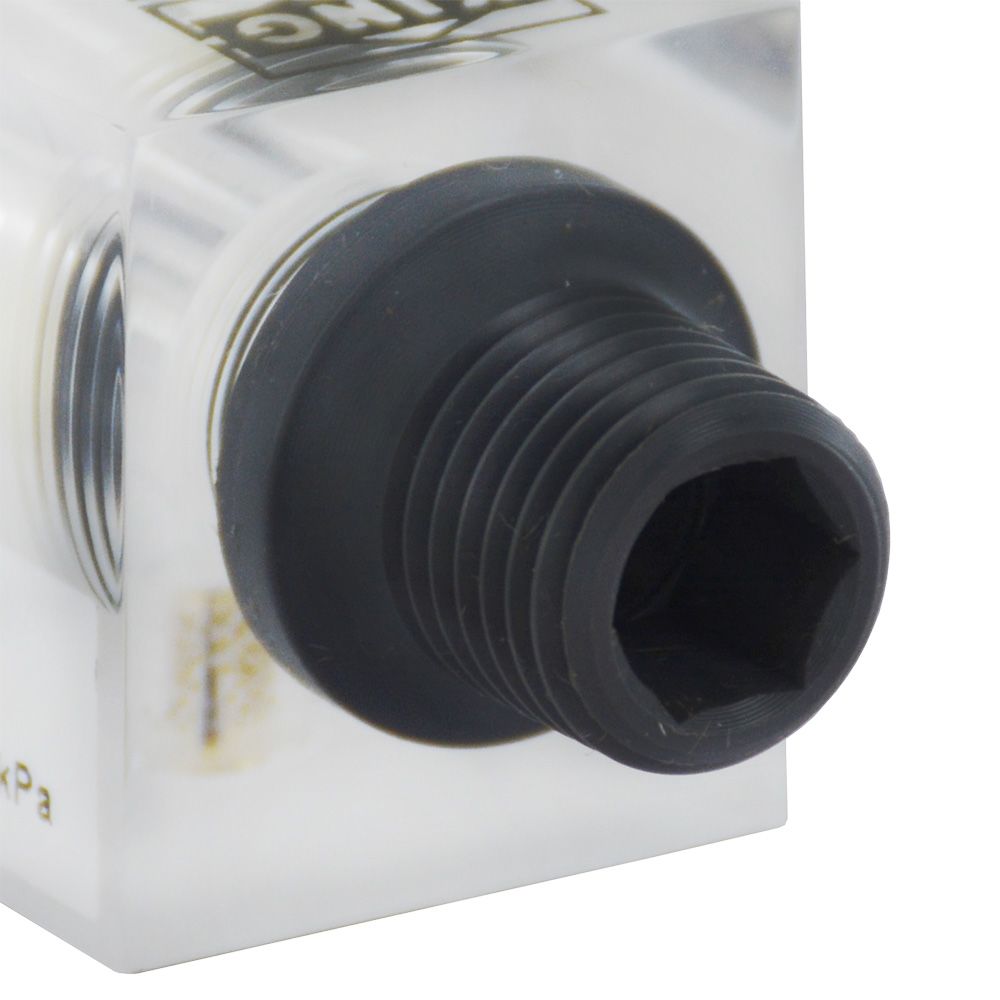

  • Connection Size: 1/4" FNPT
  • Accuracy: ±6% of full scale flow
  • Turndown: 10:1
  • Repeatability: 3% 50mm scale
  • Maximum Water Pressure: 125 psig
  • Maximum Liquid Temperature: 130°F (54°C)
  • Dimensions: 4.75" x 1"


Details

Body Material

Acrylic

Flow Rate

75 Gallons Per Hour

Max Operating Pressure

125 PSI

O Rings

EPDM

Operating Temperature Range

130 Degrees Fahrenheit

Accuracy

±6 Percent

Port Size

1/4" FNPT


King7510212A12

King7510212A12





The King 7510 Series Acrylic Tube Flowmeter features a float and tapered tube design, which provides it with longer and more linear scales, better pointer stability, and 40% more accuracy than competing rotometers, all at a competitive price. These flowmeters are precision-machined from durable cast acrylic stock, and internal components and fittings are made with 316L stainless steel. Connections are in-line for easy installation.


Specifications:
  • Metering Tube: Machined cast acrylic
  • Internal Components Material: 316L SS
  • Fitting Material: PVC
  • O-Ring Material: EPR
  • Water Flow Capacity: 75 GPH
  • Connection Size: 1/4" FNPT
  • Accuracy: ±6% of full scale flow
  • Turndown: 10:1
  • Repeatability: 3% 50mm scale
  • Maximum Water Pressure: 125 psig
  • Maximum Liquid Temperature: 130°F (54°C)
  • Dimensions: 4.75" x 1"

Details

Body Material

Acrylic

Flow Rate

75 Gallons Per Hour

Max Operating Pressure

125 PSI

O Rings

EPDM

Operating Temperature Range

130 Degrees Fahrenheit

Accuracy

±6 Percent

Port Size

1/4" FNPT
