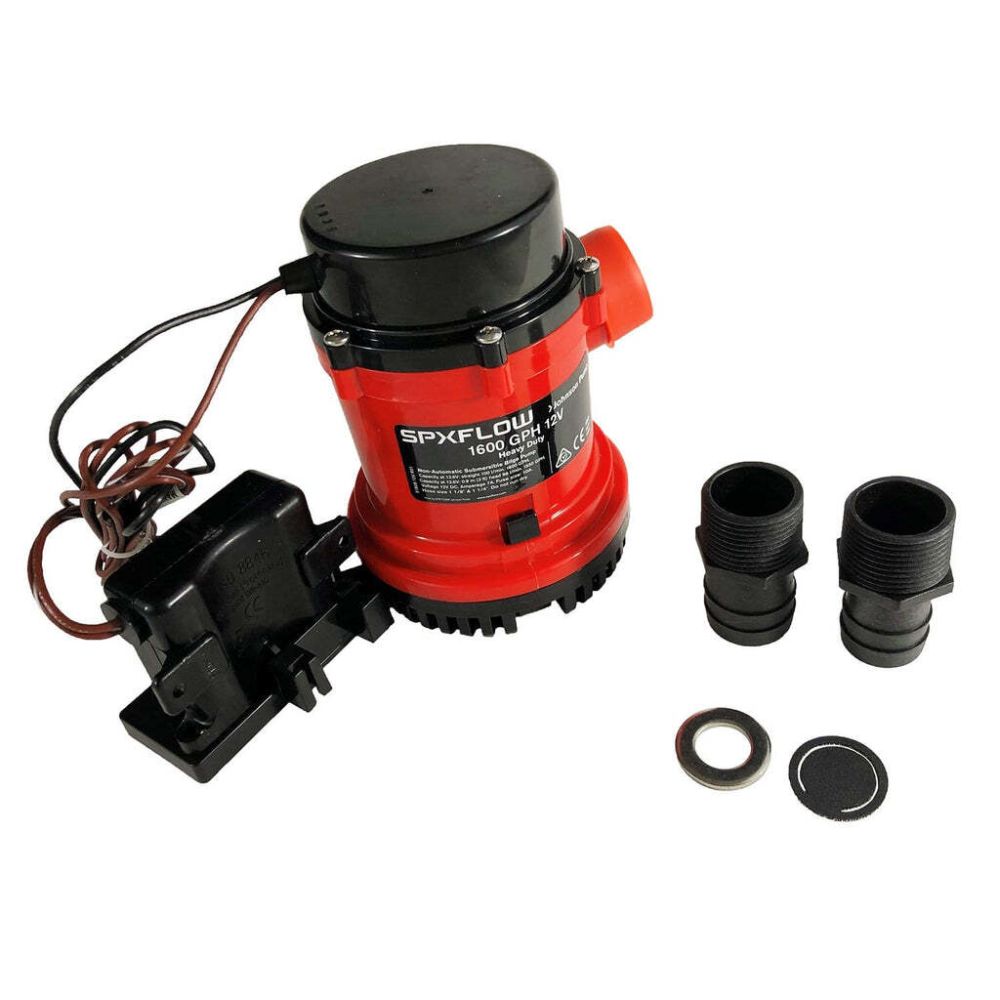

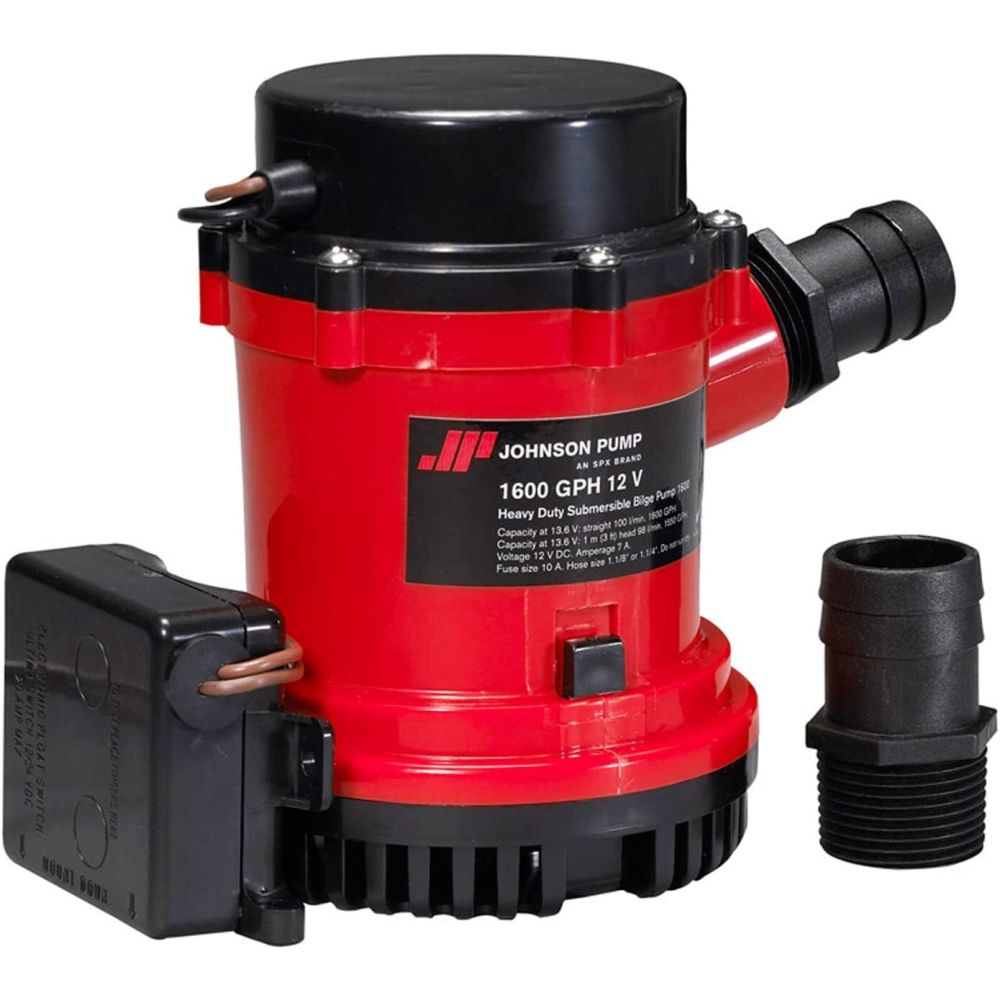

Johnson Heavy Duty - Submersible Bilge Pump 1600 GPH Ultima (with Ultima Switch)

Part Number: 01674-001 Alt. Part Number: 32-1600UC-01

1 3

Johnson Pumps

Johnson Heavy Duty - Submersible Bilge Pump 1600 GPH Ultima (with Ultima Switch)

Part Number: 01674-001 Alt. Part Number: 32-1600UC-01

MSRP: $233.45

$131.43

Quantity

Unit Price

Price

Savings

$131.43

—

$124.85

$499.43

Product variants

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

This Johnson Heavy Duty - Submersible Bilge Pump 1600 GPH Ultima (with Ultima Switch) is equipped with the non-clogging electronic switch Ultima Switch. Designed to meet and exceed the tough demands of commercial and recreational duty.

Features:

Pre-wired with the non-clogging electronic switch Ultima Switch (USA + rest of the world) for automatic operation
Liquid cooled, 12-pole motor with double ball bearings for extended service life
2200 GPH motor is sealed off by a mechanical seal design, while the 1600 GPH model has lipseal
Impeller is carefully designed and tested to maximize head and flow
Universal base plate and choice of two different ports makes for a simple installation
Removable check valve included

Product Catalog

SPX Flow Product Catalog

View Prop 65 Warning

Specifications

Product Details
Application	Bilge
Body Material	Thermoplastic
Capacity	1.0 m head (13.6V/27.2V) - 100 L/min – 1600 GPH Straight (13.6V/27.2V) - 98 L/min – 1550 GPH
Inlet Connection	1⅛" x 1¼"
Outlet Connection	1⅛" x 1¼"
Wire Option	16 GA/1.8 m - 6 ft
Flow Rate	1600 GPH 26 GPM
Voltage	12V
Warranty & Certifications
Ca Prop 65	1
Shipping Dimensions
Shipping Length	6.25 in.
Shipping Width	6.25 in.
Shipping Height	4.75 in.
Product Weight & Dimensions
Product Weight (lbs)	3.125

Product Details
Application	Bilge
Body Material	Thermoplastic
Capacity	1.0 m head (13.6V/27.2V) - 100 L/min – 1600 GPH Straight (13.6V/27.2V) - 98 L/min – 1550 GPH
Inlet Connection	1⅛" x 1¼"
Outlet Connection	1⅛" x 1¼"
Wire Option	16 GA/1.8 m - 6 ft
Flow Rate	1600 GPH 26 GPM
Voltage	12V
Warranty & Certifications
Ca Prop 65	1
Product Weight & Dimensions
Product Weight (lbs)	12.5

Downloads

Johnson Heavy Duty - Submersible Bilge Pump 1600 GPH Ultima (with Ultima Switch) Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

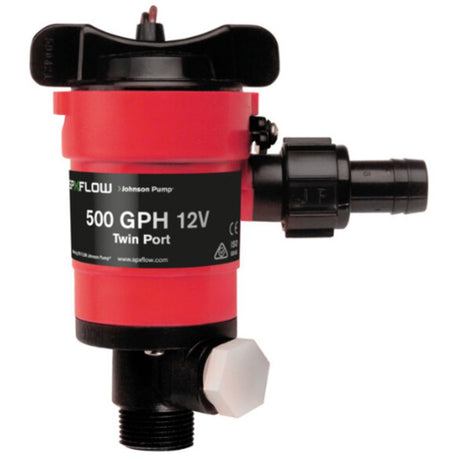

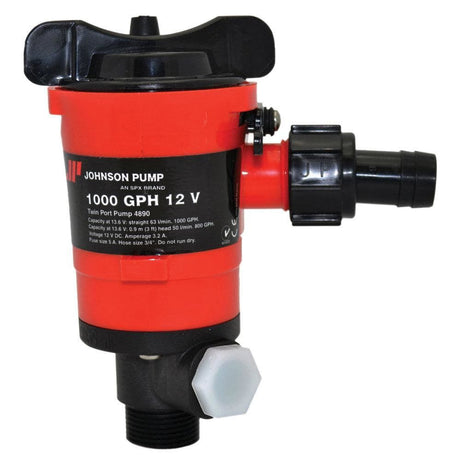

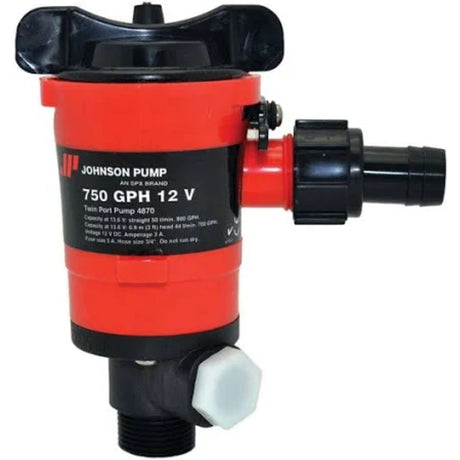

Facet	Johnson Pumps Johnson Heavy Duty - Submersible Bilge Pump 1600 GPH Ultima (with Ultima Switch) Regular price From $131.43 Low stock Part #: 01674-001 Save up to 5% with bulk pricing Current Product	Johnson Pumps Johnson Pump - Marine Twin Port Aerator Pump 500 GPH 5.0 Regular price From $41.43 Low stock Part #: 48503 Save up to 5% with bulk pricing View details	Johnson Pumps Johnson Pump - Marine Twin Port Aerator Pump 750 GPH Regular price From $44.29 Part #: 48703 Save up to 5% with bulk pricing View details	Johnson Pumps Johnson Pump - Marine Twin Port Aerator Pump 1000 GPH Regular price From $48.00 Low stock Part #: 48903 Save up to 5% with bulk pricing View details
