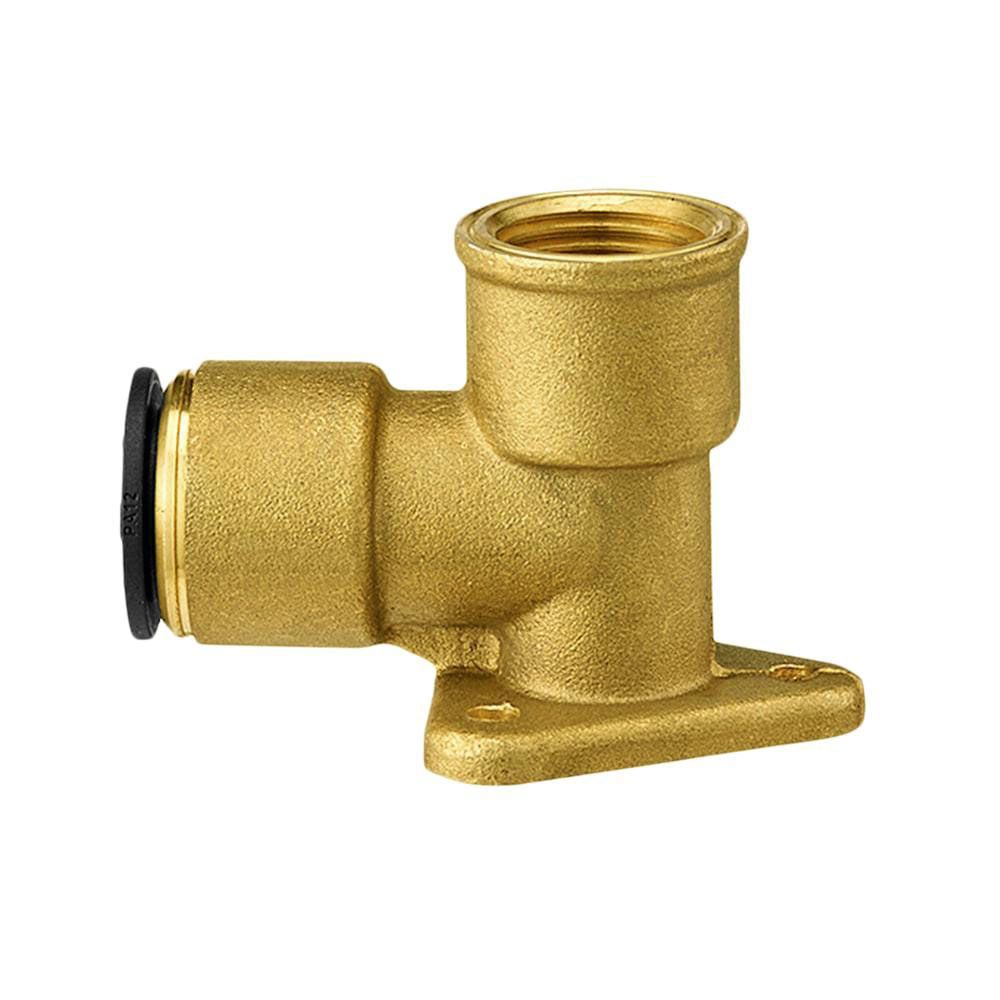

John Guest Wing Back Elbow - 1/2 CTS x 1/2 NPT

Part Number: WBI2024E

John Guest

John Guest Wing Back Elbow - 1/2 CTS x 1/2 NPT

Part Number: WBI2024E

MSRP: $19.80

$13.41

Quantity

Unit Price

Price

Savings

$13.41

—

$12.45

$249.19

Product variants

You May Also Need

Optional Accessory
John Guest Pipe Cutter - Standard

Regular price From $32.73
Optional Accessory
PEX Installation Tools - Tubing Cutter (up to 1" CTS)

Regular price $13.12
Optional Accessory
PTFE Teflon® Thread Seal Tape - 0.4 Density 1/2" x 60"

Regular price From $0.39

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest Speedfit Wing Back Elbow Connector is used for connecting shower arm and tub spouts. This fitting has three mounting holes for secure mounting and easily connects to Copper, PEX or CPVC. Approved for behind-the-wall applications and can be used for permanent installations. Ideal for work in tight spaces. Can be disconnected without damage to tubing.

Features:

For use with Copper, PEX, and CPVC
No soldering, glue or clamps
Can be installed on wet lines.
Approved for behind-the-wall applications with no access panel
Can be disconnected as needed
Not for potable water applications

Working pressure and temperature:

160 psi at 73° F
100 psi at 180° F
80 psi at 200° F

Application	Max Working Pressure	Max Working Temperature
Water Water Water	160 PSI 100 PSI 80 PSI	73° F 180° F 200° F

View Prop 65 Warning

Specifications

Product Details
Fitting Connection Size

5/8" Tube OD x 1/2" NPTF
Inlet Connection

1/2" MPT
Outlet Connection

1/2" MPT
Push-In Size

5/8" OD
Seal / O-Ring Material

EPDM
Series

ProLock
Shape

Elbow
Shipping Dimensions
Shipping Length

2.634
11.024
Shipping Width

1.744
10.236
Shipping Height

1.85
4.134

Downloads

John Guest Wing Back Elbow - 1/2 CTS x 1/2 NPT Manual
