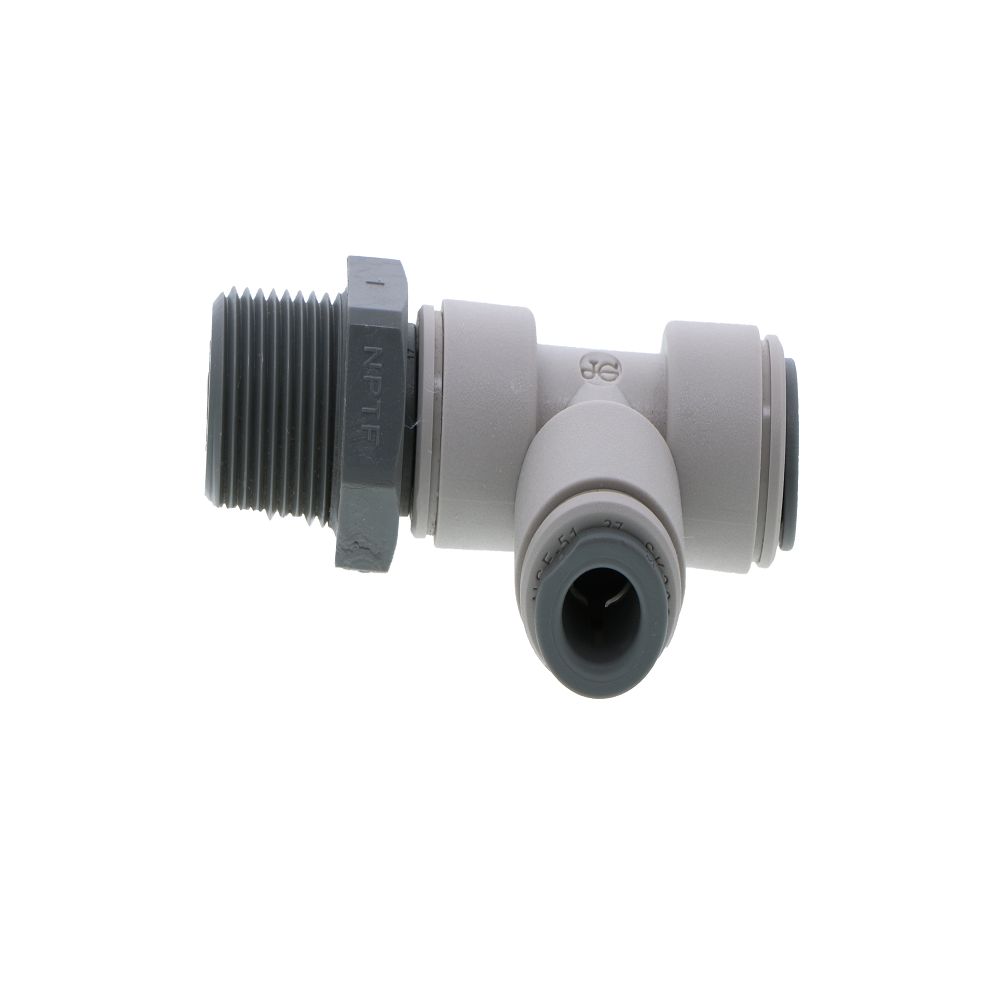

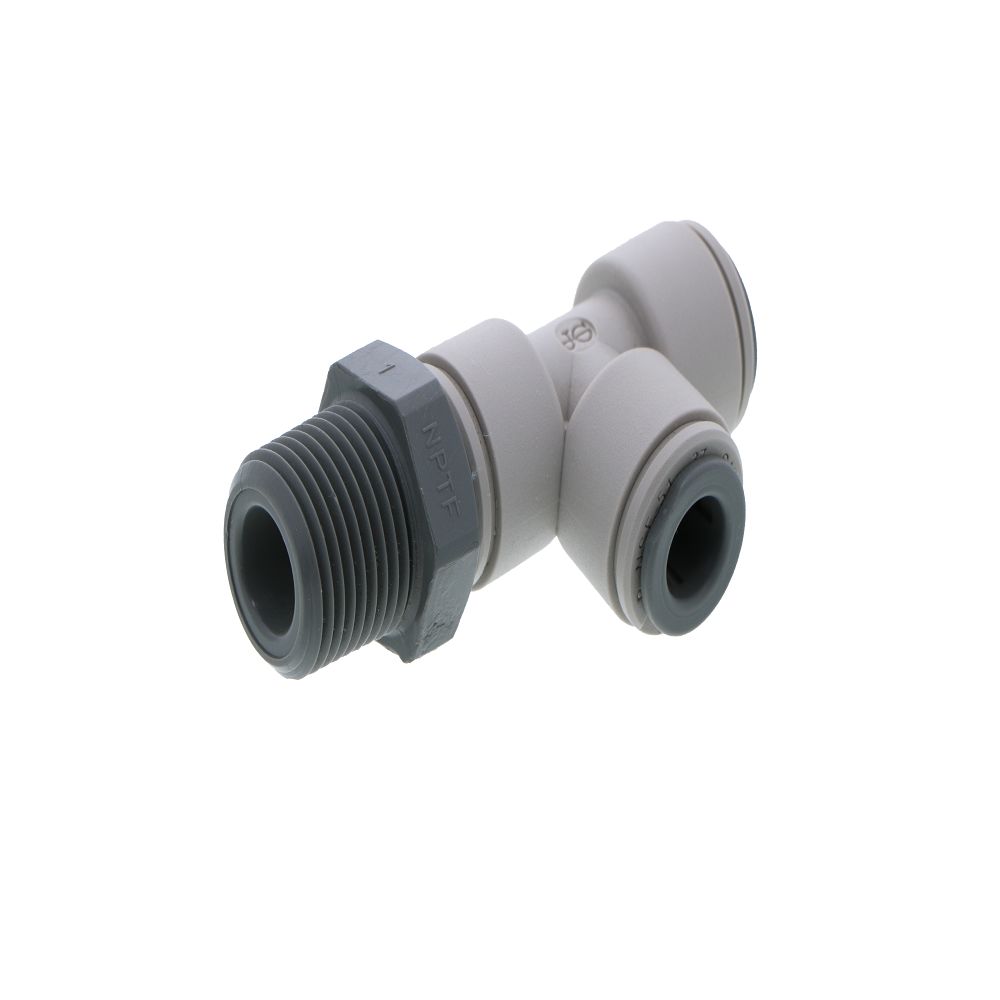

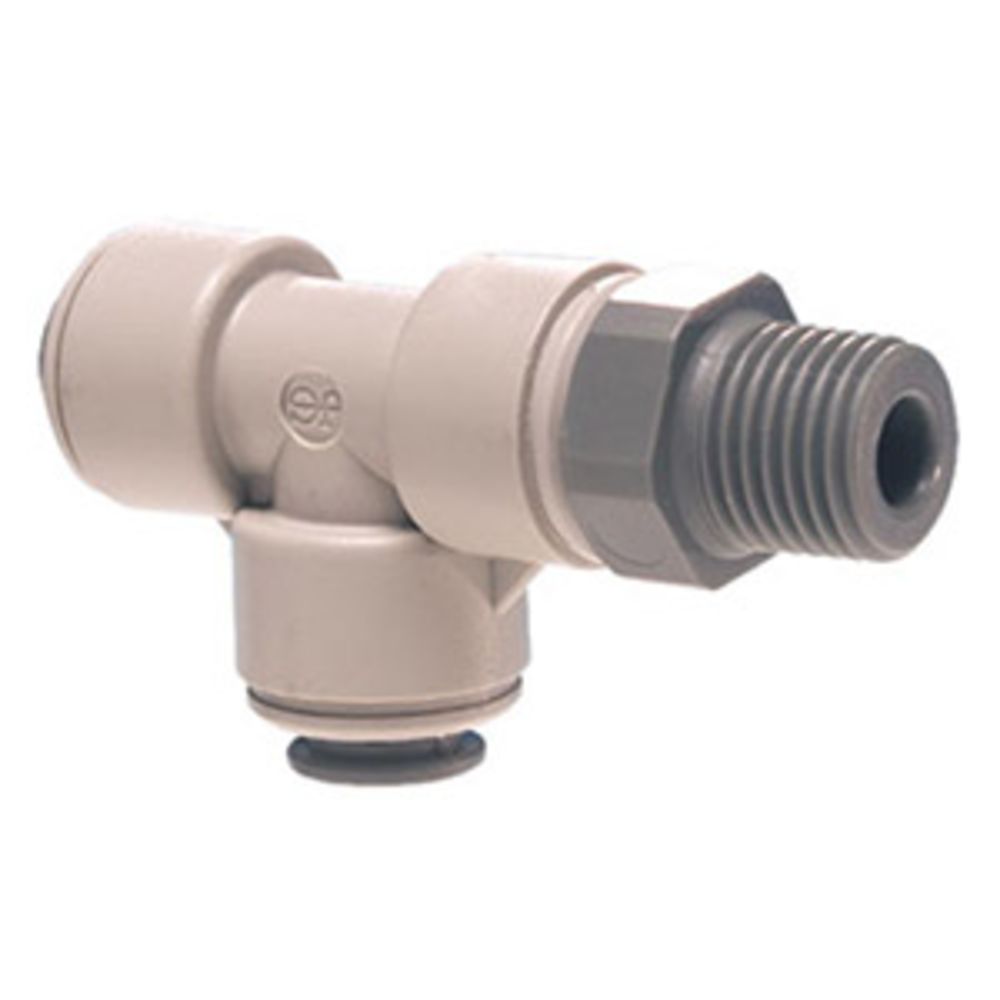

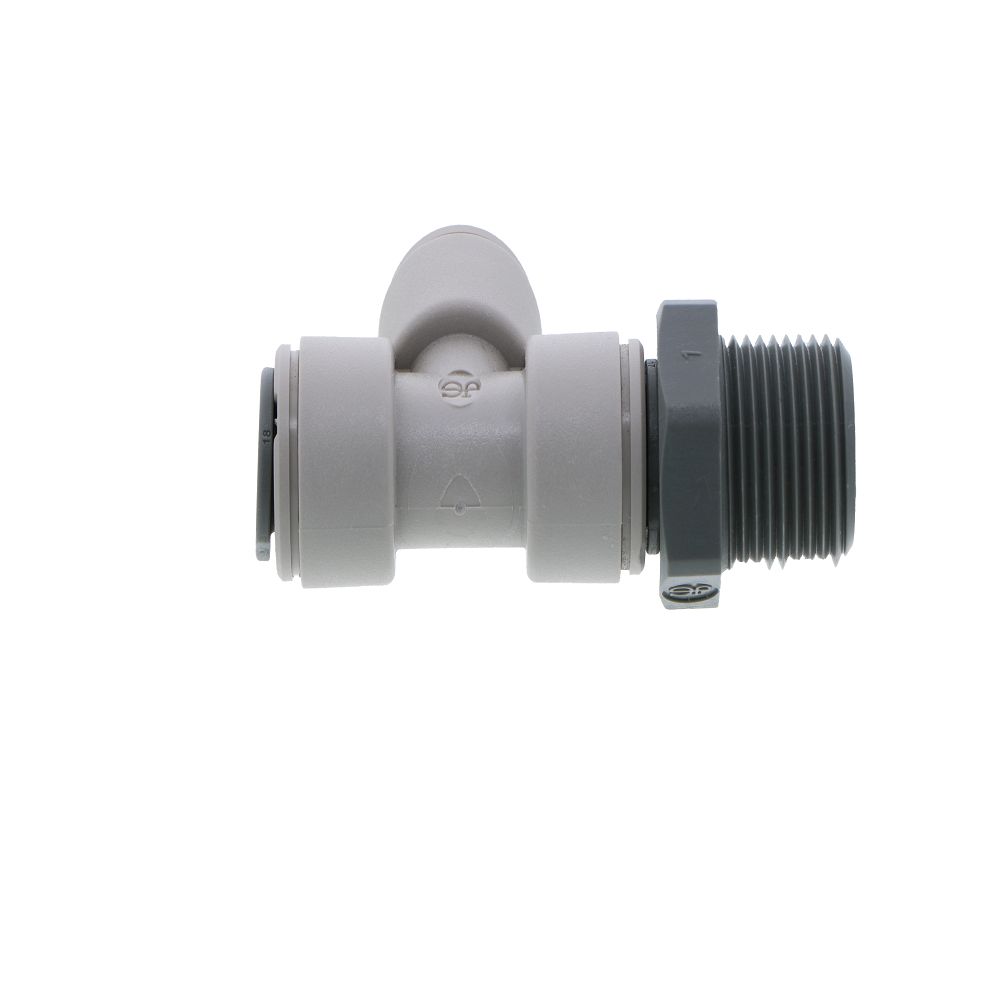

John Guest Swivel Male Run Tee NPTF - 5/16 x 3/8 NPTF
Part Number: PM110823S-KIT
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
The John Guest swivel run tee makes connecting OD tubing sizes quick and easy. Manufactured in gray acetal with food grade nitrile O-ring, these fittings are suitable for foodstuff and potable liquids. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.
Features:
- Push-fit Technology creates reliable, leak-free connections
- Used to connect OD tubing sizes
- Compatible with plastic or copper OD sized tubing
- Connect, disconnect, and reconnect in seconds without tools
- Food Quality and suitable for potable liquids and pure water applications
- Can be used for air/pneumatic & vacuum applications
- Acetal body with Nitrile O-Ring
- Made with lead free materials
Working pressure and temperature:
- Max. 230 psi at 68° F
- Max. 150 psi at 150° F
WARNING!
| Product Details | |
|---|---|
Application | Water Air Food Beverage |
Body Material | Acetal Copolymer |
Inlet Connection | 3/8" MPT |
Max Pressure (Psi) | 230 |
Max Temp (°F) | 150 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -4 |
Mounting Options | Thread |
Outlet Connection | 3/8" MPT |
Push-In Size | 5/16" OD |
Seal Material | Buna-N |
Series | PI |
Shape | Tee |
Size | 3/8" |
Color / Finish | Gray |
Connection Type | Male (MPT) |
Origin | UK |
Sub-Type | Swivel Run Tee |
Type | Tee |
| Warranty & Certifications | |
Certifications | NSF 51 & NSF 61, FDA Approved Materials, Lead Free |
| Product Details | |
|---|---|
Application | Water Air Food Beverage |
Body Material | Acetal Copolymer |
Inlet Connection | 3/8" MPT |
Max Pressure (Psi) | 230 |
Max Temp (°F) | 150 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -4 |
Mounting Options | Thread |
Outlet Connection | 3/8" MPT |
Push-In Size | 5/16" OD |
Seal Material | Buna-N |
Series | PI |
Shape | Tee |
Size | 3/8" |
Color / Finish | Gray |
Connection Type | Male (MPT) |
Origin | UK |
Sub-Type | Swivel Run Tee |
Type | Tee |
| Warranty & Certifications | |
Certifications | NSF 51 & NSF 61, FDA Approved Materials, Lead Free |
| Product Details | |
|---|---|
Application | Water Air Food Beverage |
Body Material | Acetal Copolymer |
Inlet Connection | 3/8" MPT |
Max Pressure (Psi) | 230 |
Max Temp (°F) | 150 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -4 |
Mounting Options | Thread |
Outlet Connection | 3/8" MPT |
Push-In Size | 5/16" OD |
Seal Material | Buna-N |
Series | PI |
Shape | Tee |
Size | 3/8" |
Color / Finish | Gray |
Connection Type | Male (MPT) |
Origin | UK |
Sub-Type | Swivel Run Tee |
Type | Tee |
| Warranty & Certifications | |
Certifications | NSF 51 & NSF 61, FDA Approved Materials, Lead Free |
The John Guest swivel run tee makes connecting OD tubing sizes quick and easy. Manufactured in gray acetal with food grade nitrile O-ring, these fittings are suitable for foodstuff and potable liquids. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.
Features:
- Push-fit Technology creates reliable, leak-free connections
- Used to connect OD tubing sizes
- Compatible with plastic or copper OD sized tubing
- Connect, disconnect, and reconnect in seconds without tools
- Food Quality and suitable for potable liquids and pure water applications
- Can be used for air/pneumatic & vacuum applications
- Acetal body with Nitrile O-Ring
- Made with lead free materials
Working pressure and temperature:
- Max. 230 psi at 68° F
- Max. 150 psi at 150° F
WARNING!
