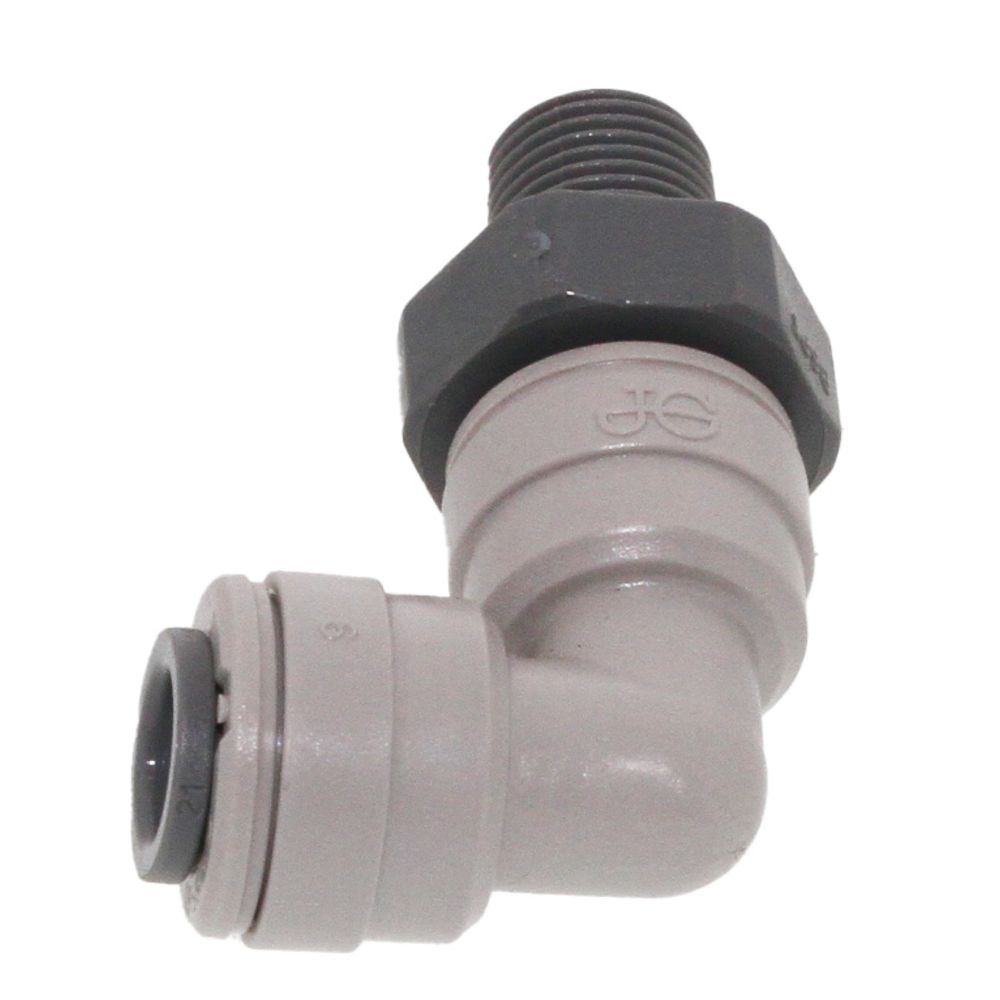

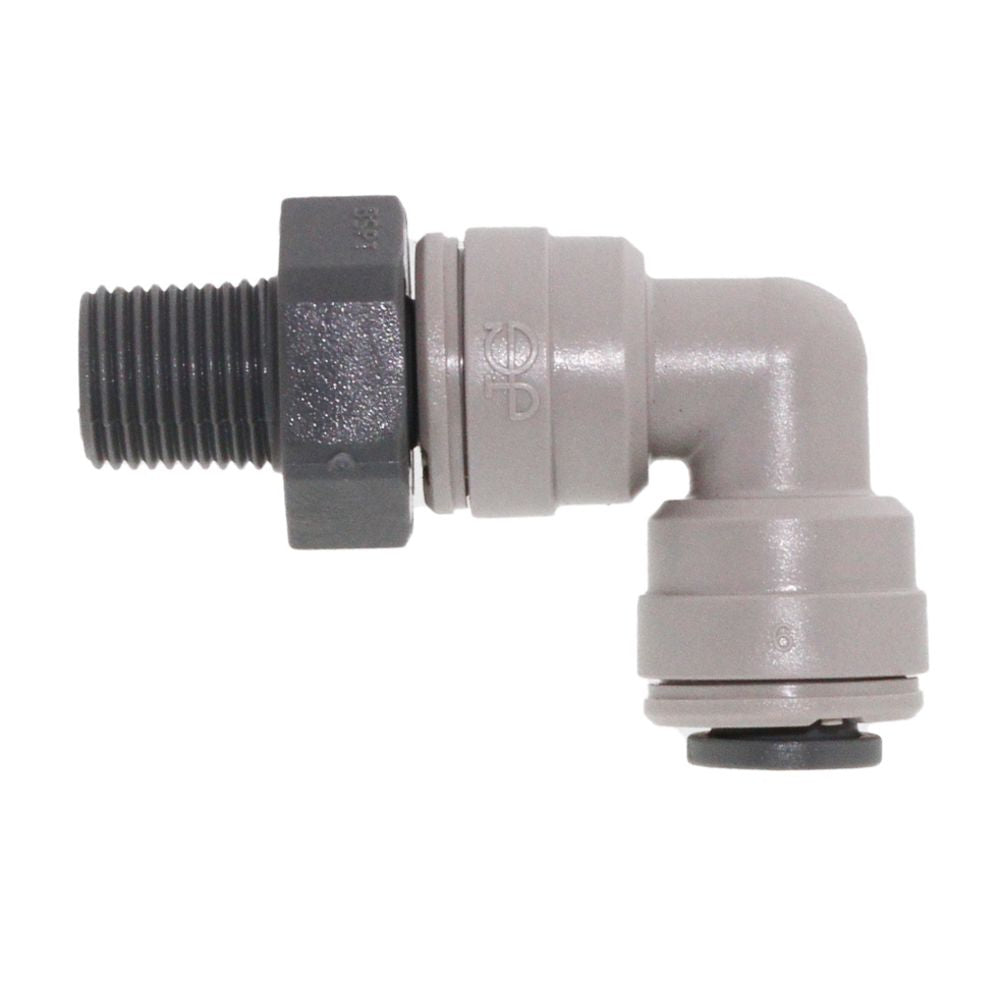

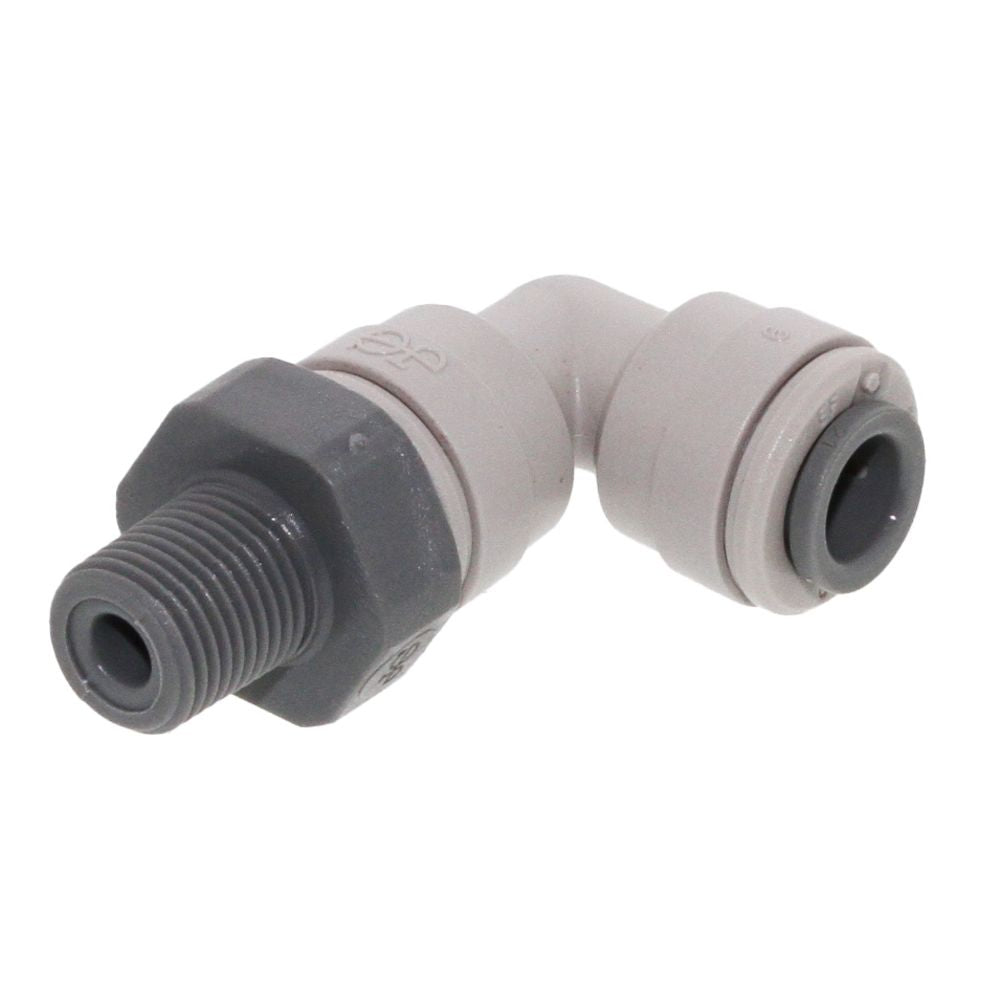

John Guest Swivel Elbow NPTF - 1/4 x 1/4 NPTF

Part Number: PI090822S Alt. Part Number: AMES4-N2-G

1 5

John Guest

John Guest Swivel Elbow NPTF - 1/4 x 1/4 NPTF

Part Number: PI090822S Alt. Part Number: AMES4-N2-G

MSRP: $4.56

$2.59

Quantity

Unit Price

Price

Savings

$2.59

—

$2.45

$24.58

200

$2.38

$477.89

Product variants

You May Also Need

Optional Accessory

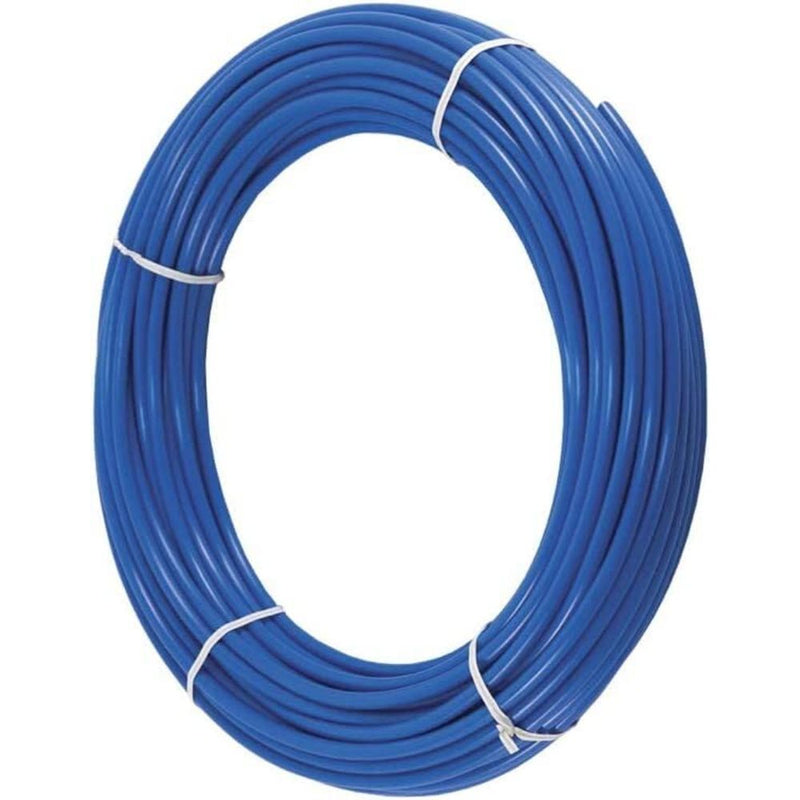

Blue 1/4" OD LLDPE Polyethylene Tubing

Regular price From $0.89
Optional Accessory
John Guest Collet Cover - 1/4 OD

Regular price From $0.22
Optional Accessory
NeoFit - Acetal Locking Clip 1/2" and 12mm

Regular price From $0.23
Optional Accessory
John Guest Collet Release Tool - 1/4, 3/8

Regular price From $2.06
Optional Accessory
PTFE Teflon® Thread Seal Tape - 0.4 Density 1/2" x 60"

Regular price From $0.39
Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest swivel elbow makes connecting OD tubing sizes to female NPT threads quick and easy. Manufactured in gray acetal with food grade nitrile O-ring, these fittings are suitable for food, beverage, and potable liquids. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features:

Push-fit Technology creates reliable, leak-free connections
Swivel elbows allow you to position the tubing in the desired direction
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect in seconds without tools
Food Quality and suitable for potable liquids and pure water applications
Can be used for air/pneumatic & vacuum applications
Acetal body with Nitrile O-Ring
Made with lead free materials

Working pressure and temperature:

Max. 230 psi at 68° F
Max. 150 psi at 150° F

JG gray acetal is suitable for both compressed air and water (buna-n seal).

View Prop 65 Warning

Specifications

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	1/4" MPT
Push-In Size	1/4" OD
Series	PI
Shape	Elbow
Size	1/4"
Color / Finish	Gray
Connection Type	Male (MPT)
Origin	UK
Sub-Type	Male Swivel Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	0.0243

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	1/4" MPT
Push-In Size	1/4" OD
Series	PI
Shape	Elbow
Size	1/4"
Color / Finish	Gray
Connection Type	Male (MPT)
Origin	UK
Sub-Type	Male Swivel Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	4.724 in.
Shipping Width	0.787 in.
Shipping Height	6.693 in.
Product Weight & Dimensions
Product Weight (lbs)	0.243

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	1/4" MPT
Push-In Size	1/4" OD
Series	PI
Shape	Elbow
Size	1/4"
Color / Finish	Gray
Connection Type	Male (MPT)
Origin	UK
Sub-Type	Male Swivel Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	3.937 in.
Product Weight & Dimensions
Product Weight (lbs)	4.86

Downloads

John Guest Swivel Elbow NPTF - 1/4 x 1/4 NPTF Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

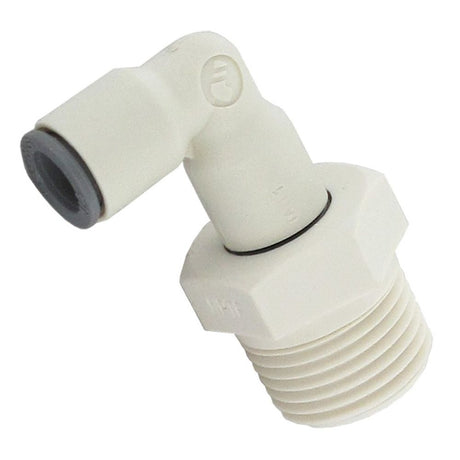

Facet	John Guest John Guest Swivel Elbow NPTF - 1/4 x 1/4 NPTF Regular price From $2.59 Part #: PI090822S Save up to 8% with bulk pricing Current Product	NeoFit NeoFit - Acetal Gray Male Elbow Swivel- 1/4"tube OD x 1/4"NPTF Regular price From $2.61 Part #: AMES4-N2-G Save up to 9% with bulk pricing View details	Parker Parker LIQUIfit Swivel Elbow - 1/4 x 1/4 NPTF Regular price $2.76 Part #: 6509-56-14WP2 View details	John Guest John Guest Swivel Elbow Polypro - 1/4 x 1/4 NPTF Regular price From $2.41 Part #: PP090822W Save up to 7% with bulk pricing View details
