John Guest

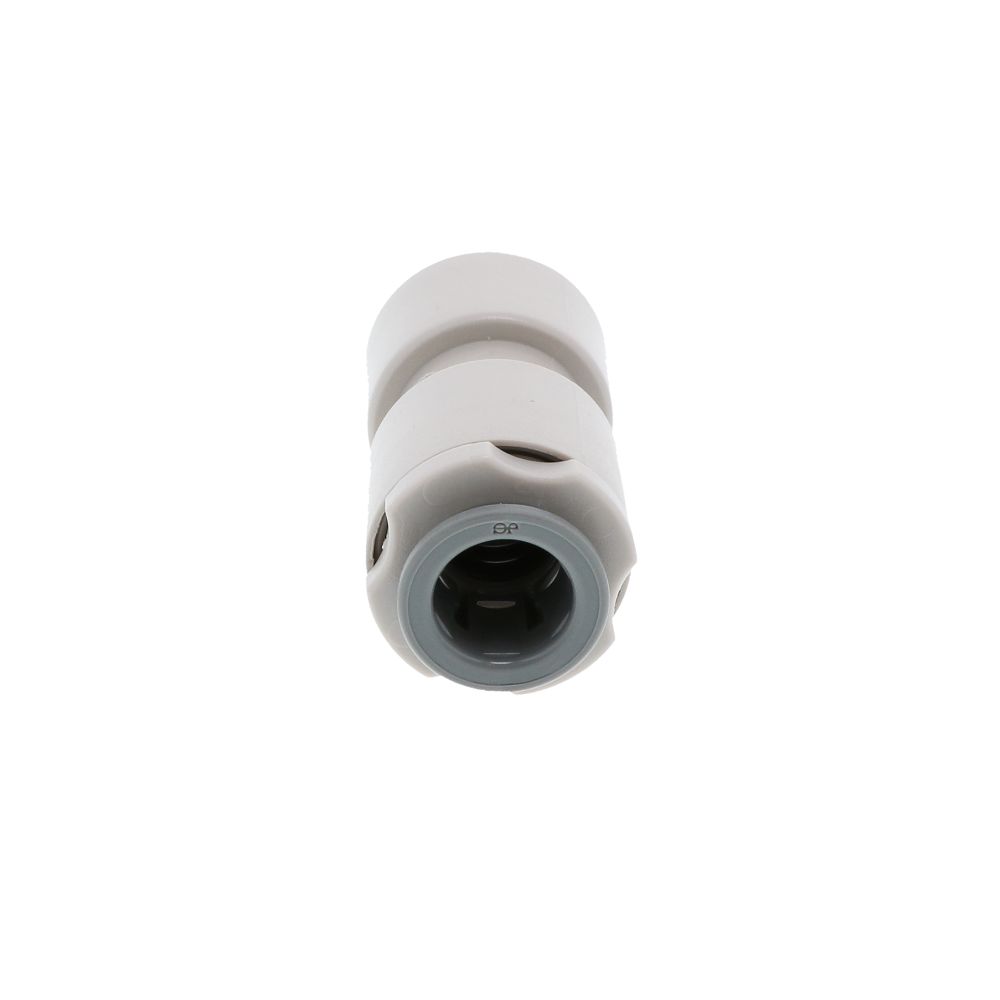

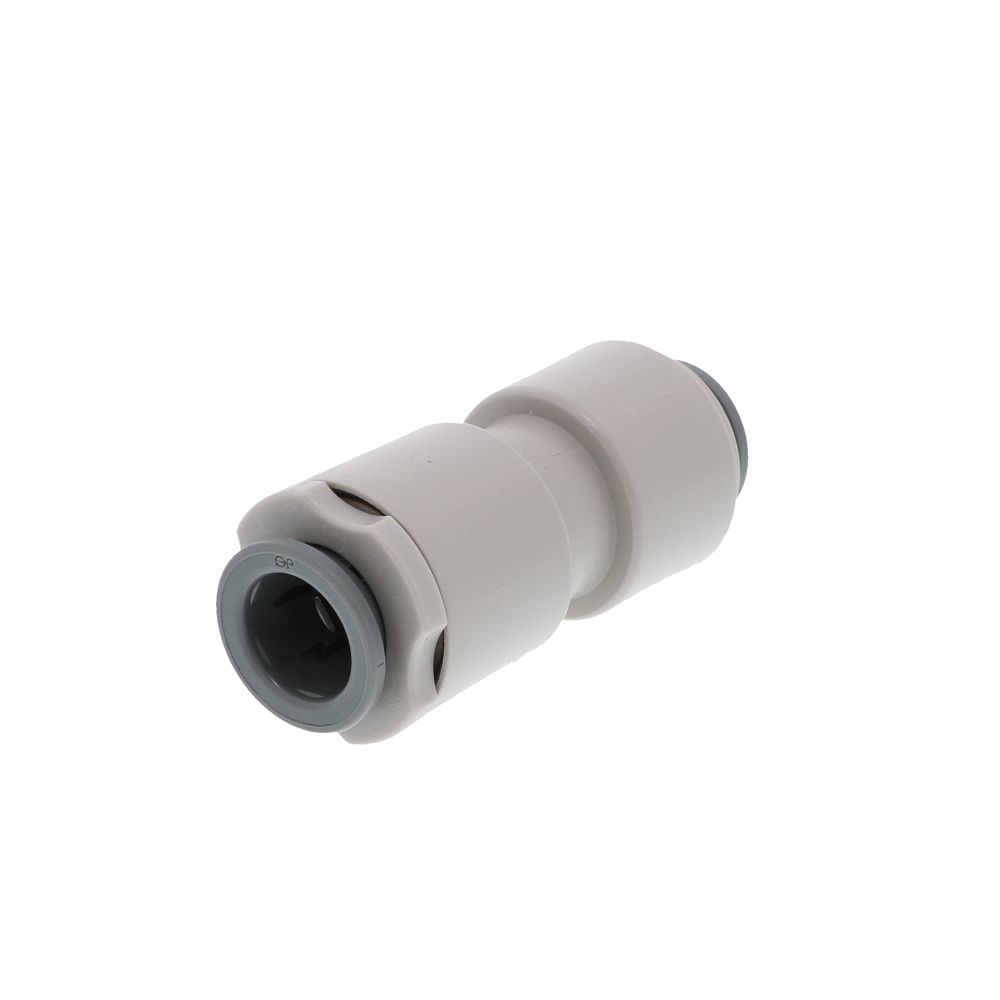

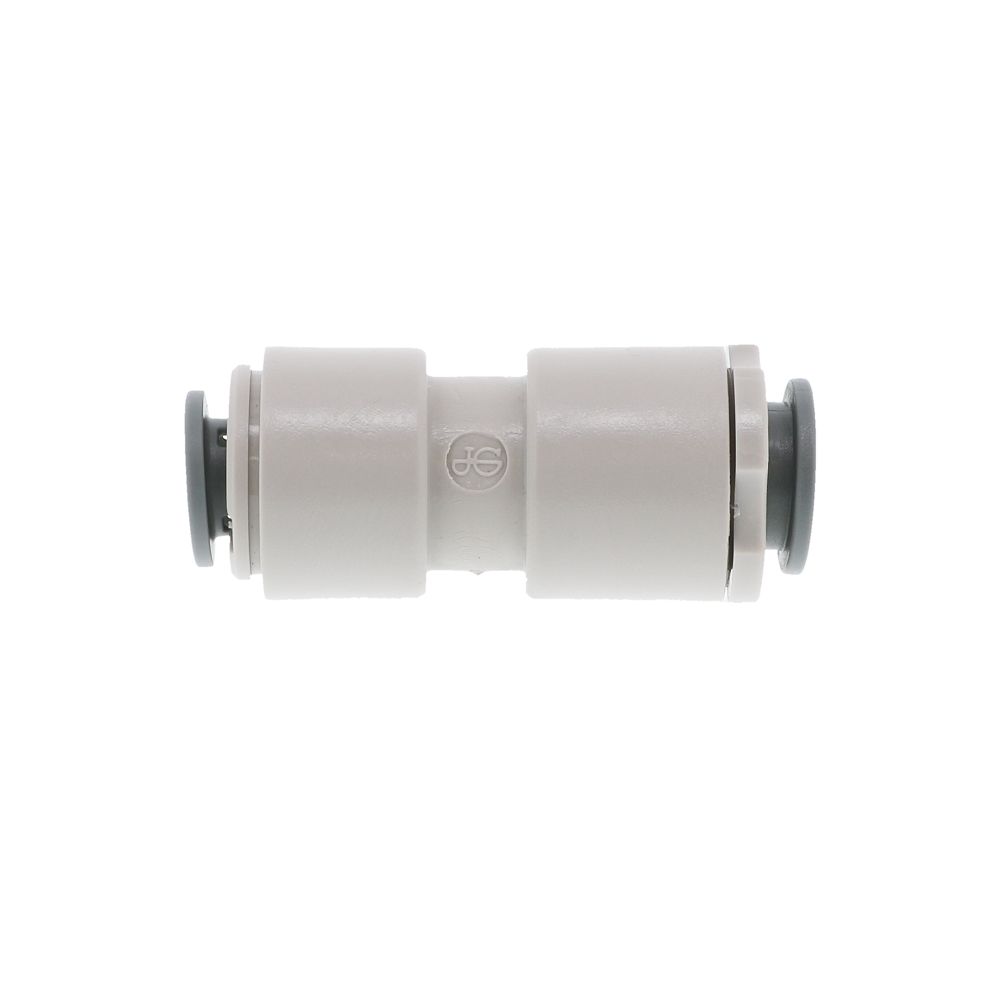

John Guest Superseal Union - 3/8 Superseal x 5/16
Part Number: SI041210S
Product image 1
Product image 2
Product image 3
Your price:
Choose
Single
Bag of 10
Box of 200
The John Guest SuperSeal union is specifically designed to provide extra grip on stainless steel tubing. Each fitting in this series features a collet with integrally molded stainless steel teeth and a hand-operated nut and wedge-shaped plastic washer that applies extra pressure to the collet and the double O-ring seals. This allows the collet teeth to bite thoroughly into the tube to provide grip, while at the same time, compressing the O-rings to further improve the seal.

Features:
  • Used to connect stainless steel tubing
  • Acetal body with double Nitrile O-Rings
  • The nut and wedge-shaped plastic washer apply extra pressure to the collet and the double O-ring seals
  • Connect, disconnect, and reconnect in seconds without tools
  • Food Quality and suitable for potable liquids and pure water applications
  • Made with lead free materials

Working pressure and temperature:
  • Max. 150 psi at 68° F
  • Max. 100 psi at 150° F


California residents Prop 65 Warning
WARNING!
This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

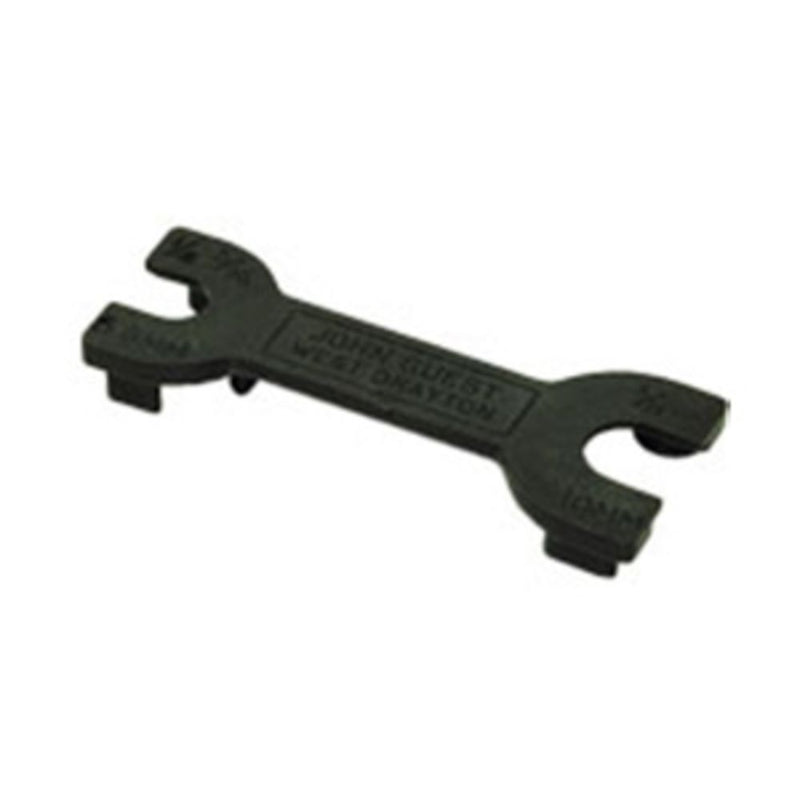

optional parts
