John Guest Superseal Elbow - 3/8 Superseal x 3/8
Part Number:
SI031212S
Alt. Part Number:
PPM201512W
1
of
5
Loading...
John Guest Superseal Elbow - 3/8 Superseal x 3/8
Part Number:
SI031212S
Alt. Part Number:
PPM201512W
MSRP: $7.25
Regular price
$4.35
Unit price
Unit price
/
Unavailable
You May Also Need
You May Also Need
Optional AccessoryJohn Guest Spanner - 5/16 Superseal & 3/8 Superseal
Regular price From $5.54 Unit priceUnit price /Unavailable
Optional AccessoryNeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2
Regular price From $6.88 Unit priceUnit price /Unavailable
Shipping Information
Shipping Information
Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.
Description
Description

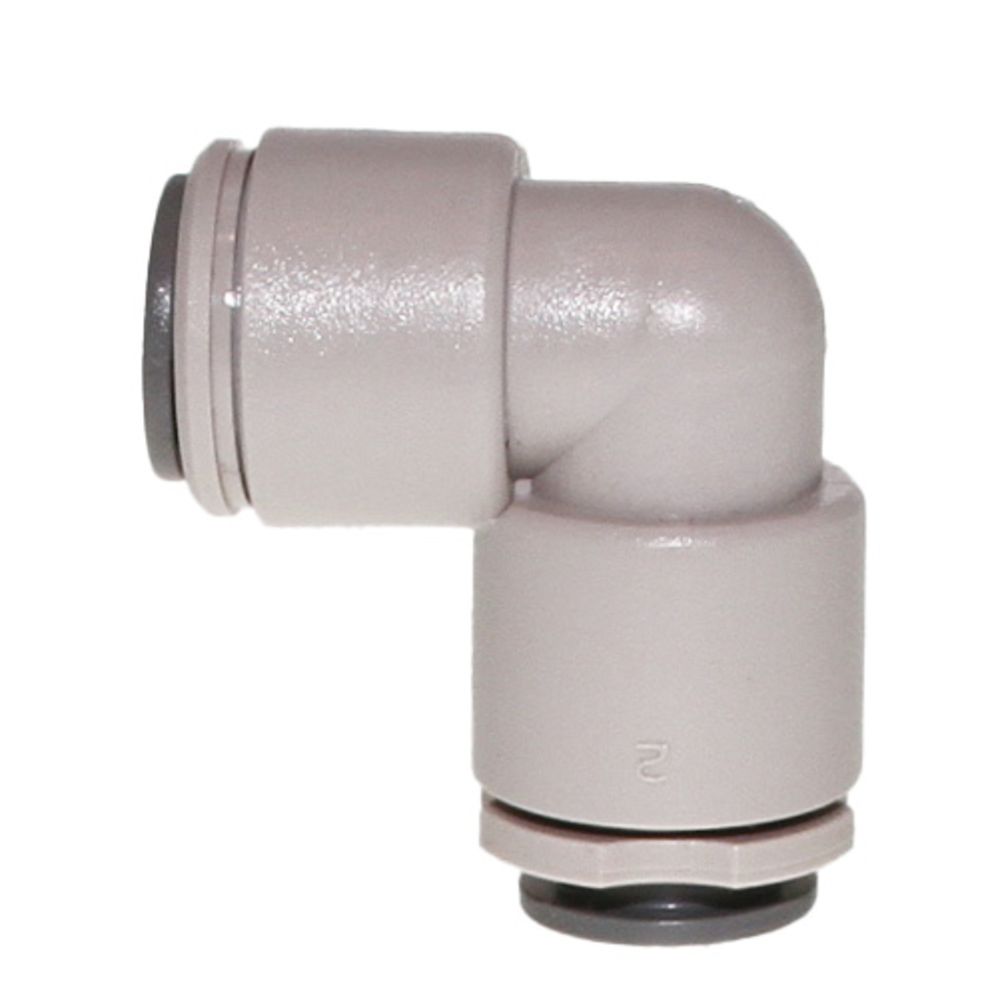

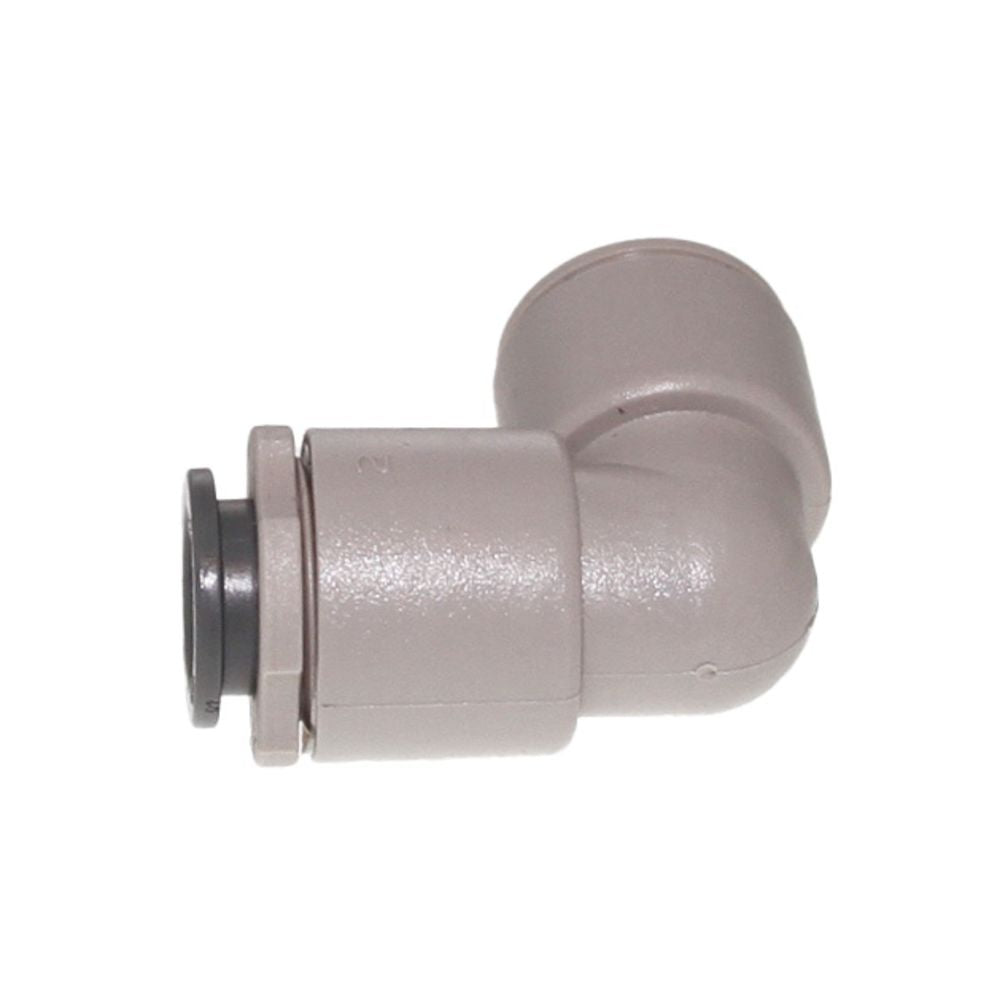

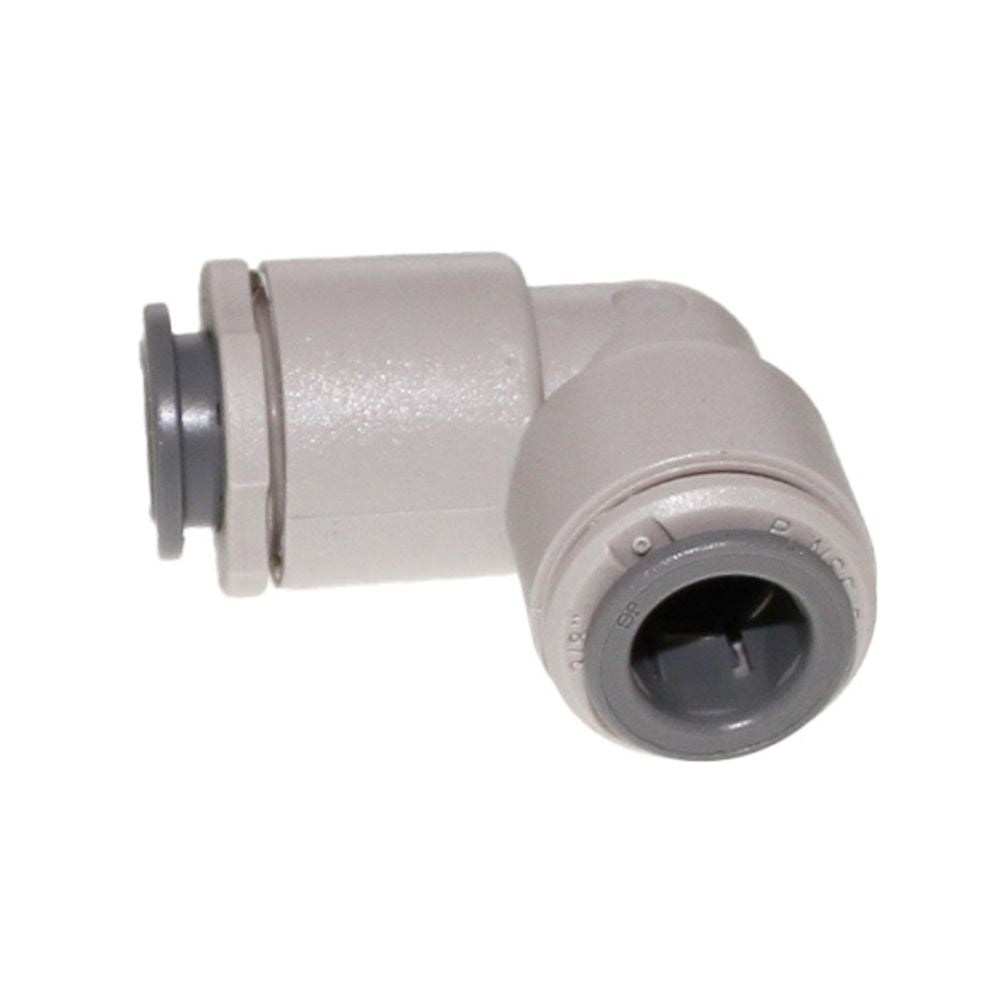

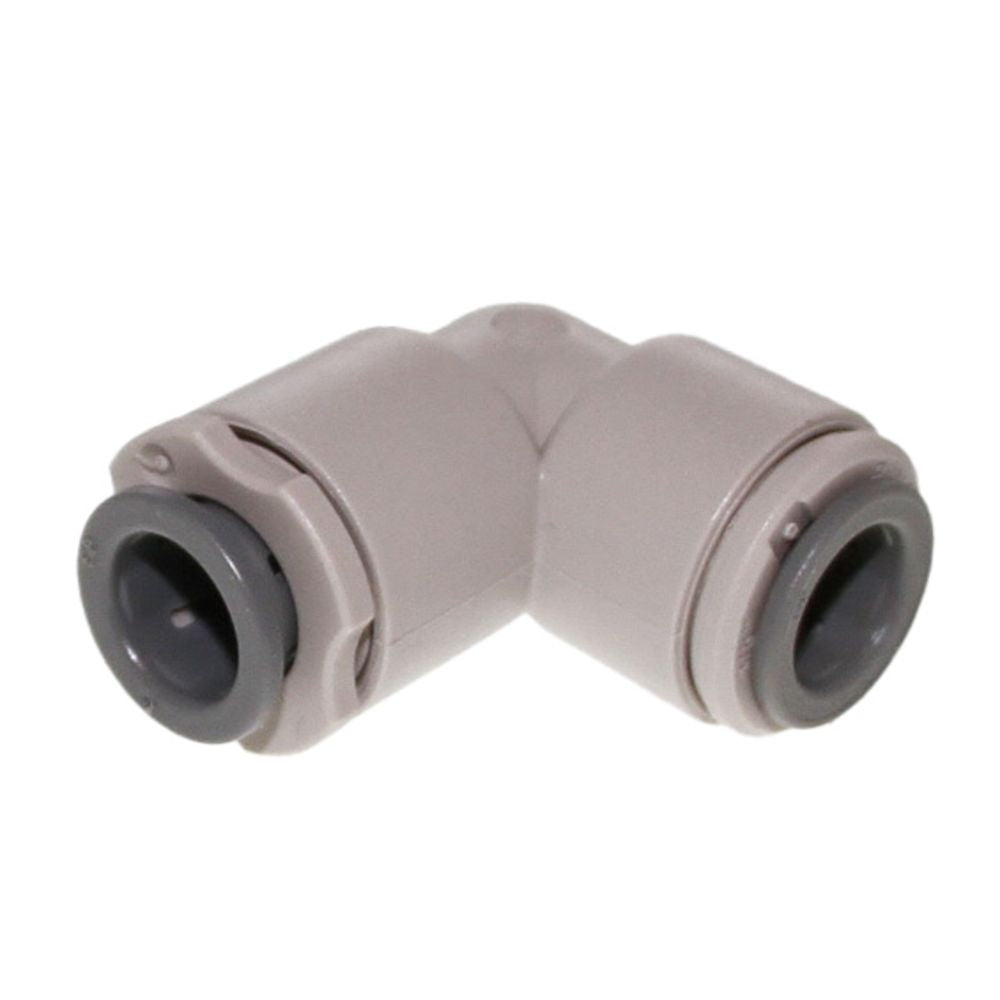

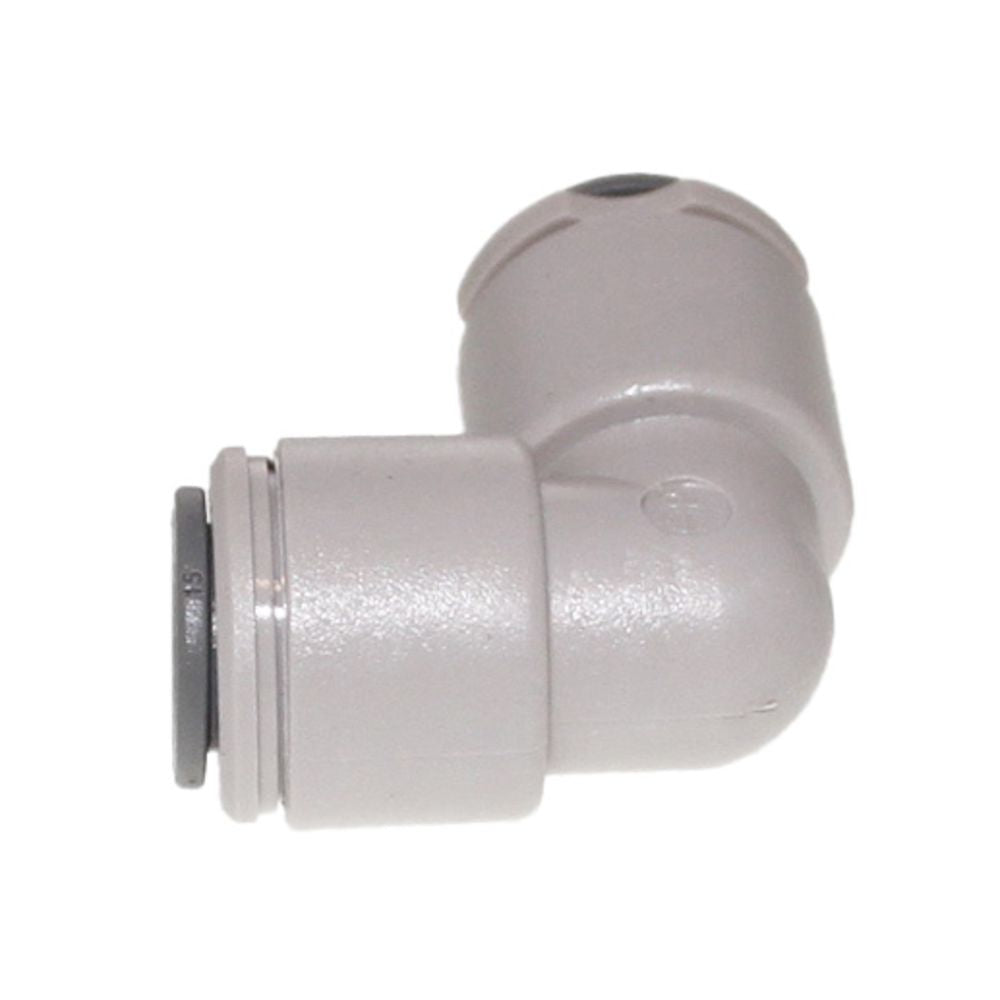

The John Guest SuperSeal union elbow is specifically designed to provide extra grip on stainless steel tubing. Each fitting in this series features a collet with integrally molded stainless steel teeth and a hand-operated nut and wedge-shaped plastic washer that applies extra pressure to the collet and the double O-ring seals. This allows the collet teeth to bite thoroughly into the tube to provide grip, while at the same time, compressing the O-rings to further improve the seal.
Features:
Working pressure and temperature:
Features:
- Used to connect stainless steel tubing
- Acetal body with double Nitrile O-Rings
- The nut and wedge-shaped plastic washer apply extra pressure to the collet and the double O-ring seals
- Connect, disconnect, and reconnect in seconds without tools
- Food Quality and suitable for potable liquids and pure water applications
- Made with lead free materials
Working pressure and temperature:
- Max. 150 psi at 68° F
- Max. 100 psi at 150° F
View Prop 65 Warning
