John Guest Stem Elbow Connector - 1/4 Stem x 1/4 - White

Part Number: CI220808W Alt. Part Number: ATEU44-W, CI220808W

1 4

John Guest

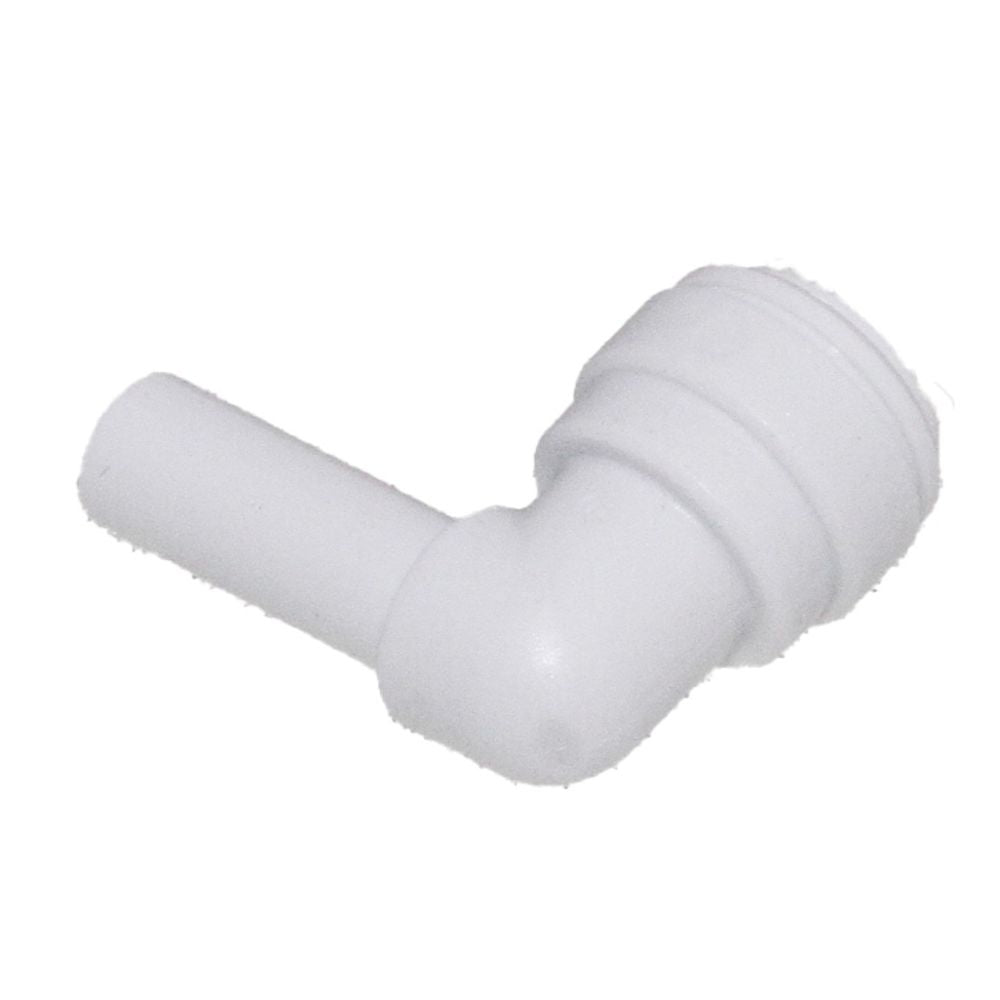

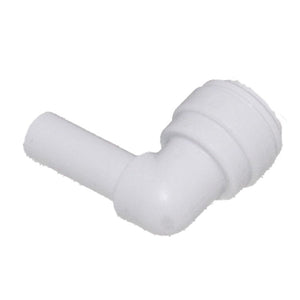

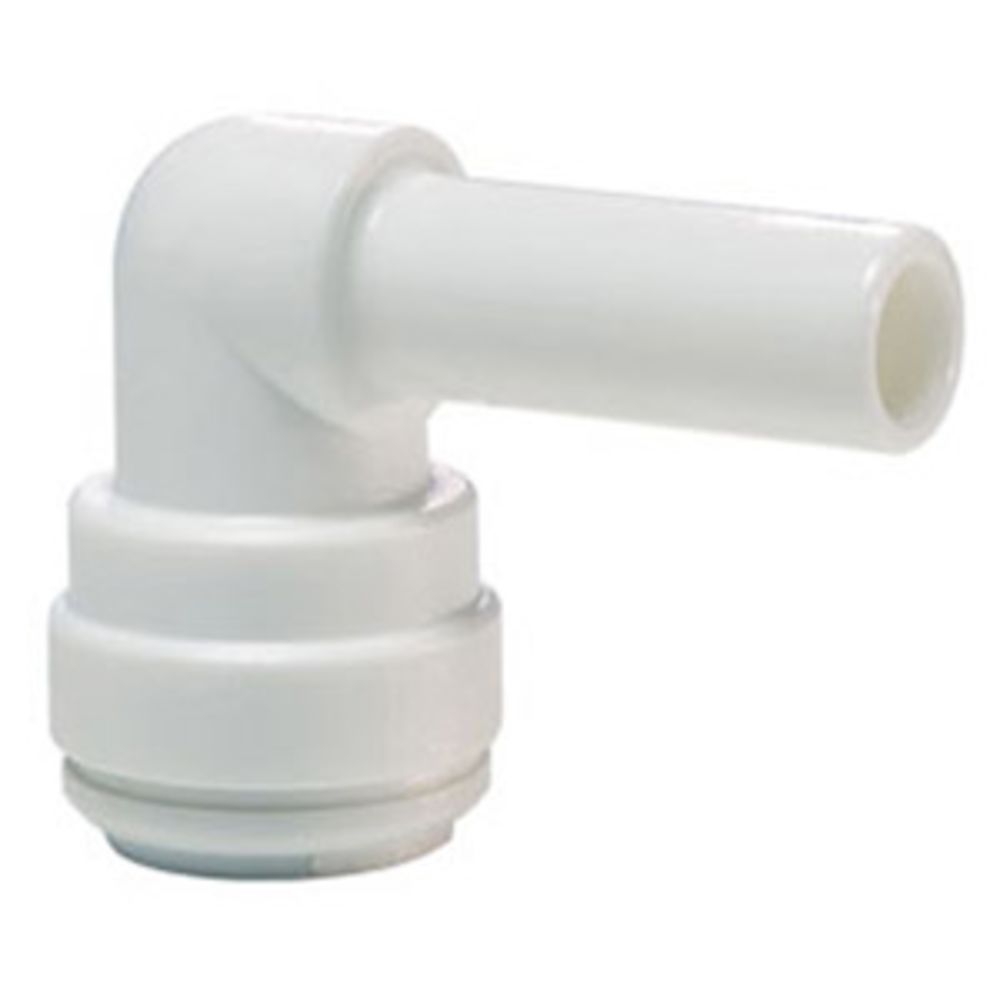

John Guest Stem Elbow Connector - 1/4 Stem x 1/4 - White

Part Number: CI220808W Alt. Part Number: ATEU44-W, CI220808W

MSRP: $3.03

$1.82

Quantity

Unit Price

Price

Savings

$1.82

—

$1.63

$16.33

10%

500

$1.56

$784.77

14%

Product variants

You May Also Need

Optional Accessory
Black 1/4" OD LLDPE Polyethylene Tubing

Regular price From $0.89
Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99
Optional Accessory
John Guest Collet Cover - 1/4 OD

Regular price From $0.22
Optional Accessory

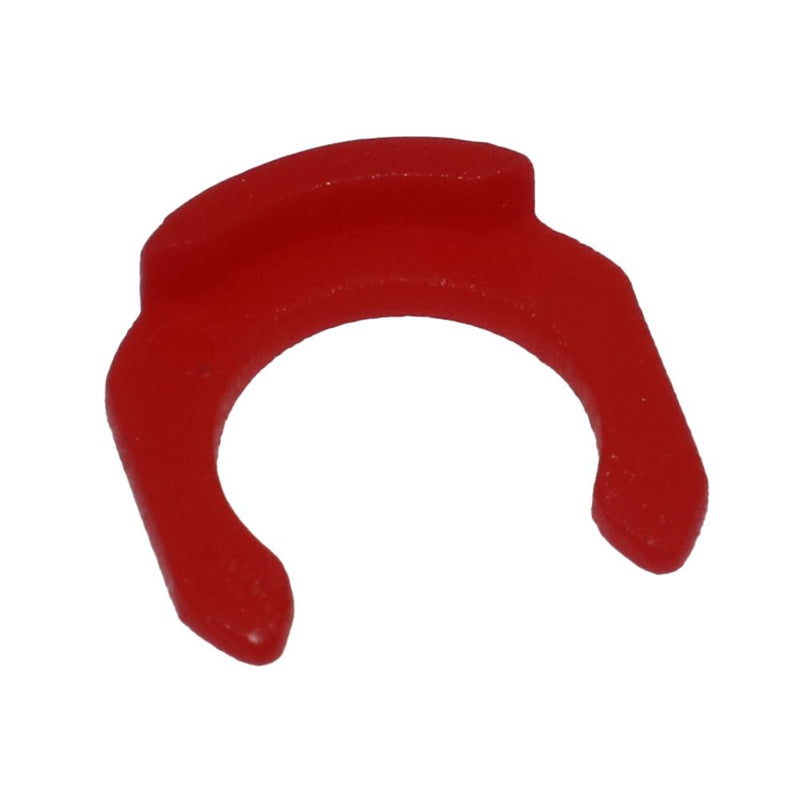

NeoFit - Acetal Locking Clip 1/2" and 12mm

Regular price From $0.23
Optional Accessory
John Guest Collet Release Tool - 1/4, 3/8

Regular price From $2.06
Optional Accessory
Tubing Clamps (Nylon Loop Clamps) - C-Style For 1/4 OD Tubing

Regular price From $0.15
Optional Accessory
Nylon Plastic Tube Support Insert 1/4 OD Tubing

Regular price From $0.08
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest Plug In Elbow makes connecting tubing quick and easy. The stem inserts into John Guest Push-fit fittings to change tubing direction 90 degrees. Manufactured in white acetal with food grade EPDM O-ring, these fittings were developed for the residential filtered water market but are also suitable for other potable liquids.

Features:

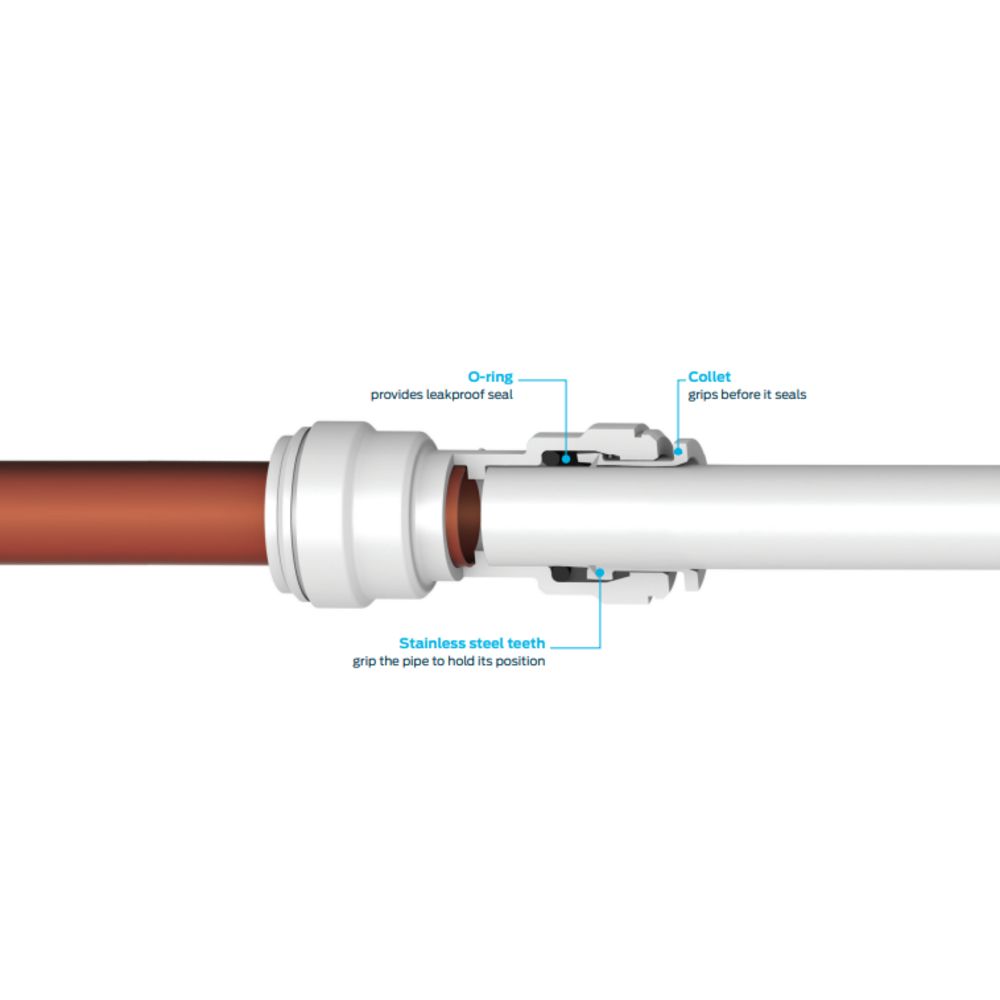

Push-fit Technology creates reliable, leak-free connections
Used to change tubing direction 90 degrees
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect in seconds without tools
Food Quality and suitable for potable liquids and pure water applications
Acetal body with food grade EDPM O-Ring
Made with lead free materials

Working pressure and temperature:

Max. 150 psi at 70° F
Max. 100 psi at 150° F

Note: Not suitable for compressed air and vacuum applications.

Note: These items are not suitable air/pneumatic or vacuum applications.

JG white acetal is not suitable for air due to seal consisting of EPDM.

Compatible Tubing

Compatible tubing for John Guest fittings

View Prop 65 Warning

Specifications

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	150°F
Min Temp (°F)	33°F
Push-In Size	1/4" OD
Series	CI
Shape	Elbow
Stem Size	1/4" OD
Color / Finish	White
Origin	UK
Sub-Type	Tube to Stem Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	7 in.
Shipping Height	4 in.
Product Weight & Dimensions
Product Weight (lbs)	0.25

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	150°F
Min Temp (°F)	33°F
Push-In Size	1/4" OD
Series	CI
Shape	Elbow
Stem Size	1/4" OD
Color / Finish	White
Origin	UK
Sub-Type	Tube to Stem Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	4.724 in.
Shipping Width	0.787 in.
Shipping Height	6.693 in.
Product Weight & Dimensions
Product Weight (lbs)	0.0839

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	150°F
Min Temp (°F)	33°F
Push-In Size	1/4" OD
Series	CI
Shape	Elbow
Stem Size	1/4" OD
Color / Finish	White
Origin	UK
Sub-Type	Tube to Stem Elbow
Type	Elbow
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	3.937 in.
Product Weight & Dimensions
Product Weight (lbs)	4.2

Downloads

John Guest Stem Elbow Connector - 1/4 Stem x 1/4 - White Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

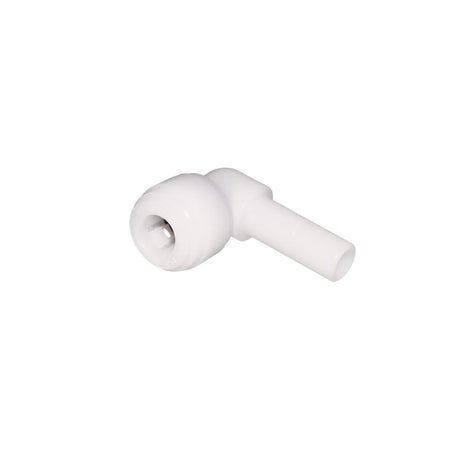

Facet	John Guest John Guest Stem Elbow Connector - 1/4 Stem x 1/4 - White Regular price From $1.82 Part #: CI220808W Save up to 14% with bulk pricing Current Product	NeoFit NeoFit - Acetal Natural White Stem Elbow 1/4" tube x 1/4" stem Regular price From $1.45 Part #: ATEU44-W Save up to 8% with bulk pricing View details	NeoFit NeoFit - Acetal Black Stem Elbow 1/4" tube x 1/4" stem Regular price From $1.45 Part #: ATEU44-E Save up to 8% with bulk pricing View details	NeoFit NeoFit - Acetal Gray Stem Elbow- 1/4"tube OD x 1/4"stem Regular price From $1.39 Part #: ATEU44-G Save up to 5% with bulk pricing View details
