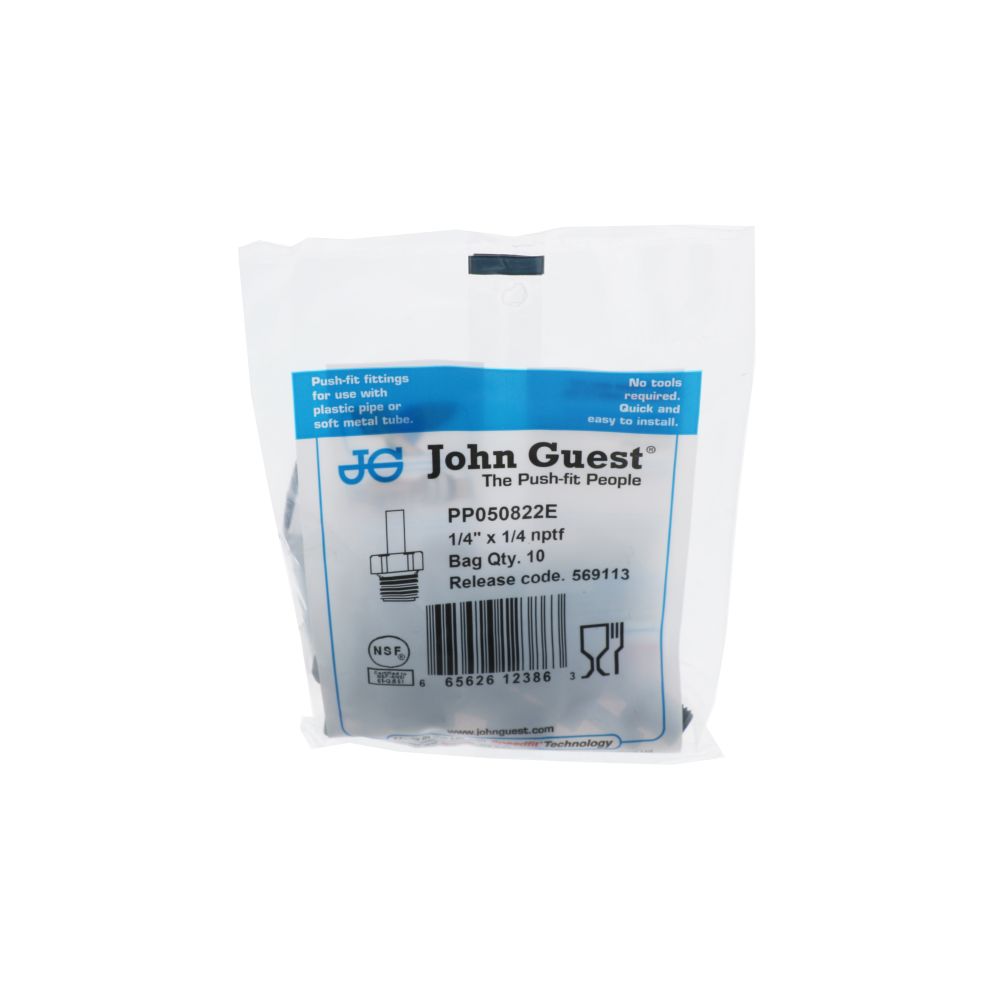

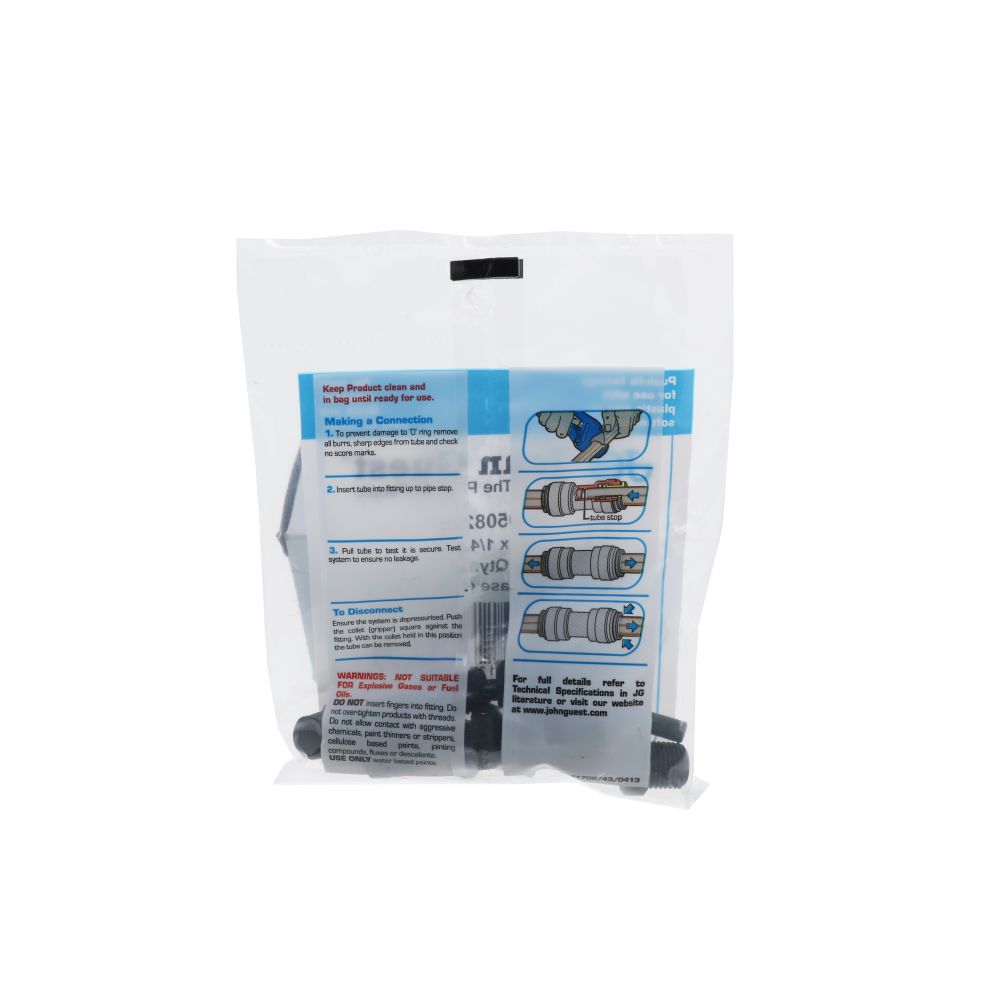

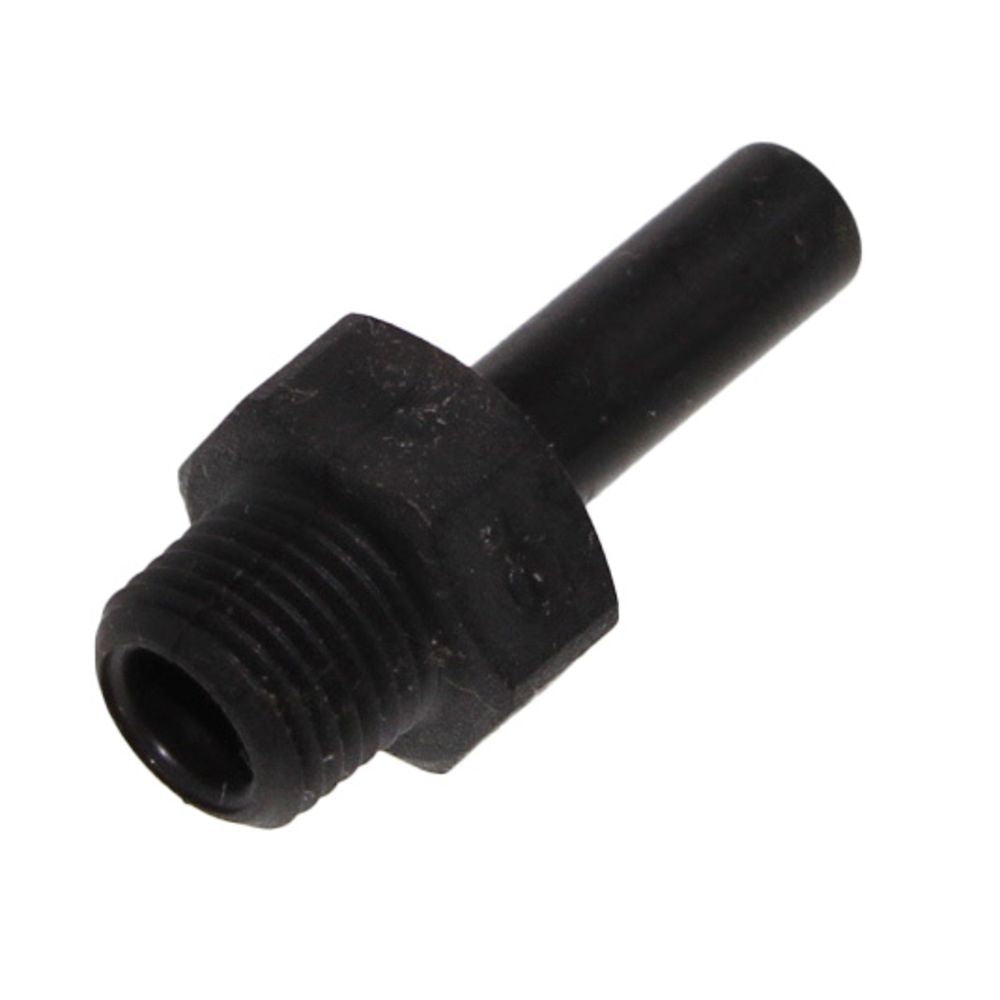

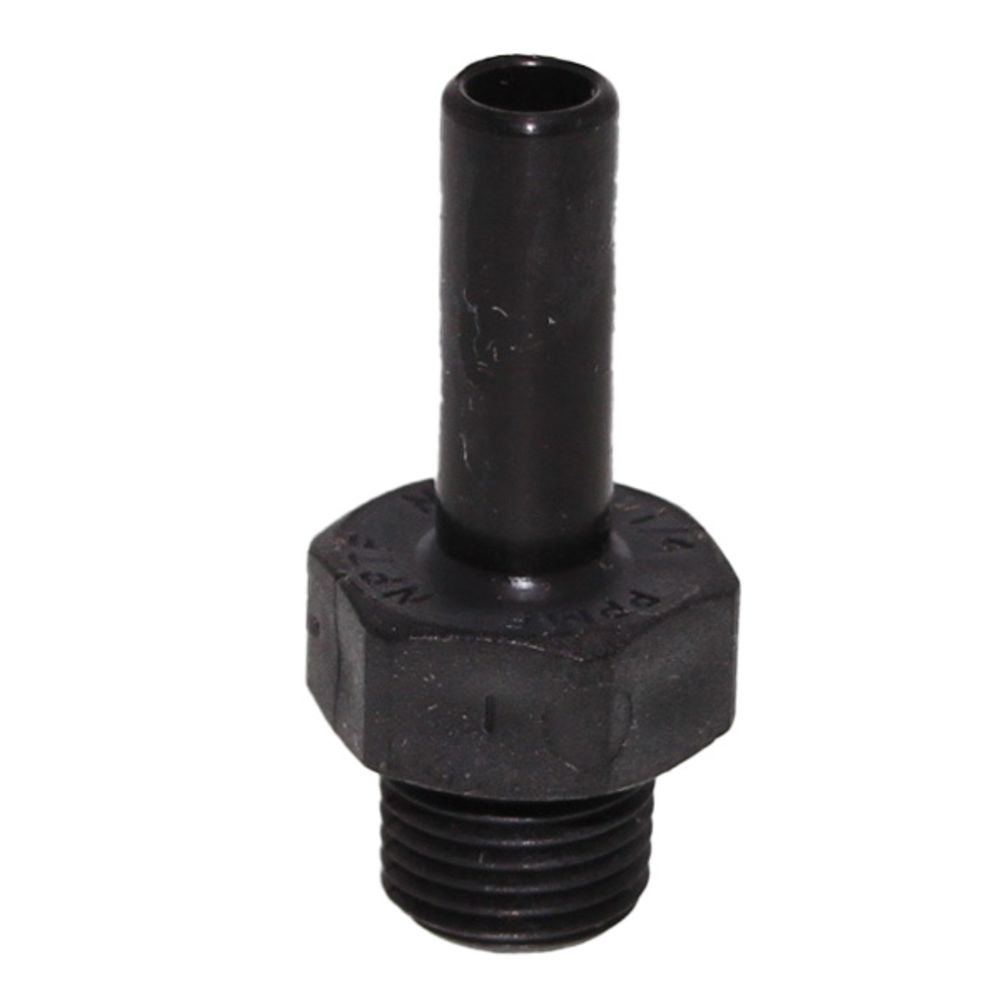

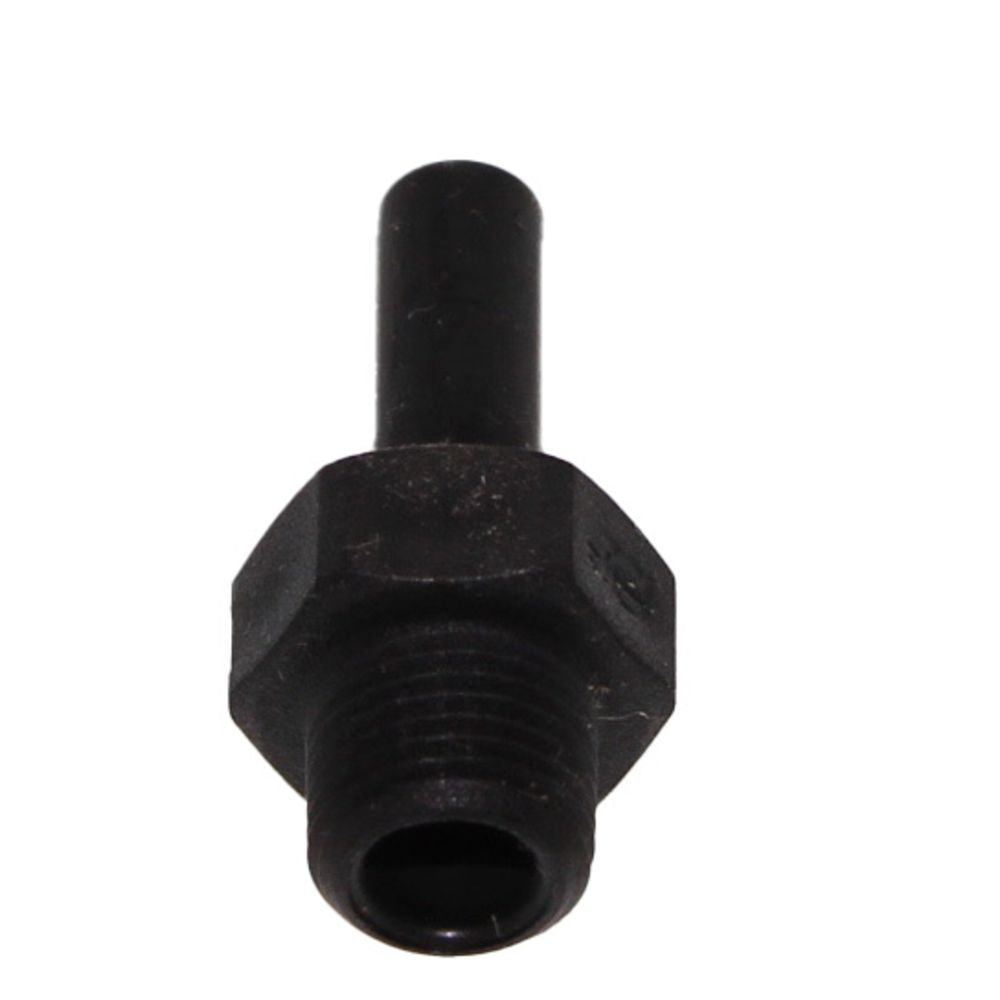

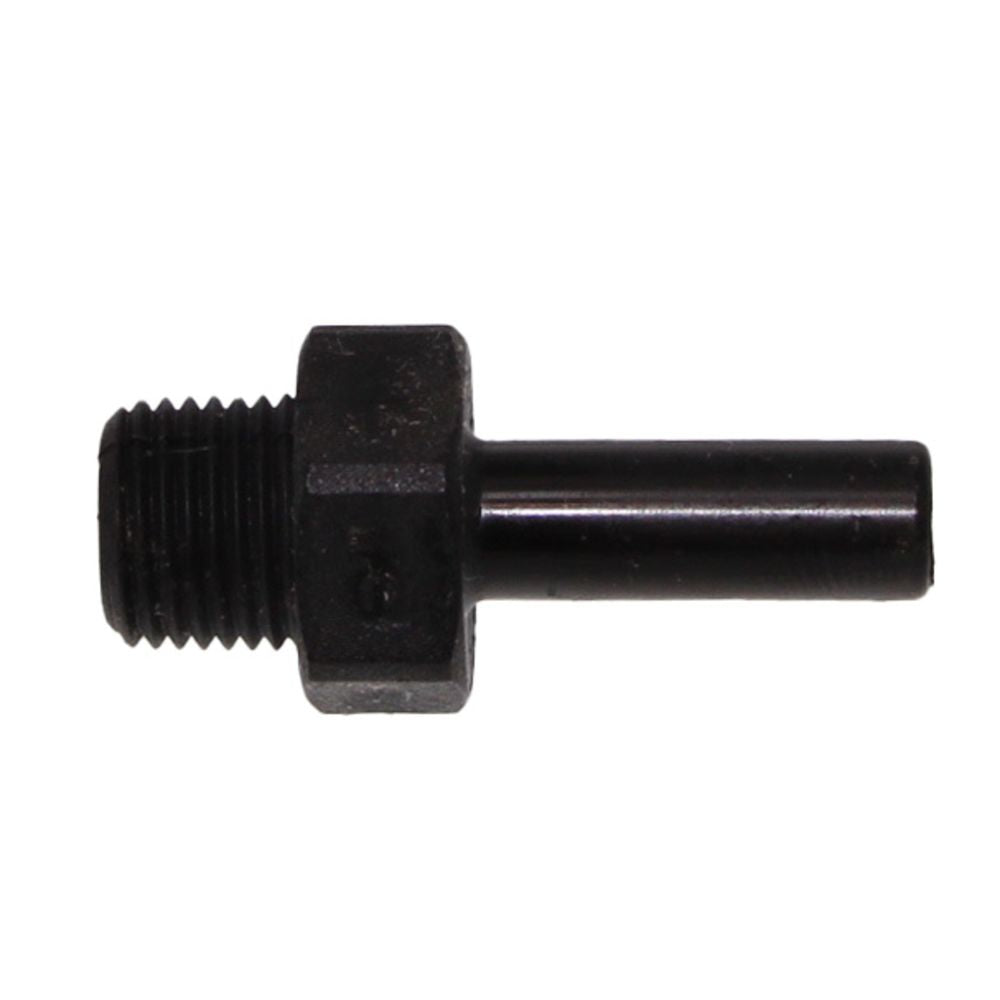

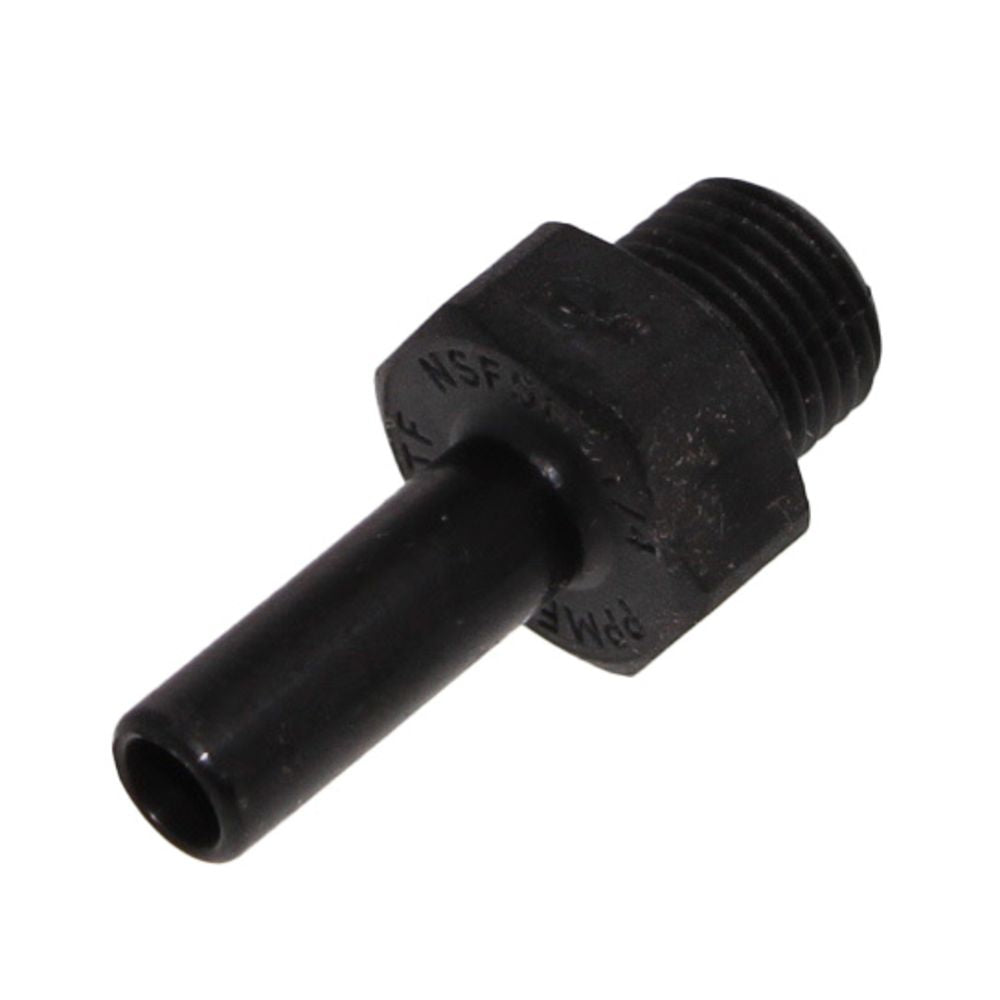

John Guest Stem Adapter Black Polypropylene - 1/4 x 1/4 NPTF

Part Number: PP050822E

1 7

John Guest

John Guest Stem Adapter Black Polypropylene - 1/4 x 1/4 NPTF

Part Number: PP050822E

MSRP: $1.03

$0.59

Quantity

Unit Price

Price

Savings

$0.59

—

$0.55

$5.55

500

$0.53

$269.86

10%

Product variants

You May Also Need

Optional Accessory
Blue 1/4" OD LLDPE Polyethylene Tubing

Regular price From $0.89
Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99
Optional Accessory
PTFE Teflon® Thread Seal Tape - 0.4 Density 1/2" x 60"

Regular price From $0.39
Optional Accessory

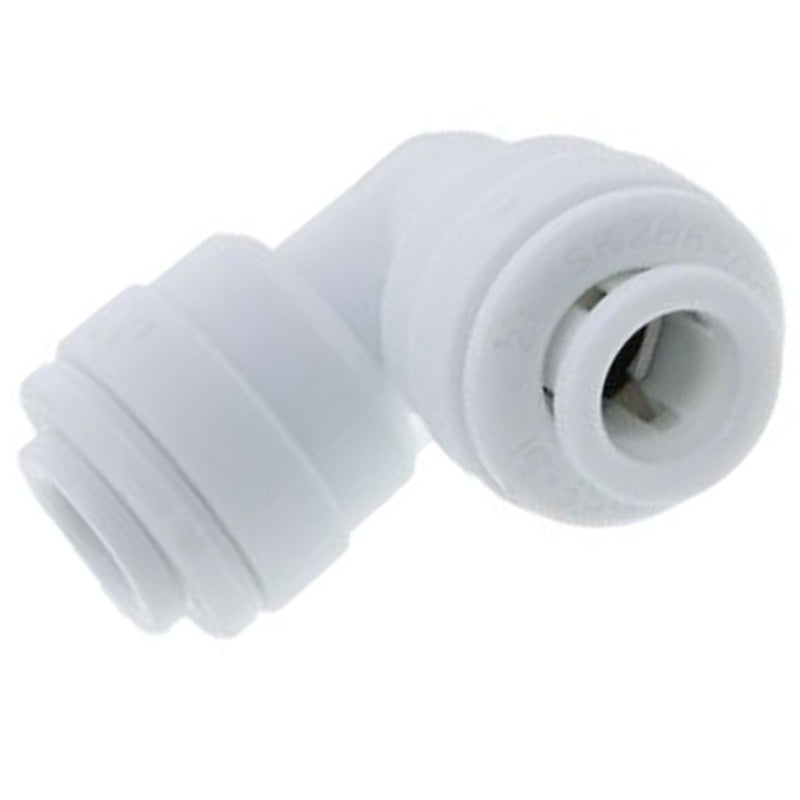

John Guest Union Elbow White Acetal - 1/4

Regular price From $2.02
Optional Accessory

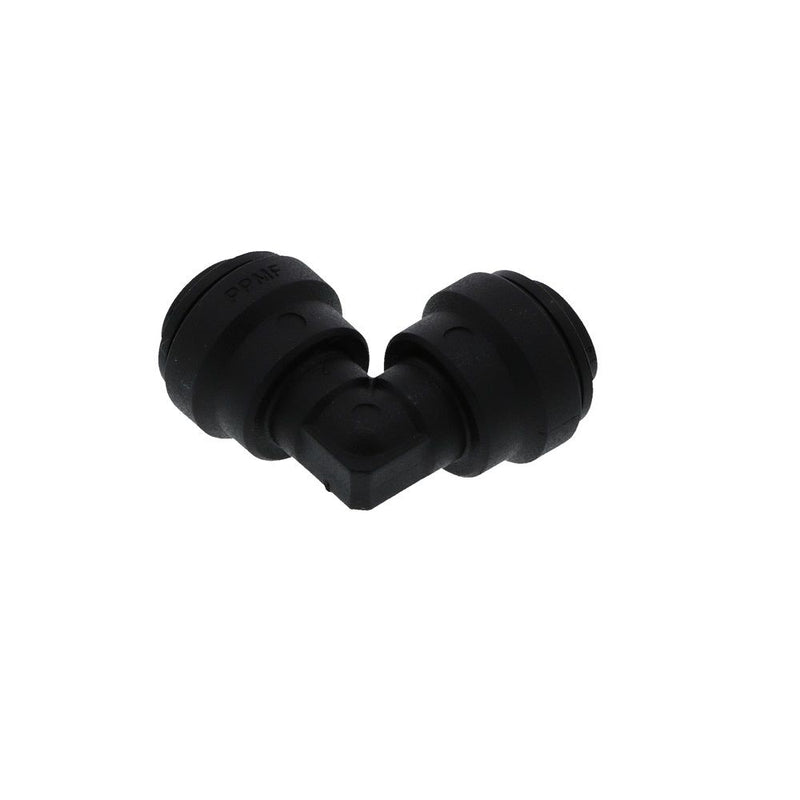

John Guest Union Elbow Black Polypropylene - 1/4

Regular price From $1.88
Optional Accessory
John Guest Union Elbow - 1/4

Regular price From $2.02
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest stem adapter makes connecting OD tubing sizes to female NPTF threads easy. Manufactured in polypropylene, these fittings were developed for the water purification and beverage dispense markets. They are also suitable for use in agricultural spraying, farm/dairy equipment, chemical dispense, car washing and a variety of other applications.

Features:

Push-fit Technology creates reliable, leak-free connections
Stem easily inserts into JG Push-fit fittings to make a swivel connector
Compatible with plastic or copper OD sized tubing
Connect, disconnect, and reconnect in seconds without tools
Food Quality and suitable for potable liquids and pure water applications
UV Stabilized
Made with lead free materials

Working pressure and temperature:

Max. 150 psi at 70° F
Max. 60 psi at 140° F

Note: Not suitable for compressed air and vacuum applications

Polypropylene (PP) fittings are for water only. Material is too soft and seal is EPDM for compressed air applications.

View Prop 65 Warning

Specifications

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	150
Max Temp (°F)	140°F
Min Temp (°F)	33°F
Outlet Connection	1/4" MPT
Series	PP
Shape	Straight
Size	1/4"
Stem Size	1/4" OD
Color / Finish	Black
Connection Type	Male (MPT)
Origin	UK
Sub-Type	Stem Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	1.429 in.
Shipping Width	0.689 in.
Shipping Height	0.689 in.
Product Weight & Dimensions
Product Height	0.689 in.
Product Length	1.429 in.
Product Width	0.689 in.
Product Weight (lbs)	0.0053

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	150
Max Temp (°F)	140°F
Min Temp (°F)	33°F
Outlet Connection	1/4" MPT
Series	PP
Shape	Straight
Size	1/4"
Stem Size	1/4" OD
Color / Finish	Black
Connection Type	Male (MPT)
Origin	UK
Sub-Type	Stem Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	5.118 in.
Shipping Width	1.181 in.
Shipping Height	7.087 in.
Product Weight & Dimensions
Product Weight (lbs)	0.062

Product Details
Inlet Connection	1/4" MPT
Max Pressure (Psi)	150
Max Temp (°F)	140°F
Min Temp (°F)	33°F
Outlet Connection	1/4" MPT
Series	PP
Shape	Straight
Size	1/4"
Stem Size	1/4" OD
Color / Finish	Black
Connection Type	Male (MPT)
Origin	UK
Sub-Type	Stem Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	1 Year
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	4.134 in.
Product Weight & Dimensions
Product Weight (lbs)	3.524

Downloads

John Guest Stem Adapter Black Polypropylene - 1/4 x 1/4 NPTF Manual
