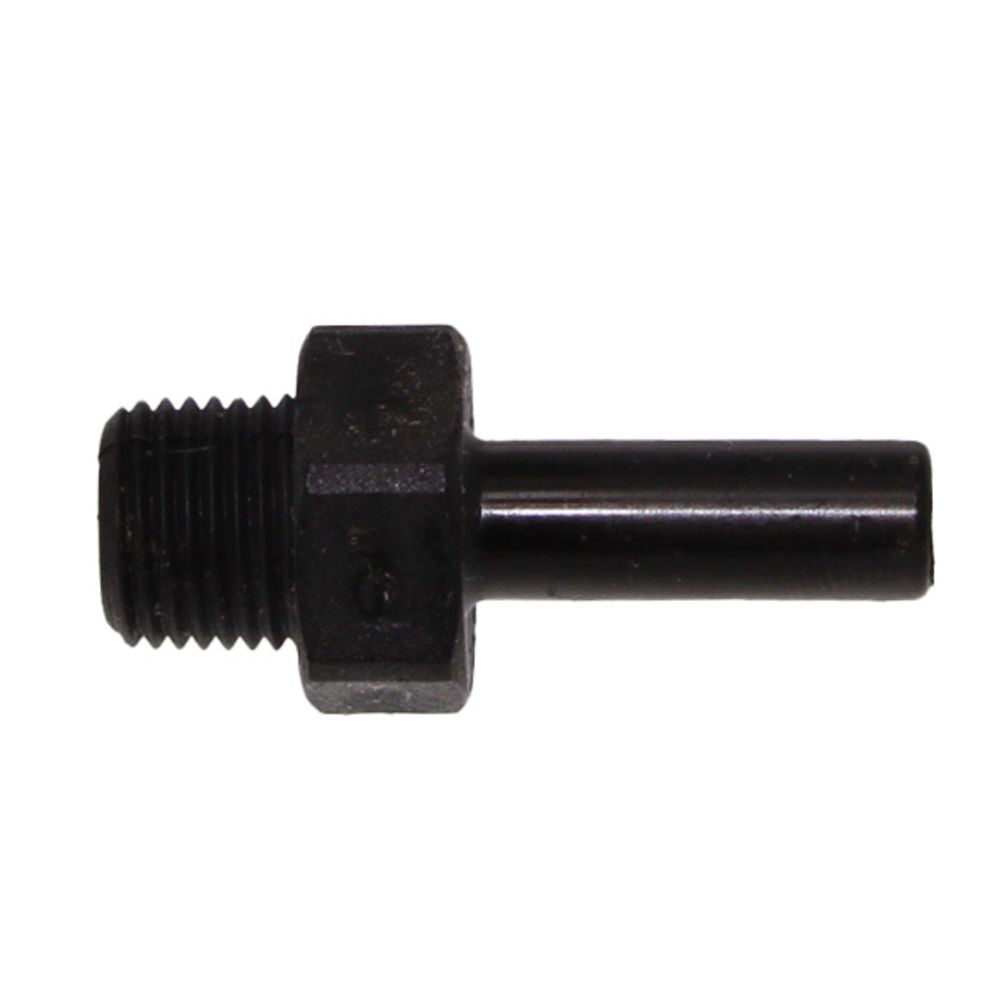

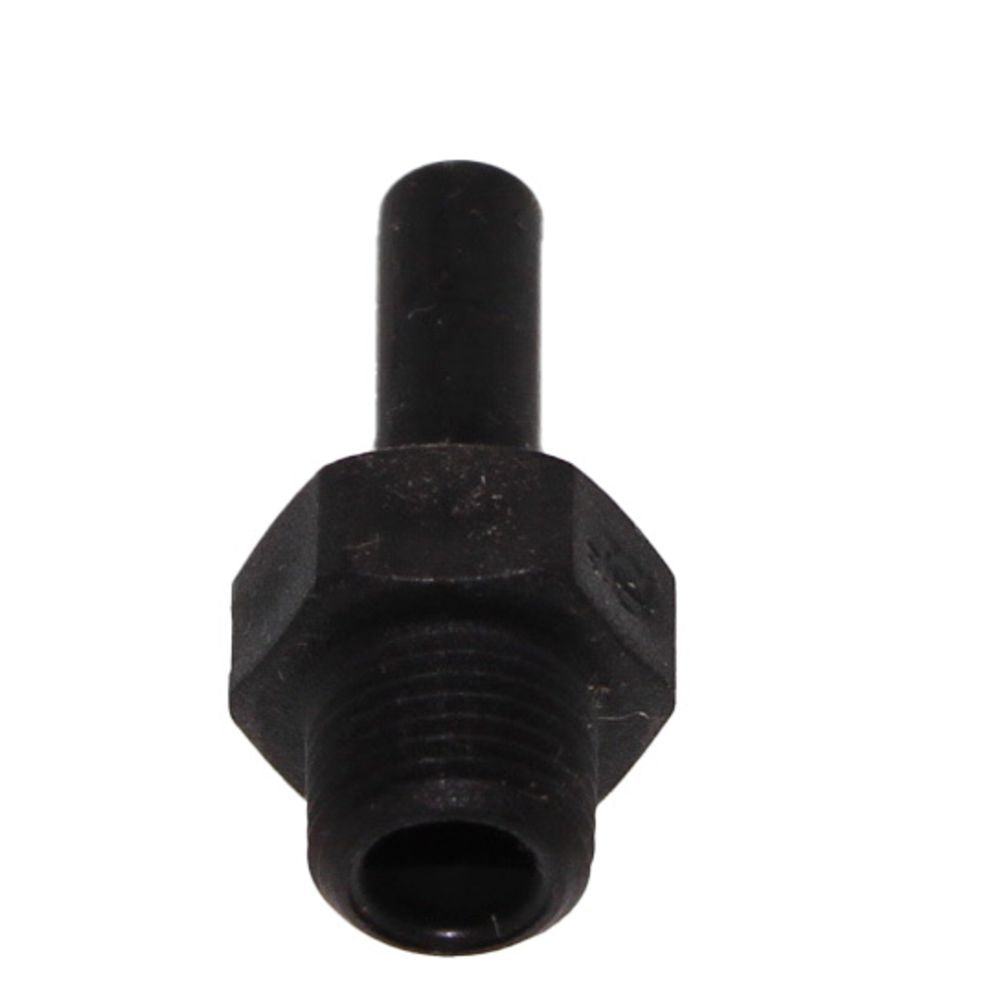

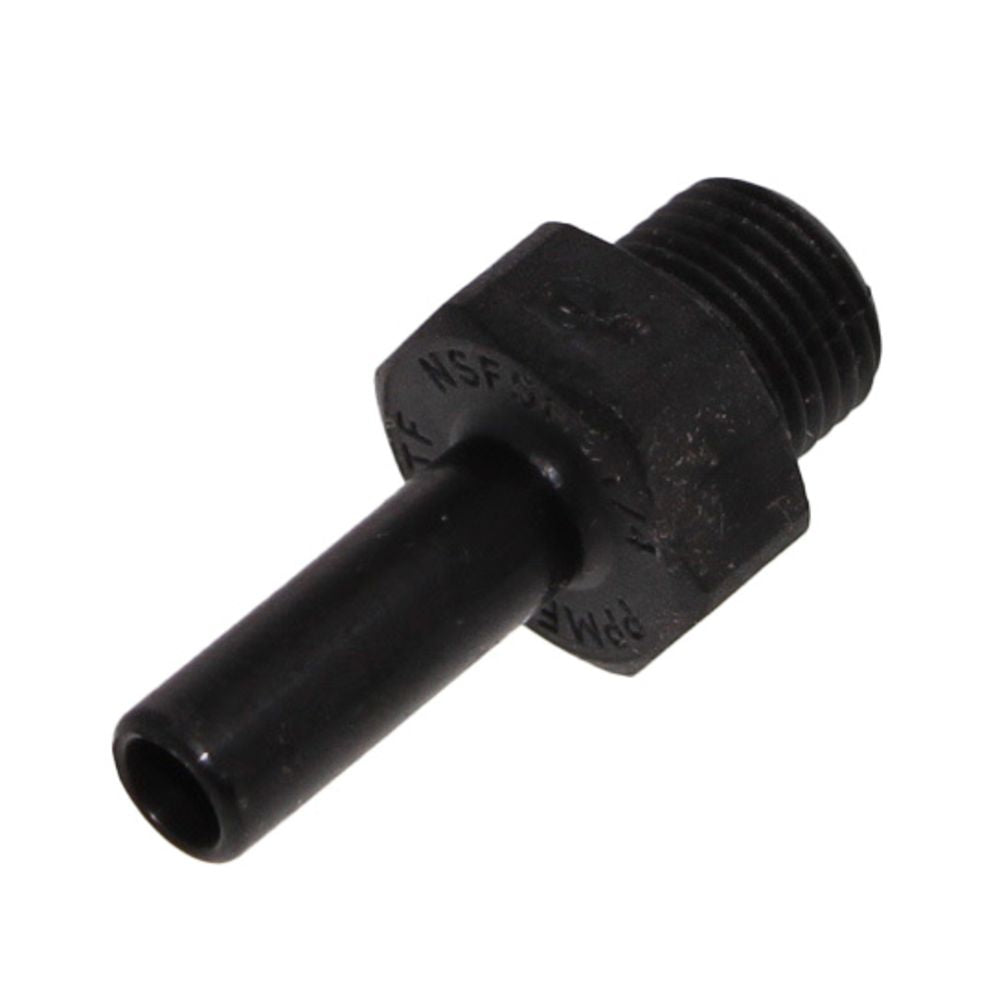

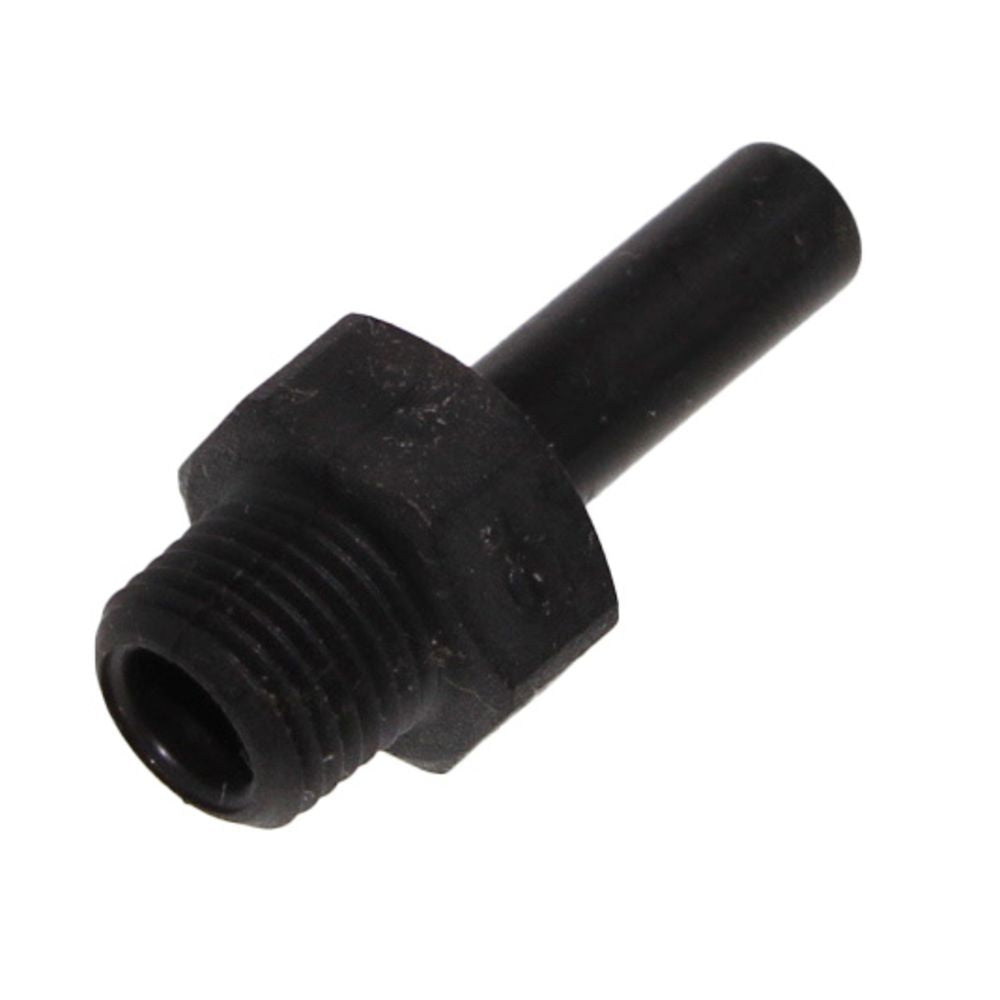

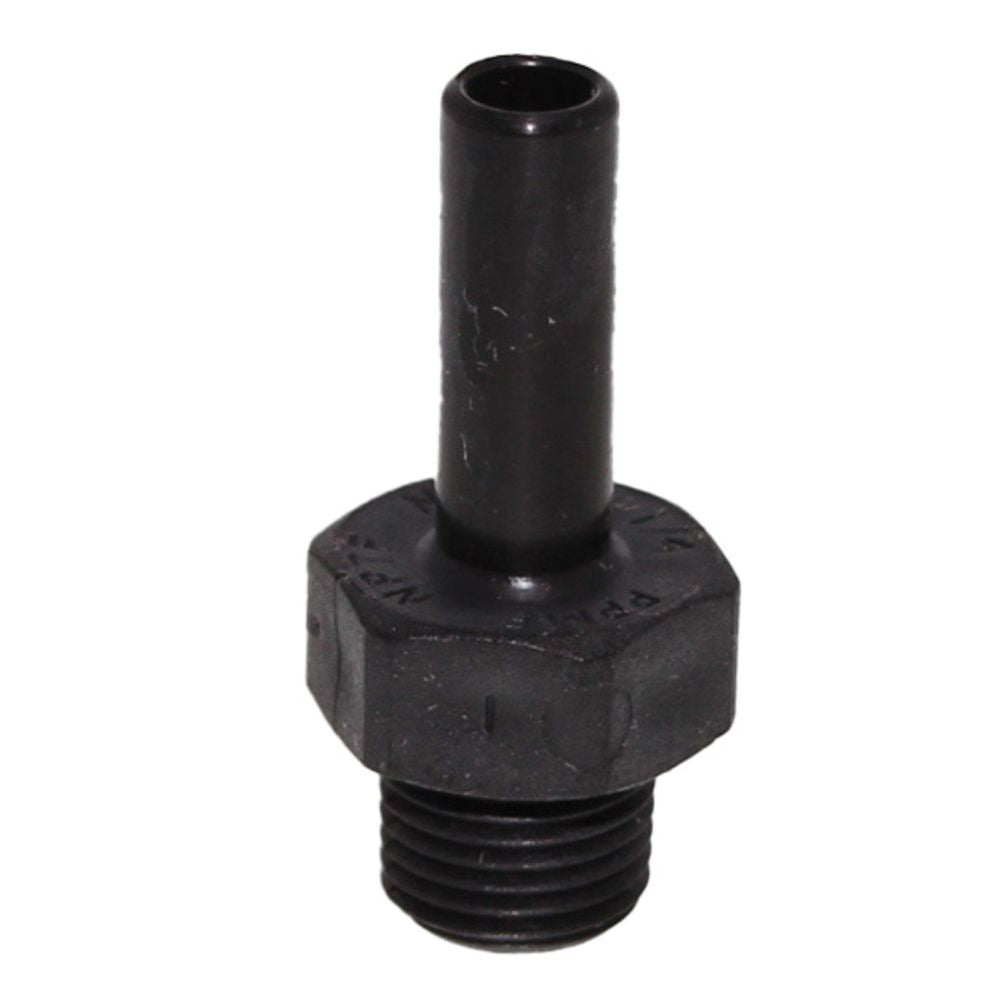

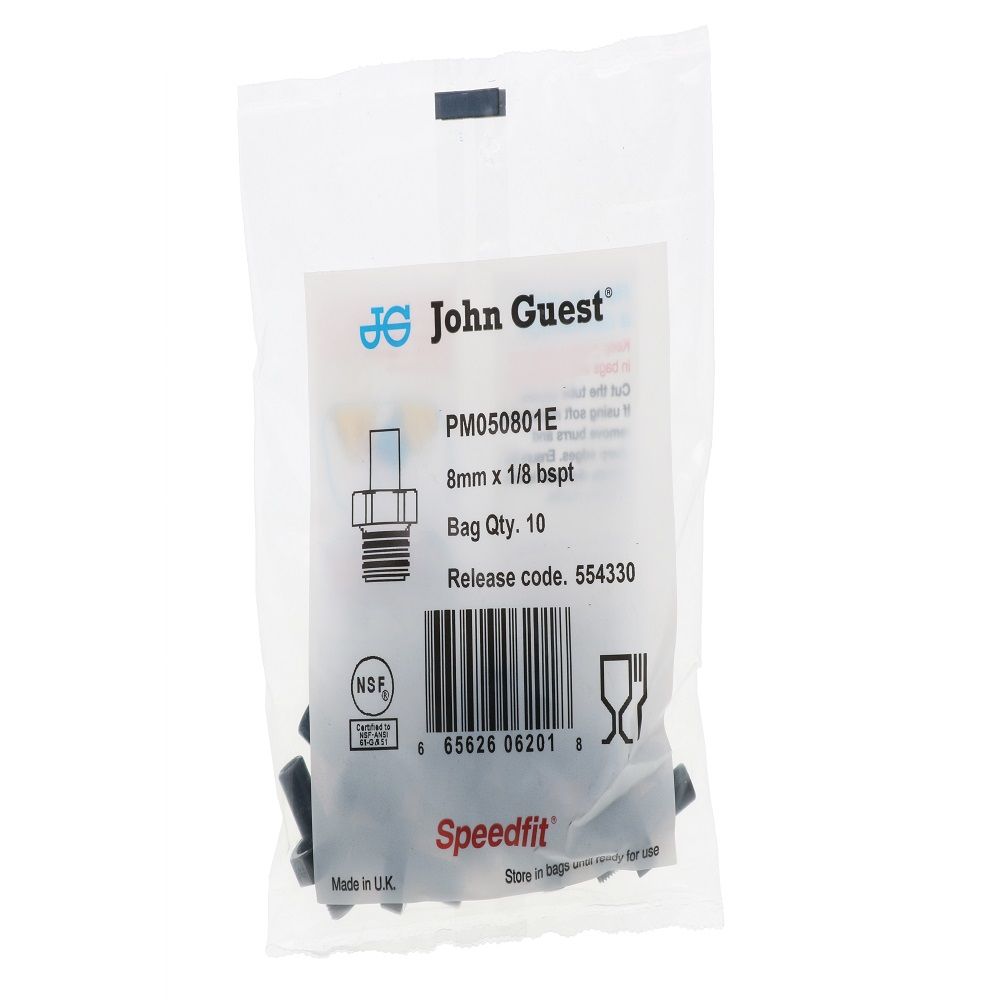

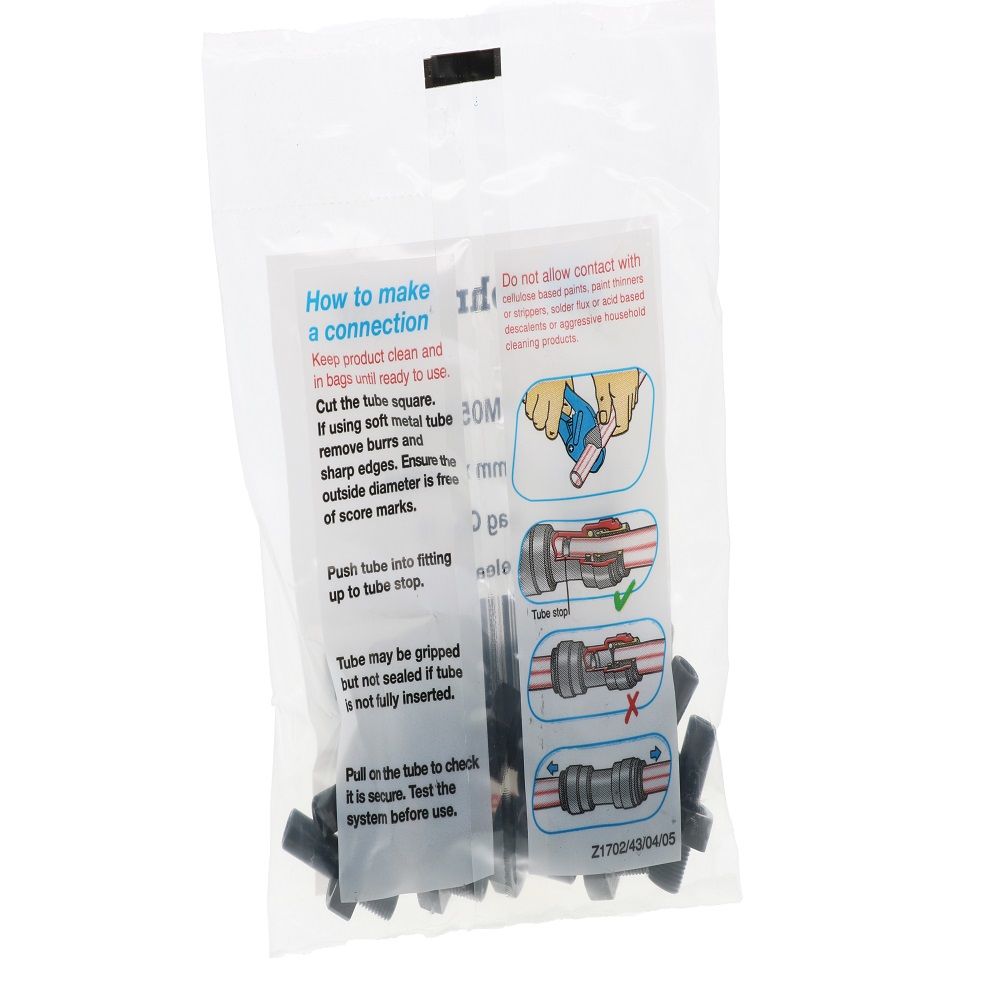

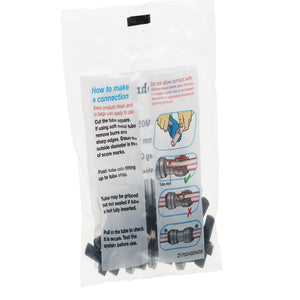

John Guest Stem Adapter BLACK ACETAL - 8mm x 1/8 BSPT

Part Number: PM050801E Alt. Part Number: ASA8M-R1-E, PM050801E

1 7

John Guest

John Guest Stem Adapter BLACK ACETAL - 8mm x 1/8 BSPT

Part Number: PM050801E Alt. Part Number: ASA8M-R1-E, PM050801E

MSRP: $1.35

$0.81

Quantity

Unit Price

Price

Savings

$0.81

—

$0.72

$7.28

11%

500

$0.70

$353.70

13%

Product variants

You May Also Need

Optional Accessory

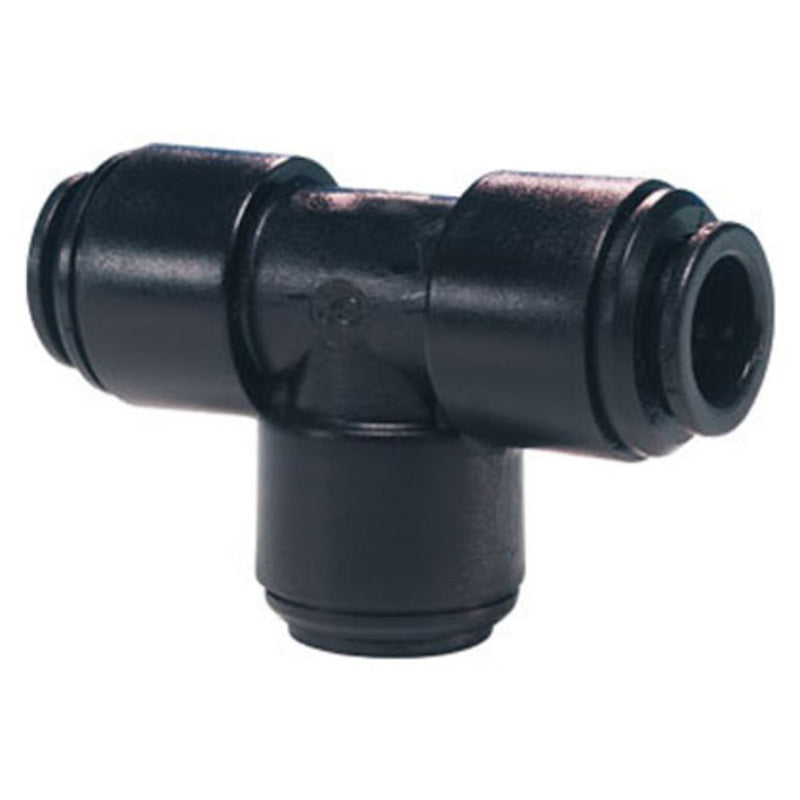

John Guest Union Tee BLACK ACETAL - 8mm

Regular price From $3.19
Optional Accessory

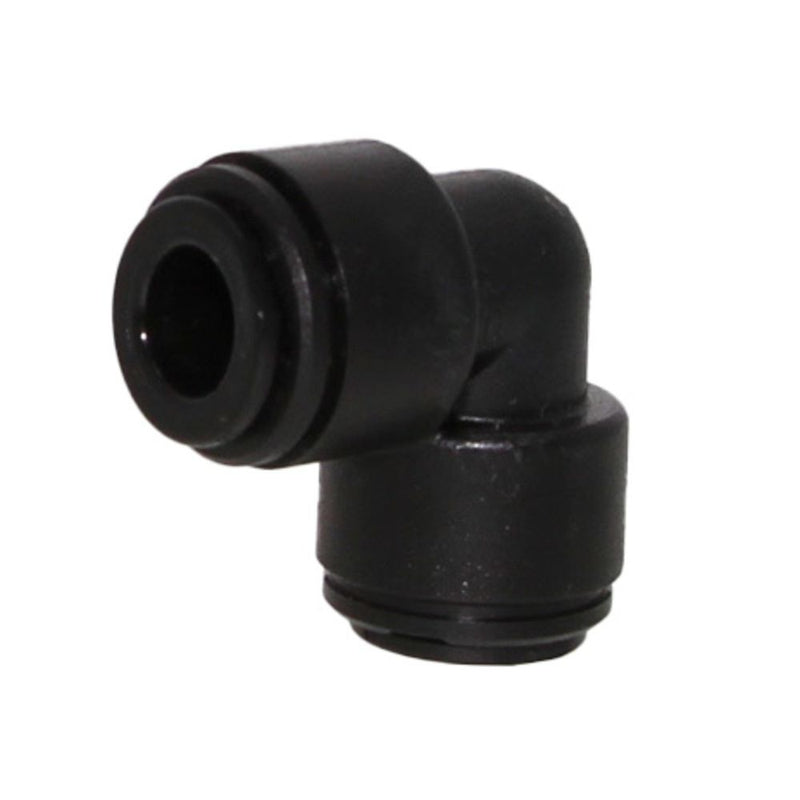

John Guest Union Elbow BLACK ACETAL - 8mm

Regular price From $2.86
Optional Accessory
John Guest Collet Cover - 8mm, 5/16 OD Blue

Regular price From $0.25
Optional Accessory
John Guest Locking Clip - 8mm

Regular price From $0.20
Optional Accessory
John Guest Flow Bend Clip - 5/16

Regular price From $1.13
Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99
Optional Accessory
PTFE Teflon® Thread Seal Tape - 0.4 Density 1/2" x 60"

Regular price From $0.39
Optional Accessory
NeoFit ASP Collet Release Tool Set - 3/16, 1/4, 5/16, 3/8, 1/2

Regular price From $6.88

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest stem adapter is used to connect OD tubing sizes to female threads. The stem easily inserts into a John Guest push-fit fittings to make a permanent swivel connector. Fittings are manufactured in acetal, making them especially suitable for applications involving food and beverage and potable liquids. They are also suitable for air and inert gases and can be used on CO2 /nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.

Features and benefits

For use with JG Push-fit fittings
Acetal body
Quick and easy connection/disconnection
Food Quality, suitable for potable liquids and pure water
NSF51 and NSF61 listed
Lead free materials
Can be used for air/pneumatic and vacuum applications
Suitable for inert gasses, CO2 and nitrogen beverage lines
Stem cannot be removed once inserted to fitting

Working pressure and temperature:

230 psi at 68° F
150 psi at 150° F

View Prop 65 Warning

Specifications

Product Details
Inlet Connection	1/8" BSP
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	1/8" BSP
Series	PM
Shape	Straight
Size	1/8"
Stem Size	8mm OD
Color / Finish	Black
Connection Type	BSP
Origin	UK
Sub-Type	Stem Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Product Weight & Dimensions
Product Weight (lbs)	0.0071

Product Details
Inlet Connection	1/8" BSP
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	1/8" BSP
Series	PM
Shape	Straight
Size	1/8"
Stem Size	8mm OD
Color / Finish	Black
Connection Type	BSP
Origin	UK
Sub-Type	Stem Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	4.724 in.
Shipping Width	0.787 in.
Shipping Height	6.693 in.
Product Weight & Dimensions
Product Weight (lbs)	0.071

Product Details
Inlet Connection	1/8" BSP
Max Pressure (Psi)	230
Max Temp (°F)	150°F
Min Temp (°F)	-4°F
Outlet Connection	1/8" BSP
Series	PM
Shape	Straight
Size	1/8"
Stem Size	8mm OD
Color / Finish	Black
Connection Type	BSP
Origin	UK
Sub-Type	Stem Adapter
Type	Adapter
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	3.937 in.
Product Weight & Dimensions
Product Weight (lbs)	3.55

Downloads

John Guest Stem Adapter BLACK ACETAL - 8mm x 1/8 BSPT Manual

Reviews (0)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

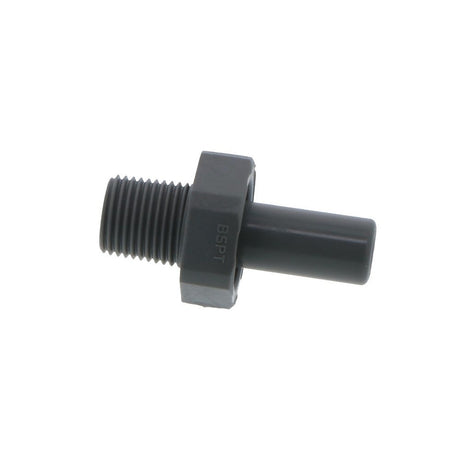

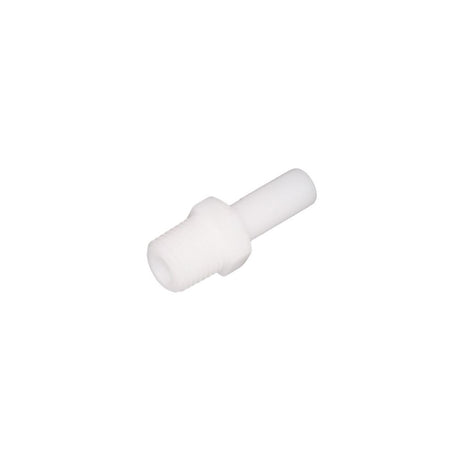

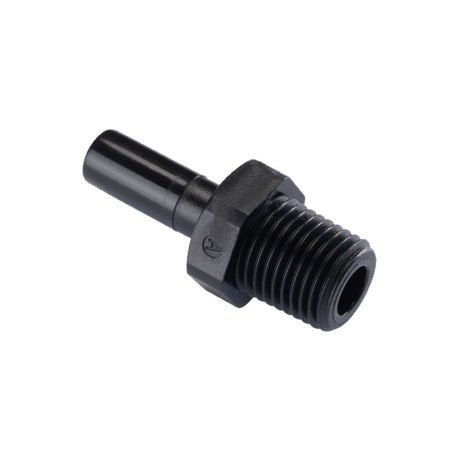

Facet	John Guest John Guest Stem Adapter BLACK ACETAL - 8mm x 1/8 BSPT Regular price From $0.81 Part #: PM050801E Save up to 13% with bulk pricing Current Product	NeoFit NeoFit - Acetal Black Stem Adapter 8mm stem x 1/8"BSPT Regular price From $0.65 Part #: ASA8M-R1-E Save up to 9% with bulk pricing View details	NeoFit NeoFit - Acetal Natural White Stem Adapter 8mm stem x 1/8"BSPT Regular price From $0.65 Part #: ASA8M-R1-W Save up to 9% with bulk pricing View details	John Guest John Guest Stem Adapter BSPT - 5/16 x 1/8 BSPT Regular price From $1.37 Part #: PM050801S Save up to 8% with bulk pricing View details
