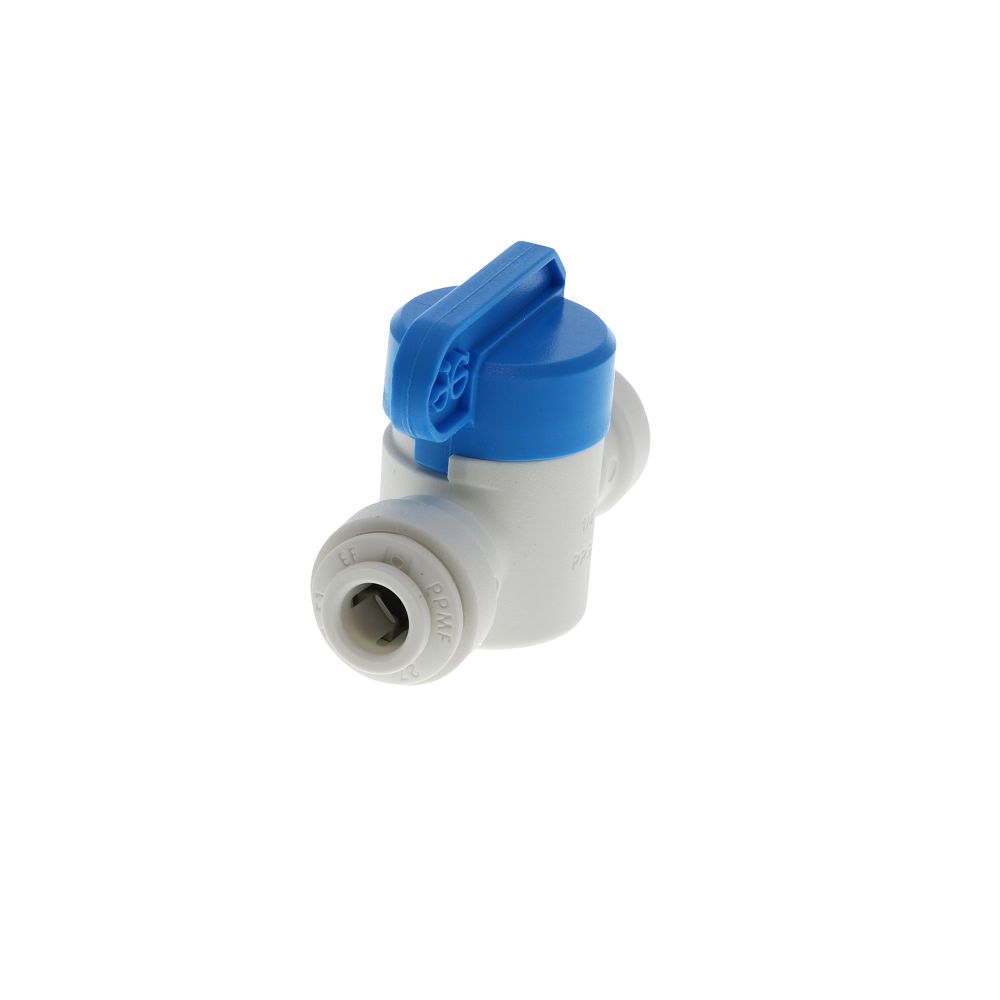

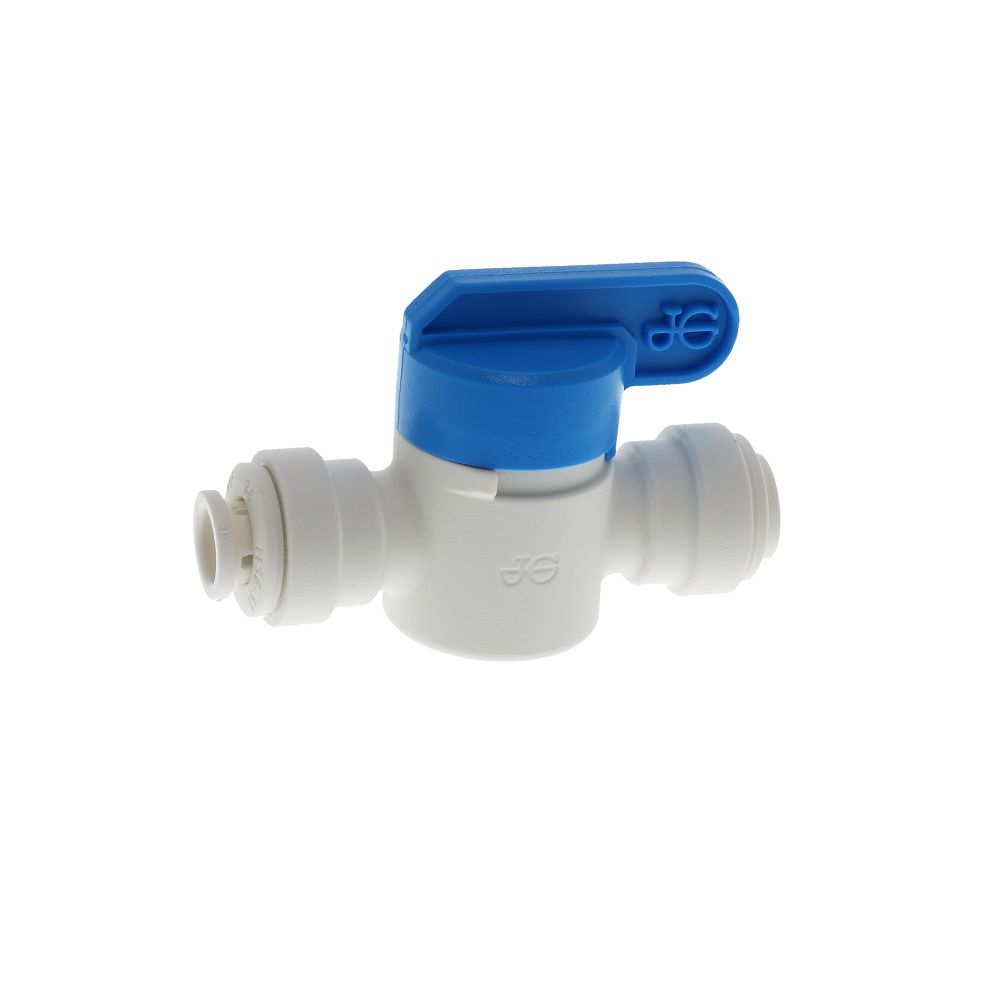

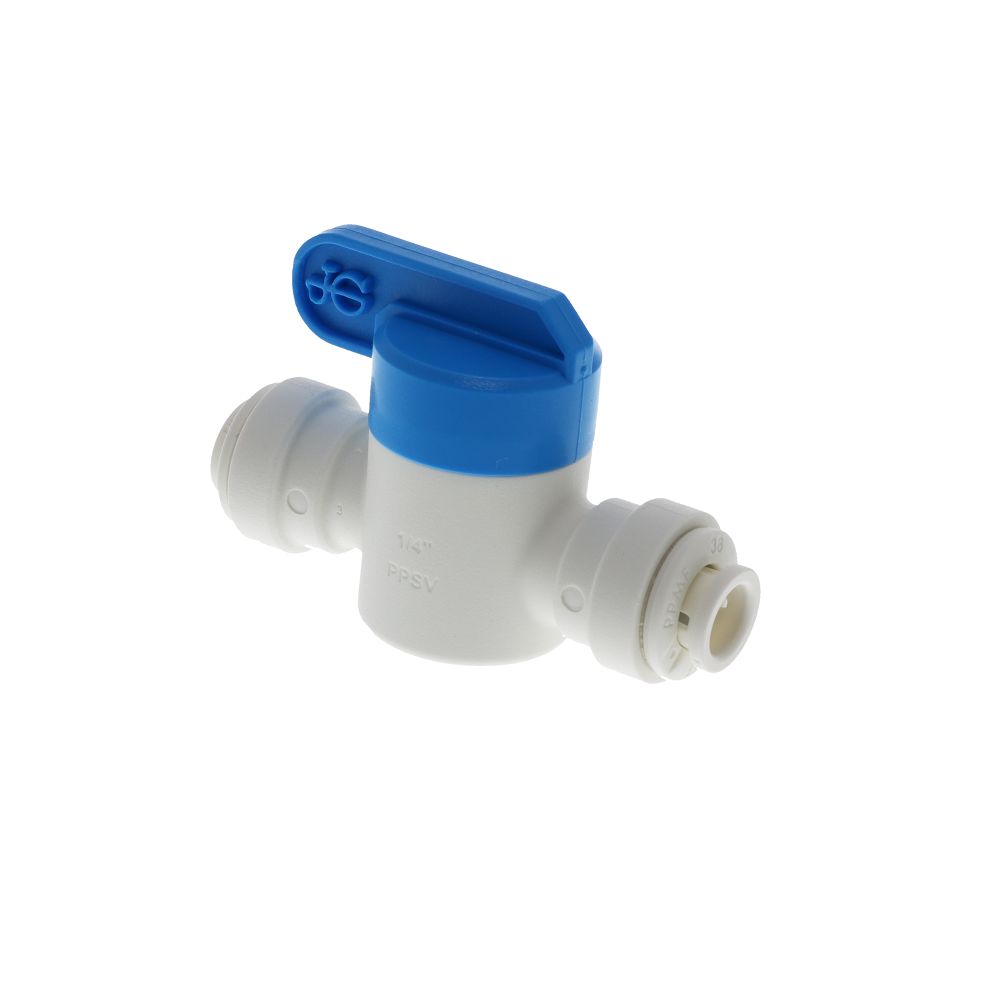

John Guest Shut-Off Valve-Polypro Straight - 1/4 Tube x 1/4 Tube
Part Number: PPSV040808W-X
Alt. Part Number: AHVU44-W
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Push-fit Technology creates reliable, leak-free connections
- Used to isolate the supply for service and maintenance
- Quarter turn to open or close
- Connect, disconnect, and reconnect in seconds without tools
- Compatible with plastic or copper OD sized tubing
- Food Quality and suitable for potable liquids and pure water applications
- Polypropylene body with EDPM O-ring
- Made with lead free materials
Working pressure and temperature:
- Max. 150 psi at 70° F
- Max. 60 psi at 140° F
Note: Not suitable for compressed air and vacuum applications
Compatible with:
Hydro-Logic Purification Systems | 137401 |
Product Details | |
---|---|
Application | Water Food Beverage |
Body Material | Polypropylene |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Push-In Size | 1/4" OD |
Seal Material | EPDM |
Series | PPSV |
Shape | Straight |
Color / Finish | White |
Origin | UK |
Type | Shut-Off Valves |
Warranty & Certifications | |
Certifications | NSF 61, NSF 51, FDA Approved |
Warranty | 12 Months |
Product Weight & Dimensions | |
Product Weight (lbs) | 0.0342 |
Product Details | |
---|---|
Application | Water Food Beverage |
Body Material | Polypropylene |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Push-In Size | 1/4" OD |
Seal Material | EPDM |
Series | PPSV |
Shape | Straight |
Color / Finish | White |
Origin | UK |
Type | Shut-Off Valves |
Warranty & Certifications | |
Certifications | NSF 61, NSF 51, FDA Approved |
Warranty | 12 Months |
Shipping Dimensions | |
Shipping Length | 10 in. |
Shipping Width | 10 in. |
Shipping Height | 10 in. |
Product Weight & Dimensions | |
Product Weight (lbs) | 0.75 |
Product Details | |
---|---|
Application | Water Food Beverage |
Body Material | Polypropylene |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Push-In Size | 1/4" OD |
Seal Material | EPDM |
Series | PPSV |
Shape | Straight |
Color / Finish | White |
Origin | UK |
Type | Shut-Off Valves |
Warranty & Certifications | |
Certifications | NSF 61, NSF 51, FDA Approved |
Warranty | 12 Months |
Shipping Dimensions | |
Shipping Length | 11.024 in. |
Shipping Width | 10.236 in. |
Shipping Height | 3.937 in. |
Product Weight & Dimensions | |
Product Weight (lbs) | 6.52 |
Product Details | |
---|---|
Application | Water Food Beverage |
Body Material | Polypropylene |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Push-In Size | 1/4" OD |
Seal Material | EPDM |
Series | PPSV |
Shape | Straight |
Color / Finish | White |
Origin | UK |
Type | Shut-Off Valves |
Warranty & Certifications | |
Certifications | NSF 61, NSF 51, FDA Approved |
Warranty | 12 Months |
Shipping Dimensions | |
Shipping Length | 24 in. |
Shipping Width | 10 in. |
Shipping Height | 7 in. |
Product Weight & Dimensions | |
Product Weight (lbs) | 15 |
