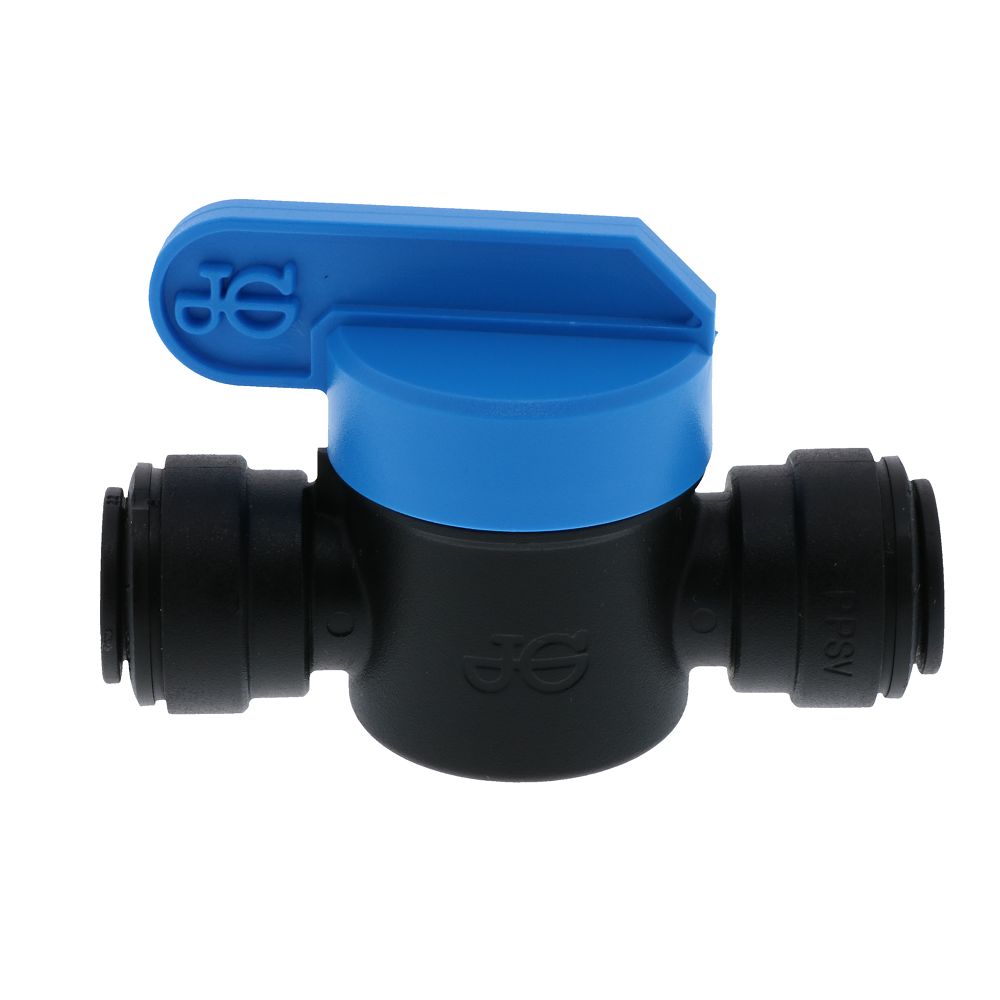

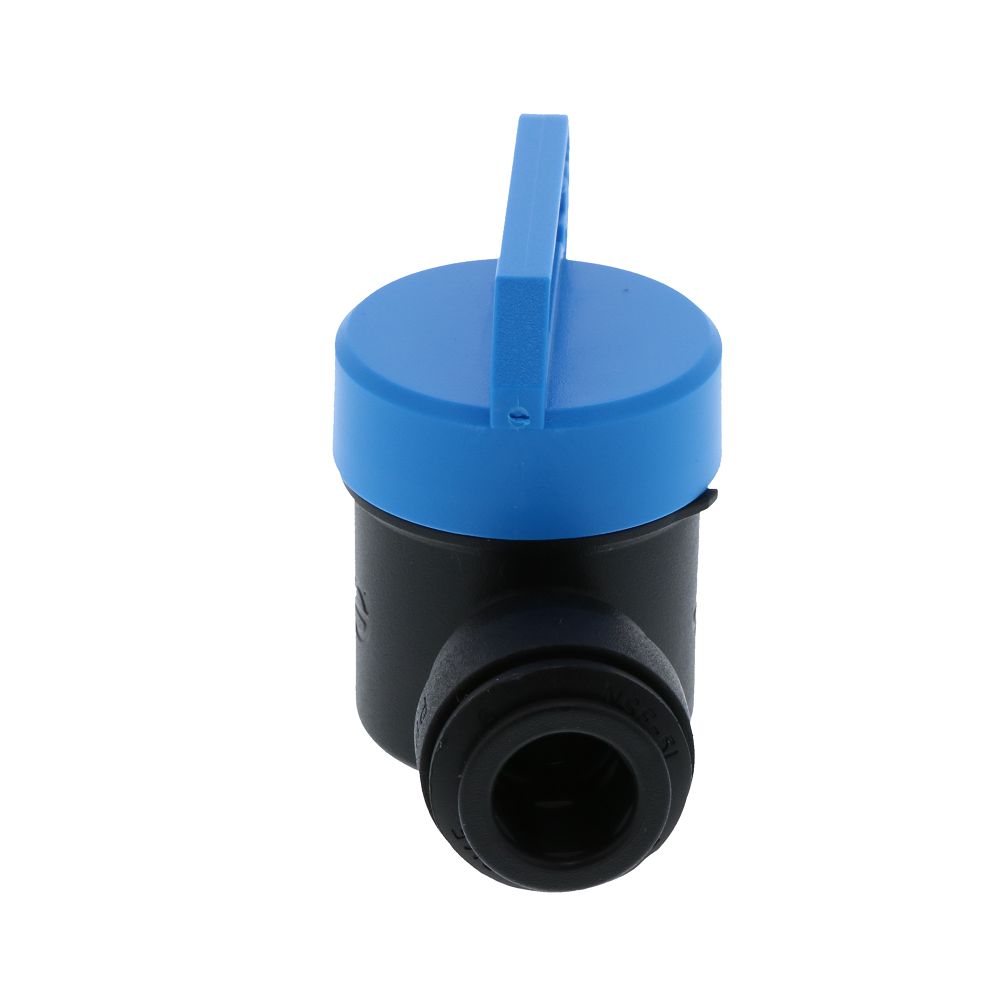

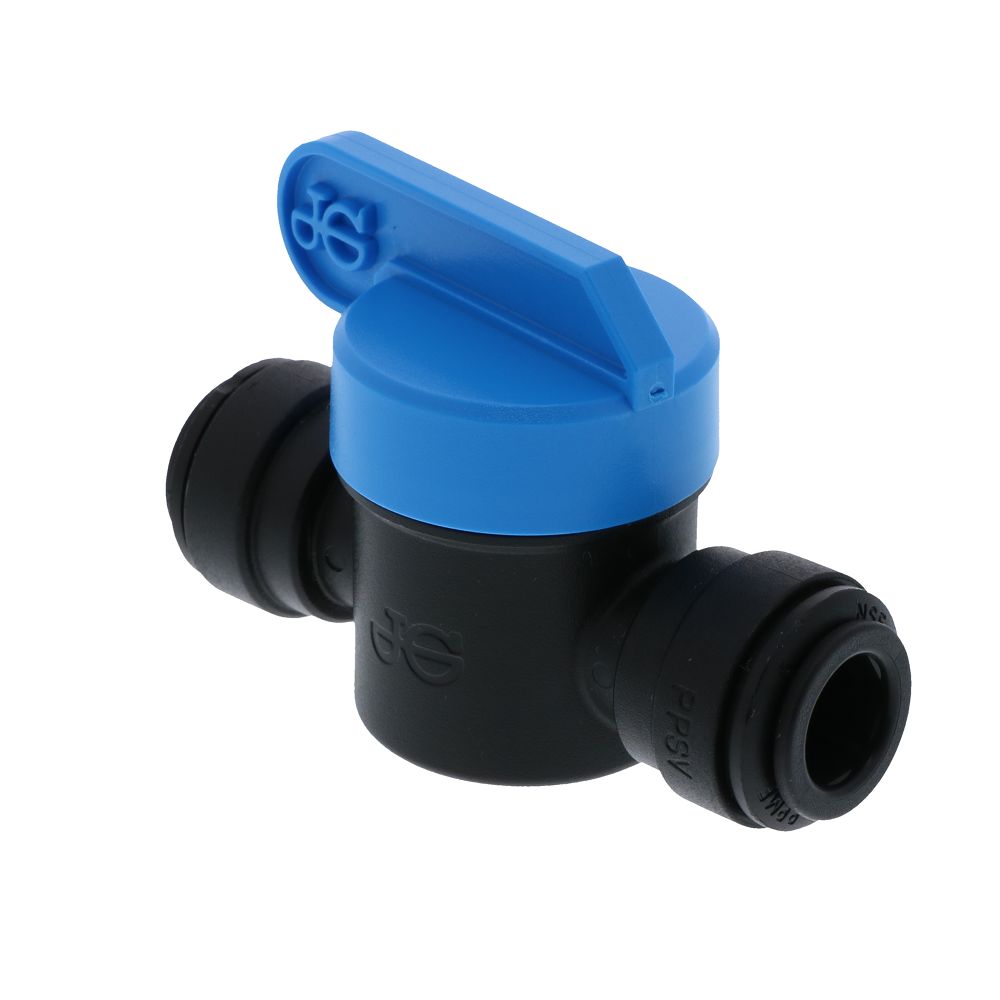

John Guest Shut-Off Valve Black Polypropylene - 3/8 Tube x 3/8 Tube

5.0

(3 reviews)

Part Number: PPSV041212E Alt. Part Number: PI051623S

1 3

John Guest

John Guest Shut-Off Valve Black Polypropylene - 3/8 Tube x 3/8 Tube

5.0

(3 reviews)

Part Number: PPSV041212E Alt. Part Number: PI051623S

MSRP: $9.47

$6.03

Quantity

Unit Price

Price

Savings

$6.03

—

$5.87

$58.71

$5.75

$460.62

Product variants

You May Also Need

Optional Accessory
Black 3/8" OD LLDPE Polyethylene Tubing

Regular price From $0.20
Optional Accessory
Tube Cutter - Suitable For Up To 1/2" (12mm) Tube

Regular price From $4.99
Optional Accessory
Tubing Clamps (Nylon Loop Clamps) - C-Style For 3/8 OD Tubing

Regular price From $0.15
Optional Accessory
John Guest Collet Release Tool - 1/4, 3/8

Regular price From $2.06
Optional Accessory
John Guest Flow Bend Clip - 3/8

Regular price From $1.27
Optional Accessory
NeoFit - Acetal Locking Clip 3/8"

Regular price From $0.23
Optional Accessory
John Guest Collet Cover - 3/8 OD

Regular price From $0.30
Optional Accessory
John Guest Pipe Insert / Tube Support - 5/16" CTS

Regular price From $0.19

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The John Guest Shut-Off Valve is used to isolate the supply for service and maintenance. Manufactured in polypropylene with food grade EDPM O-ring, these fittings were developed for the water purification and beverage dispense markets. They are also suitable for use in agricultural spraying, farm/dairy equipment, chemical dispense, car washing and a variety of other applications.

Features:

Push-fit Technology creates reliable, leak-free connections
Used to isolate the supply for service and maintenance
Quarter turn to open or close
Connect, disconnect, and reconnect in seconds without tools
Compatible with plastic or copper OD sized tubing
Food Quality and suitable for potable liquids and pure water applications
Polypropylene body with EDPM O-ring
UV Stabilized
Made with lead free materials

Working pressure and temperature:

Max. 150 psi at 70° F
Max. 60 psi at 140° F

Note: Not suitable for compressed air and vacuum applications

View Prop 65 Warning

Specifications

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	140°F
Min Temp (°F)	33°F
Push-In Size	3/8" OD
Series	PPSV
Shape	Straight
Color / Finish	Black
Origin	UK
Type	Shut-Off Valves
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	12 Months from Date of Purchase
Shipping Dimensions
Shipping Length	2.5 in.
Shipping Width	1.165 in.
Shipping Height	1.626 in.
Product Weight & Dimensions
Product Height	1.626 in.
Product Length	2.5 in.
Product Width	1.165 in.
Product Weight (lbs)	0.0602

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	140°F
Min Temp (°F)	33°F
Push-In Size	3/8" OD
Series	PPSV
Shape	Straight
Color / Finish	Black
Origin	UK
Type	Shut-Off Valves
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	12 Months from Date of Purchase
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	0.85

Product Details
Max Pressure (Psi)	150
Max Temp (°F)	140°F
Min Temp (°F)	33°F
Push-In Size	3/8" OD
Series	PPSV
Shape	Straight
Color / Finish	Black
Origin	UK
Type	Shut-Off Valves
Warranty & Certifications
Ca Prop 65	1
Product Certification Standard	NSF/ANSI 61, NSF/ANSI 51
Warranty	12 Months from Date of Purchase
Shipping Dimensions
Shipping Length	11.024 in.
Shipping Width	10.236 in.
Shipping Height	4.134 in.
Product Weight & Dimensions
Product Weight (lbs)	5.291

Downloads

John Guest Shut-Off Valve Black Polypropylene - 3/8 Tube x 3/8 Tube Manual

Reviews (3)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

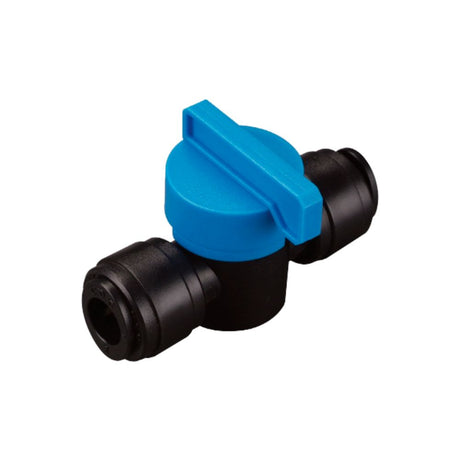

Facet	John Guest John Guest Shut-Off Valve Black Polypropylene - 3/8 Tube x 3/8 Tube 5.0 Regular price From $6.03 Part #: PPSV041212E Save up to 4% with bulk pricing Current Product	NeoFit NeoFit - Acetal Black Ball Valves 3/8" tube Regular price From $4.33 Part #: AHVU66-E Save up to 29% with bulk pricing View details	NeoFit NeoFit - Acetal Natural White Ball Valves 3/8" tube Regular price From $4.28 Part #: AHVU66-W Save up to 18% with bulk pricing View details
