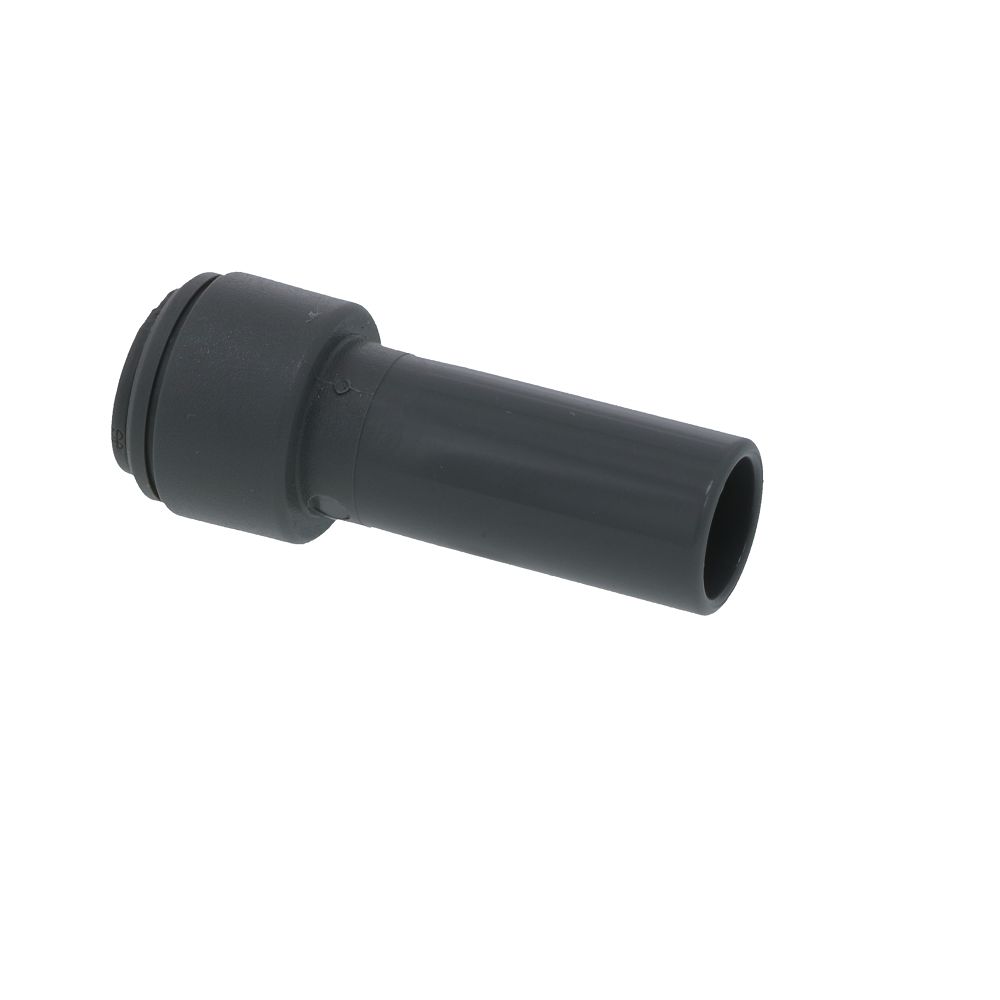

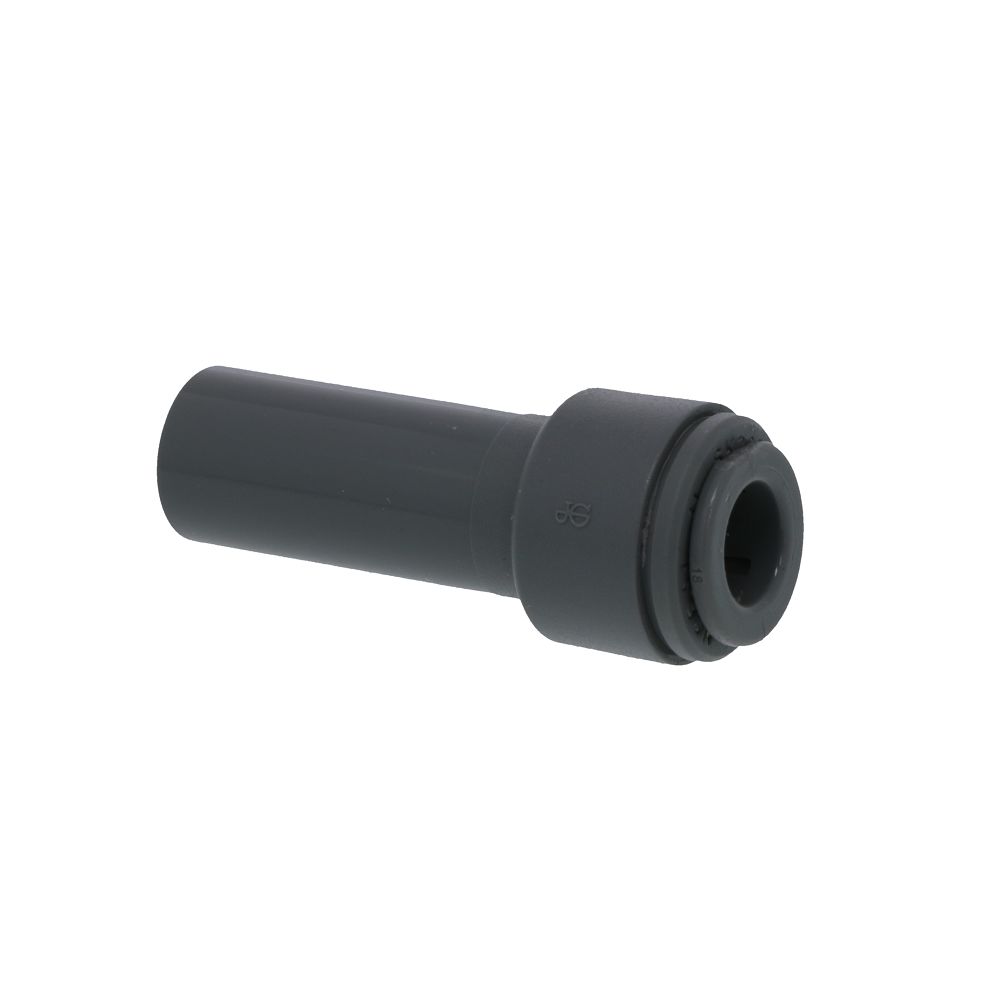

John Guest Reducer Stem - 5/16 x 3/8 Stem
Part Number: PI061210S
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
The John Guest reducer stem makes reducing the tube size of a fitting easy. Manufactured in gray acetal with food grade nitrile O-ring, these fittings are suitable for foodstuff and potable liquids. They are also suitable for air and inert gases therefore can be used for CO2 and nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.
Features:
- Push-fit Technology creates reliable, leak-free connections
- Stem easily inserts into JG Push-fit fittings to reduce the tube size
- Compatible with plastic or copper OD sized tubing
- Connect, disconnect, and reconnect in seconds without tools
- Food Quality and suitable for potable liquids and pure water applications
- Can be used for air/pneumatic & vacuum applications
- Acetal body with Nitrile O-Ring
- Made with lead free materials
Working pressure and temperature:
- Max. 230 psi at 68° F
- Max. 150 psi at 150° F
JG gray acetal is suitable for both compressed air and water (buna-n seal).
WARNING!
| Product Details | |
|---|---|
Application | Water Air Food Beverage |
Body Material | Acetal Copolymer |
Max Pressure (Psi) | 230 |
Max Temp (°F) | 150 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -4 |
Mounting Options | Free Floating |
Push-In Size | 5/16" OD |
Seal Material | Buna-N |
Series | PI |
Shape | Straight |
Stem Size | 3/8" OD |
Color / Finish | Gray |
Origin | UK |
Sub-Type | Stem Adapter |
Type | Adapter |
| Warranty & Certifications | |
Certifications | NSF 51, NSF 61, FDA Approved Materials, Lead Free |
