John Guest

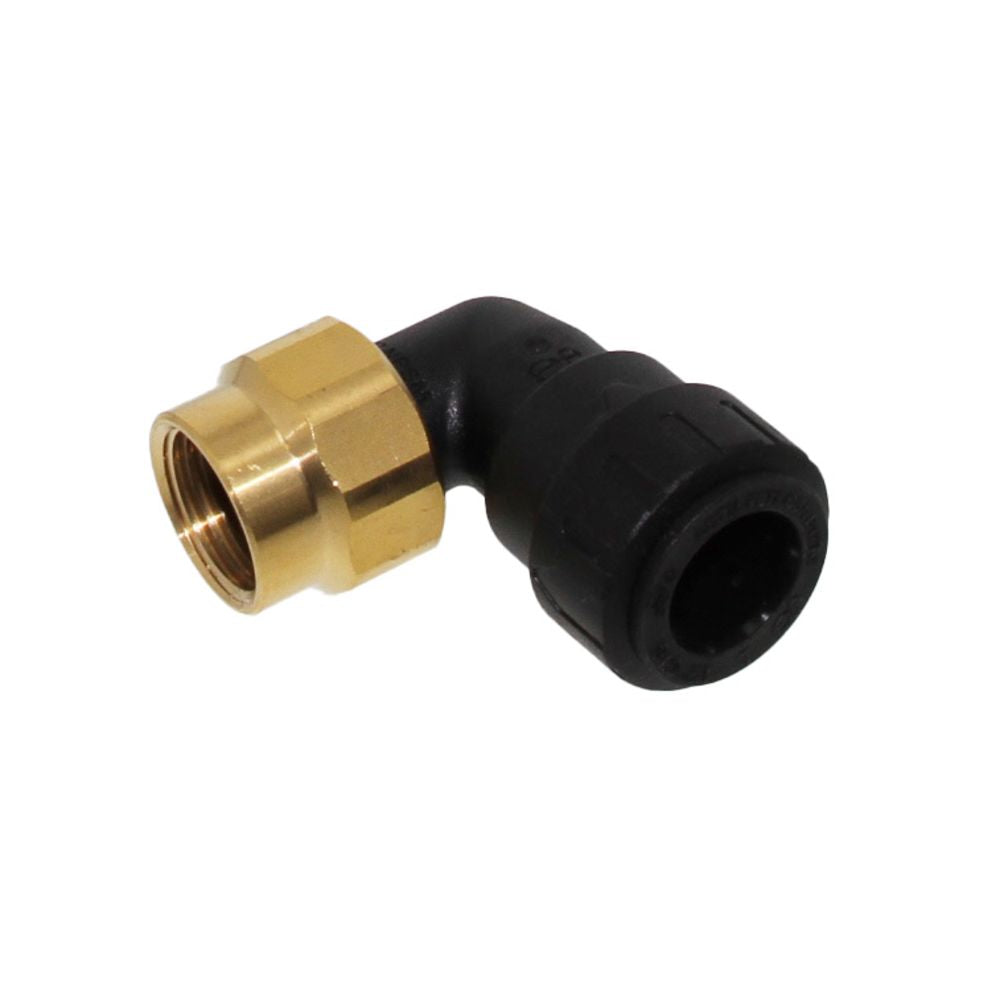

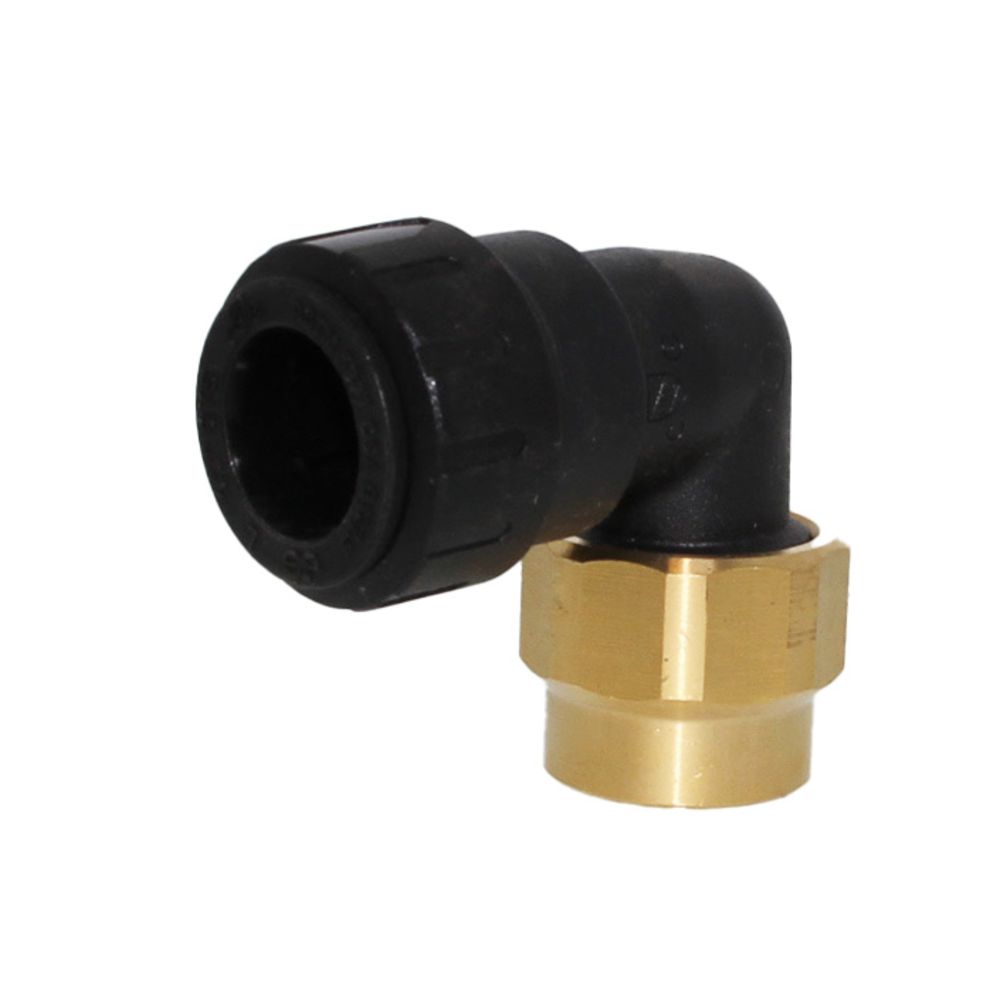

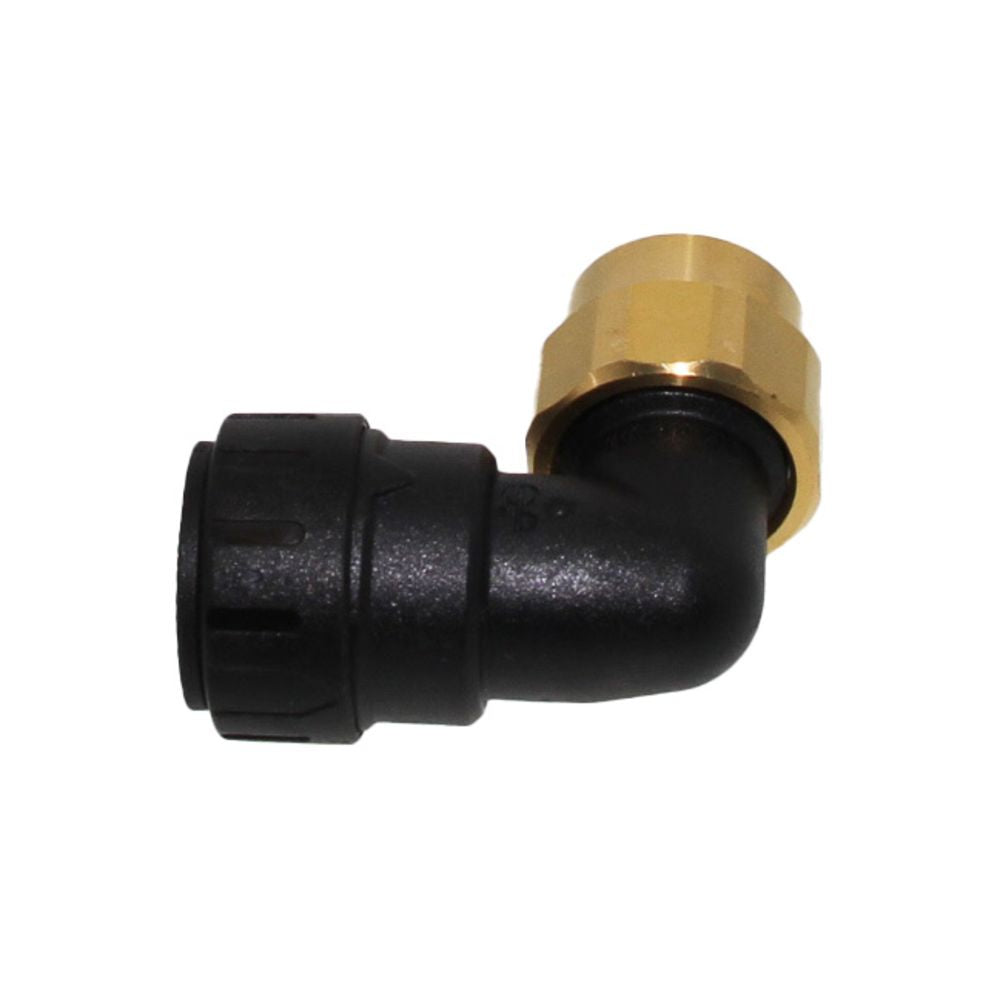

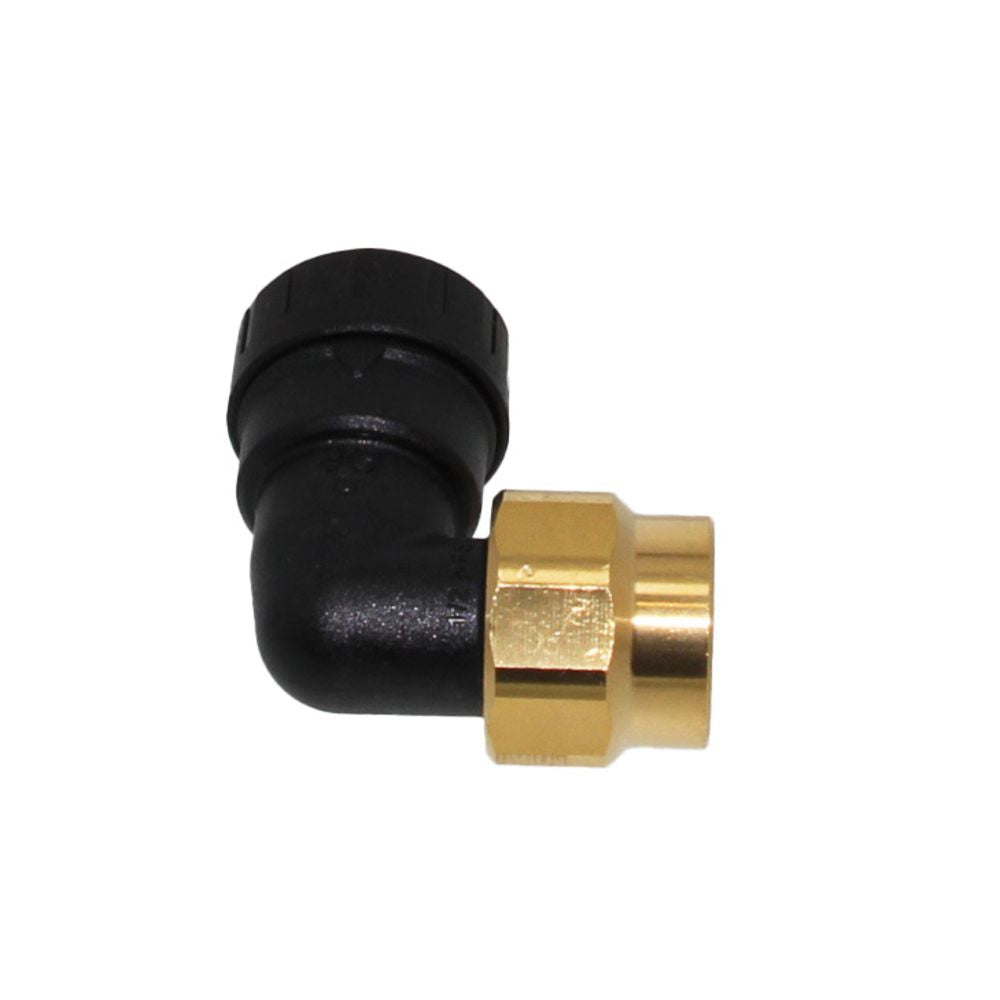

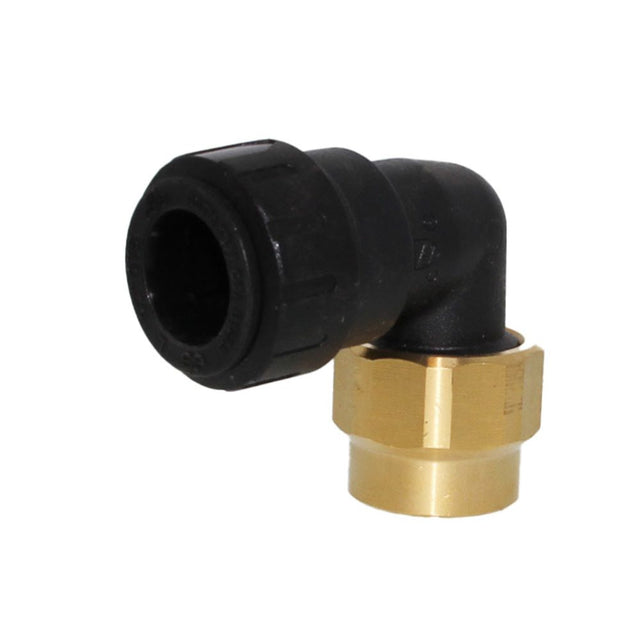

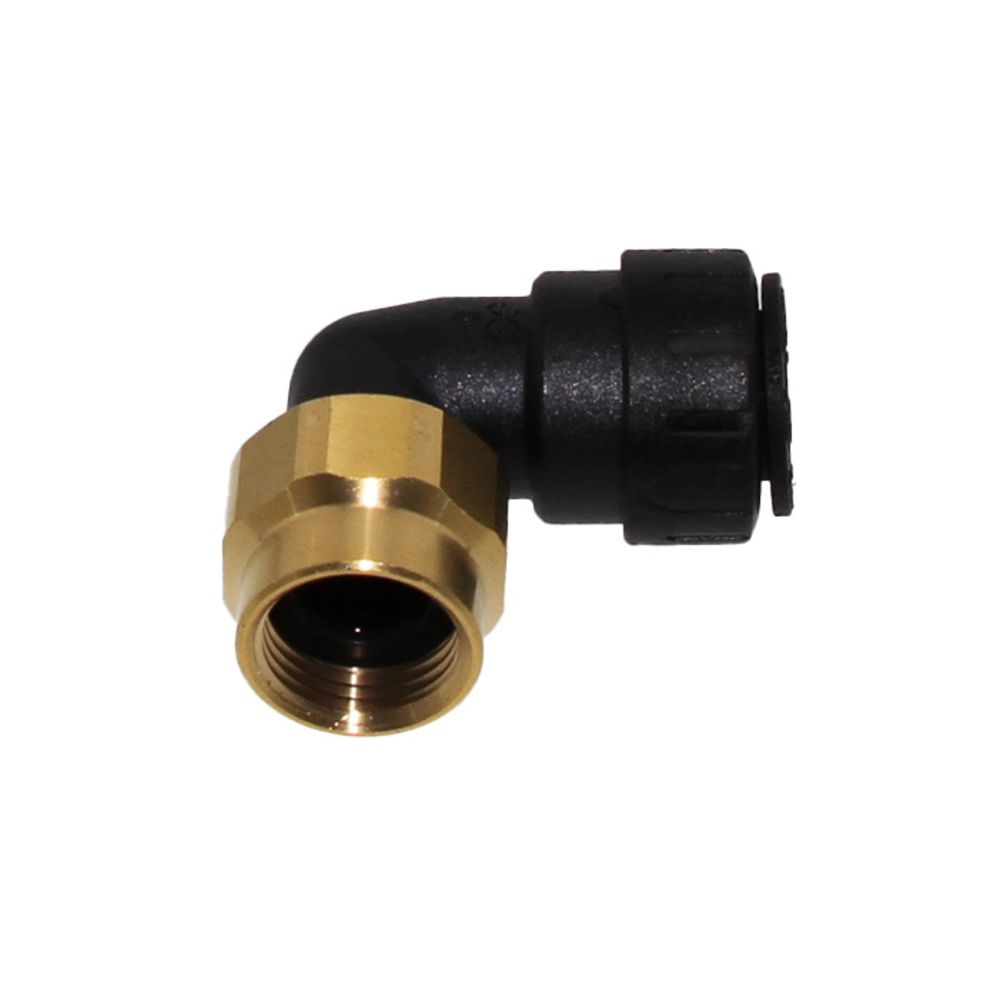

John Guest ProLock Female Elbow Connector NPS - 3/4 CTS x 3/4 NPS (Brass Nut)

Part Number: PSEI612836E

In Stock

out of stock

In Stock

$13.99


JG ProLock™ fittings use a collet with stainless steel teeth that grips the pipe when fully inserted and an O-ring to provide a permanent, leak-proof seal. When twisted into place, the locking cap locks the pipe in place and creates an audible click, ensuring maximum security. No tools, soldering, clamps or glue are ever required.

Features:
  • Full flow
  • Lead-free
  • UV resistant
  • Code-approved
  • 25-years warranty
  • Approved for behind-wall use
  • For use with copper, PEX and CPVC
  • Twist-to-lock technology provides added security
John Guest ProLock Ascriptions

Tubing Standards:
  • Copper - ASTM B 88
  • PEX - ASTM F876 / CSA B137.5
  • CPVC - ASTM D2846 / CSA B137.6
Warranty:
  • 25 Year Warranty against defects  in materials and manufacturing.
Code Compliance:
  • Uniform Plumbing Code (UPC)
  • International Plumbing Code (IPC)
  • National Plubing Code of Canada
  • ASSE1061-2011
  • ASTM F877-2011
  • NSF Standard 61
Specifications:
  • Material: Brass
  • Bag Quantity: 5
  • Box Quantity: 30
  • Connections: 3/4" CTS x 3/4" NPS Thread
  • O-rings: EPDM
  • Type: Female Elbow Connector

NOTE: Suitable for hot & cold potable water and hydronic heating applications

Application Max Working Pressure Max Working Temperature
Water
Water
Water
160 PSI
100 PSI
80 PSI
73° F
180° F
200° F


Weight & Dimensions

Weight (lbs)

0.18

Details

Application

Water

Body Material

Brass

Inlet/Outlet Connection

3/4" NPS

Max Pressure (Psi)

160

Max Temp (°F)

200

Min Pressure (Psi)

0

Min Temp (°F)

33

Mounting Options

Thread

Push-In Size

7/8" OD

Seal Material

EPDM

Series

ProLock

Size

3/4"

Tubing Material

Copper, PEX

Color / Finish

Black

Connection Type

NPS

Origin

UK

Sub-Type

Female Elbow

Type

Elbow

Warranty & Certifications

Certifications

NSF 61; NSF 372

Warranty

25 Years



Product Videos



JG ProLock™ fittings use a collet with stainless steel teeth that grips the pipe when fully inserted and an O-ring to provide a permanent, leak-proof seal. When twisted into place, the locking cap locks the pipe in place and creates an audible click, ensuring maximum security. No tools, soldering, clamps or glue are ever required.

Features:
  • Full flow
  • Lead-free
  • UV resistant
  • Code-approved
  • 25-years warranty
  • Approved for behind-wall use
  • For use with copper, PEX and CPVC
  • Twist-to-lock technology provides added security
John Guest ProLock Ascriptions

Tubing Standards:
  • Copper - ASTM B 88
  • PEX - ASTM F876 / CSA B137.5
  • CPVC - ASTM D2846 / CSA B137.6
Warranty:
  • 25 Year Warranty against defects  in materials and manufacturing.
Code Compliance:
  • Uniform Plumbing Code (UPC)
  • International Plumbing Code (IPC)
  • National Plubing Code of Canada
  • ASSE1061-2011
  • ASTM F877-2011
  • NSF Standard 61
Specifications:
  • Material: Brass
  • Bag Quantity: 5
  • Box Quantity: 30
  • Connections: 3/4" CTS x 3/4" NPS Thread
  • O-rings: EPDM
  • Type: Female Elbow Connector

NOTE: Suitable for hot & cold potable water and hydronic heating applications

Application Max Working Pressure Max Working Temperature
Water
Water
Water
160 PSI
100 PSI
80 PSI
73° F
180° F
200° F

California residents
see Prop 65 warnings WARNING!
This product contains arsenic known to the State of California to cause cancer and birth defects or other reproductive harm.
.

Weight & Dimensions

Weight (lbs)

0.18

Details

Application

Water

Body Material

Brass

Inlet/Outlet Connection

3/4" NPS

Max Pressure (Psi)

160

Max Temp (°F)

200

Min Pressure (Psi)

0

Min Temp (°F)

33

Mounting Options

Thread

Push-In Size

7/8" OD

Seal Material

EPDM

Series

ProLock

Size

3/4"

Tubing Material

Copper, PEX

Color / Finish

Black

Connection Type

NPS

Origin

UK

Sub-Type

Female Elbow

Type

Elbow

Warranty & Certifications

Certifications

NSF 61; NSF 372

Warranty

25 Years
