John Guest

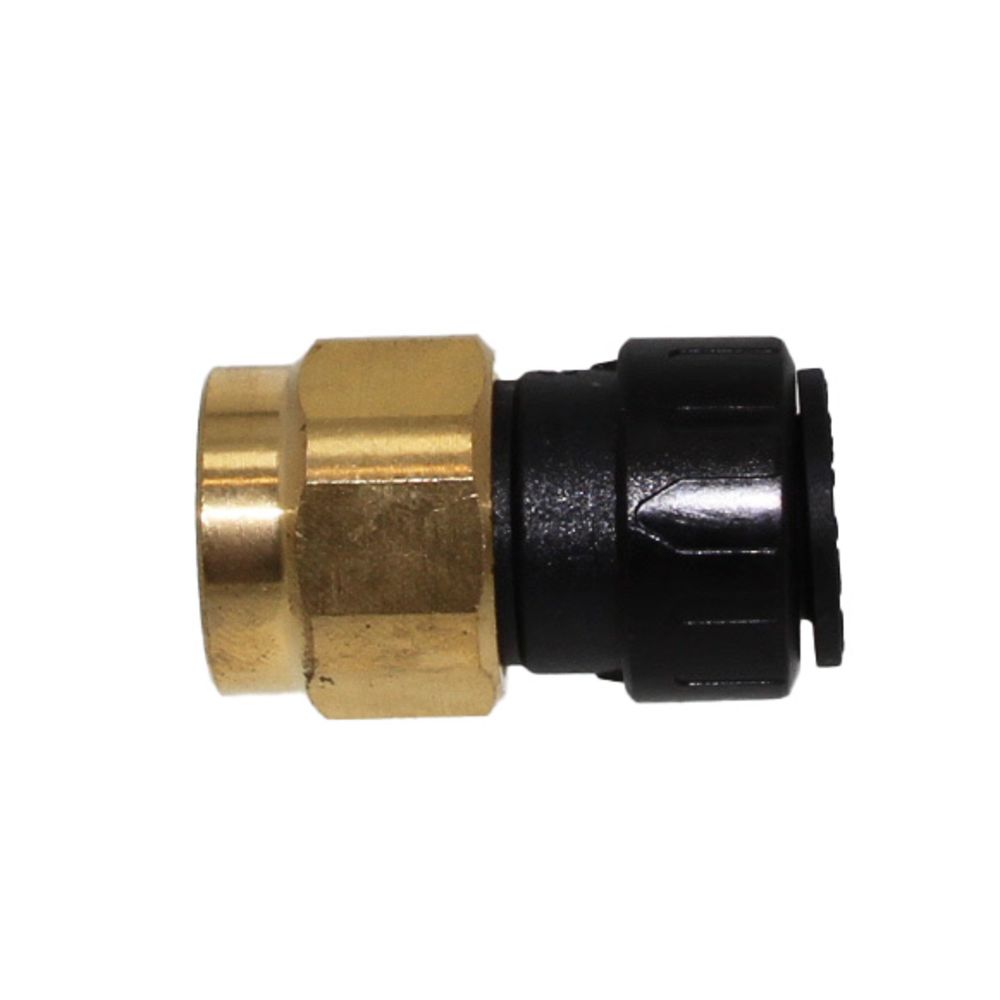

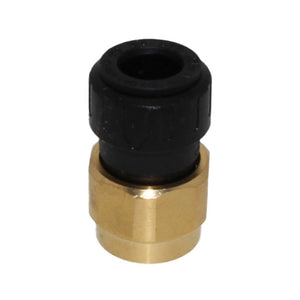

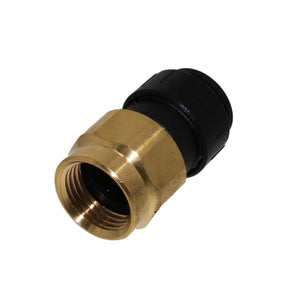

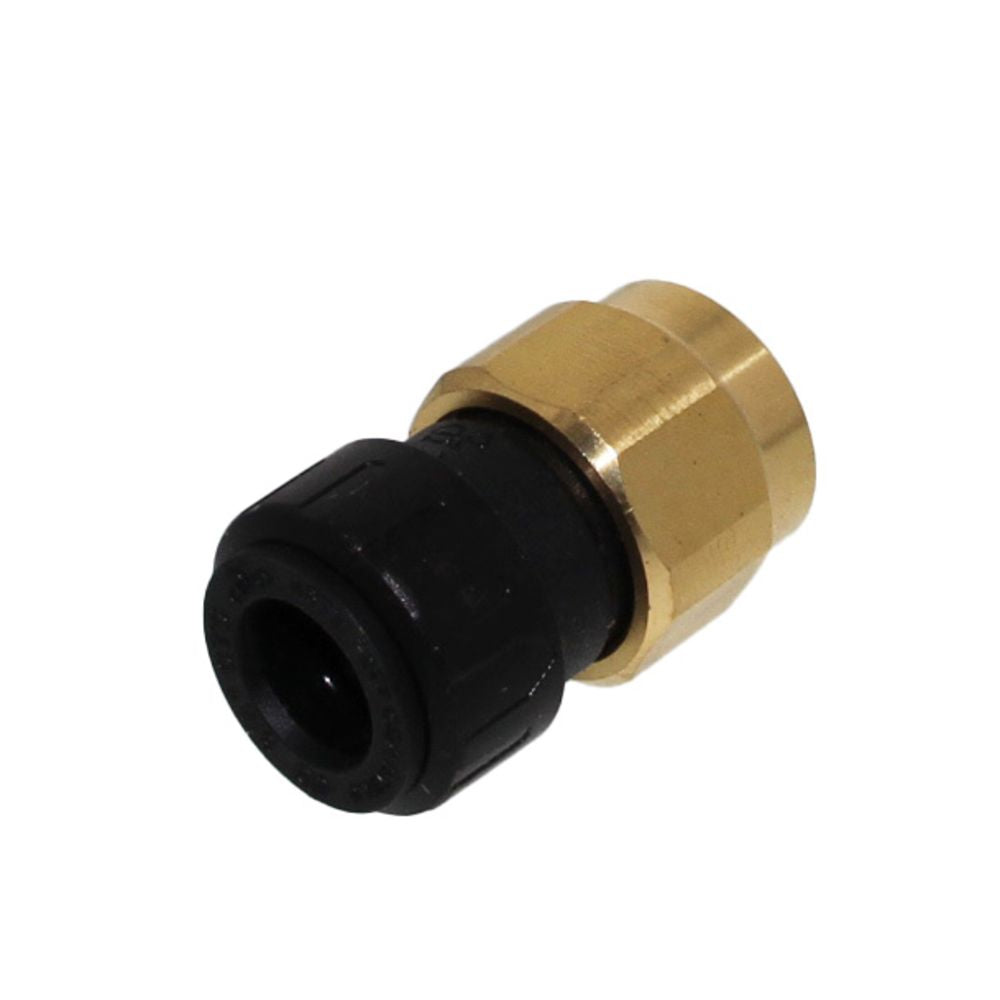

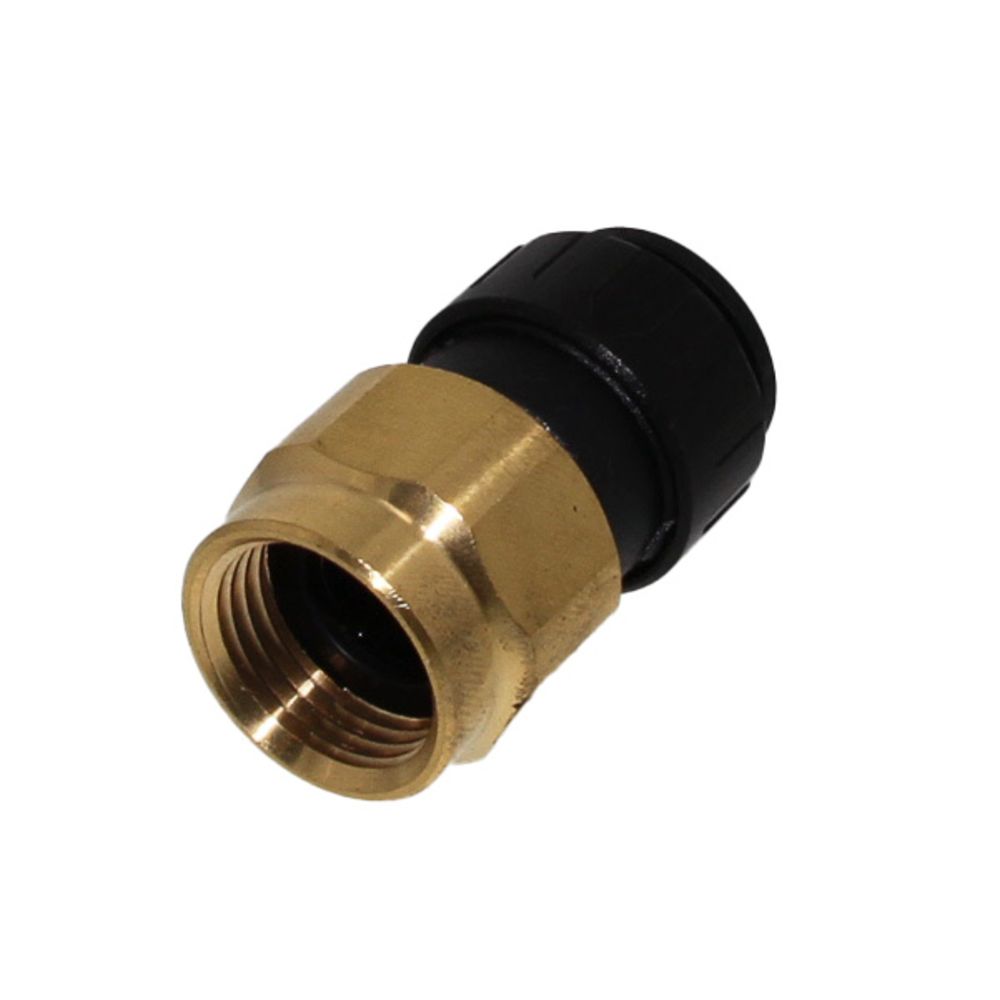

John Guest ProLock Female Connector NPS - 1 CTS x 1 NPS (Brass Nut)

Part Number: PSEI603638E

In Stock

out of stock

In Stock

$18.99


JG ProLock™ fittings use a collet with stainless steel teeth that grips the pipe when fully inserted and an O-ring to provide a permanent, leak-proof seal. When twisted into place, the locking cap locks the pipe in place and creates an audible click, ensuring maximum security. No tools, soldering, clamps or glue are ever required.

Features:
  • Full flow
  • Lead-free
  • UV resistant
  • Code-approved
  • 25-years warranty
  • Approved for behind-wall use
  • For use with copper, PEX and CPVC
  • Twist-to-lock technology provides added security
Tubing Standards:
  • Copper - ASTM B 88
  • PEX - ASTM F876 / CSA B137.5
  • CPVC - ASTM D2846 / CSA B137.6
Warranty:
  • 25 Year Warranty against defects
  •    in materials and manufacturing.
Code Compliance:
  • Uniform Plumbing Code (UPC)
  • International Plumbing Code (IPC)
  • National Plubing Code of Canada
  • ASSE1061-2011
  • ASTM F877-2011
  • NSF Standard 61


Specifications
  • Material: Brass
  • Bag Quantity: 5
  • Box Quantity: 25
  • Connections: 1" CTS x 1" NPS
  • O-rings: EPDM
  • Type: Female Connector

Application Max Working Pressure Max Working Temperature
Water
Water
Water
160 PSI
100 PSI
80 PSI
73° F
180° F
200° F


Weight & Dimensions

Weight (lbs)

0.18

Details

Series

ProLock

Max Temp (°F)

200

Max Pressure (Psi)

160

Min Temp (°F)

33

Min Pressure (Psi)

0

Push-In Size

1-1/8" OD

Application

Water

Bag Quantity

5

Body Material

Brass

Box Quantity

25

Color / Finish

Black

Mounting Options

Thread

Seal Material

EPDM

Size

1"

Inlet/Outlet Connection

1" NPS

Warranty & Certifications

Certifications

NSF 61, NSF 372



Product Videos



JG ProLock™ fittings use a collet with stainless steel teeth that grips the pipe when fully inserted and an O-ring to provide a permanent, leak-proof seal. When twisted into place, the locking cap locks the pipe in place and creates an audible click, ensuring maximum security. No tools, soldering, clamps or glue are ever required.

Features:
  • Full flow
  • Lead-free
  • UV resistant
  • Code-approved
  • 25-years warranty
  • Approved for behind-wall use
  • For use with copper, PEX and CPVC
  • Twist-to-lock technology provides added security
Tubing Standards:
  • Copper - ASTM B 88
  • PEX - ASTM F876 / CSA B137.5
  • CPVC - ASTM D2846 / CSA B137.6
Warranty:
  • 25 Year Warranty against defects
  •    in materials and manufacturing.
Code Compliance:
  • Uniform Plumbing Code (UPC)
  • International Plumbing Code (IPC)
  • National Plubing Code of Canada
  • ASSE1061-2011
  • ASTM F877-2011
  • NSF Standard 61


Specifications
  • Material: Brass
  • Bag Quantity: 5
  • Box Quantity: 25
  • Connections: 1" CTS x 1" NPS
  • O-rings: EPDM
  • Type: Female Connector

Application Max Working Pressure Max Working Temperature
Water
Water
Water
160 PSI
100 PSI
80 PSI
73° F
180° F
200° F
