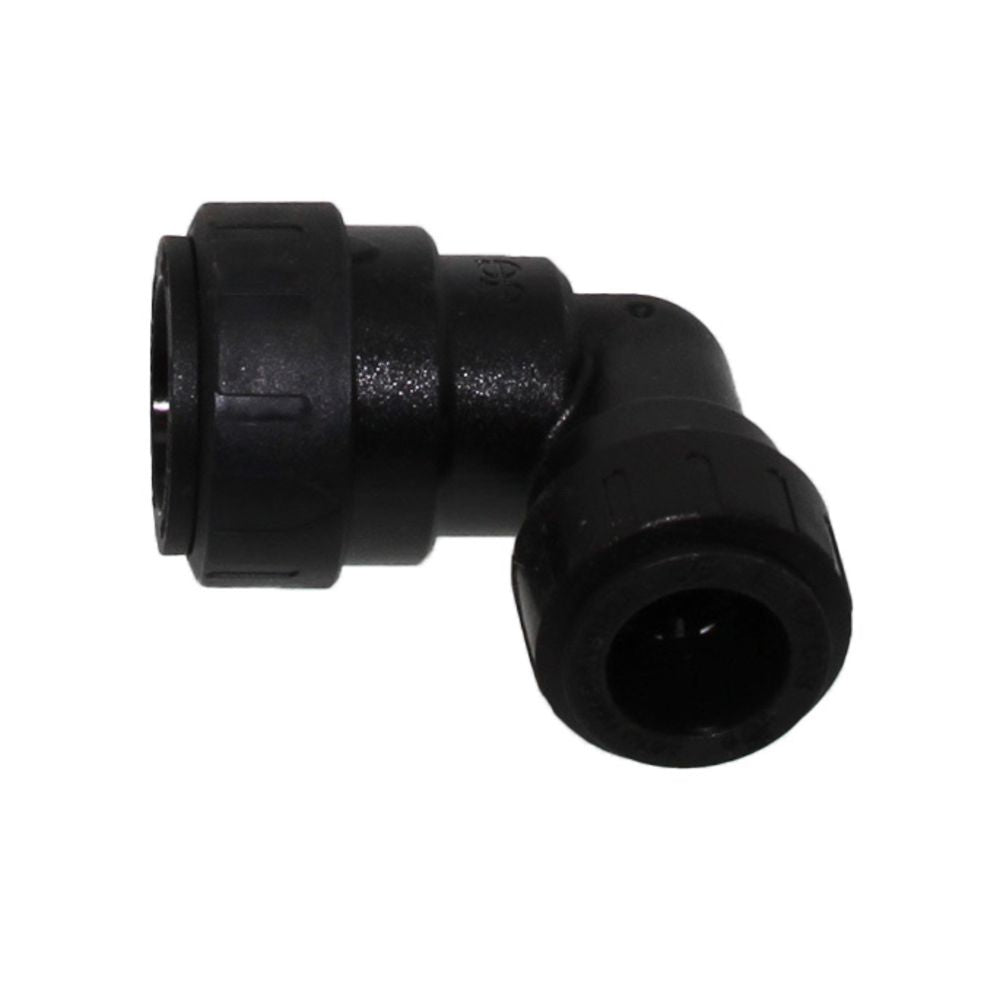

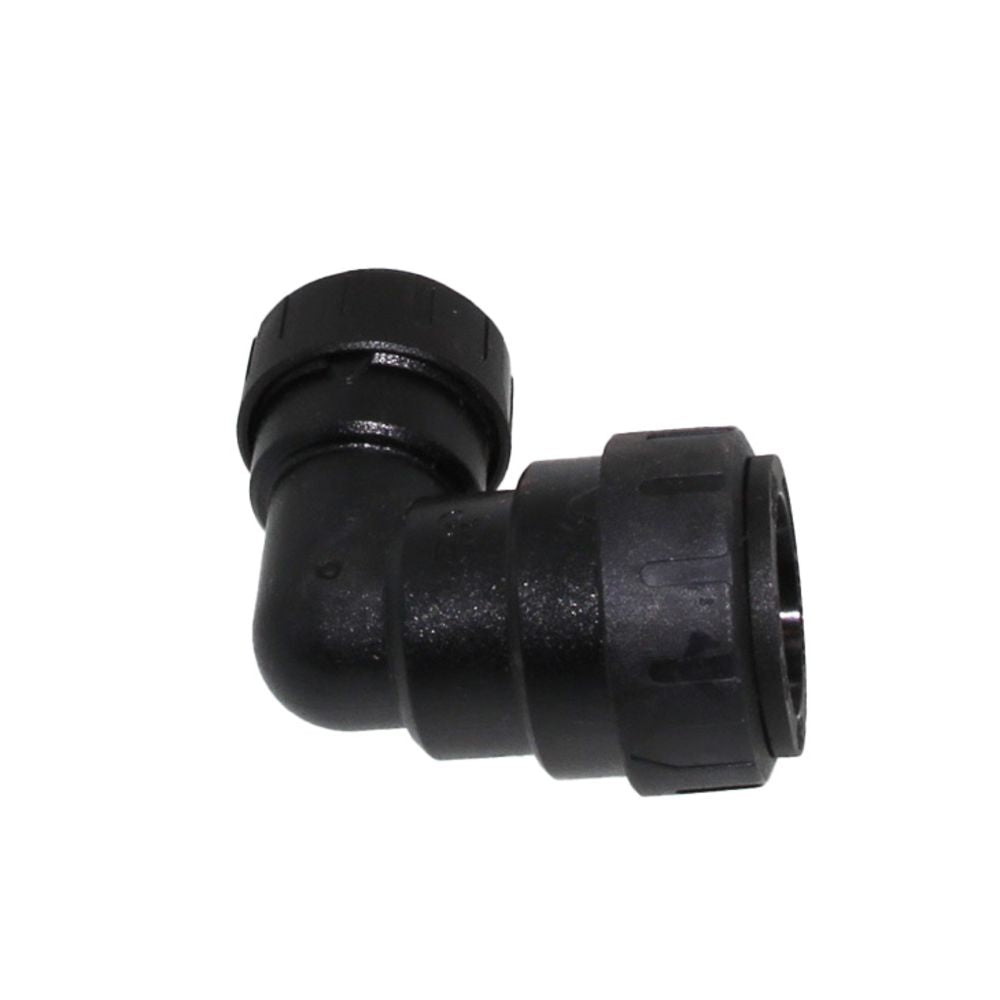

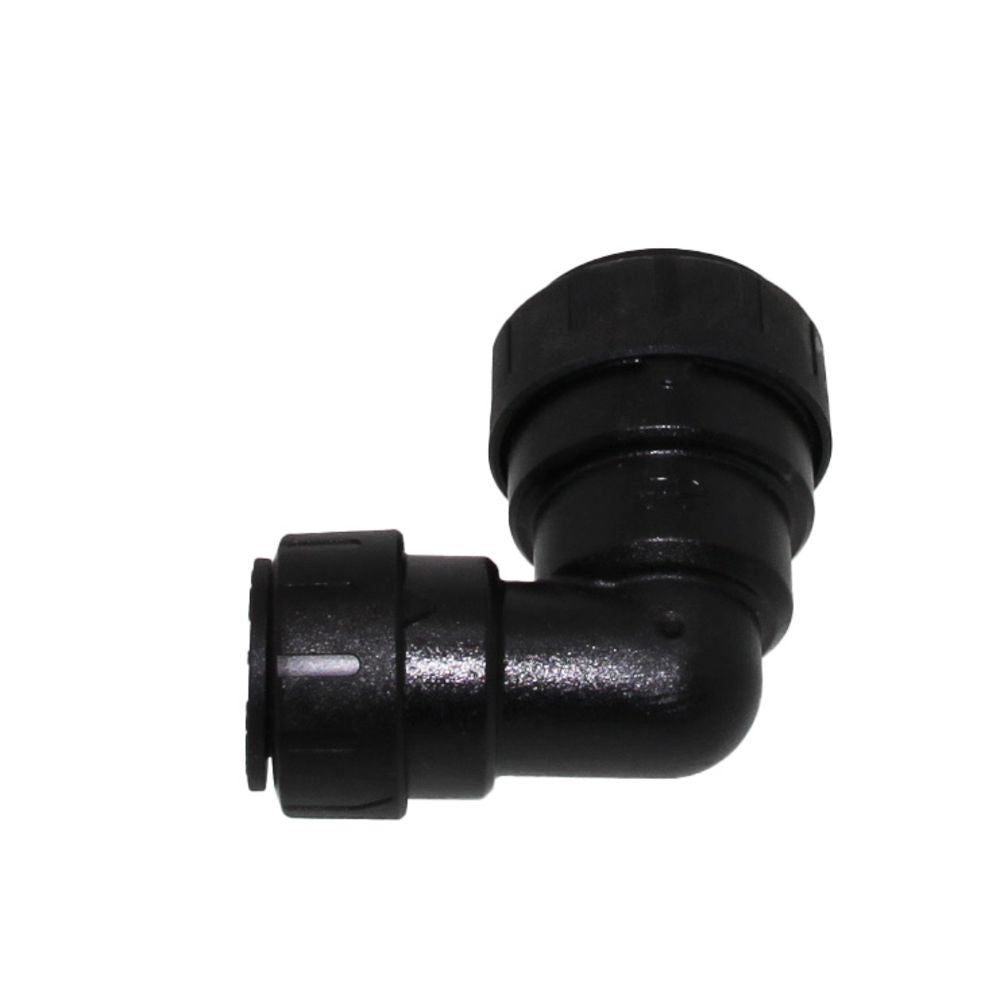

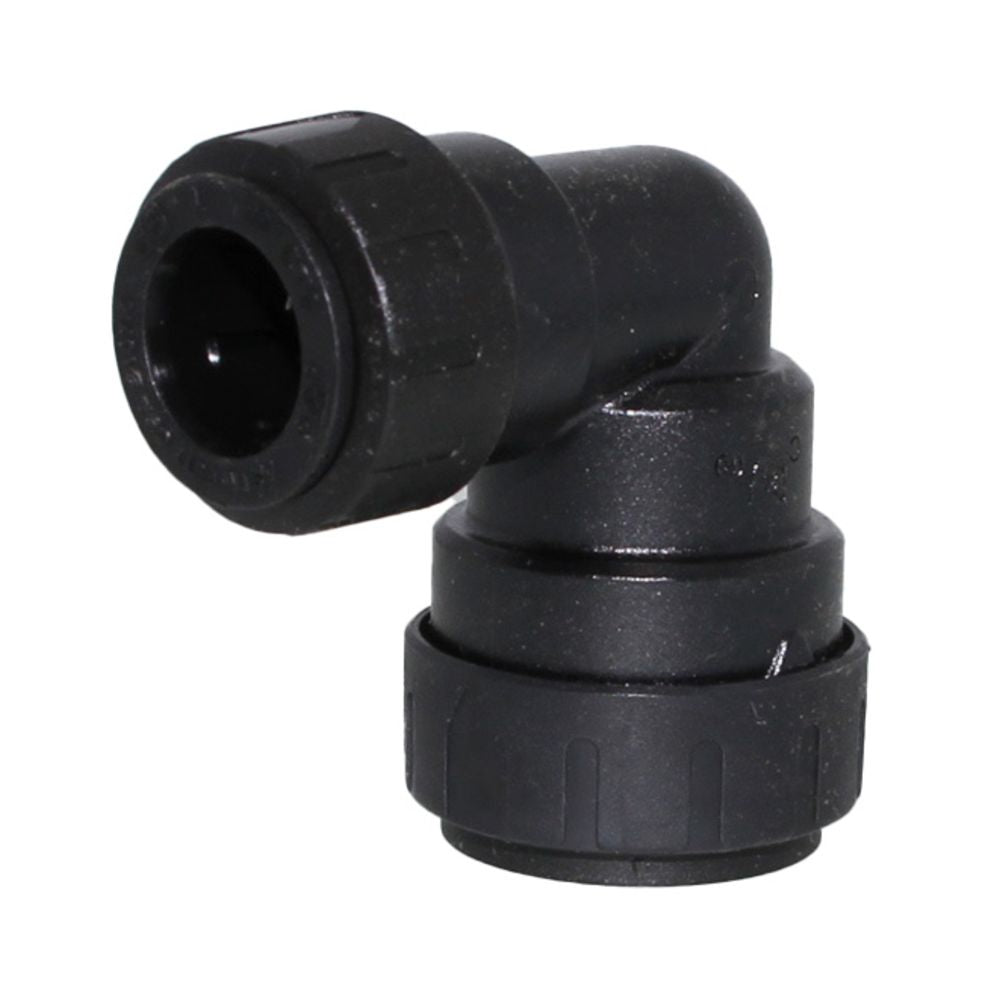

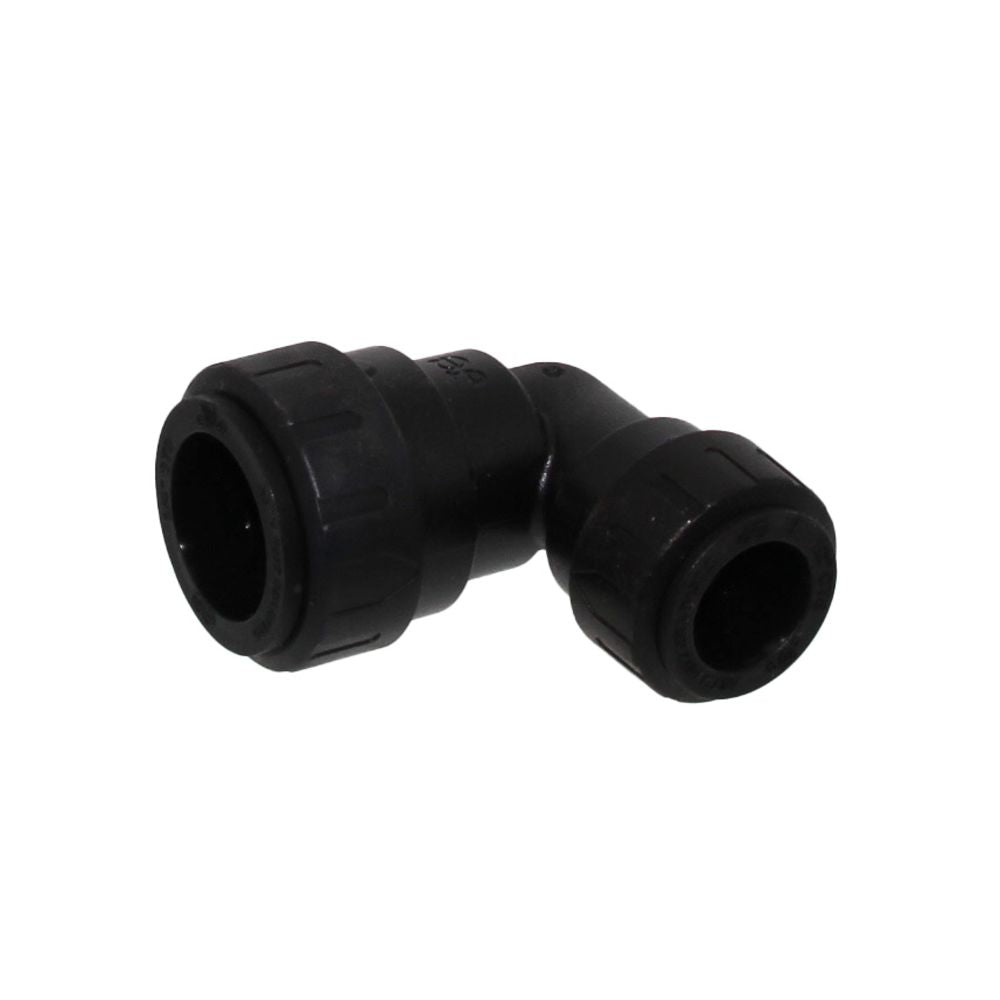

JG ProLock™ fittings use a collet with stainless steel teeth that grips the pipe when fully inserted and an O-ring to provide a permanent, leak-proof seal. When twisted into place, the locking cap locks the pipe in place and creates an audible click, ensuring maximum security. No tools, soldering, clamps or glue are ever required.
Features:
- Full flow
- Lead-free
- UV resistant
- Code-approved
- 25-years warranty
- Approved for behind-wall use
- For use with copper, PEX and CPVC
- Twist-to-lock technology provides added security
Specifications:
- Material: Polysulfone

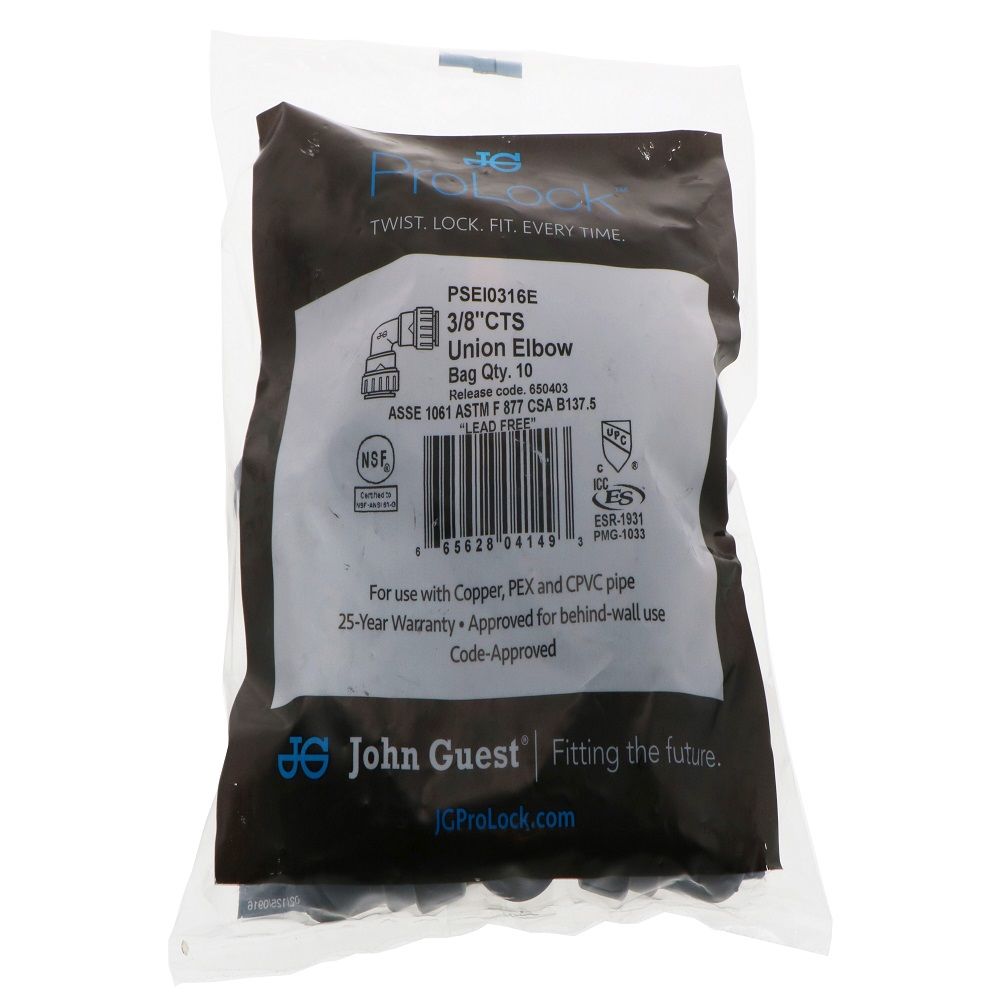

- Bag Quantity: 10
- Box Quantity: 80
- Connections: 3/8" CTS
- O-rings: EPDM
- Type: Union Elbow
Suitable for hot & cold potable water and hydronic heating applications
John Guest ProLock Ascriptions
Tubing Standards:
- Copper - ASTM B 88
- PEX - ASTM F876 / CSA B137.5
- CPVC - ASTM D2846 / CSA B137.6
- 25 Year Warranty against defects in materials and manufacturing.
- Uniform Plumbing Code (UPC)
- International Plumbing Code (IPC)
- National Plubing Code of Canada
- ASSE1061-2011
- ASTM F877-2011
- NSF Standard 61
| Application | Max Working Pressure | Max Working Temperature |
|
Water
Water
Water
|
160 PSI
100 PSI
80 PSI
|
73° F
180° F
200° F
|
Details
Application | Water |
Body Material | Polysulfone |
Max Pressure (Psi) | 160 |
Max Temp (°F) | 200 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Mounting Options | Free Floating |
Push-In Size | 1/2" OD |
Seal Material | EPDM |
Series | ProLock |
Color / Finish | Black |
Sub-Type | Union Elbow |
Type | Elbow |
Warranty & Certifications
Certifications | NSF 61; NSF 372 |
Warranty | 25 Years |
