John Guest

John Guest Plastic Half Cartridge - 5/16 White Single Nitrile O-ring

Part Number: PM2808W

In Stock

out of stock

In Stock

$0.88

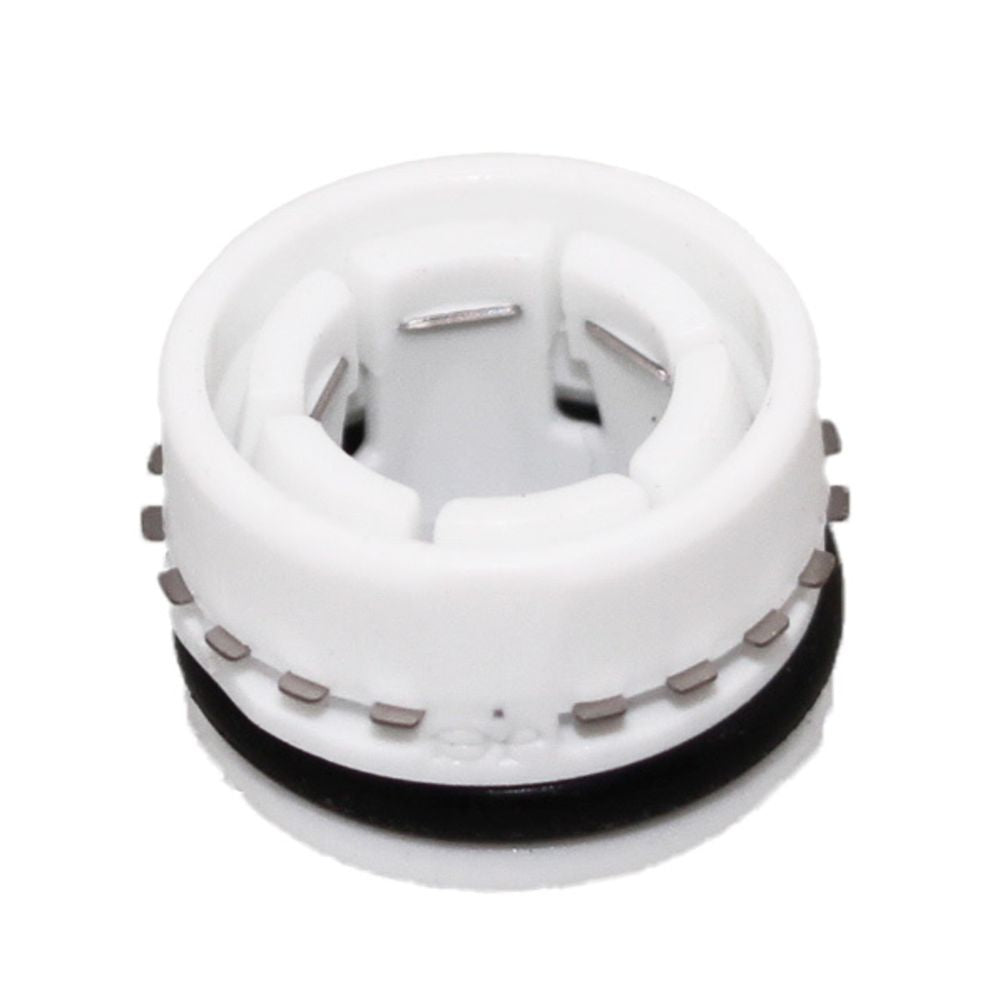

The John Guest Plastic Half Cartridge provides a quick, efficient and easy way of securing a Speedfit push-in connection into a wide variety of original equipment. As the cartridge requires low insertion loads it is suitable for many different housing materials.

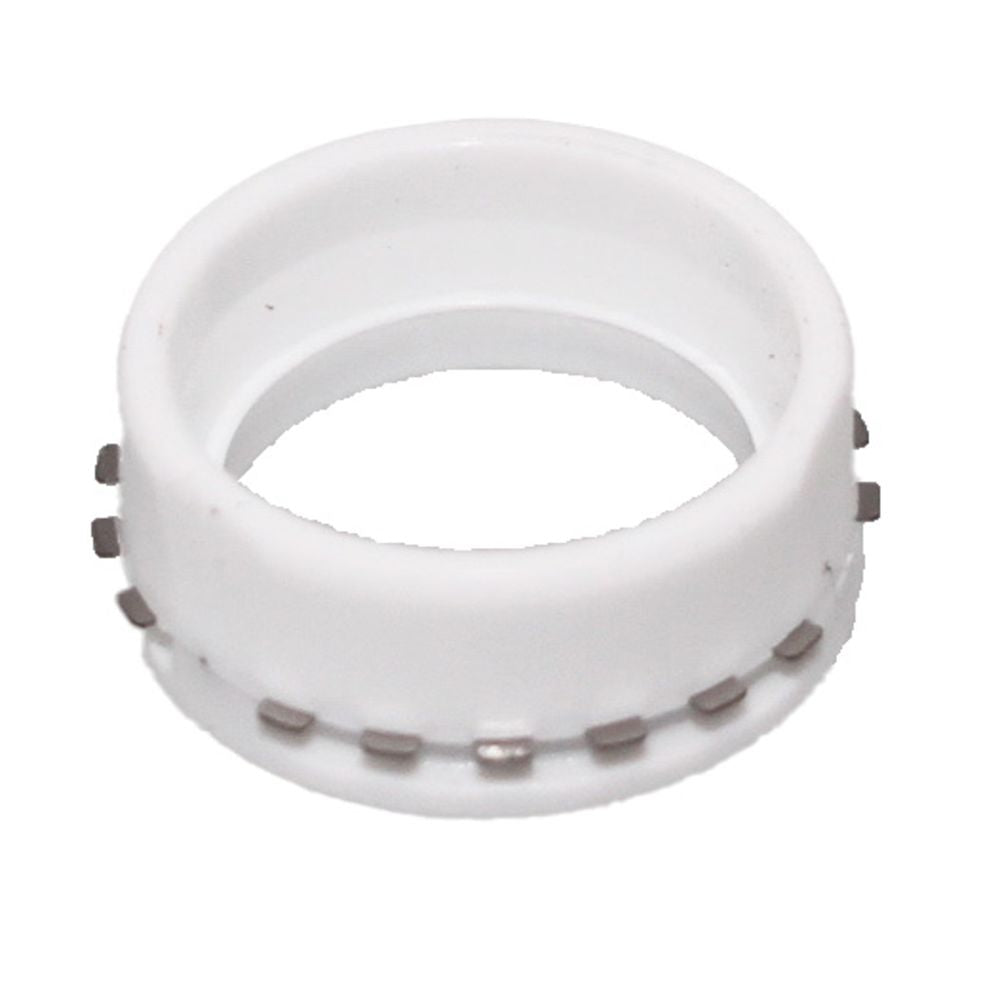

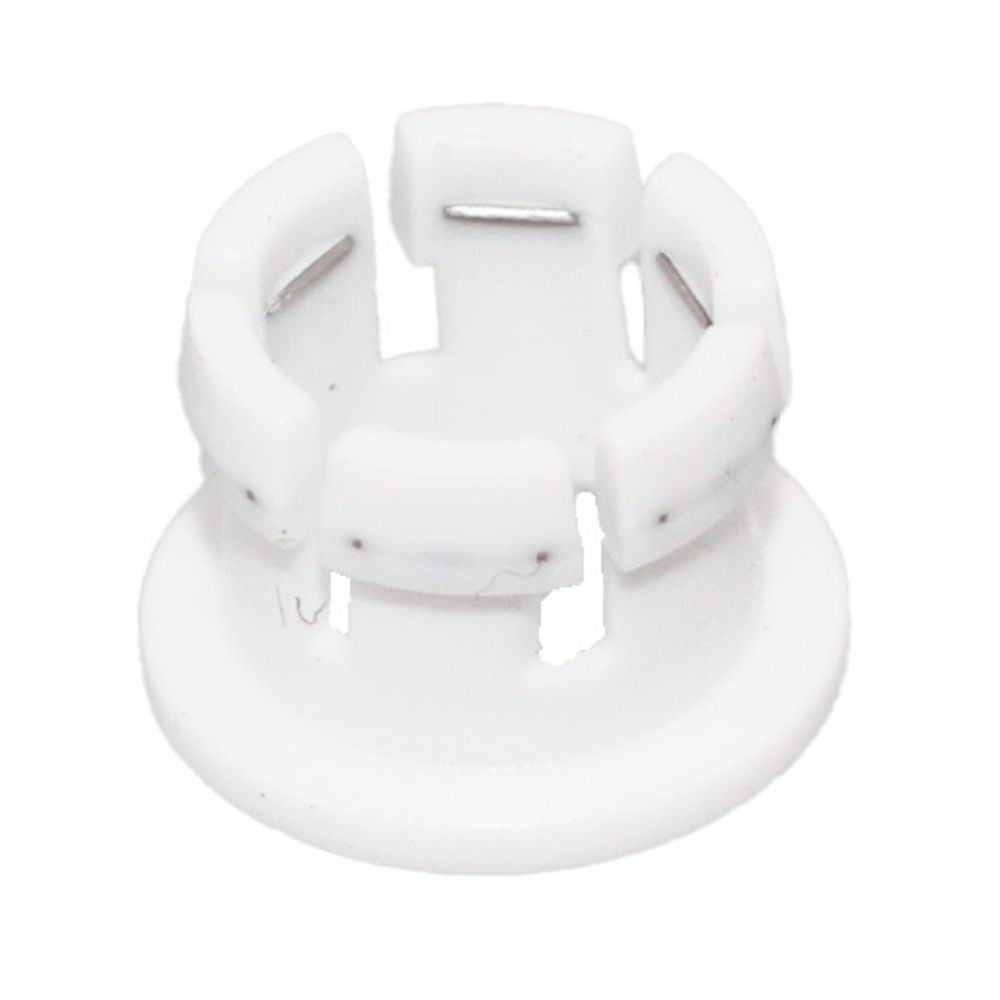

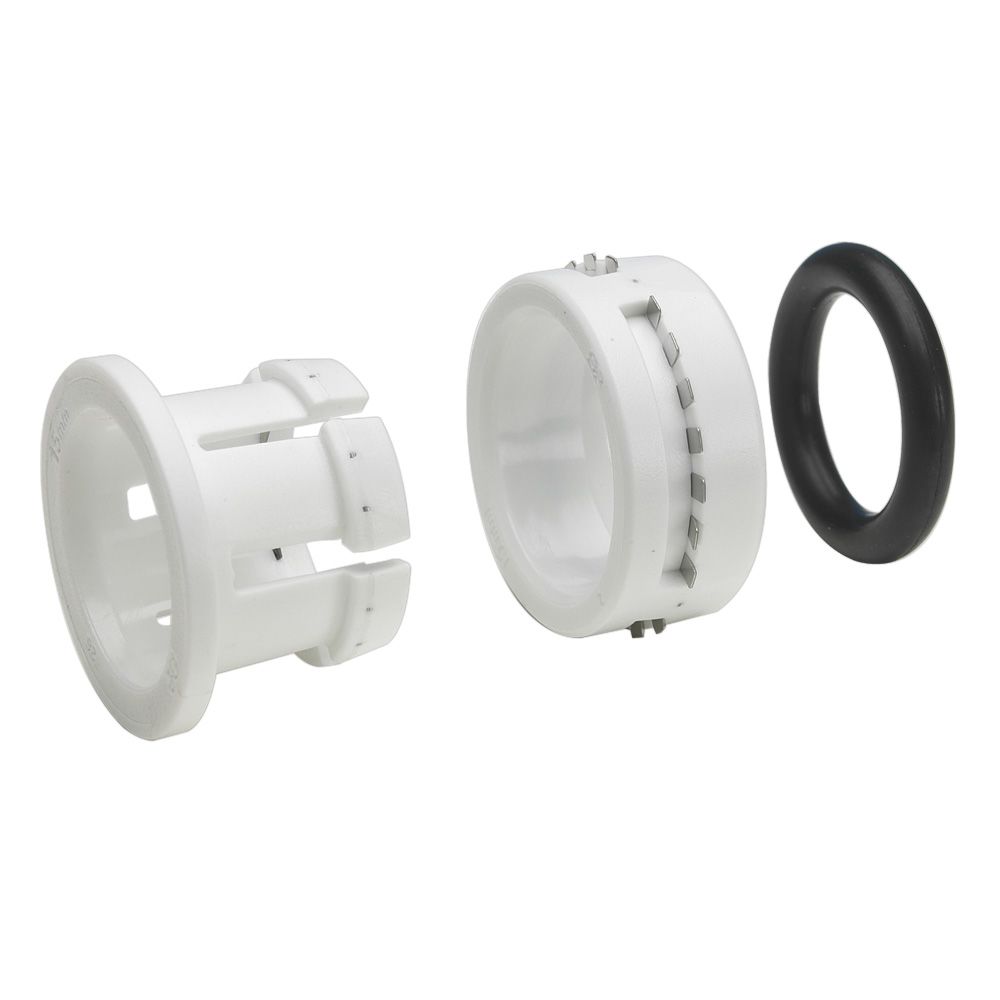

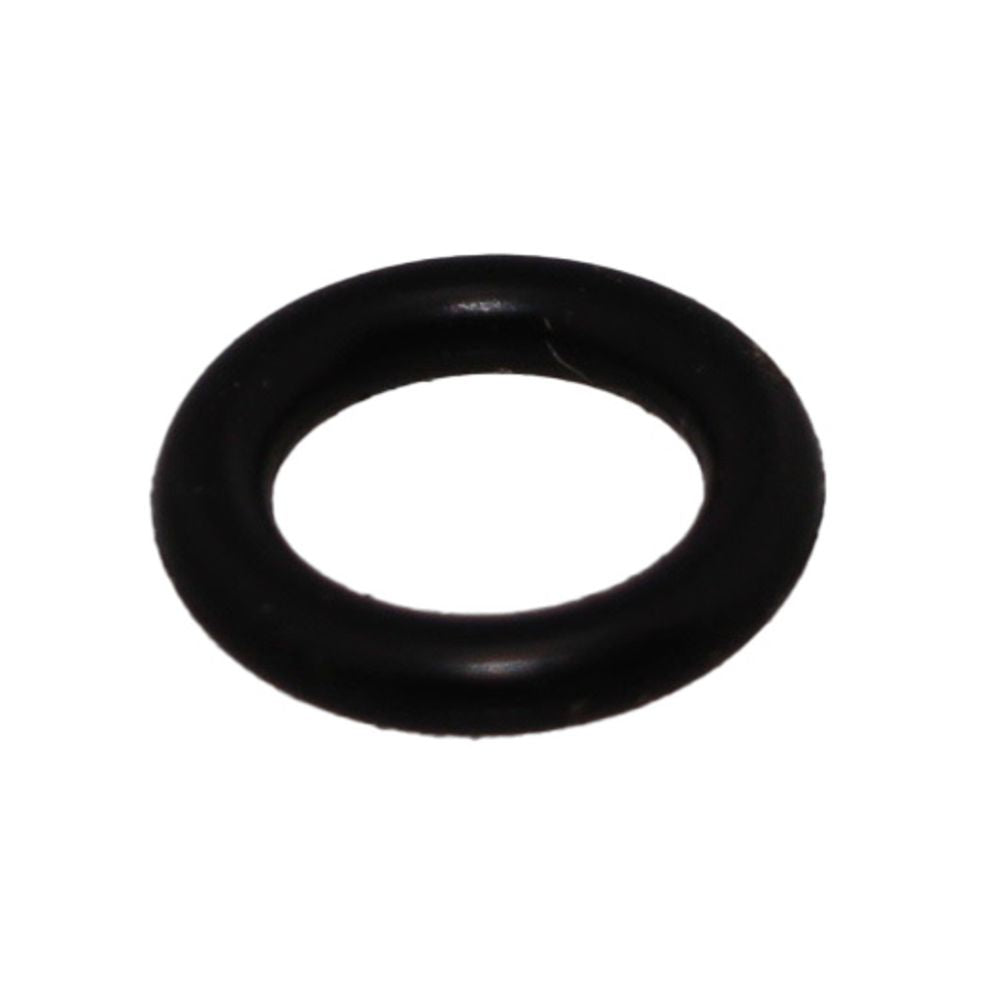

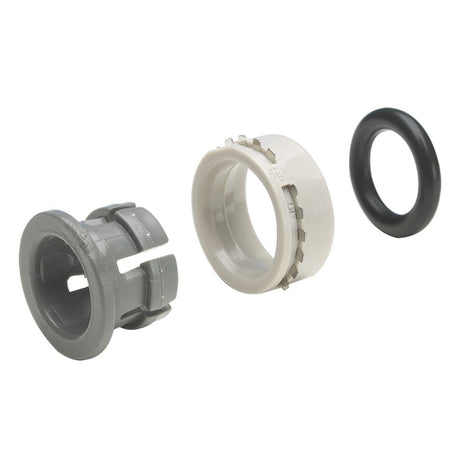

This Half Cartridge includes the following three components: a white collet or gripper, a Nitrile o-ring of food grade material, and a white plastic body with stainless steel teeth.

As with all Speedfit products, the push-in connection can be used on plastic or soft metal tubes in both inch and metric sizes. The cartridges are suitable for a very wide selection of original equipment including manifolds and multi-connection points and, because they are produced in food grade materials, Drinks Dispense and Water Purification equipment.


NOTE: As Plastic Half Cartridges are intended for use by Original Equipment Manufacturers they are only supplied in bulk quantities.
Part # Tubing Size Color/Material O-Ring Material # of
O-Rings
PM2804S 5/32" OD Gray/Acetal Nitrile 1
PM2804S2 5/32" OD Gray/Acetal Nitrile 2
PI2808S 1/4" OD Gray/Acetal Nitrile 1
PI2808W 1/4" OD White/Acetal Nitrile 1
PCI2808S 1/4" OD Gray/Acetal EPDM 1
PI2808S2 1/4" OD Gray/Acetal Nitrile 2
PI2808W2 1/4" OD White/Acetal Nitrile 2
PCI2808S2 1/4" OD Gray/Acetal EPDM 2
PM2808S 5/16" OD Gray/Acetal Nitrile 1
PM2808W 5/16" OD White/Acetal Nitrile 1
PCM2808S 5/16" OD Gray/Acetal EPDM 1
PM2808S2 5/16" OD Gray/Acetal Nitrile 2
PM2808W2 5/16" OD White/Acetal Nitrile 2
PCM2808S2 5/16" OD Gray/Acetal EPDM 2
PI2812S 3/8" OD Gray/Acetal Nitrile 1
PI2812W 3/8" OD White/Acetal Nitrile 1
PCI2812S 3/8" OD Gray/Acetal EPDM 1
PI2812S2 3/8" OD Gray/Acetal Nitrile 2
PI2812W2 3/8" OD White/Acetal Nitrile 2
PCI2812S2 3/8" OD Gray/Acetal EPDM 2
PI2816S 1/2" OD Gray/Acetal Nitrile 1
PCI2816S 1/2" OD Gray/Acetal EPDM 1
PI2816S2 1/2" OD Gray/Acetal Nitrile 2
PCI2816S2 1/2" OD Gray/Acetal EPDM 2
PCI2820 1/2" CTS
(5/8" OD)
Gray/Acetal EPDM 1
PCI2828 3/4" CTS
(7/8" OD)
Gray/Acetal EPDM 1
PM2806E 6mm OD Black/Acetal Nitrile 1
PM2806E2 6mm OD Black/Acetal Nitrile 2
PCM2806E 6mm OD  Black/Acetal  EPDM
PCM2808E 8mm OD  Black/Acetal  EPDM
PM2808E 8mm OD Black/Acetal Nitrile 1
PM2808E2 8mm OD Black/Acetal Nitrile 2
PM2810E 10mm OD Black/Acetal Nitrile 1
PM2810E2 10mm OD Black/Acetal Nitrile 2


Details

Series

Half Cartridges

Push In Size

5/16"

Classification

Half Cartridge | Single O-ring

Body Material

Acetal

Box Quantity

1000

Color / Finish

White

O Rings

Nitrile

Origin

UK


John





The John Guest Plastic Half Cartridge provides a quick, efficient and easy way of securing a Speedfit push-in connection into a wide variety of original equipment. As the cartridge requires low insertion loads it is suitable for many different housing materials.

This Half Cartridge includes the following three components: a white collet or gripper, a Nitrile o-ring of food grade material, and a white plastic body with stainless steel teeth.

As with all Speedfit products, the push-in connection can be used on plastic or soft metal tubes in both inch and metric sizes. The cartridges are suitable for a very wide selection of original equipment including manifolds and multi-connection points and, because they are produced in food grade materials, Drinks Dispense and Water Purification equipment.


NOTE: As Plastic Half Cartridges are intended for use by Original Equipment Manufacturers they are only supplied in bulk quantities.
Part # Tubing Size Color/Material O-Ring Material # of
O-Rings
PM2804S 5/32" OD Gray/Acetal Nitrile 1
PM2804S2 5/32" OD Gray/Acetal Nitrile 2
PI2808S 1/4" OD Gray/Acetal Nitrile 1
PI2808W 1/4" OD White/Acetal Nitrile 1
PCI2808S 1/4" OD Gray/Acetal EPDM 1
PI2808S2 1/4" OD Gray/Acetal Nitrile 2
PI2808W2 1/4" OD White/Acetal Nitrile 2
PCI2808S2 1/4" OD Gray/Acetal EPDM 2
PM2808S 5/16" OD Gray/Acetal Nitrile 1
PM2808W 5/16" OD White/Acetal Nitrile 1
PCM2808S 5/16" OD Gray/Acetal EPDM 1
PM2808S2 5/16" OD Gray/Acetal Nitrile 2
PM2808W2 5/16" OD White/Acetal Nitrile 2
PCM2808S2 5/16" OD Gray/Acetal EPDM 2
PI2812S 3/8" OD Gray/Acetal Nitrile 1
PI2812W 3/8" OD White/Acetal Nitrile 1
PCI2812S 3/8" OD Gray/Acetal EPDM 1
PI2812S2 3/8" OD Gray/Acetal Nitrile 2
PI2812W2 3/8" OD White/Acetal Nitrile 2
PCI2812S2 3/8" OD Gray/Acetal EPDM 2
PI2816S 1/2" OD Gray/Acetal Nitrile 1
PCI2816S 1/2" OD Gray/Acetal EPDM 1
PI2816S2 1/2" OD Gray/Acetal Nitrile 2
PCI2816S2 1/2" OD Gray/Acetal EPDM 2
PCI2820 1/2" CTS
(5/8" OD)
Gray/Acetal EPDM 1
PCI2828 3/4" CTS
(7/8" OD)
Gray/Acetal EPDM 1
PM2806E 6mm OD Black/Acetal Nitrile 1
PM2806E2 6mm OD Black/Acetal Nitrile 2
PCM2806E 6mm OD  Black/Acetal  EPDM
PCM2808E 8mm OD  Black/Acetal  EPDM
PM2808E 8mm OD Black/Acetal Nitrile 1
PM2808E2 8mm OD Black/Acetal Nitrile 2
PM2810E 10mm OD Black/Acetal Nitrile 1
PM2810E2 10mm OD Black/Acetal Nitrile 2

Details

Series

Half Cartridges

Push In Size

5/16"

Classification

Half Cartridge | Single O-ring

Body Material

Acetal

Box Quantity

1000

Color / Finish

White

O Rings

Nitrile

Origin

UK
