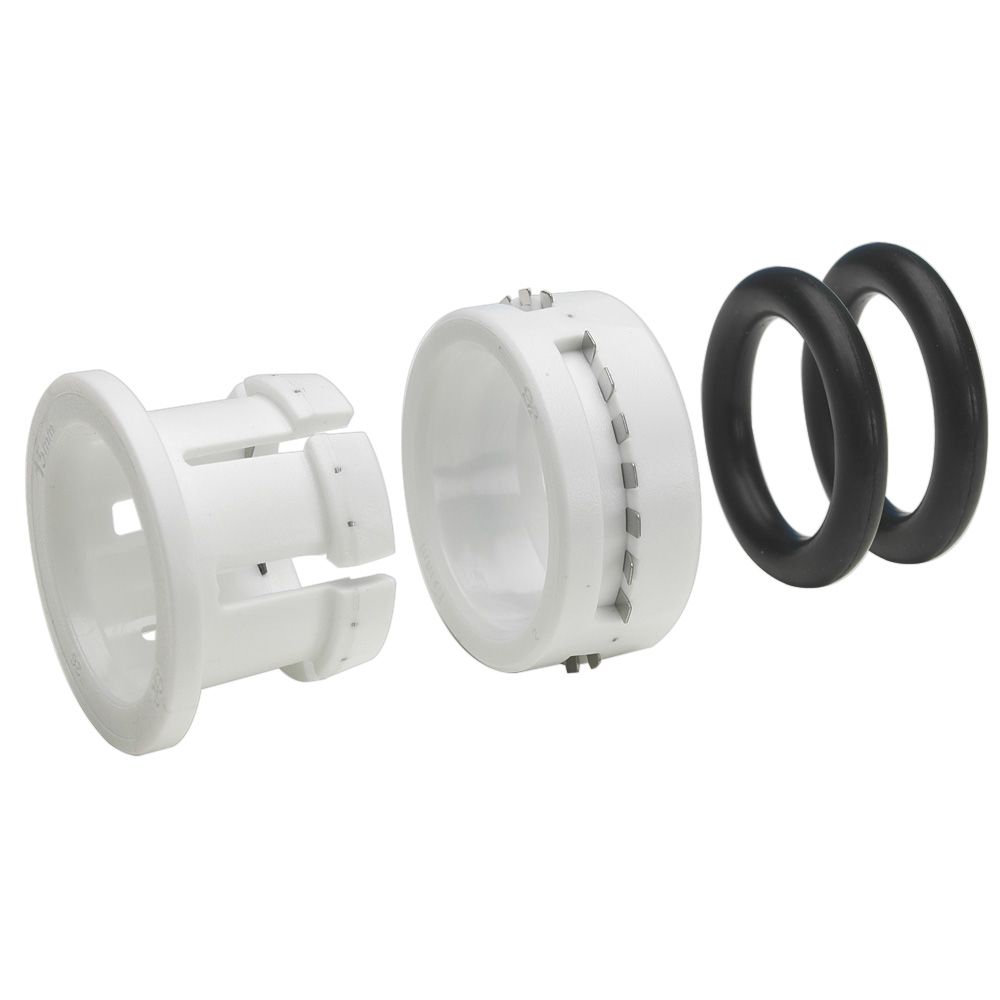

John Guest Plastic Half Cartridge - 3/8 White Double O-ring

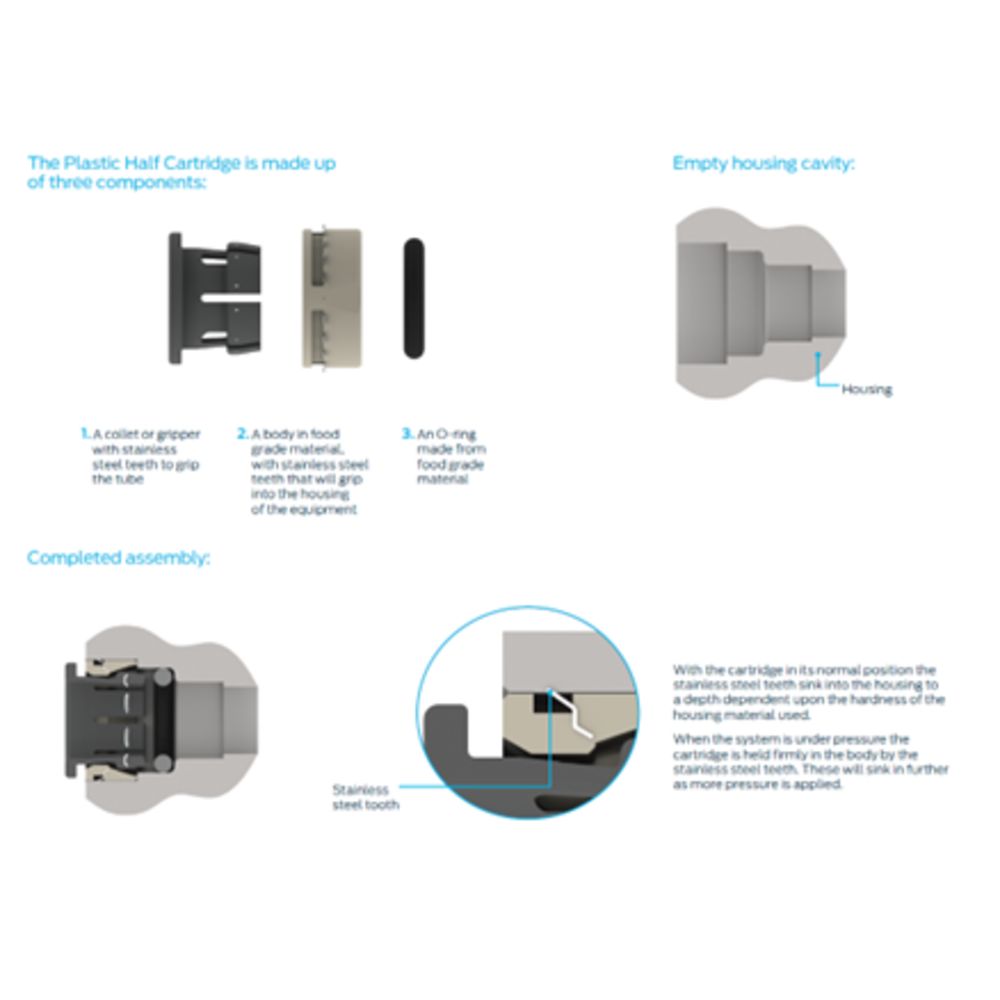

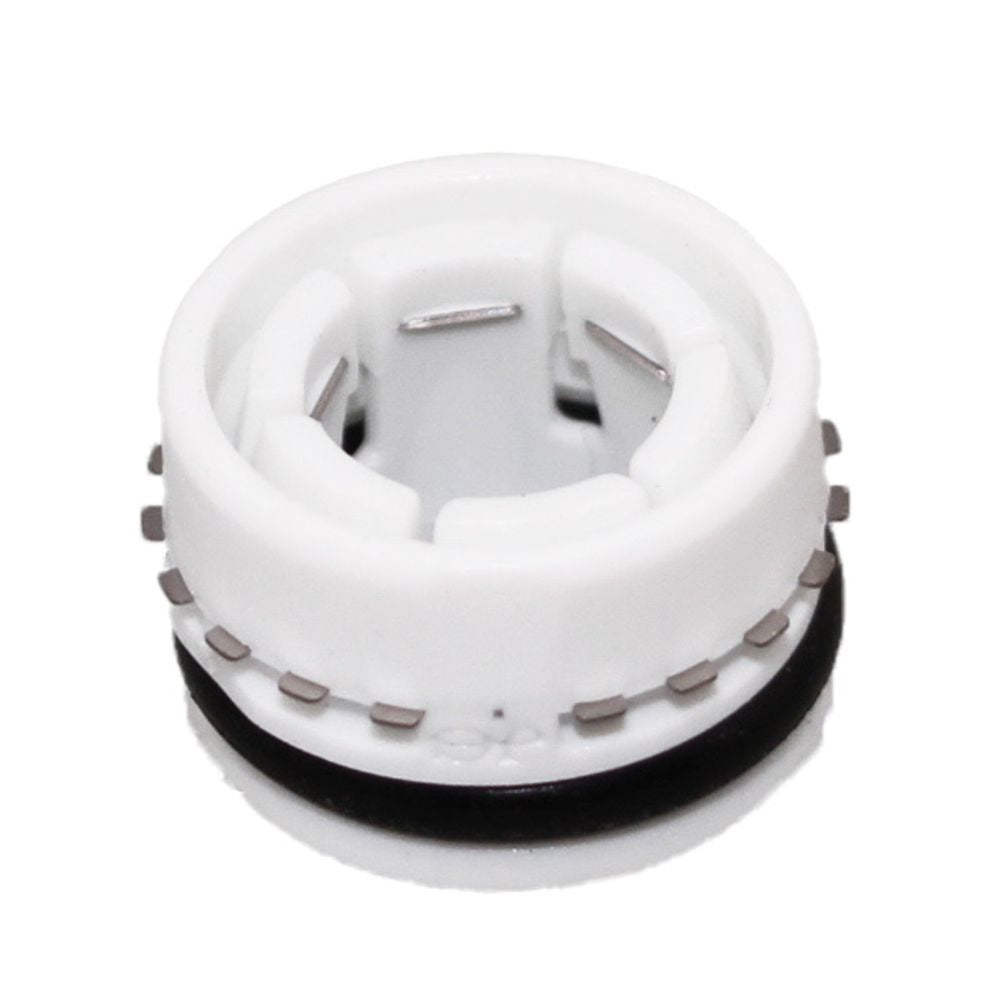

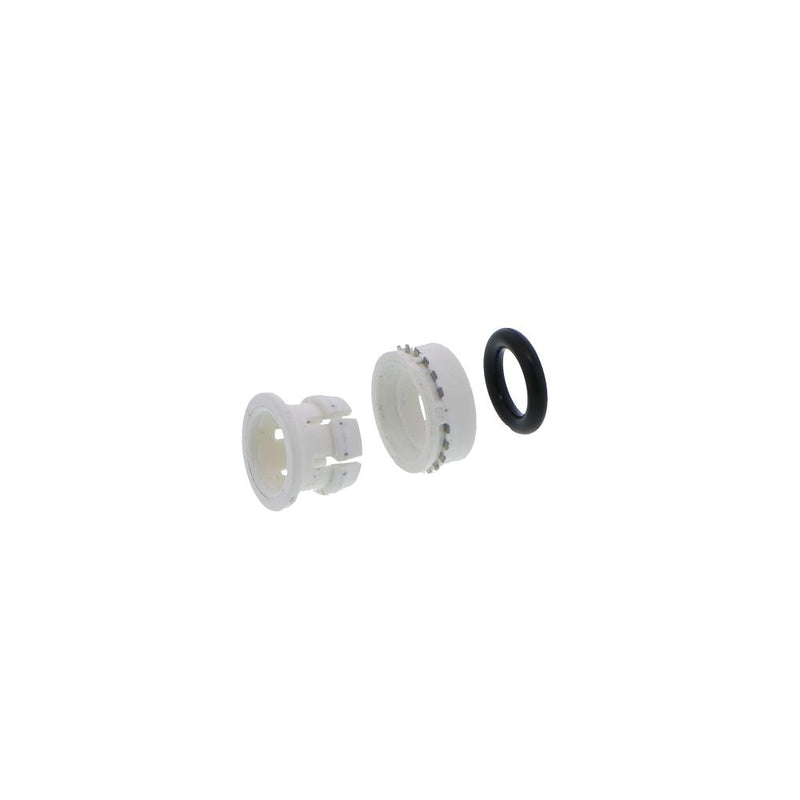

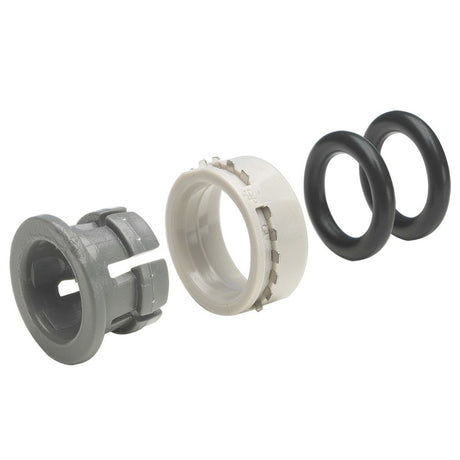

The John Guest plastic half cartridges are an easy and cost-effective way of incorporating a push-fit connection into a wide range of OEM equipment. Easy to assemble and compact, push in connections avoid the need for threaded ports, offer improved product appearance and easy tube connection. Plastic Half Cartridges consist of three components: a collet, a plastic body and O-ring. Plastic Half Cartridges are only recommended for use with plastic and soft metal housing materials.
Features:
Working pressure and temperature:
Note: As Plastic Half Cartridges are intended for use by Original Equipment Manufacturers they are only supplied in bulk quantities.
Features:
- Cartridge requires low insertion loads, making it suitable for different housing materials
- Compatible with plastic or copper OD sized tubing
- For filtration and food grade applications

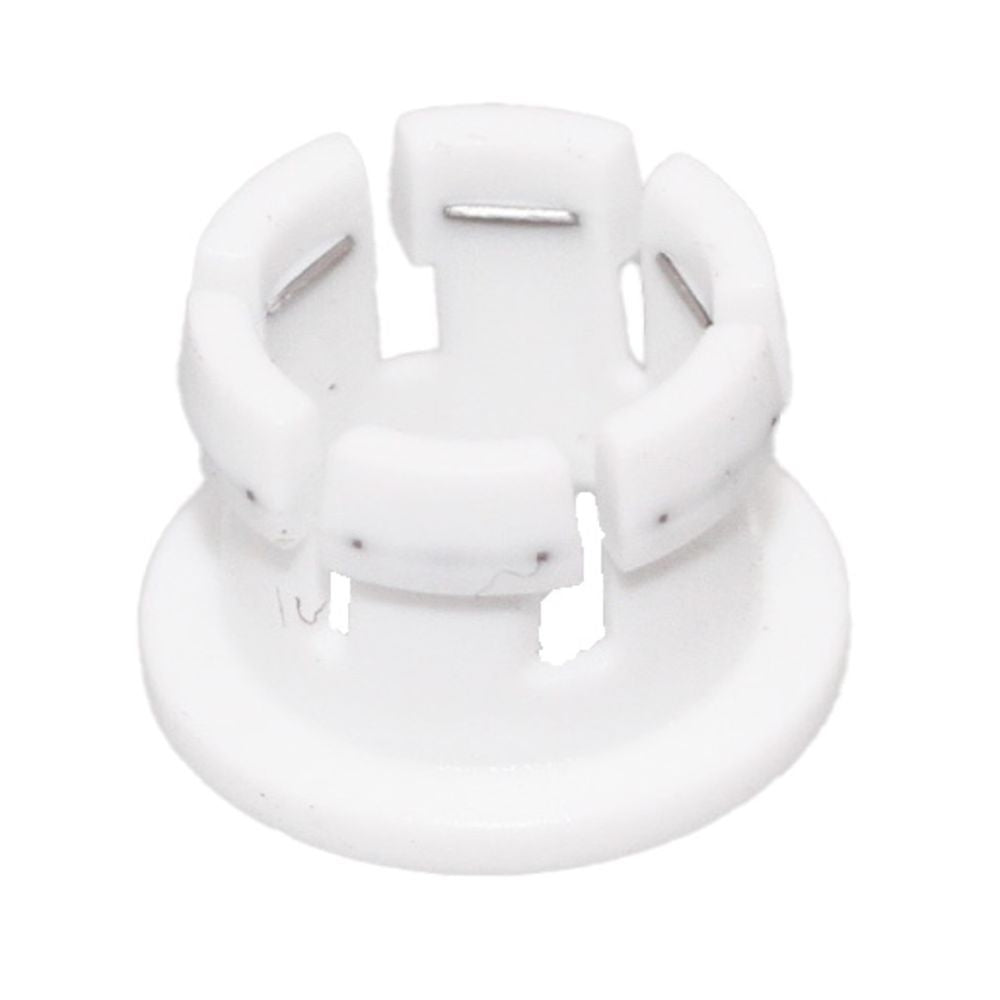

- Polypropylene Collet has stainless steel teeth to grip the tube

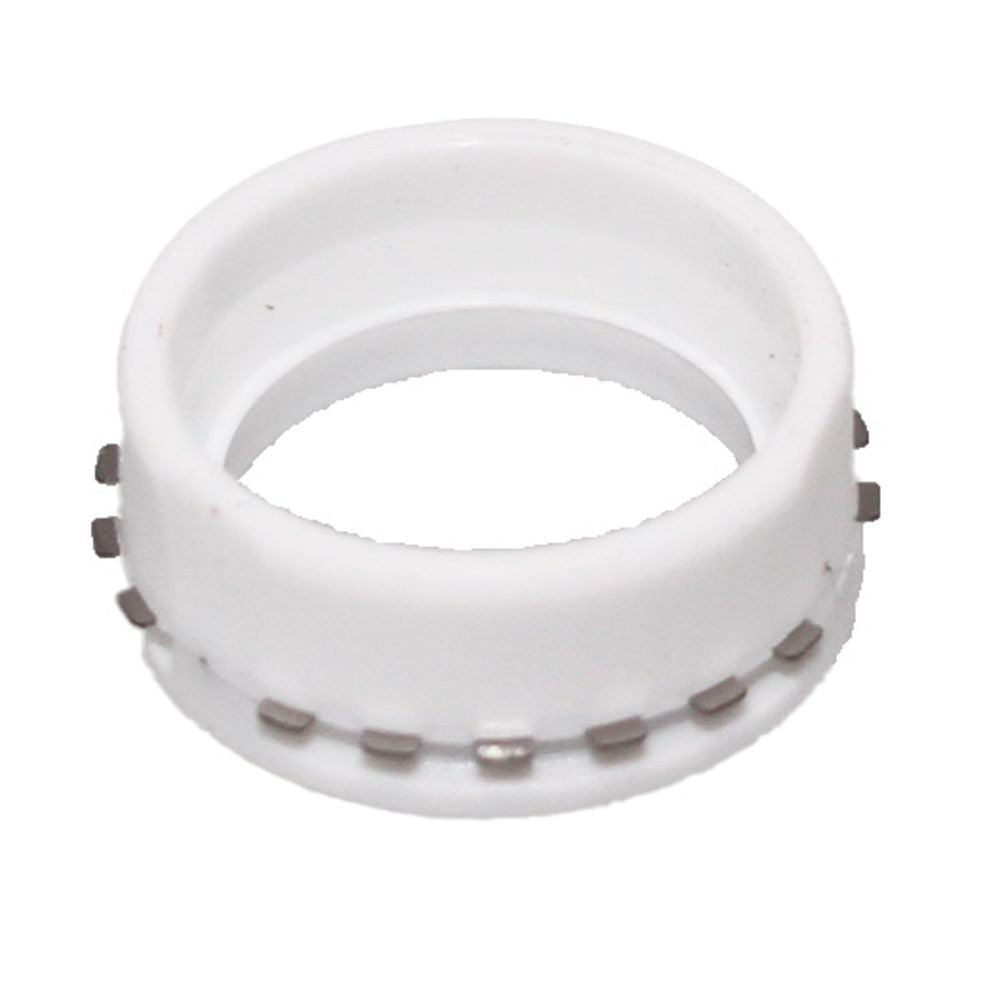

- Polypropylene body with stainless steel teeth that grip into the housing of the equipment

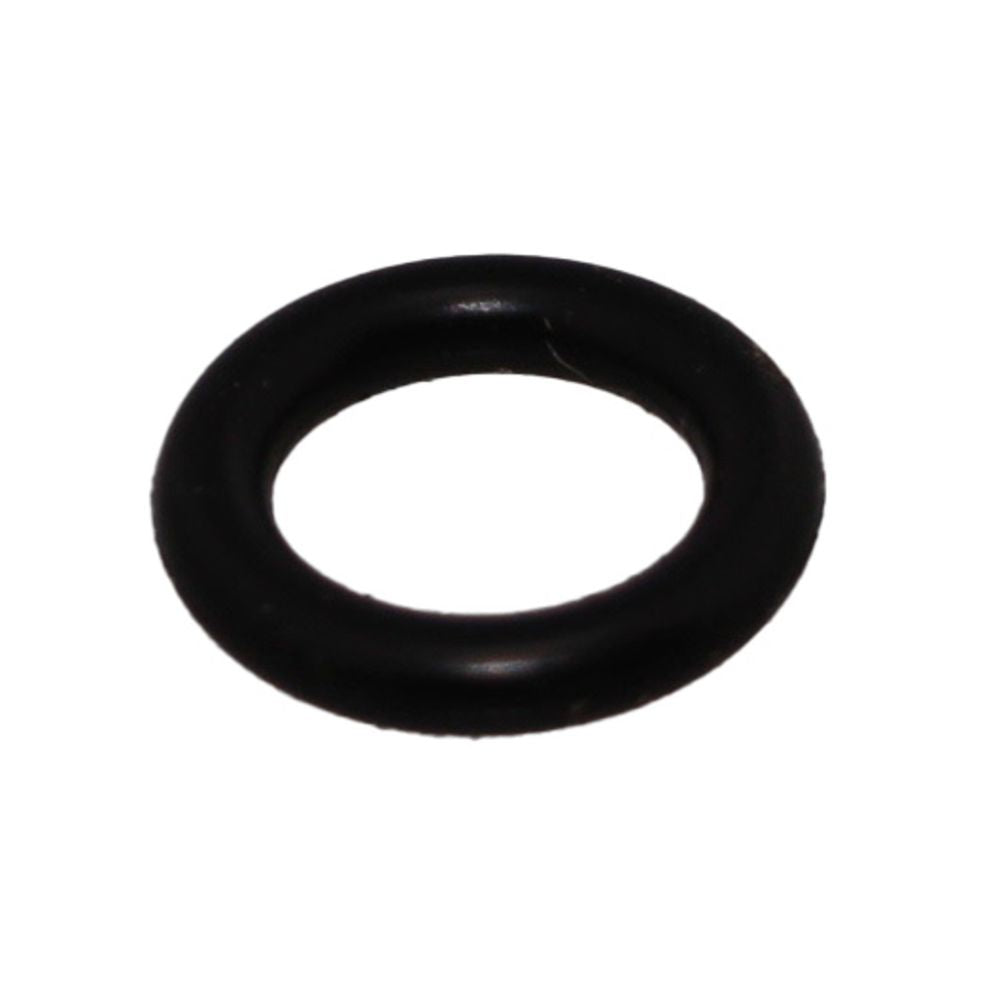

- Food grade EDPM O-Ring
- Made with lead free materials
Working pressure and temperature:
- Max. 150 psi at 70° F
- Max. 60 psi at 140° F
Note: As Plastic Half Cartridges are intended for use by Original Equipment Manufacturers they are only supplied in bulk quantities.
Part # | Tubing Size | Color/Material | O-Ring Material | # of O-Rings |
---|---|---|---|---|
PM2804S | 5/32" OD | Gray/Acetal | Nitrile | 1 |
PM2804S2 | 5/32" OD | Gray/Acetal | Nitrile | 2 |
PI2808S | 1/4" OD | Gray/Acetal | Nitrile | 1 |
PI2808W | 1/4" OD | White/Acetal | Nitrile | 1 |
PCI2808S | 1/4" OD | Gray/Acetal | EPDM | 1 |
PI2808S2 | 1/4" OD | Gray/Acetal | Nitrile | 2 |
PI2808W2 | 1/4" OD | White/Acetal | Nitrile | 2 |
PCI2808S2 | 1/4" OD | Gray/Acetal | EPDM | 2 |
PM2808S | 5/16" OD | Gray/Acetal | Nitrile | 1 |
PM2808W | 5/16" OD | White/Acetal | Nitrile | 1 |
PCM2808S | 5/16" OD | Gray/Acetal | EPDM | 1 |
PM2808S2 | 5/16" OD | Gray/Acetal | Nitrile | 2 |
PM2808W2 | 5/16" OD | White/Acetal | Nitrile | 2 |
PCM2808S2 | 5/16" OD | Gray/Acetal | EPDM | 2 |
PI2812S | 3/8" OD | Gray/Acetal | Nitrile | 1 |
PI2812W | 3/8" OD | White/Acetal | Nitrile | 1 |
PCI2812S | 3/8" OD | Gray/Acetal | EPDM | 1 |
PI2812S2 | 3/8" OD | Gray/Acetal | Nitrile | 2 |
PI2812W2 | 3/8" OD | White/Acetal | Nitrile | 2 |
PCI2812S2 | 3/8" OD | Gray/Acetal | EPDM | 2 |
PI2816S | 1/2" OD | Gray/Acetal | Nitrile | 1 |
PCI2816S | 1/2" OD | Gray/Acetal | EPDM | 1 |
PI2816S2 | 1/2" OD | Gray/Acetal | Nitrile | 2 |
PCI2816S2 | 1/2" OD | Gray/Acetal | EPDM | 2 |
PCI2820 | 1/2" CTS (5/8" OD) |
Gray/Acetal | EPDM | 1 |
PCI2828 | 3/4" CTS (7/8" OD) |
Gray/Acetal | EPDM | 1 |
PM2806E | 6mm OD | Black/Acetal | Nitrile | 1 |
PM2806E2 | 6mm OD | Black/Acetal | Nitrile | 2 |
PCM2806E | 6mm OD | Black/Acetal | EPDM | 1 |
PCM2808E | 8mm OD | Black/Acetal | EPDM | 1 |
PM2808E | 8mm OD | Black/Acetal | Nitrile | 1 |
PM2808E2 | 8mm OD | Black/Acetal | Nitrile | 2 |
PM2810E | 10mm OD | Black/Acetal | Nitrile | 1 |
PM2810E2 | 10mm OD | Black/Acetal | Nitrile | 2 |
