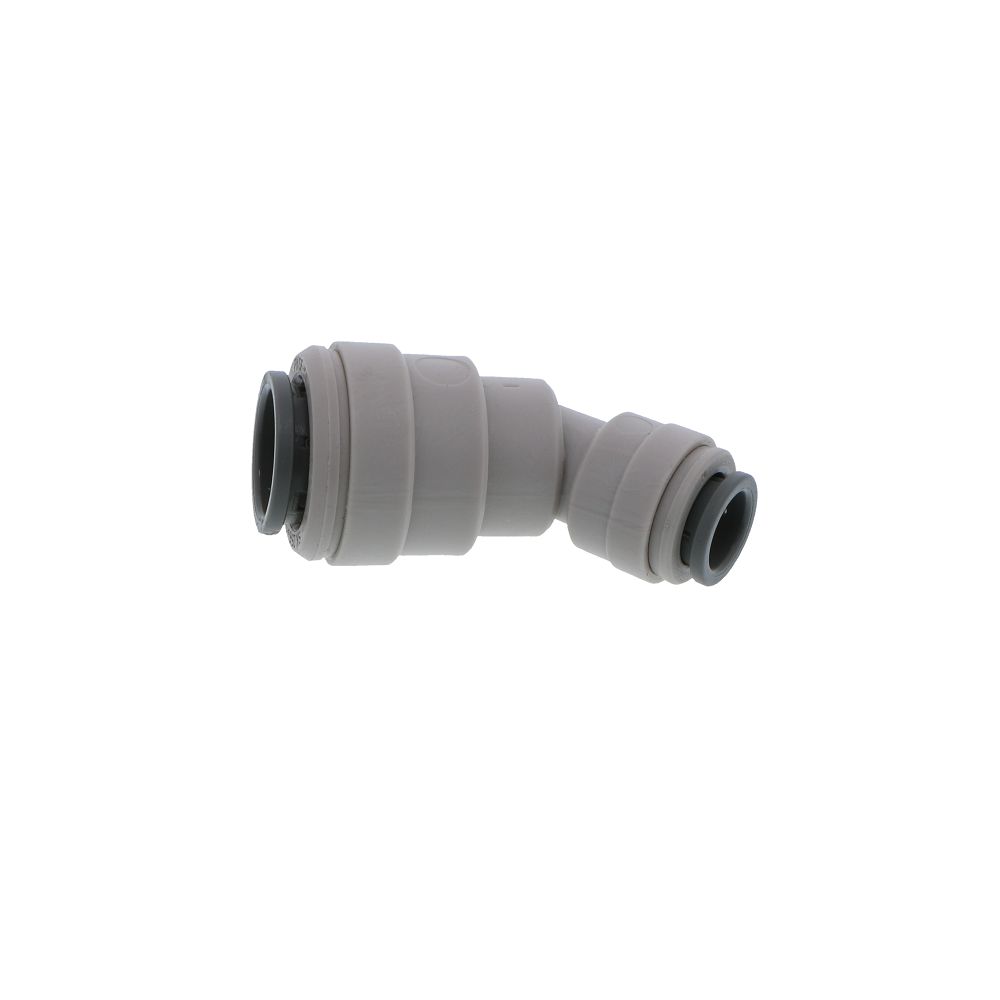

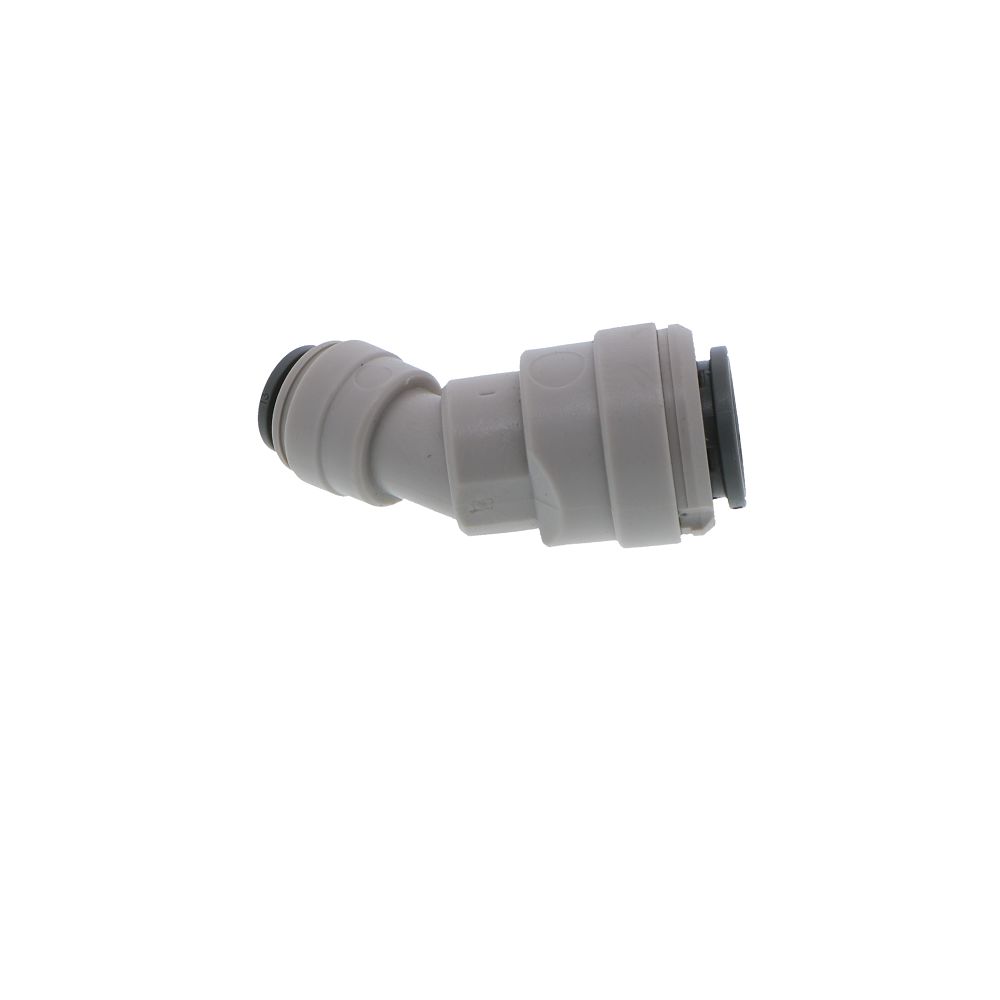

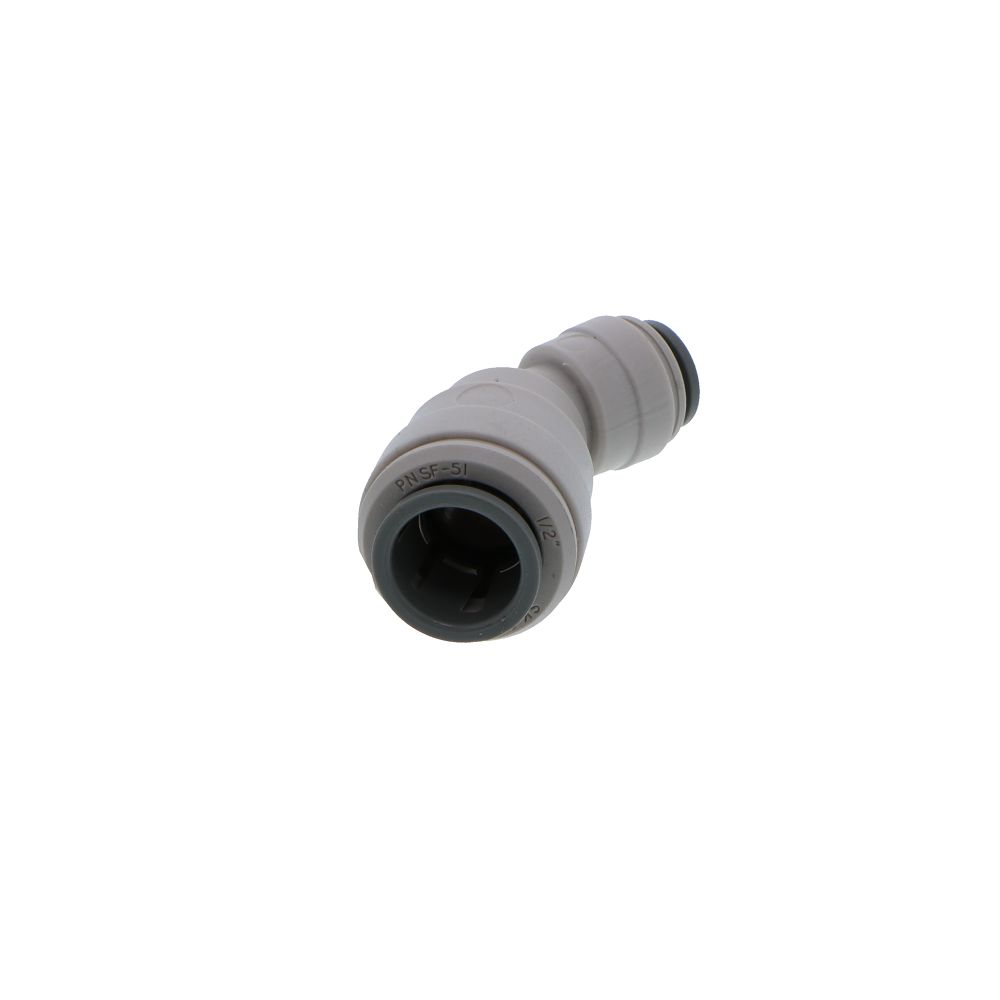

The John Guest push-fit offset connector fitting connects pipework to form an offset pipe outlet run. Fast and simple to install, John Guest push-fit fittings create an instant push-fit connection and leak tight seal without the need for tools, hot works or sealing agents. The unique collet locking design firmly and securely holds the pipe in place without deforming the pipe or restricting flow. Fittings are corrosion resistant and fully removable, improving system performance and reducing system downtime during maintenance.
Manufactured in grey push-fit acetal copolymer, the fitting is suitable for foodstuff, potable liquids and inert gases. Fittings can also be used with N2/CO2 and mixed gas dispense lines, as well as air, pneumatic and vacuum applications.
Features & Benefits:
- Rigid and hardwearing acetal copolymer material
- Food grade material suitable for foodstuff, potable liquids, inert gases, air, pneumatic and vacuum
- Instant push-fit connection and leak tight seal
- Connect, disconnect and reconnect in seconds without tools
- No scale build up improves performance and equipment lifespan
- Superior flow characteristics
- Compatible with LLDPE or soft metal pipe/tubing
California residents
Prop 65 Warning
WARNING!
This product contains materials known to the State of California to cause
cancer and birth defects or other reproductive harm.
www.p65warnings.ca.gov
Product Details |
---|
Application | Water Air Food Beverage |
Body Material | Acetal Copolymer |
Max Pressure (Psi) | 230 |
Max Temp (°F) | 150 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -4 |
Mounting Options | Free Floating |
Push-In Size | 1/2" OD 5/16" OD |
Seal Material | Buna-N |
Series | PI |
Shape | 45 |
Color / Finish | Gray |
Sub-Type | Reducer Coupling |
Type | Coupling |
Warranty & Certifications |
---|
Product Certification Standard | NSF/ANSI 61, NSF/ANSI 51 |
