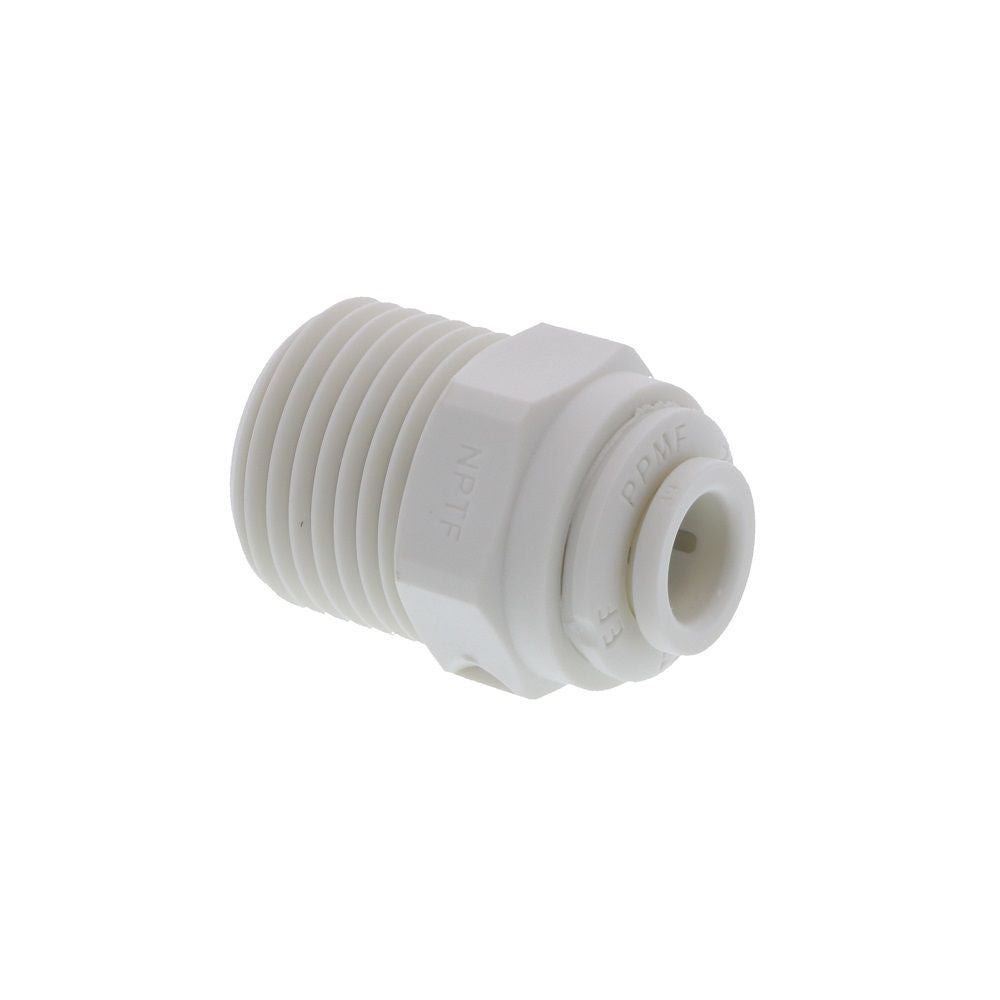

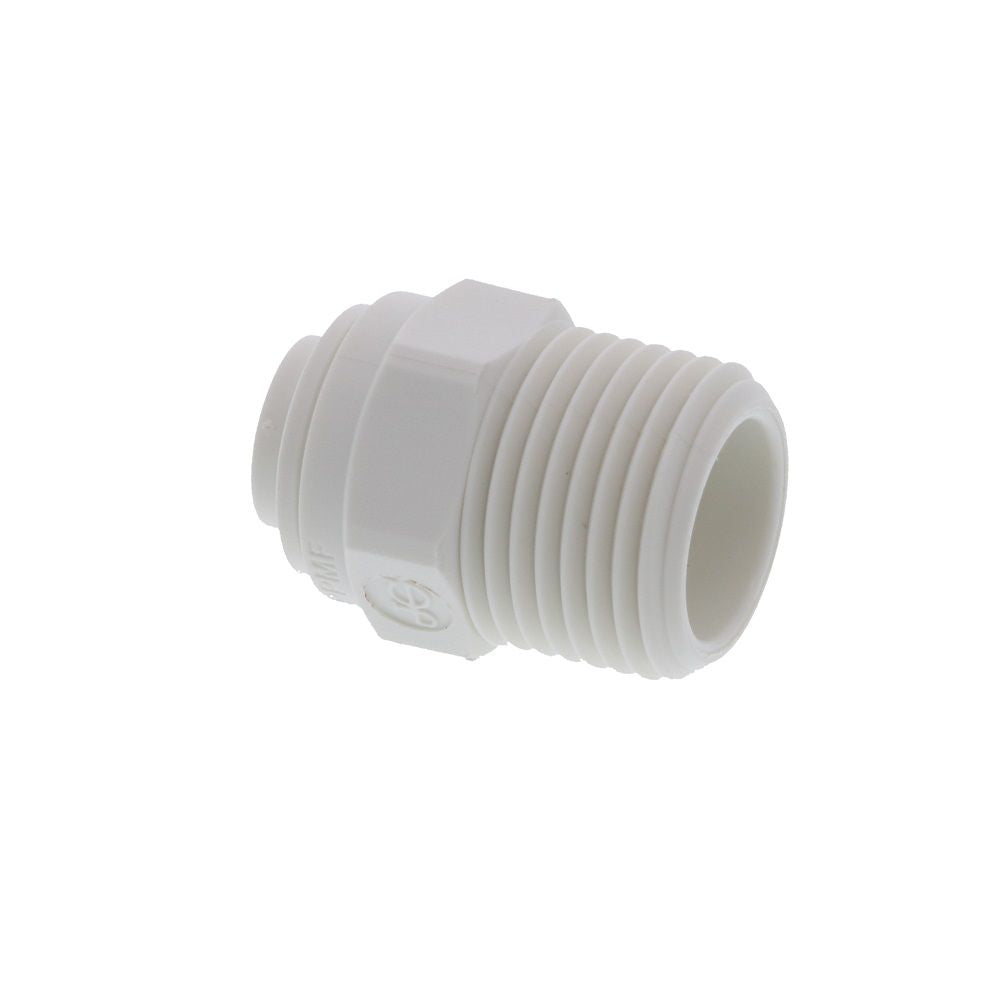

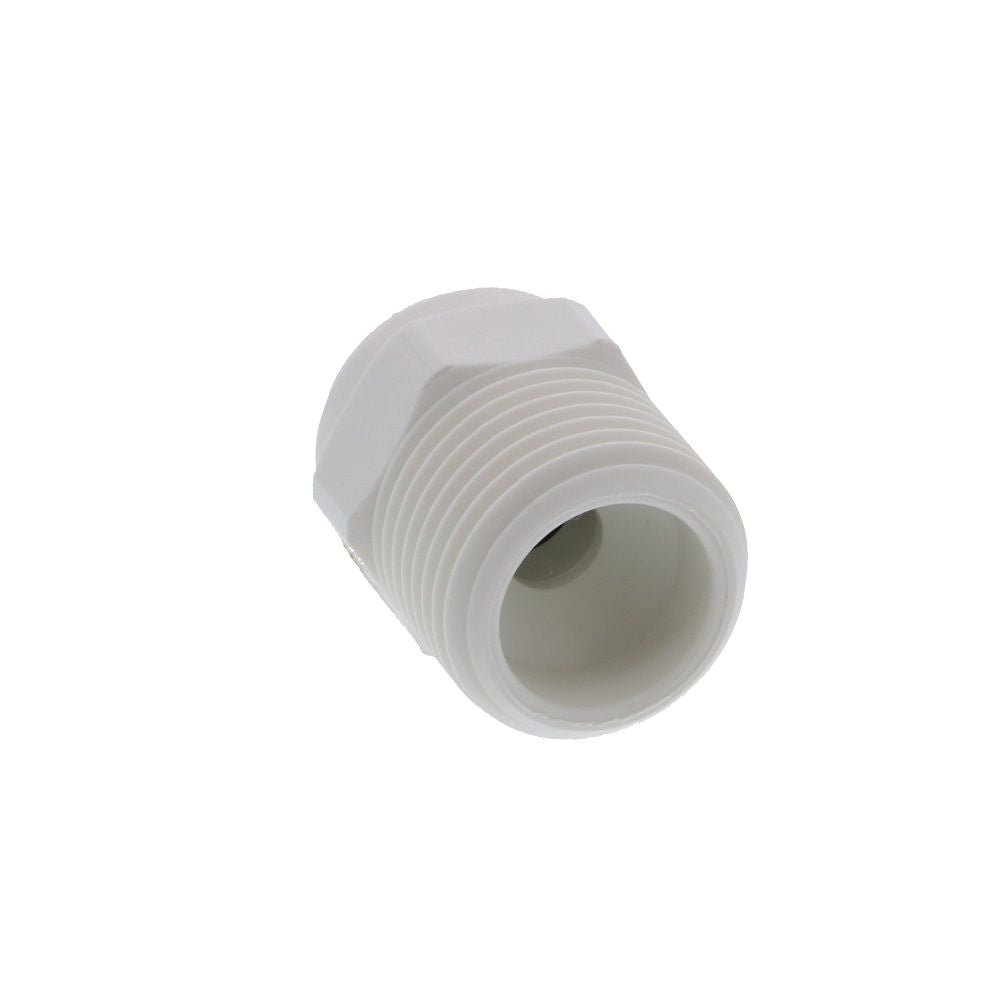

John Guest Male Connector NPTF Polypro - 1/4 x 3/8 NPTF
Part Number: PP010823W
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Features:
- Push-fit Technology creates reliable, leak-free connections
- Used to connect OD tubing sizes to female NPT threads
- Compatible with plastic or copper OD sized tubing
- Connect, disconnect, and reconnect in seconds without tools
- Food Quality and suitable for potable liquids and pure water applications
- Polypropylene body with EDPM O-ring
- Made with lead free materials
Working pressure and temperature:
- Max. 150 psi at 70° F
- Max. 60 psi at 140° F
Note: Not suitable for compressed air and vacuum applications
Polypropylene (PP) fittings are for water only. Material is too soft and seal is EPDM for compressed air applications.
WARNING!
| Product Details | |
|---|---|
Application | Water Food Beverage |
Body Material | Polypropylene |
Inlet Connection | 3/8" MPT |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Mounting Options | Thread |
Outlet Connection | 3/8" MPT |
Push-In Size | 1/4" OD |
Seal Material | EPDM |
Series | PP |
Shape | Straight |
Size | 3/8" |
Color / Finish | White |
Connection Type | Male (MPT) |
Origin | UK |
Sub-Type | Male Adapter |
Type | Adapter |
| Warranty & Certifications | |
Certifications | NSF 61, NSF51, FDA Approved, NSF 372 |
Warranty | 1 Year |
| Product Details | |
|---|---|
Application | Water Food Beverage |
Body Material | Polypropylene |
Inlet Connection | 3/8" MPT |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Mounting Options | Thread |
Outlet Connection | 3/8" MPT |
Push-In Size | 1/4" OD |
Seal Material | EPDM |
Series | PP |
Shape | Straight |
Size | 3/8" |
Color / Finish | White |
Connection Type | Male (MPT) |
Origin | UK |
Sub-Type | Male Adapter |
Type | Adapter |
| Warranty & Certifications | |
Certifications | NSF 61, NSF51, FDA Approved, NSF 372 |
Warranty | 1 Year |
| Product Details | |
|---|---|
Application | Water Food Beverage |
Body Material | Polypropylene |
Inlet Connection | 3/8" MPT |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Mounting Options | Thread |
Outlet Connection | 3/8" MPT |
Push-In Size | 1/4" OD |
Seal Material | EPDM |
Series | PP |
Shape | Straight |
Size | 3/8" |
Color / Finish | White |
Connection Type | Male (MPT) |
Origin | UK |
Sub-Type | Male Adapter |
Type | Adapter |
| Warranty & Certifications | |
Certifications | NSF 61, NSF51, FDA Approved, NSF 372 |
Warranty | 1 Year |
Features:
- Push-fit Technology creates reliable, leak-free connections
- Used to connect OD tubing sizes to female NPT threads
- Compatible with plastic or copper OD sized tubing
- Connect, disconnect, and reconnect in seconds without tools
- Food Quality and suitable for potable liquids and pure water applications
- Polypropylene body with EDPM O-ring
- Made with lead free materials
Working pressure and temperature:
- Max. 150 psi at 70° F
- Max. 60 psi at 140° F
Note: Not suitable for compressed air and vacuum applications
Polypropylene (PP) fittings are for water only. Material is too soft and seal is EPDM for compressed air applications.
WARNING!
