John Guest Male Connector BLACK ACETAL - 8mm x 1/4 BSPP
Part Number: PM010812E
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.

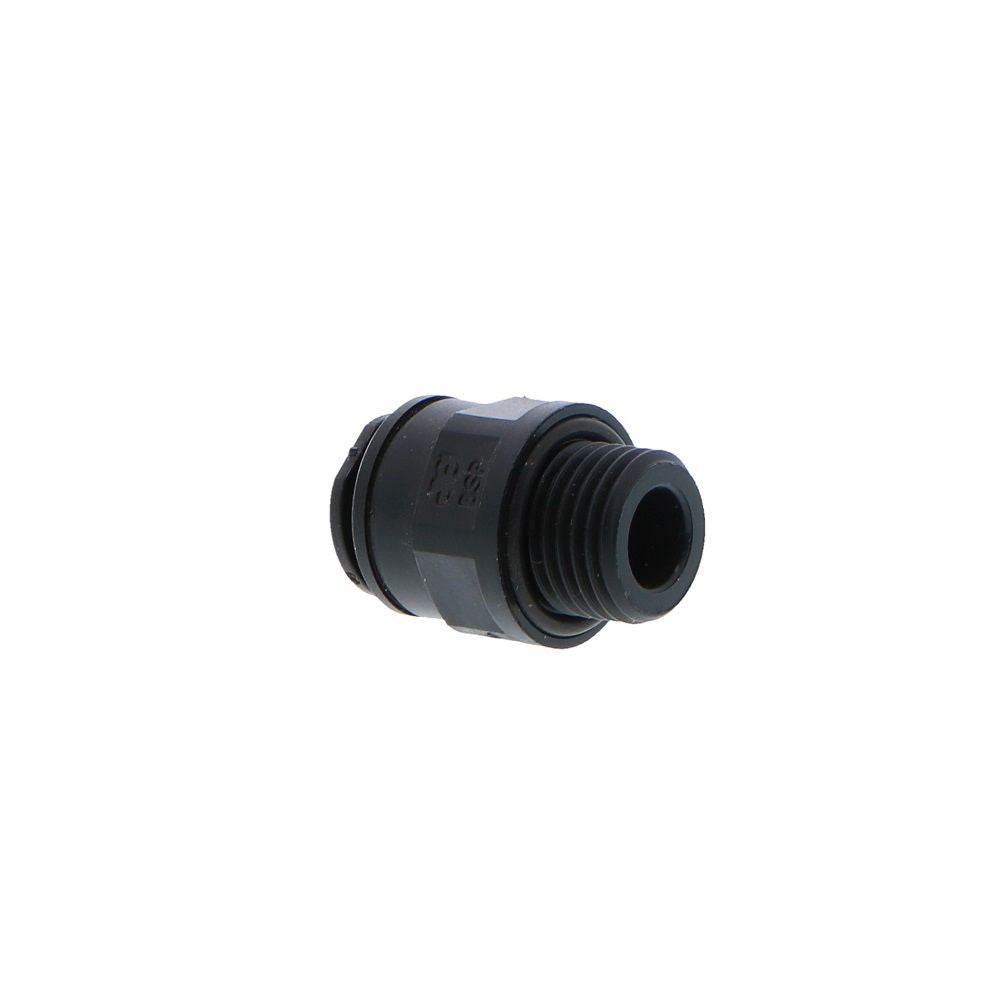

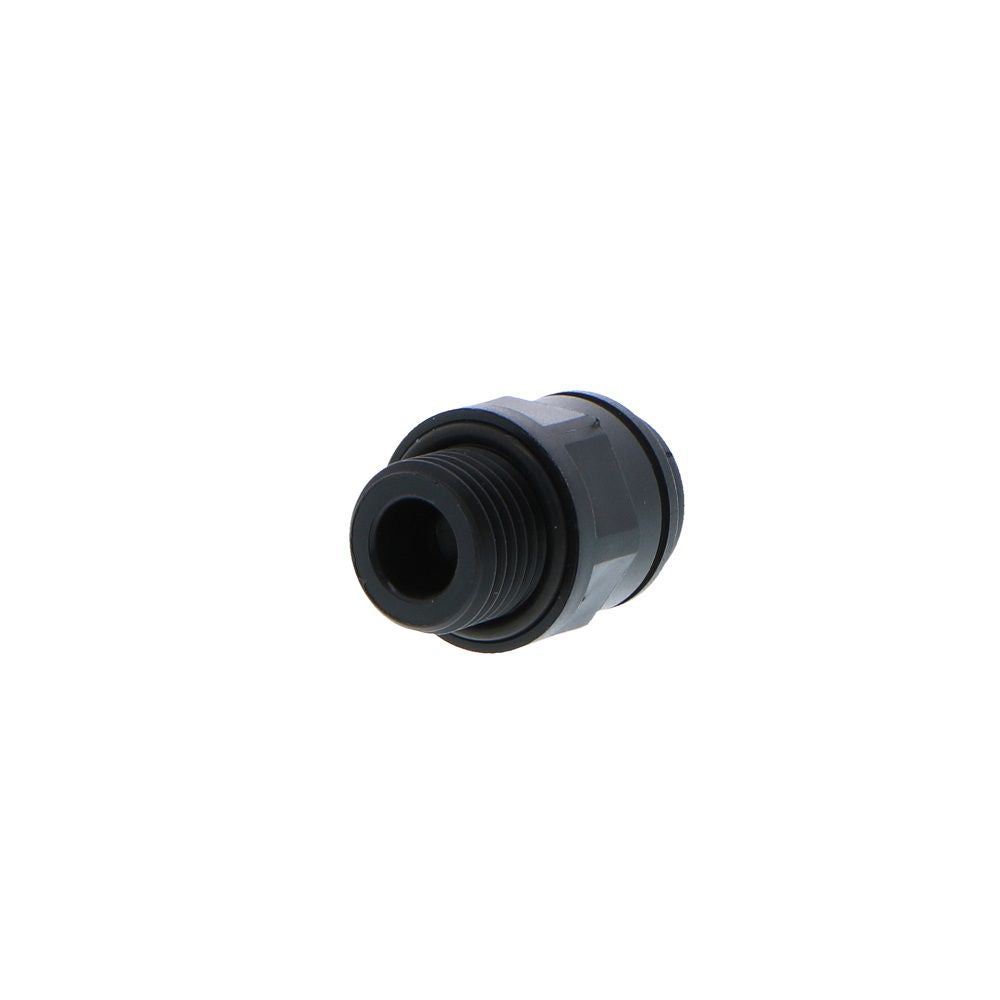

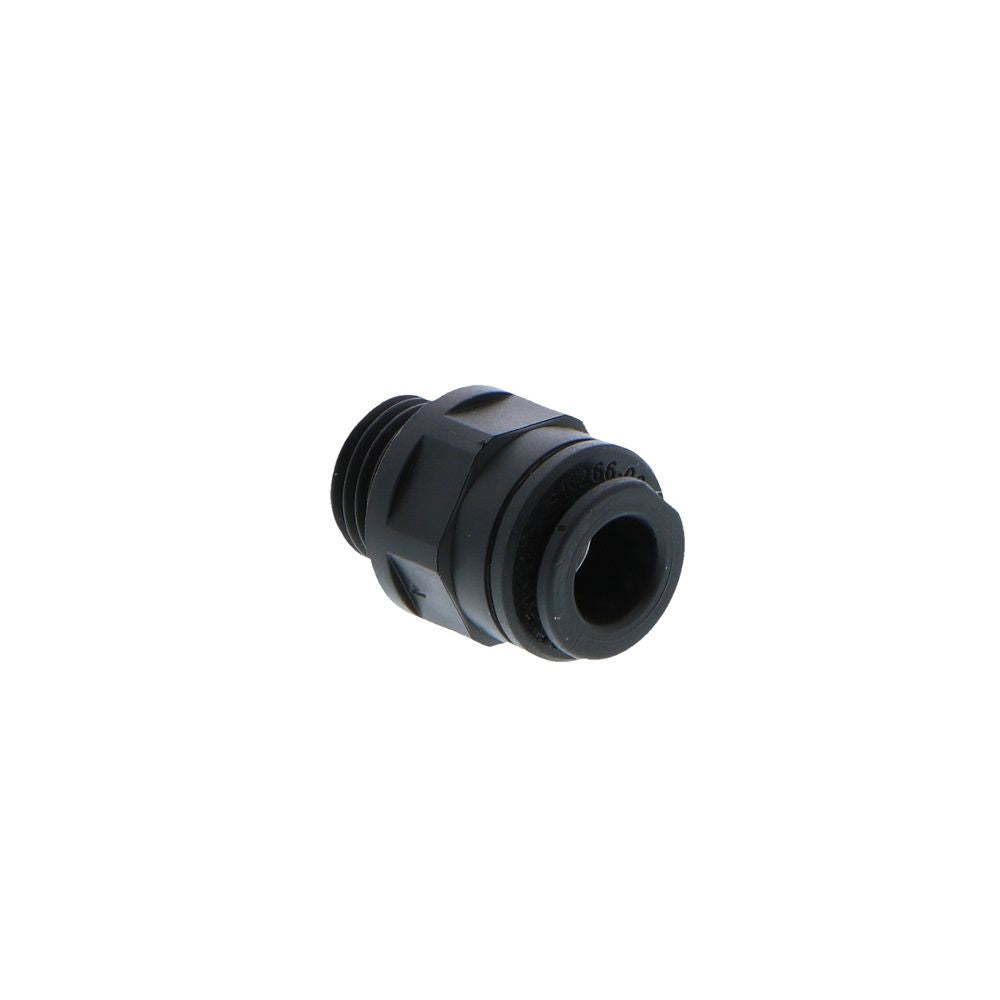

The John Guest Male Connector makes connecting tubing to female BSPP threads quick and easy. Fittings are manufactured in black acetal with food grade nitrile O-ring, making them especially suitable for applications involving foodstuff and potable liquids. They are also suitable for air and inert gases and can be used on CO2 /nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.
Features and benefits:
- For use with plastic or copper OD size tubing
- Acetal body, nitrile O-ring
- Quick and easy connection/disconnection
- Food Quality, suitable for potable liquids and pure water
- NSF51 and NSF61 listed
- Lead free materials
- Can be used for air/pneumatic and vacuum applications
- Suitable for inert gases, CO2 and nitrogen beverage lines
Working pressure and temperature:
- 230 psi at 68° F
- 150 psi at 150° F
WARNING!
| Product Details | |
|---|---|
Application | Water Air |
Body Material | Acetal Copolymer |
Inlet Connection | 1/4" BSP |
Max Pressure (Psi) | 230 |
Max Temp (°F) | 150 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | -4 |
Mounting Options | Thread |
Outlet Connection | 1/4" BSP |
Push-In Size | 8mm OD |
Seal Material | Buna-N |
Series | PM |
Shape | Straight |
Size | 1/4" |
Color / Finish | Black |
Connection Type | BSP |
Sub-Type | Male Adapter |
Type | Adapter |
| Warranty & Certifications | |
Certifications | NSF 51 & NSF 61, FDA Approved Materials, Lead Free |
| Product Details | |
|---|---|
Application | Water Air |
Body Material | Acetal Copolymer |
Inlet Connection | 1/4" BSP |
Max Pressure (Psi) | 230 |
Max Temp (°F) | 150 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | -4 |
Mounting Options | Thread |
Outlet Connection | 1/4" BSP |
Push-In Size | 8mm OD |
Seal Material | Buna-N |
Series | PM |
Shape | Straight |
Size | 1/4" |
Color / Finish | Black |
Connection Type | BSP |
Sub-Type | Male Adapter |
Type | Adapter |
| Warranty & Certifications | |
Certifications | NSF 51 & NSF 61, FDA Approved Materials, Lead Free |
| Product Details | |
|---|---|
Application | Water Air |
Body Material | Acetal Copolymer |
Inlet Connection | 1/4" BSP |
Max Pressure (Psi) | 230 |
Max Temp (°F) | 150 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | -4 |
Mounting Options | Thread |
Outlet Connection | 1/4" BSP |
Push-In Size | 8mm OD |
Seal Material | Buna-N |
Series | PM |
Shape | Straight |
Size | 1/4" |
Color / Finish | Black |
Connection Type | BSP |
Sub-Type | Male Adapter |
Type | Adapter |
| Warranty & Certifications | |
Certifications | NSF 51 & NSF 61, FDA Approved Materials, Lead Free |
The John Guest Male Connector makes connecting tubing to female BSPP threads quick and easy. Fittings are manufactured in black acetal with food grade nitrile O-ring, making them especially suitable for applications involving foodstuff and potable liquids. They are also suitable for air and inert gases and can be used on CO2 /nitrogen beverage gas lines, pneumatics, vacuum as well as other applications.
Features and benefits:
- For use with plastic or copper OD size tubing
- Acetal body, nitrile O-ring
- Quick and easy connection/disconnection
- Food Quality, suitable for potable liquids and pure water
- NSF51 and NSF61 listed
- Lead free materials
- Can be used for air/pneumatic and vacuum applications
- Suitable for inert gases, CO2 and nitrogen beverage lines
Working pressure and temperature:
- 230 psi at 68° F
- 150 psi at 150° F
WARNING!
