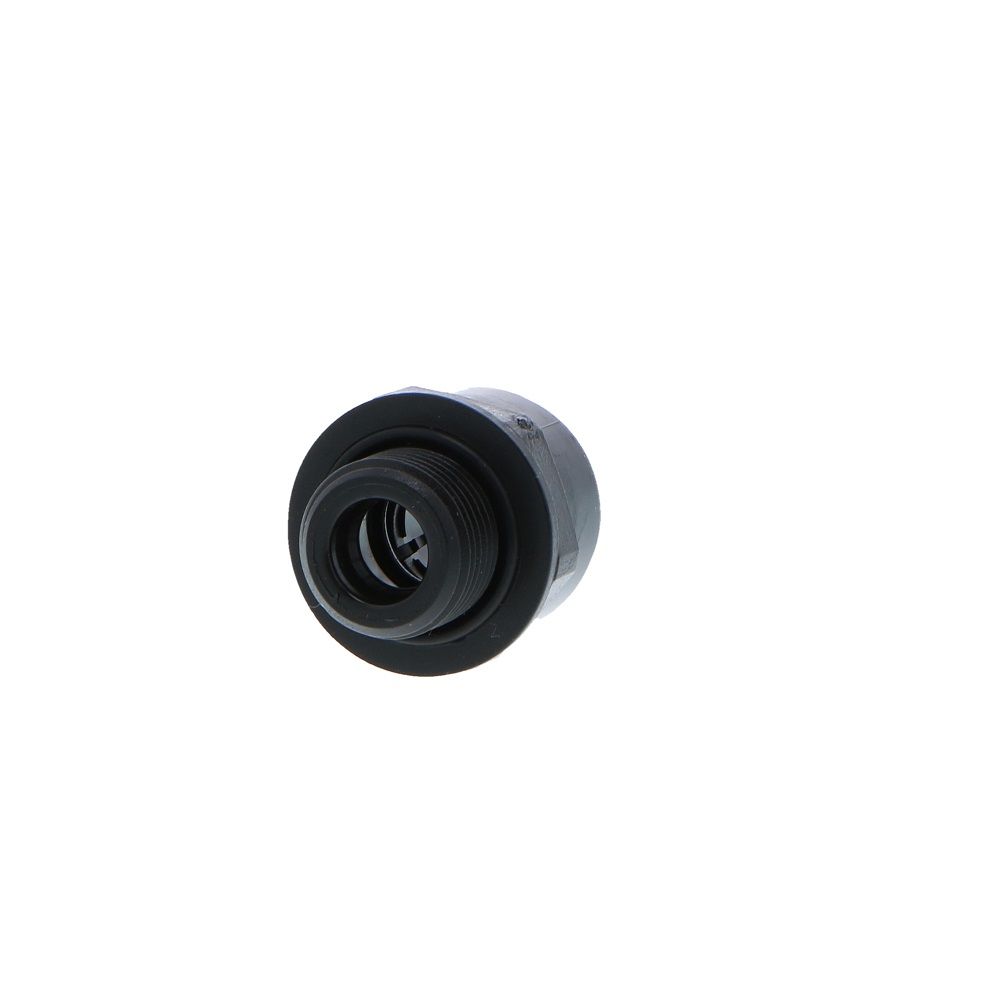

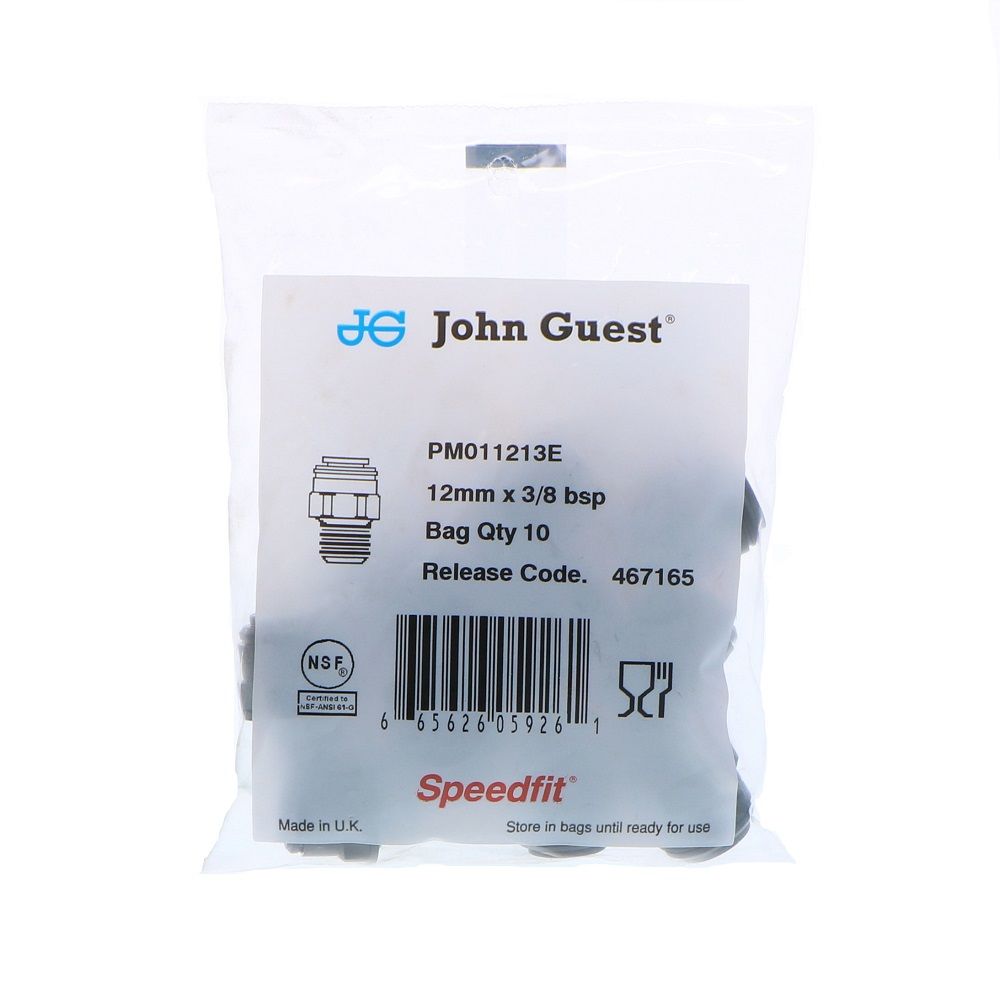

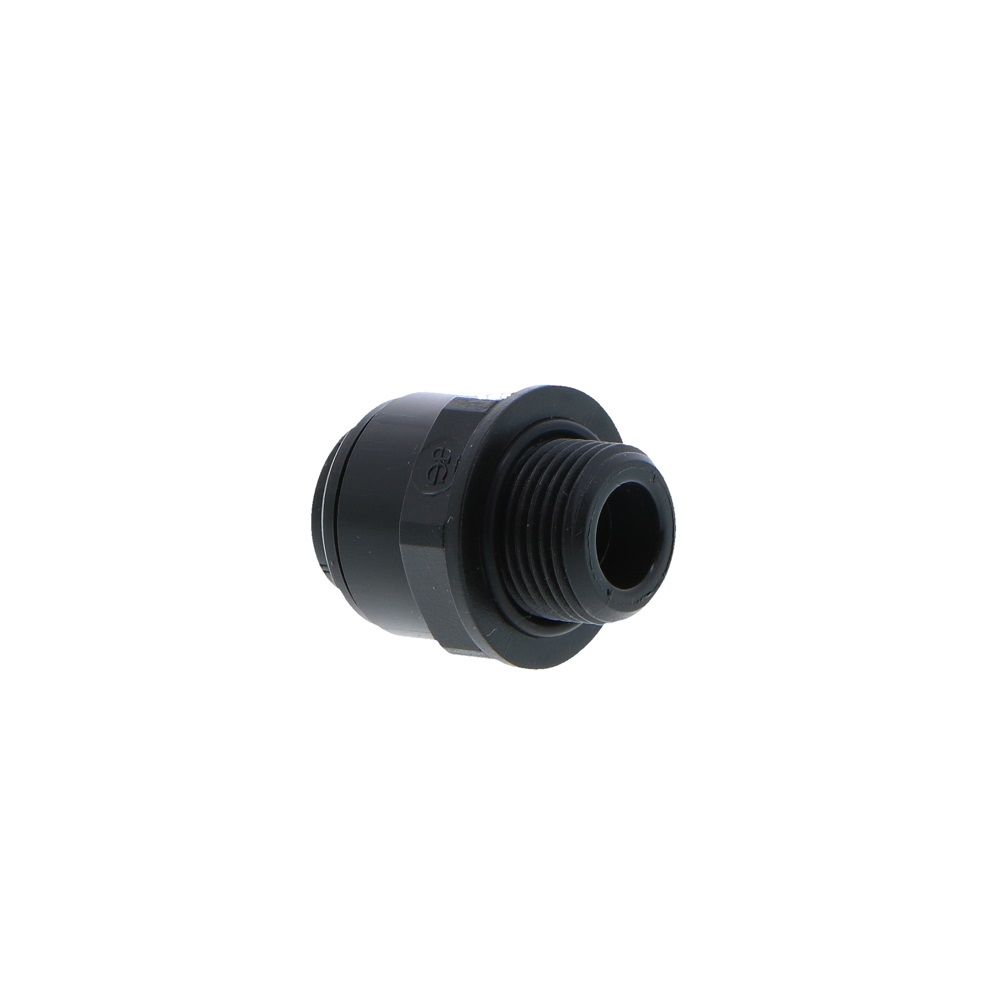

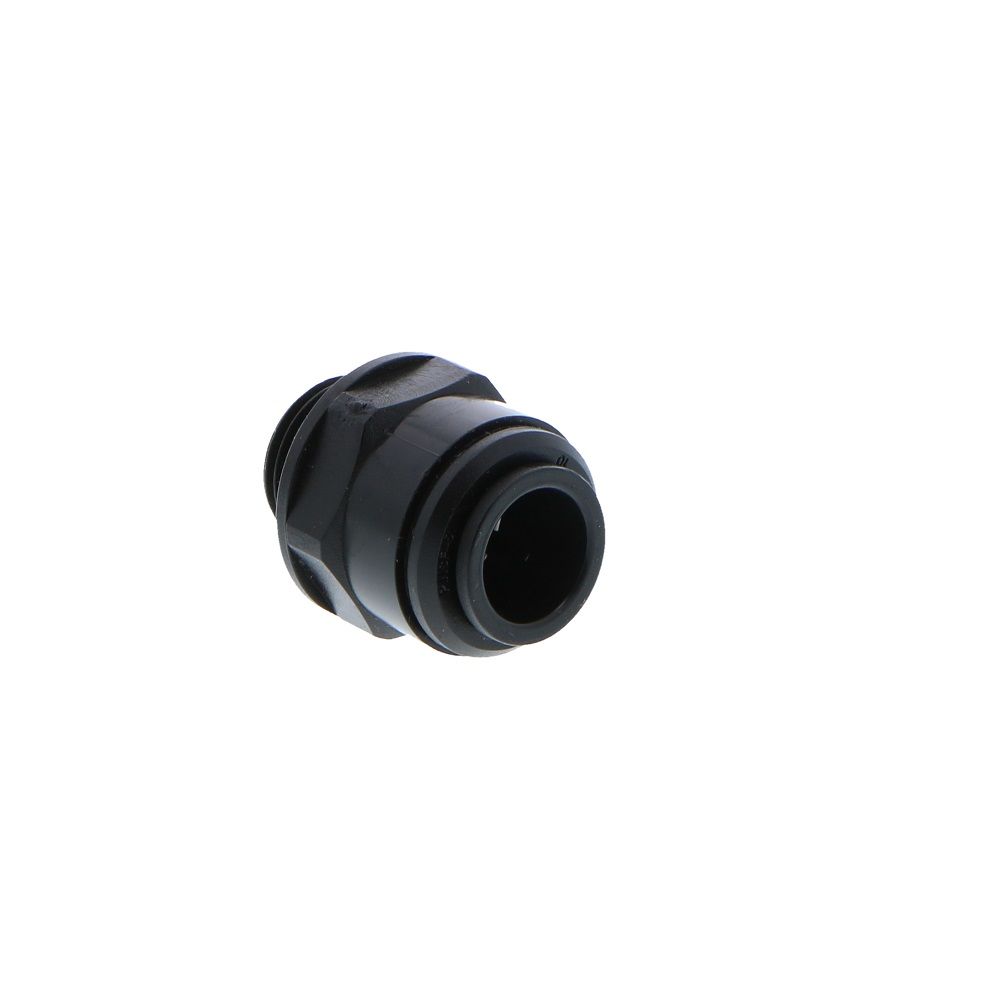

The John Guest PM011213E Male Connector provides a leak-free connection with push-to-fit technology to make installation easy.
Features:
Features:
- Black acetal copolymer construction
- Nitrile O-rings
- FDA approved materials
- NSF Certified 51 & 61
- Suitable for water, air, inert gases
- And pneumatic applications or vacuum
Weight & Dimensions
Weight (lbs) | 0.03 |
Details
Series | PM |
Max Temp (°F) | 150 |
Max Pressure (Psi) | 150 |
Min Temp (°F) | -4 |
Min Pressure (Psi) | 0 |
Push-In Size | 12mm OD |
Application | Water, Air |
Bag Quantity | 10 |
Body Material | Acetal Copolymer |
Box Quantity | 150 |
Color / Finish | Black |
Mounting Options | Thread |
Seal Material | Buna-N |
Size | 3/8" |
Inlet/Outlet Connection | 3/8" BSP |
Warranty & Certifications
Certifications | NSF 61, NSF 51, FDA Approved, NSF 372 |
The John Guest PM011213E Male Connector provides a leak-free connection with push-to-fit technology to make installation easy.
Features:
- Black acetal copolymer construction
- Nitrile O-rings
- FDA approved materials
- NSF Certified 51 & 61
- Suitable for water, air, inert gases
- And pneumatic applications or vacuum
California residents
see Prop 65 warnings
WARNING!
This product contains arsenic known to the State of California to cause cancer and birth defects or other reproductive harm.
.
WARNING!
This product contains arsenic known to the State of California to cause cancer and birth defects or other reproductive harm.
Weight & Dimensions
Weight (lbs) | 0.03 |
Details
Series | PM |
Max Temp (°F) | 150 |
Max Pressure (Psi) | 150 |
Min Temp (°F) | -4 |
Min Pressure (Psi) | 0 |
Push-In Size | 12mm OD |
Application | Water, Air |
Bag Quantity | 10 |
Body Material | Acetal Copolymer |
Box Quantity | 150 |
Color / Finish | Black |
Mounting Options | Thread |
Seal Material | Buna-N |
Size | 3/8" |
Inlet/Outlet Connection | 3/8" BSP |
Warranty & Certifications
Certifications | NSF 61, NSF 51, FDA Approved, NSF 372 |
