Home / Fittings / Quick-Connect Fittings / John Guest Lead-Free ProLock Brass Male Connector NPT - 3/4 CTS x 3/4 NPT
John Guest

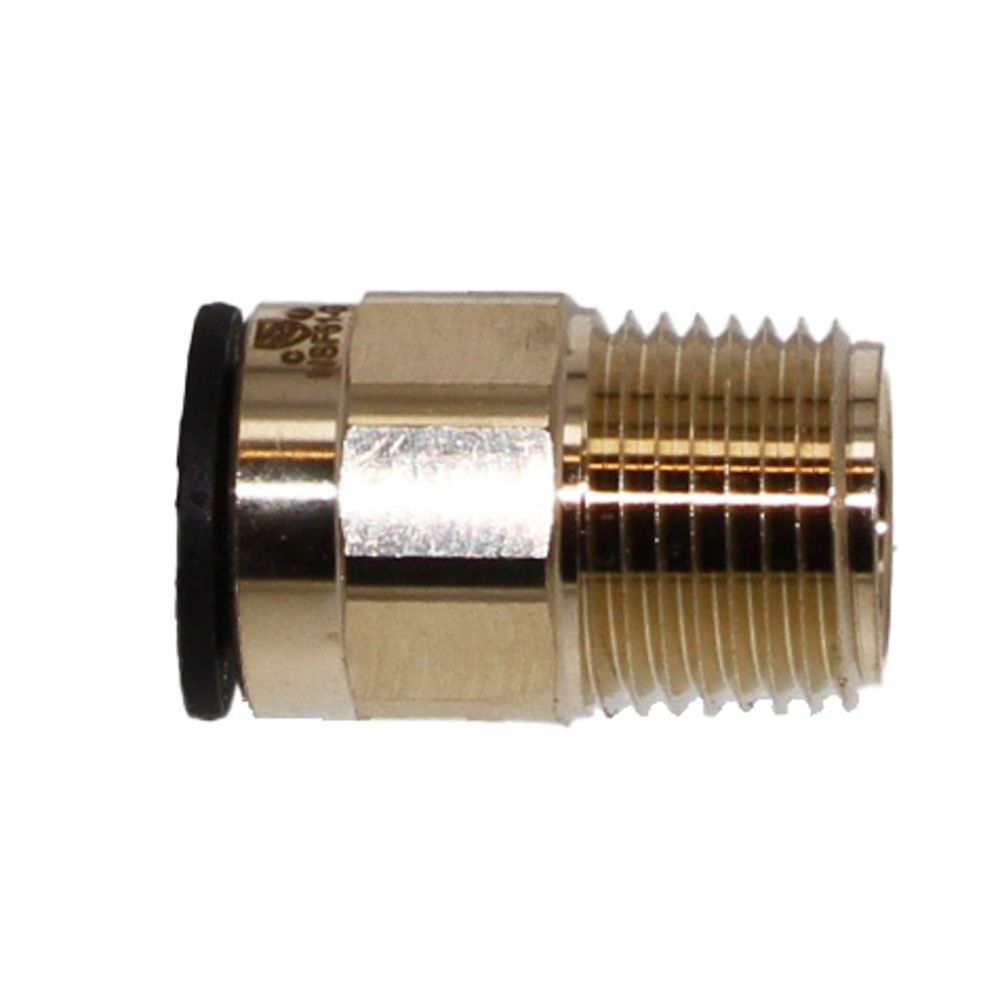

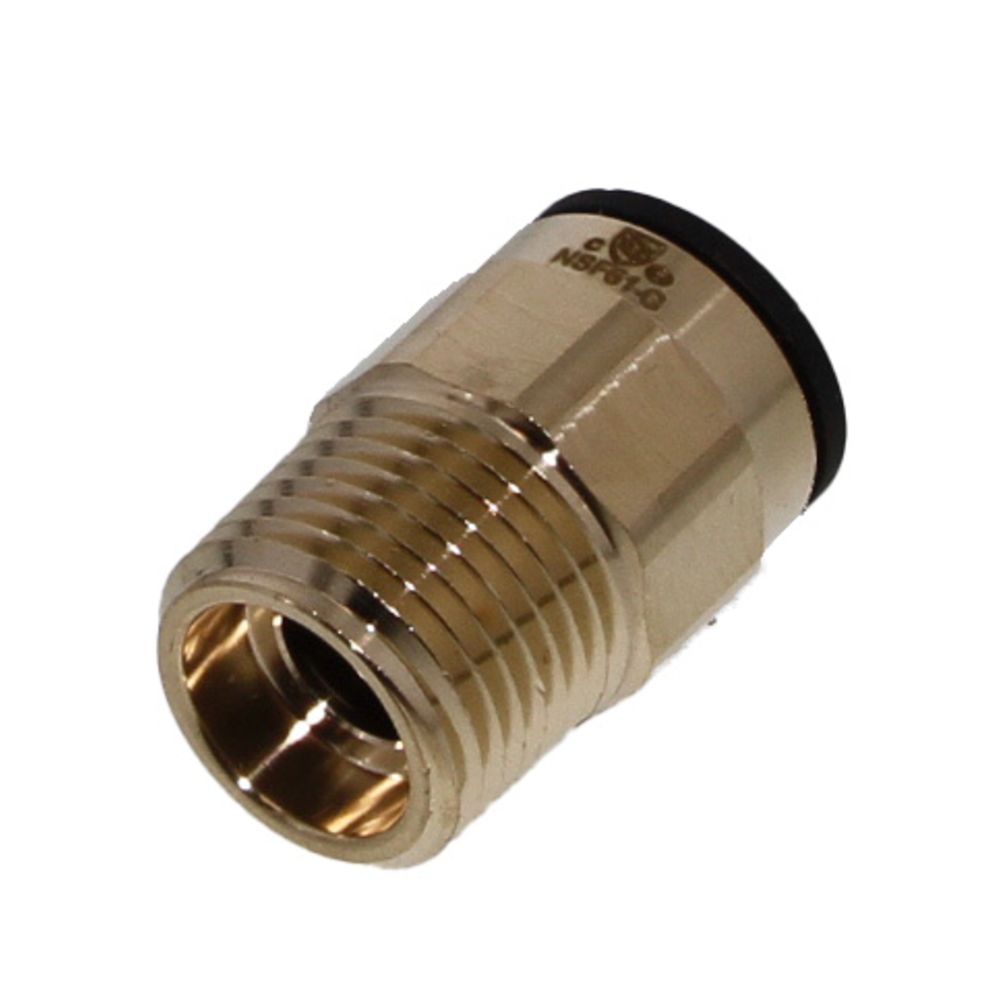

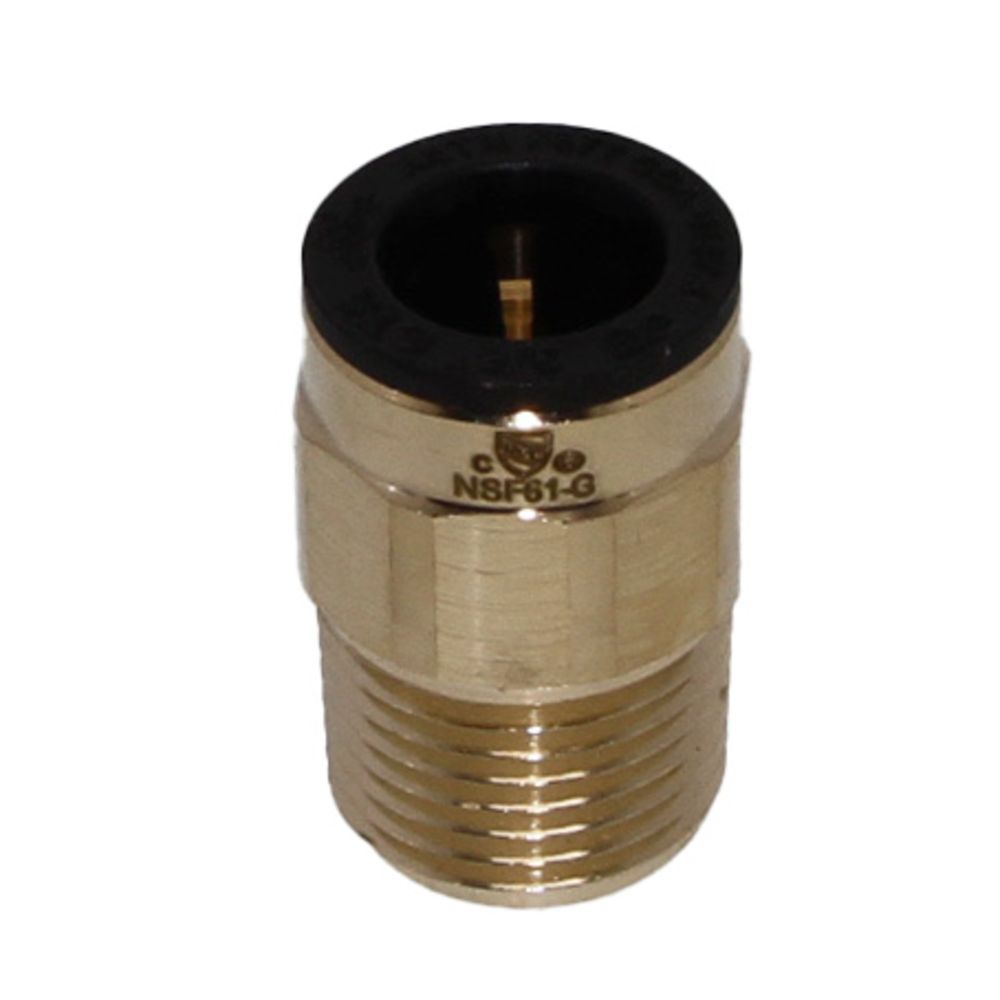

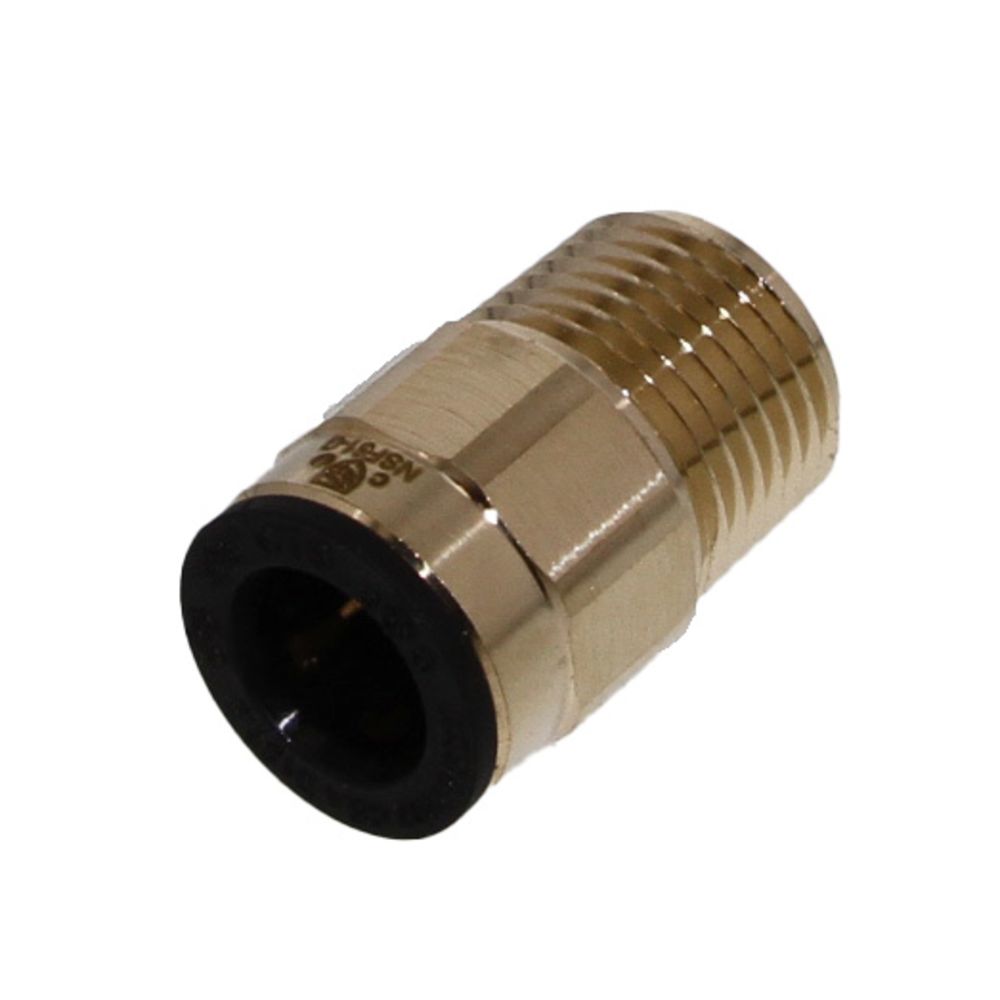

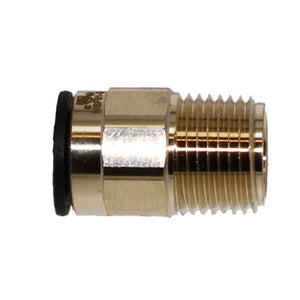

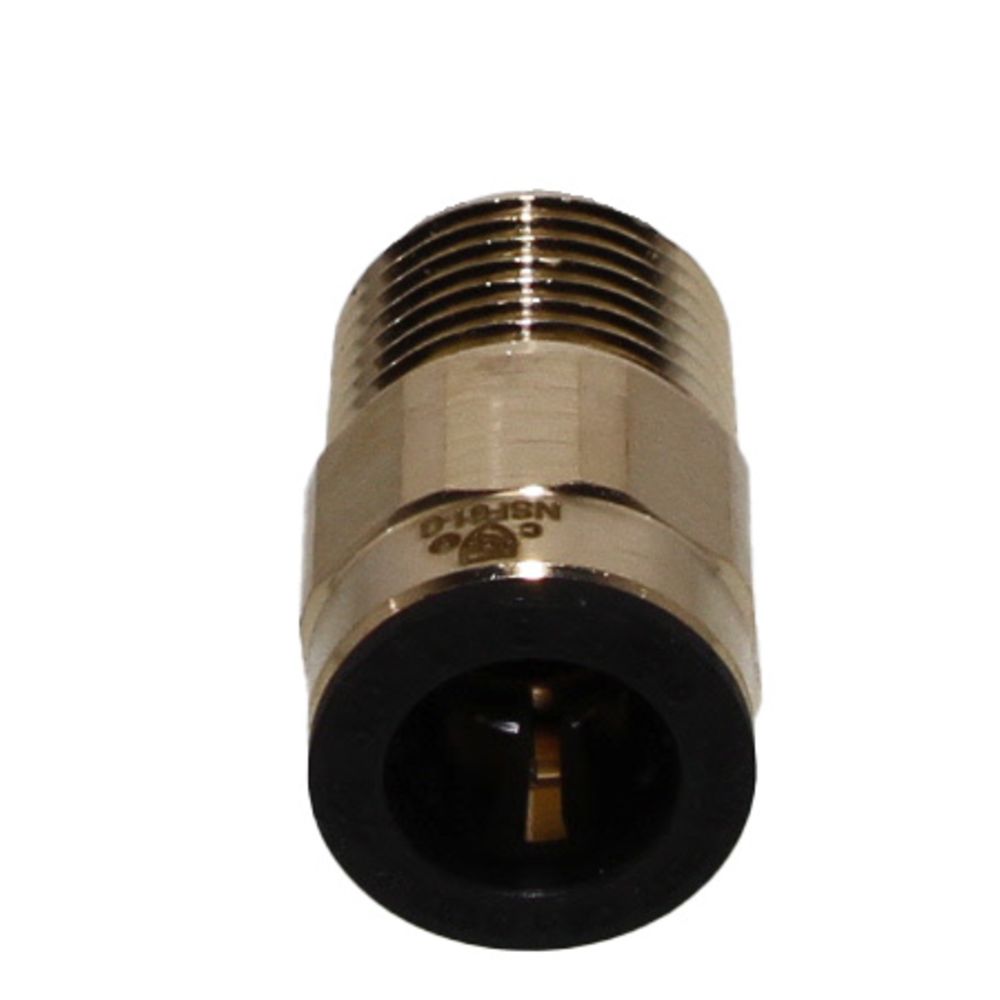

John Guest Lead-Free ProLock Brass Male Connector NPT - 3/4 CTS x 3/4 NPT

Part Number: MWI012826LF-E
Your price:
The John Guest ProLock™ brass male connector makes joining PE-RT, PEX, copper, and CPVC pipe to female threads easy. Push-fit connection securely grips pipe. Fast and easy to use - no tools, soldering, glue or clamps. Approved for behind-the-wall applications and can be used for permanent installations. Ideal for work in tight spaces. Can be disconnected without damage to tubing.

Features:
  • For use with PE-RT, PEX, copper, and CPVC pipe, in any combination
  • No tools, soldering, glue or clamps
  • Can be installed on wet lines.
  • Approved for behind-the-wall applications with no access panel
  • Can be disconnected (if needed) without tools
  • UV Stabilized for outdoor use

Working Pressure & Temperature:
  • Max 160 psi at 73° F
  • Max 100 psi at 180° F
  • Max 80 psi at 200° F

About ProLock: The John Guest ProLock series has been designed with an audible click and visible alignment arrows to assure installers that a fitting is secure. Fittings are ideal for use in water softener/conditioner systems and virtually any OEM type of application involving joining solutions.

ProLock fittings have a collet with stainless steel teeth that grip the pipe when fully inserted, and an O-ring to provide a permanent, leakproof seal. When twisted into place, the locking cap locks the pipe in place securely. No special tools, soldering, clamps or glue are ever required. Fittings reduce installation times by more than 40% and are code-approved for behind-the-wall use.


Application Max Working Pressure Max Working Temperature
Water
Water
Water
160 PSI
100 PSI
80 PSI
73° F
180° F
200° F
