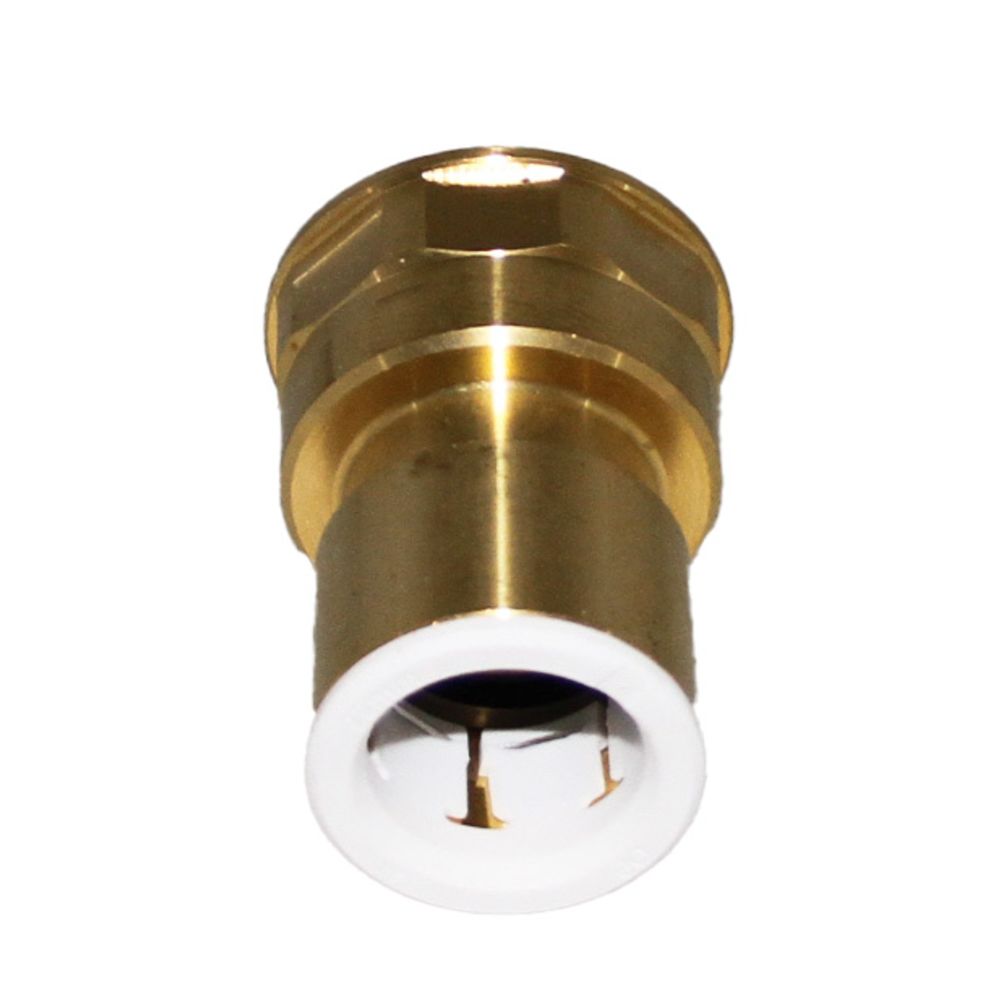

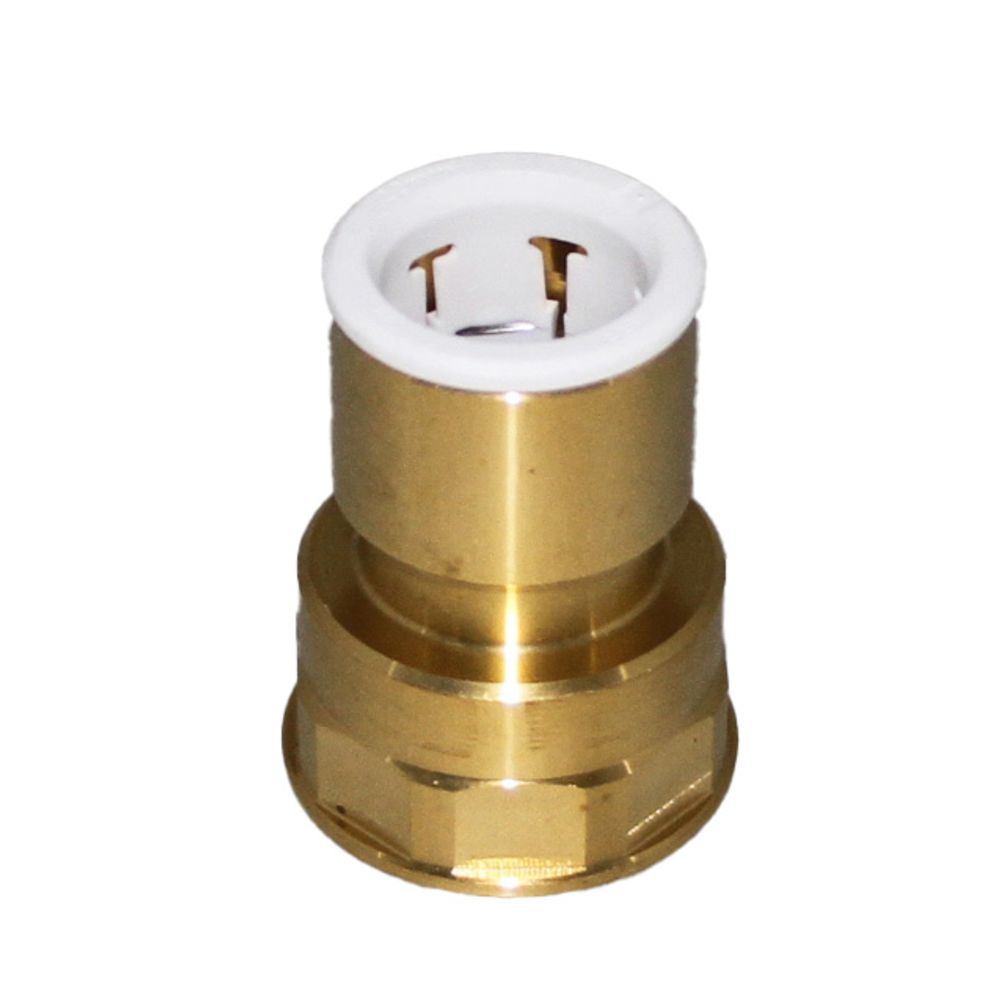

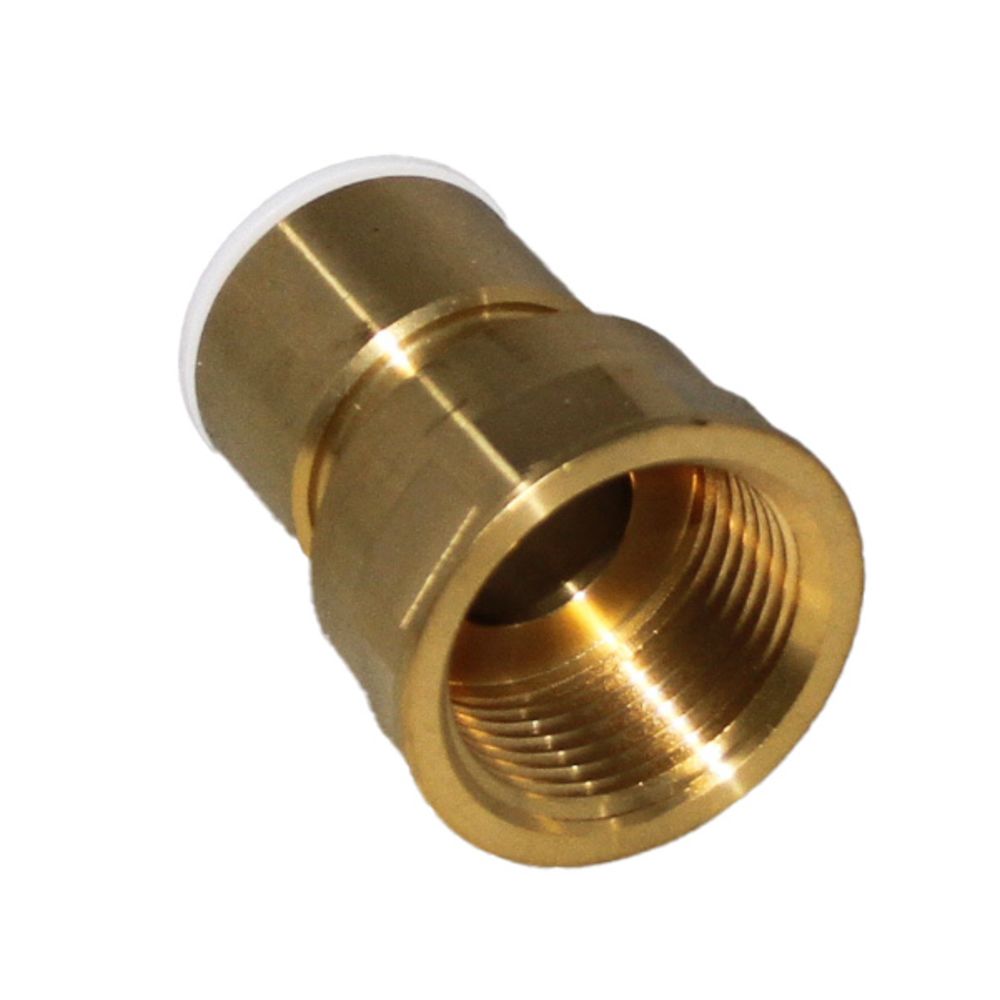

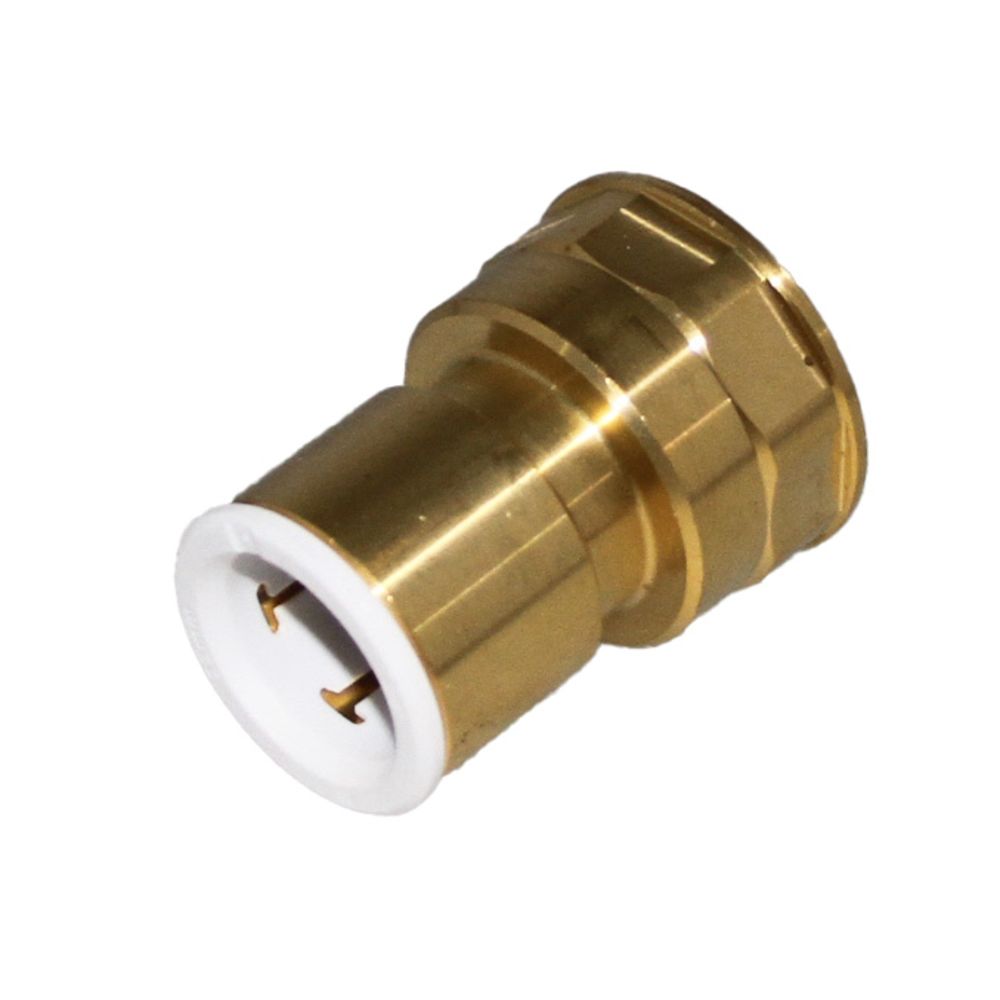

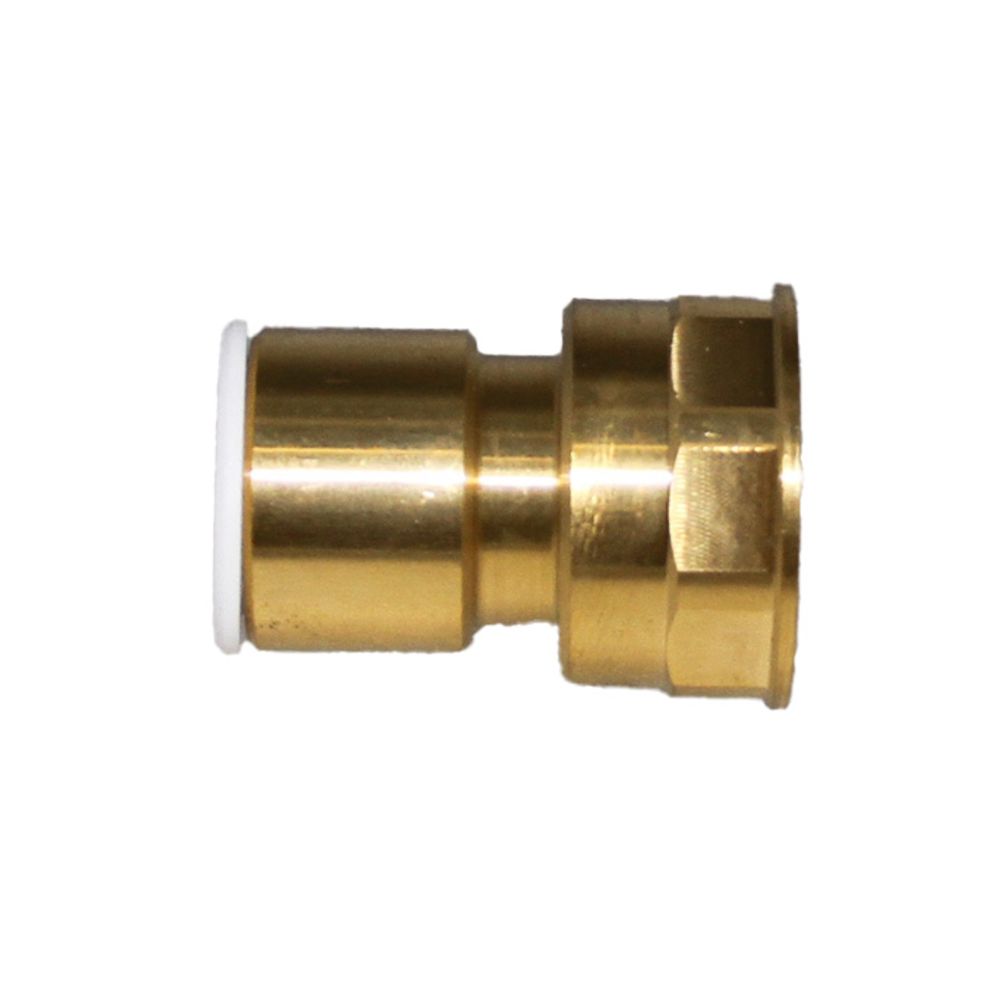

John Guest Lead Free Brass Flare Female Connector - 3/8 x 1/4 FFL
Part Number: MI4512F4SLF
Alt. Part Number: MI4512F4S
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
The John Guest female connector is used for connecting the cold-water supply to coffee machines and equipment and is also used in beverage dispensing and vending machine applications. For connecting OD tubing sizes to male flare threads. John Guest Push-fit technology makes connecting tubing quick and easy. Constructed of Lead-Free Brass with an EPDM O-ring.
Features and benefits:
- For use with plastic or copper OD sized tubing
- Lead Free Brass body, EPDM O-ring
- Quick and easy connection/disconnection
- NSF61 listed
Working pressure and temperature:
- 150 psi at 70° F
- 60 psi at 140° F
WARNING!
| Product Details | |
|---|---|
Application | Water Food Beverage |
Body Material | Brass |
Inlet Connection | 1/4" Flare |
Max Pressure (Psi) | 145 |
Max Temp (°F) | 150 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | -4 |
Mounting Options | Thread |
Outlet Connection | 1/4" Flare |
Push-In Size | 3/8" OD |
Seal Material | EPDM |
Series | Brass |
Shape | Straight |
Size | 1/4" |
Color / Finish | Brass |
Connection Type | Flare |
Origin | UK |
Sub-Type | Female Adapter |
Type | Adapter |
| Warranty & Certifications | |
Certifications | NSF 61, FDA Approved, NSF 372 |
| Product Details | |
|---|---|
Application | Water Food Beverage |
Body Material | Brass |
Inlet Connection | 1/4" Flare |
Max Pressure (Psi) | 145 |
Max Temp (°F) | 150 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | -4 |
Mounting Options | Thread |
Outlet Connection | 1/4" Flare |
Push-In Size | 3/8" OD |
Seal Material | EPDM |
Series | Brass |
Shape | Straight |
Size | 1/4" |
Color / Finish | Brass |
Connection Type | Flare |
Origin | UK |
Sub-Type | Female Adapter |
Type | Adapter |
| Warranty & Certifications | |
Certifications | NSF 61, FDA Approved, NSF 372 |
| Product Details | |
|---|---|
Application | Water Food Beverage |
Body Material | Brass |
Inlet Connection | 1/4" Flare |
Max Pressure (Psi) | 145 |
Max Temp (°F) | 150 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | -4 |
Mounting Options | Thread |
Outlet Connection | 1/4" Flare |
Push-In Size | 3/8" OD |
Seal Material | EPDM |
Series | Brass |
Shape | Straight |
Size | 1/4" |
Color / Finish | Brass |
Connection Type | Flare |
Origin | UK |
Sub-Type | Female Adapter |
Type | Adapter |
| Warranty & Certifications | |
Certifications | NSF 61, FDA Approved, NSF 372 |
The John Guest female connector is used for connecting the cold-water supply to coffee machines and equipment and is also used in beverage dispensing and vending machine applications. For connecting OD tubing sizes to male flare threads. John Guest Push-fit technology makes connecting tubing quick and easy. Constructed of Lead-Free Brass with an EPDM O-ring.
Features and benefits:
- For use with plastic or copper OD sized tubing
- Lead Free Brass body, EPDM O-ring
- Quick and easy connection/disconnection
- NSF61 listed
Working pressure and temperature:
- 150 psi at 70° F
- 60 psi at 140° F
WARNING!
