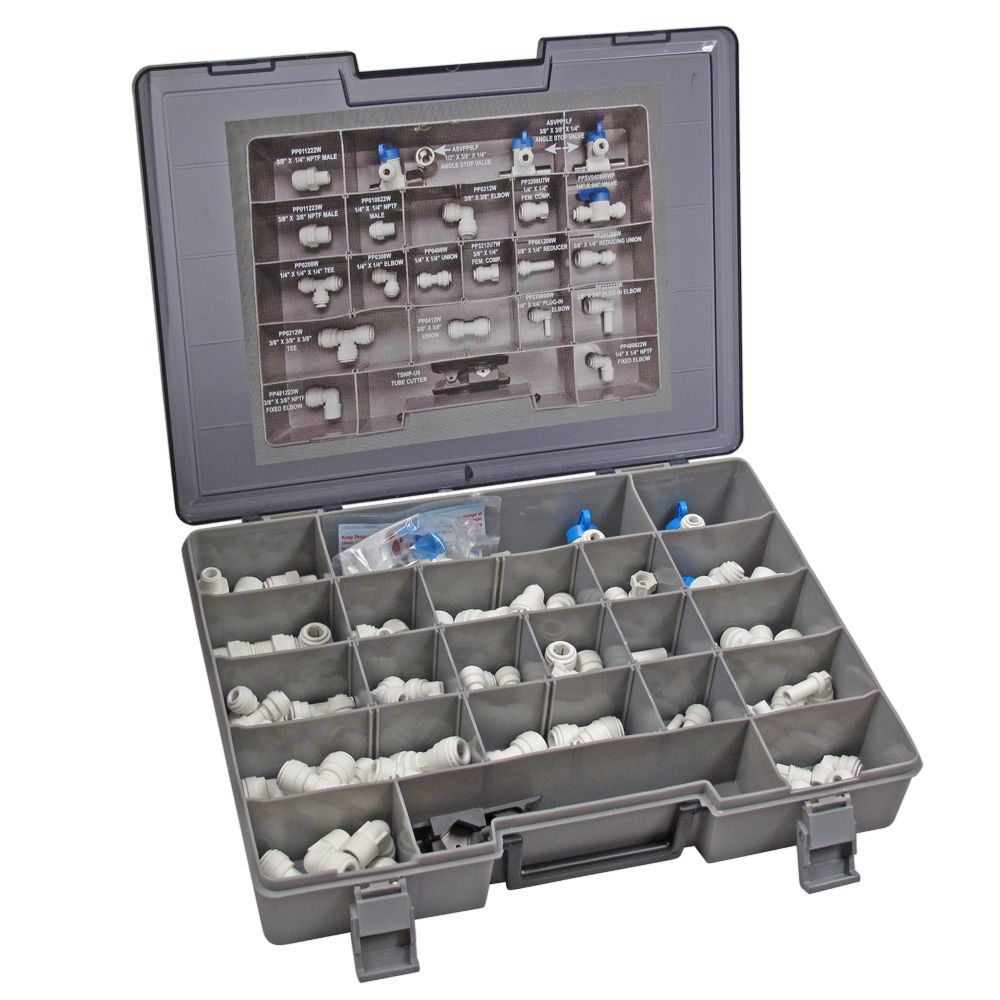

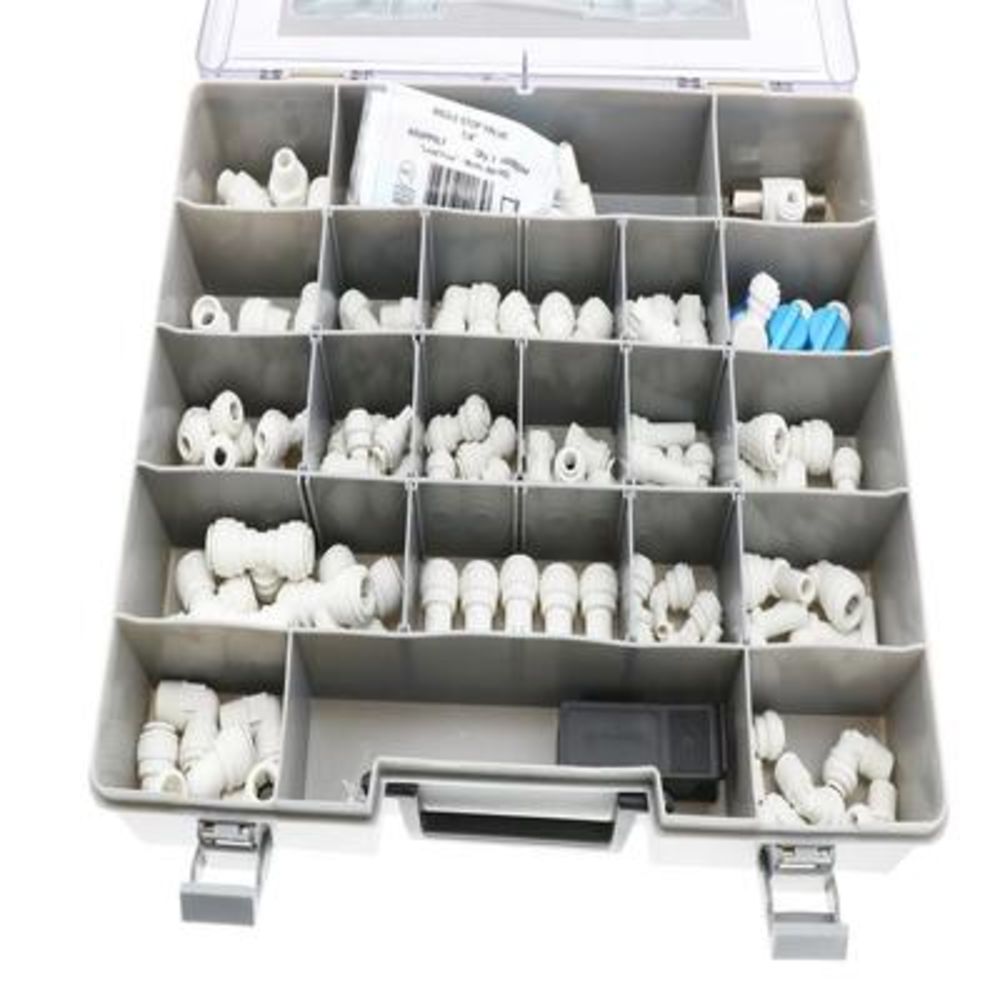

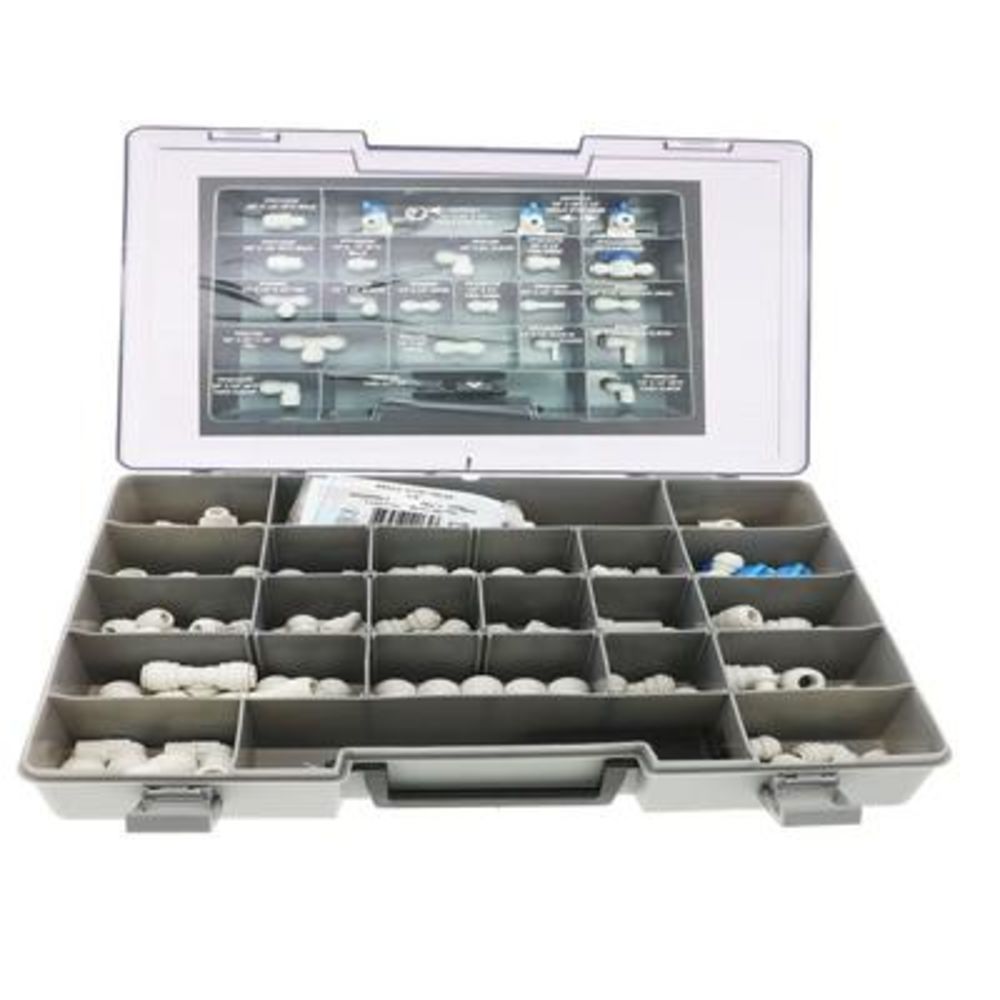

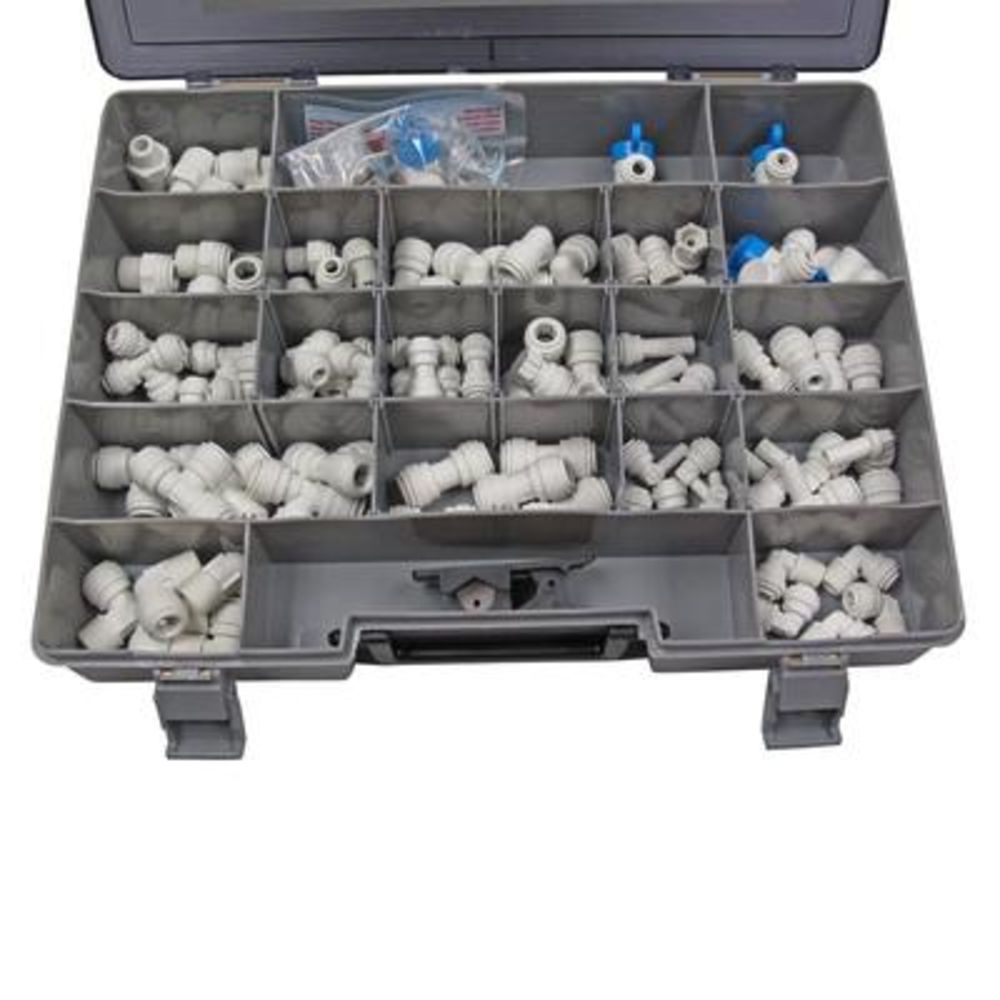

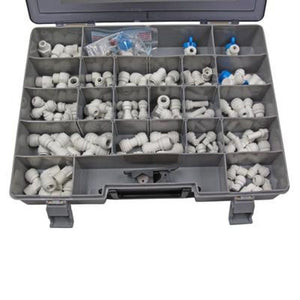

The John Guest Installation and Service Kit is a 92 piece installation, service and repair kit that comes in a sturdy, plastic carrying case. The kit includes male connectors, female connectors, tees, elbows, unions, reducers, valves, angle stop adapters and a tubing cutter. All fittings are polypropylene.
Features:
Features:
- Great starter kit for plumbers, installers or service technicians
- 92 total pieces
- All fittings are polypropylene
- Includes tubing cutter
| Part Number | Description | Quantity |
| PP010822W | 1/4" x 1/4" male connector | 5 |
| PP011222W | 3/8" x 1/4" male connector | 5 |
| PP011223W | 3/8" x 3/8" male connector | 5 |
| PP0208W | 1/4" union tee | 5 |
| PP0212W | 3/8" union tee | 5 |
| PP0308W | 1/4" union elbow | 5 |
| PP0312W | 3/8" union elbow | 5 |
| PP0408W | 1/4" union | 5 |
| PP0412W | 3/8" union | 5 |
| PP061208W | 3/8" x 1/4" reducer stem | 5 |
| PP201208W | 3/8" x 1/4" reducing union | 5 |
| PP220808W | 1/4" x 1/4" plug-in elbow | 5 |
| PP221212W | 3/8" x 3/8" plug-in elbow | 5 |
| PP3208U7W | 1/4" x 1/4" faucet connector | 5 |
| PP3212U7W | 3/8" x 1/4" faucet connector | 5 |
| PP480822W | 1/4" x 1/4" NPTF fixed elbow | 5 |
| PP481223W | 3/8" x 3/8" NPTF fixed elbow | 5 |
| PPSV040808WP | 1/4" x 1/4" shut-off valve | 3 |
| ASVPP1LF | 3/8" x 3/8" x 1/4" angle stop valve | 2 |
| ASVPP5LF | 1/2" x 3/8" x 1/4" angle stop valve | 1 |
| TSNIP-US | Tubing Cutter | 1 |
Weight & Dimensions
Height (inches) | 1.25 |
Length (inches) | 3.625 |
Weight (lbs) | 0.139 |
Width (inches) | 2.5 |
Details
Application | Water, Food, Beverage |
Body Material | Polypropylene |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Seal Material | EPDM |
Series | PP |
Color / Finish | White |
Type | Tool |
Warranty & Certifications
Certifications | NSF 61; NSF51; FDA Approved; NSF 372 |
The John Guest Installation and Service Kit is a 92 piece installation, service and repair kit that comes in a sturdy, plastic carrying case. The kit includes male connectors, female connectors, tees, elbows, unions, reducers, valves, angle stop adapters and a tubing cutter. All fittings are polypropylene.
Features:
- Great starter kit for plumbers, installers or service technicians
- 92 total pieces
- All fittings are polypropylene
- Includes tubing cutter
| Part Number | Description | Quantity |
| PP010822W | 1/4" x 1/4" male connector | 5 |
| PP011222W | 3/8" x 1/4" male connector | 5 |
| PP011223W | 3/8" x 3/8" male connector | 5 |
| PP0208W | 1/4" union tee | 5 |
| PP0212W | 3/8" union tee | 5 |
| PP0308W | 1/4" union elbow | 5 |
| PP0312W | 3/8" union elbow | 5 |
| PP0408W | 1/4" union | 5 |
| PP0412W | 3/8" union | 5 |
| PP061208W | 3/8" x 1/4" reducer stem | 5 |
| PP201208W | 3/8" x 1/4" reducing union | 5 |
| PP220808W | 1/4" x 1/4" plug-in elbow | 5 |
| PP221212W | 3/8" x 3/8" plug-in elbow | 5 |
| PP3208U7W | 1/4" x 1/4" faucet connector | 5 |
| PP3212U7W | 3/8" x 1/4" faucet connector | 5 |
| PP480822W | 1/4" x 1/4" NPTF fixed elbow | 5 |
| PP481223W | 3/8" x 3/8" NPTF fixed elbow | 5 |
| PPSV040808WP | 1/4" x 1/4" shut-off valve | 3 |
| ASVPP1LF | 3/8" x 3/8" x 1/4" angle stop valve | 2 |
| ASVPP5LF | 1/2" x 3/8" x 1/4" angle stop valve | 1 |
| TSNIP-US | Tubing Cutter | 1 |
California residents
see Prop 65 warnings
WARNING!
This product contains arsenic known to the State of California to cause cancer and birth defects or other reproductive harm.
.
WARNING!
This product contains arsenic known to the State of California to cause cancer and birth defects or other reproductive harm.
Weight & Dimensions
Height (inches) | 1.25 |
Length (inches) | 3.625 |
Weight (lbs) | 0.139 |
Width (inches) | 2.5 |
Details
Application | Water, Food, Beverage |
Body Material | Polypropylene |
Max Pressure (Psi) | 150 |
Max Temp (°F) | 140 |
Min Pressure (Psi) | 0 |
Min Temp (°F) | 33 |
Seal Material | EPDM |
Series | PP |
Color / Finish | White |
Type | Tool |
Warranty & Certifications
Certifications | NSF 61; NSF51; FDA Approved; NSF 372 |
