John Guest

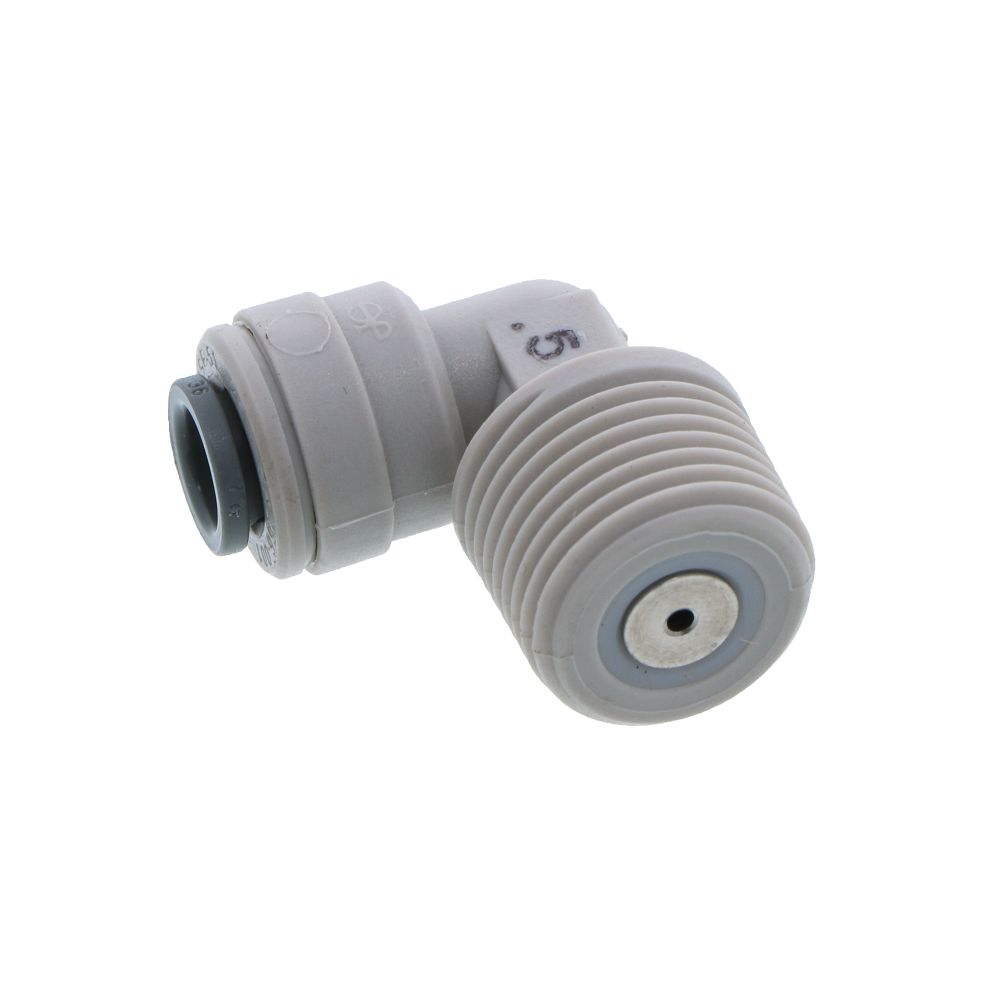

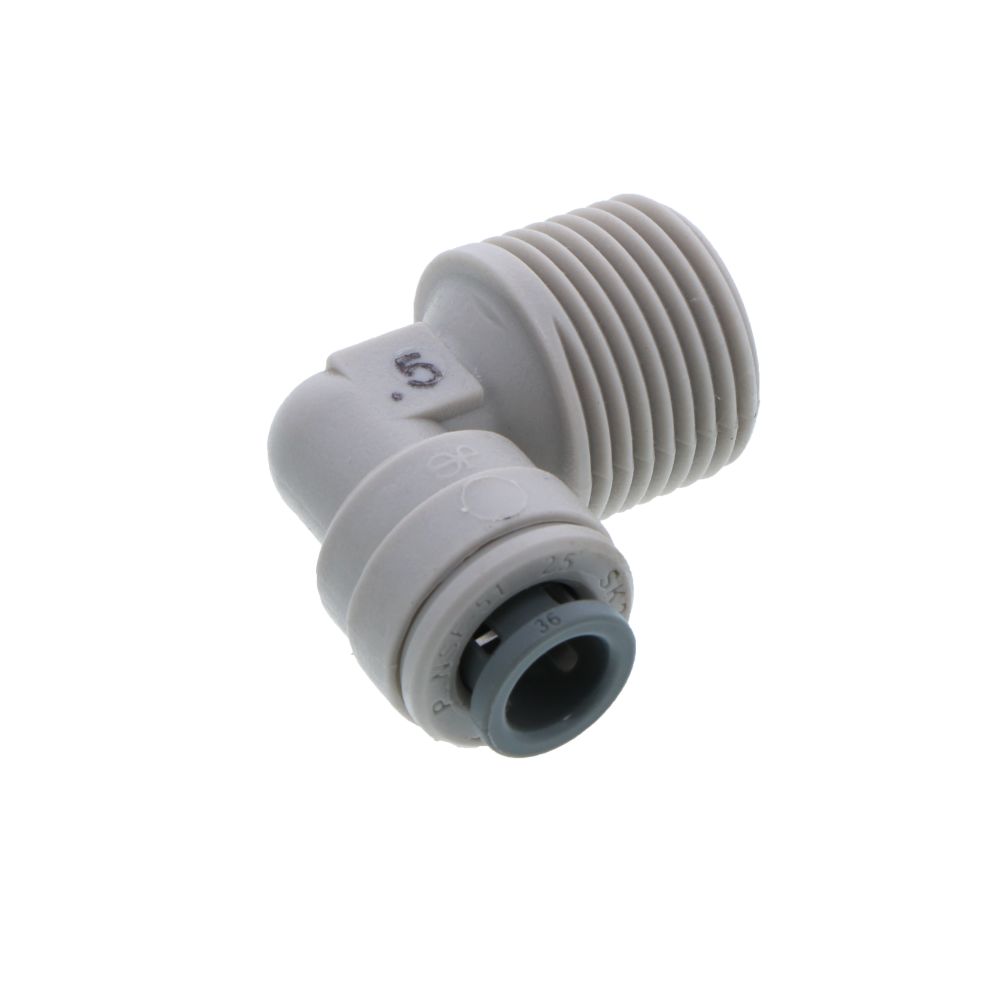

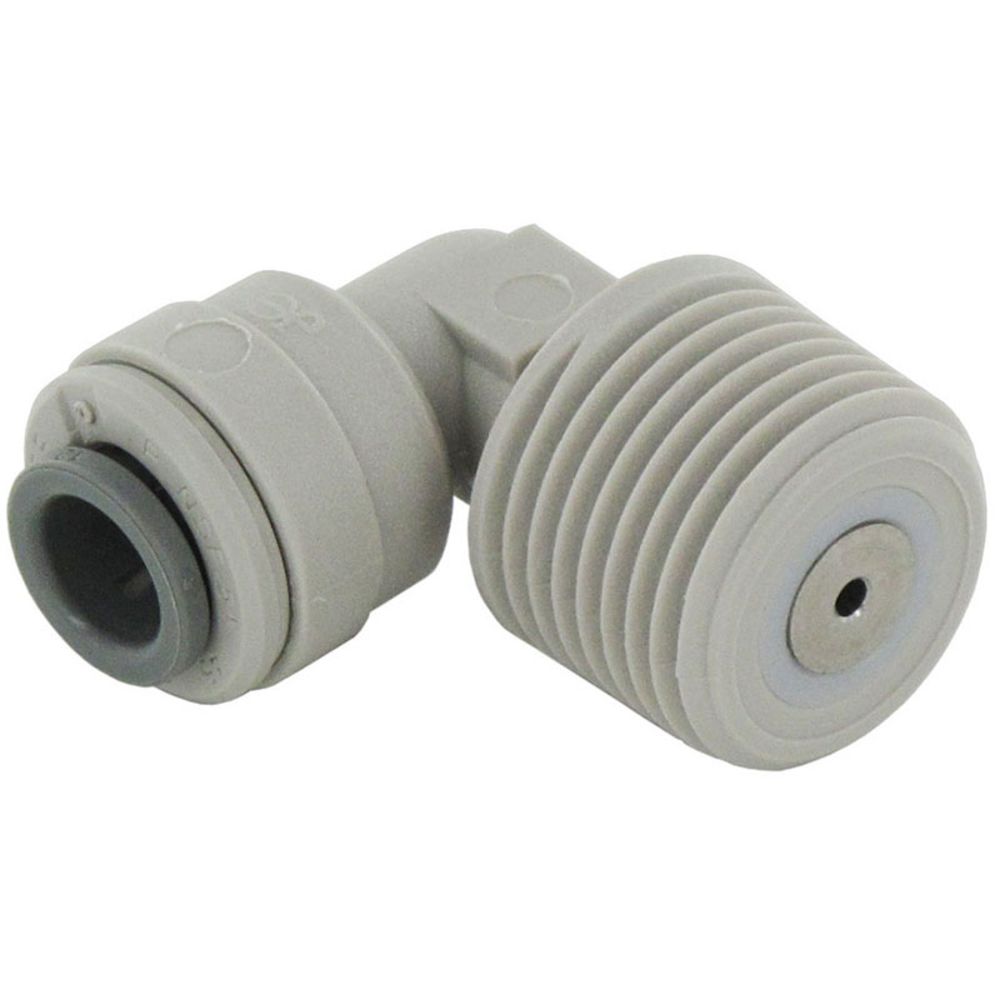

John Guest Fixed Elbow with 0.5 GPM Flow Restrictor 1/4 x 3/8 MPT

Part Number: FRC-.5GPM-PI480823S

Alt. Part Number: FRC-.5GPM

In Stock

out of stock

In Stock

$8.40


FRC-.5GPM-PI480823S is a John Guest fixed elbow fitting with a 0.5 GPM flow restrict-or. The fitting can be valuable for many water filtration systems. The elbow has a 1/4" OD quick connect fitting and  3/8" male pipe thread.

Specifications:
  • Construction: Acetal Copolymer
  • Connections: 1/4" quick connect x 3/8" MPT
  • Push-fit technology
  • O-rings: Buna-N
  • Quick disconnect without the need for tools
  • Max Pressure: 150 PSI
  • Drinking Water: NSF-61 certified
  • Food & Beverage: NSF-51 certified
  • Temperature Range: -14° F to 167° F (Air)
  • Temperature Range: 33° F to 140° F (Water)




Weight & Dimensions

Height (inches)

1

Length (inches)

1

Weight (lbs)

0.0625

Width (inches)

1

Details

Body Material

Acetal

Color / Finish

Gray

Inlet/Outlet Connection

3/8" MPT

Max Pressure (Psi)

150

Max Temp (°F)

167

Min Temp (°F)

-14

Origin

UK

O-Rings

Buna-N

Push-In Size

1/4" OD

Size

3/8"

Warranty & Certifications

Certifications

NSF 51




FRC-.5GPM-PI480823S is a John Guest fixed elbow fitting with a 0.5 GPM flow restrict-or. The fitting can be valuable for many water filtration systems. The elbow has a 1/4" OD quick connect fitting and  3/8" male pipe thread.

Specifications:
  • Construction: Acetal Copolymer
  • Connections: 1/4" quick connect x 3/8" MPT
  • Push-fit technology
  • O-rings: Buna-N
  • Quick disconnect without the need for tools
  • Max Pressure: 150 PSI
  • Drinking Water: NSF-61 certified
  • Food & Beverage: NSF-51 certified
  • Temperature Range: -14° F to 167° F (Air)
  • Temperature Range: 33° F to 140° F (Water)



California residents
see Prop 65 warnings WARNING!
This product contains arsenic known to the State of California to cause cancer and birth defects or other reproductive harm.
.

Weight & Dimensions

Height (inches)

1

Length (inches)

1

Weight (lbs)

0.0625

Width (inches)

1

Details

Body Material

Acetal

Color / Finish

Gray

Inlet/Outlet Connection

3/8" MPT

Max Pressure (Psi)

150

Max Temp (°F)

167

Min Temp (°F)

-14

Origin

UK

O-Rings

Buna-N

Push-In Size

1/4" OD

Size

3/8"

Warranty & Certifications

Certifications

NSF 51
